Description
Description
- Cameos STUDIO PAR 4 G2 offers 12 x 8 W 4-in-1 RGBW LED with 4.700 lm brightness
- Offers you efficiency, intuitive control and wireless control
- Enormous ease of use

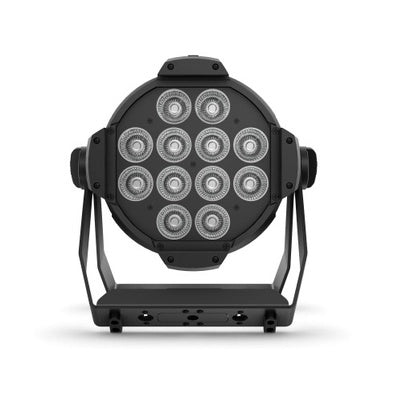

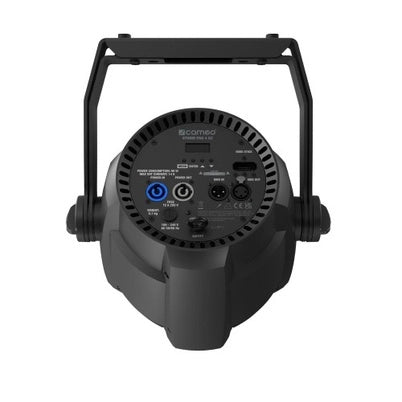

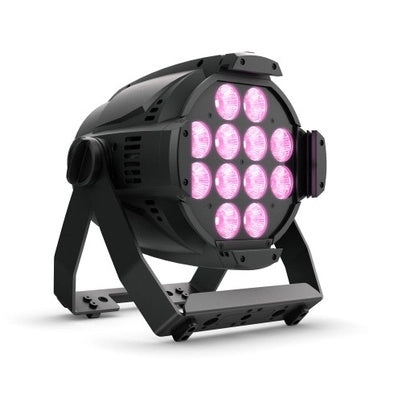

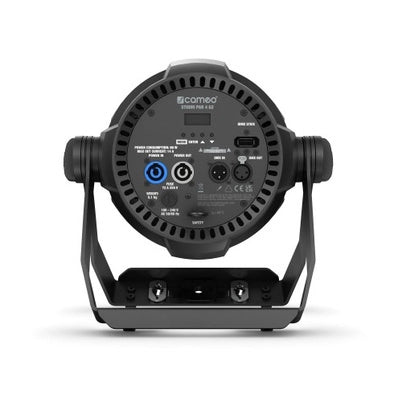

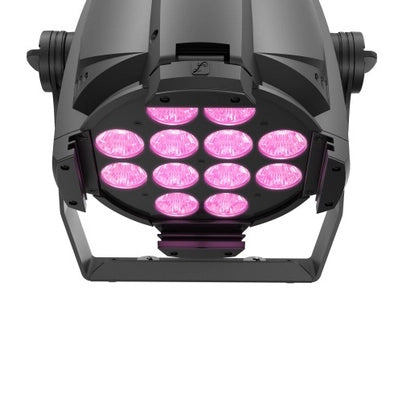

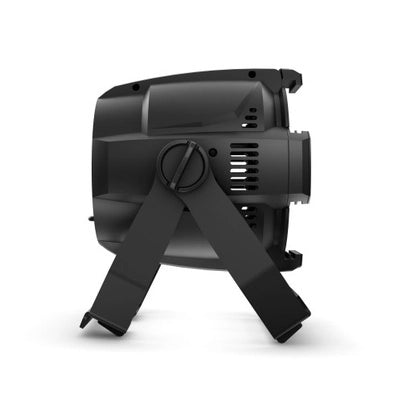

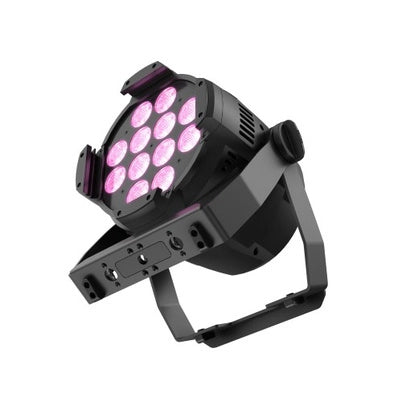

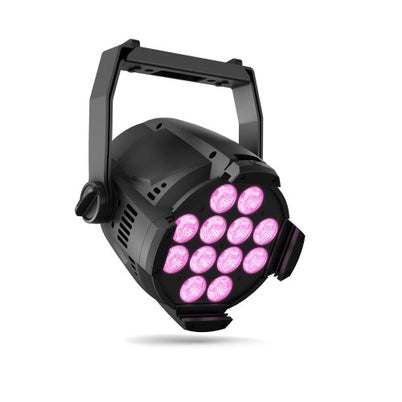

Cameo STUDIO PAR 4 G2 LED Lamp
- Make it easy illuminate an entire environment with this stunning 12 x 8 W 4-in-1 RGBW LED with 4,700 lm brightness
- Cameo has had the design through extensive optimisation, so the user gets a product that is not only efficient, but also easy to use.
- Thanks to the adjustable pulse width modulation (up to 25 kHz) for flicker-free drift, you can count on a great yield without compromising on quality
- Installation is easy and intuitive with a holding system designed to fit colour filter frames
- Get wireless control using the Cameo iDMX Stick
- Configuration is simple thanks to the user-friendly OLED screen
- PowerCON-compatible power connector provides additional flexibility
Technical specifications
Technical specifications
Produkttype: LED PAR belysning
Type: Studie PAR
Farvespektrum: RGBW
Antal lysdioder: 12
LED type: 4 i 1 RGBW 8 W SMD LED
Lysstrøm: 4700 lm
Spredning: Strålevinkel: 19°, Feltvinkel: 27°
Linse: 12 x akryl linse
LED PWM-frekvens: 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Lysdæmper opløsning: 16 bit
Lysdæmpende kurver: Eksponetial, lineær, logaritmisk, kvadratisk
Strobe: 0 - 20 Hz
CRI: >72 Ra
DMX indgang: 3-Pol, iDMX slot
DMX udgang: 3-Pol
DMX-tilstand: 1-kanal, 10-kanal, 14-kanal, 3-kanal, 4-kanal, 6-kanal, 8-kanal
DMX funktioner: farvemakro, Enhedsindstillinger, Dimmer, Dimmer Curve, EZ-Chase, RGBW, strobe
Standalone tilstande: Auto-tilstand, statisk
Systemindstillinger: Kalibrering, Standardindstillinger, Lysdæmper, Lysdæmperrespons, Display, Ventilatortilstand, LED PWM-frekvens, Signalfejl, Trådløs
Kontrolelementer: 4 x knapper, ned, Enter, menu, op
Indikatorer: OLED skærm
Relativ luftfugtighed: < 80 %, ikke kondenserende
Beskyttelsesklasse IP: IP20
Omgivelsestemperatur (drift): -10 - 40 °C
Køling: Konvektion, støjsvag ventilator
Driftsspænding: 100 V AC - 240 V AC, 50 - 60 Hz
Strømstik: PowerCon Blue I/O
Sikring: T2A
Maks. Strømforbrug: 90 W
Boliger: Trykstøbt aluminium
Skabs overflade: Pulverlakeret
Skab farve: Sort
Højde: 360 mm
Bredde: 310 mm
Dybde: 250 mm
Vægt: 5,1 kg
