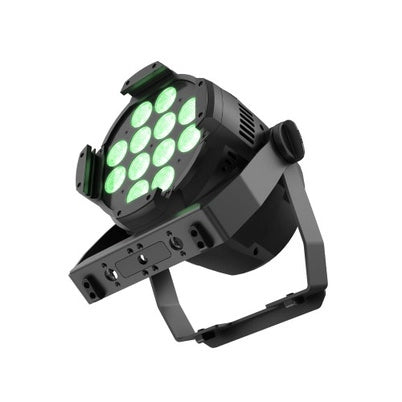

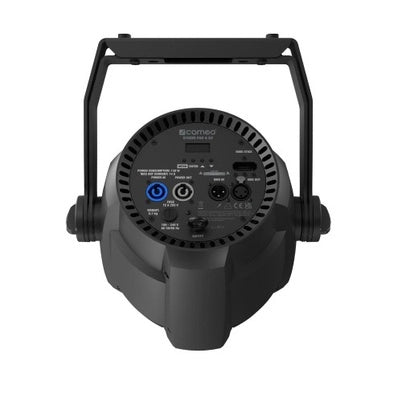

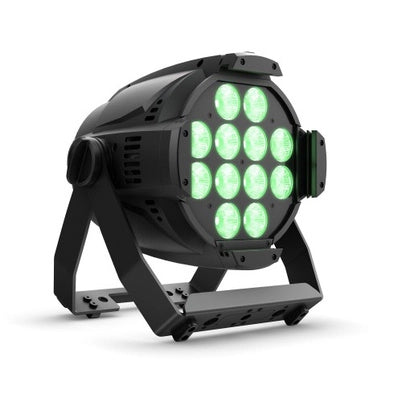

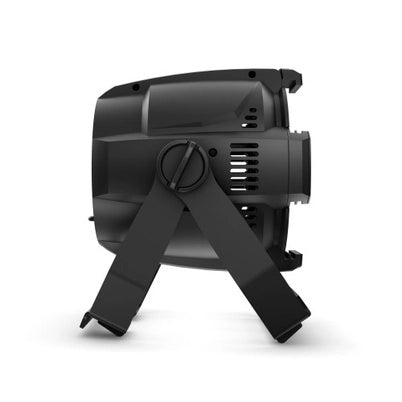

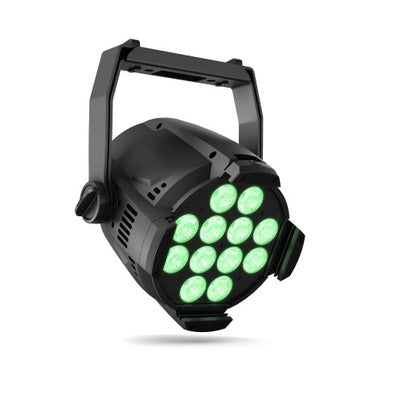

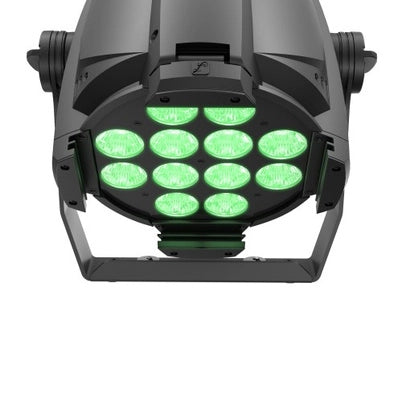

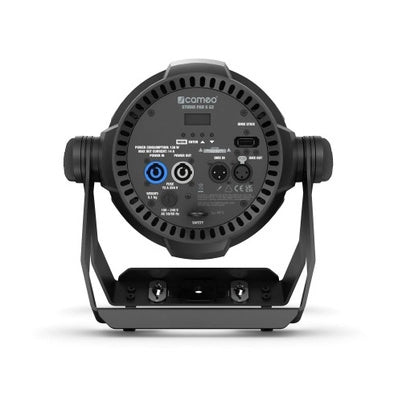

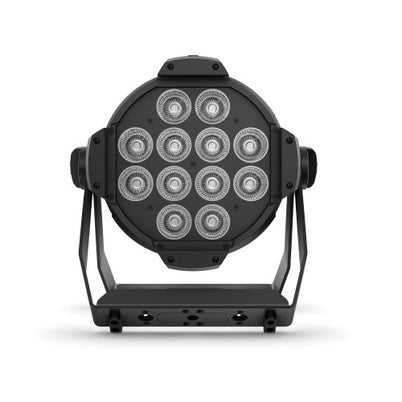

Cameo STUDIO PAR 6 G2

• Exquisite parlamp from the renowned manufacturer Cameo
• The lamp offers elegant and bright light
• Easy to set up

Cameo STUDIO PAR 6 G2 LED Lamp

• Cameo W-DMX 6-in-1 LED panel allows you to create a flicker-free lighting experience
• 12 x 12 W
• User-friendly design with a hold-down mechanism for colour filter frames makes it easy to configure with the OLED display
• A PowerCON compatible power connector
• The panel has a luminous flux of 4,700 lm
• A selective pulse width modulation (up to 25 kHz).

Product type: LED PAR lighting
Type: studio PAR
Colour spectrum: RGBWA + UV
Number of LEDs: 12
LED type: 6i1 RGBAWUV 12 W SMD LED
Luminous flux: 4700 lm
Spread: Beam angle: 21°, Field angle: 35°
Lens: 12 x acrylic lens
LED PWM frequency: 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
Dimmer resolution: 16 bit
Dimming curves: exponential, linear, logarithmic, quadratic
Strobe: 0 - 20 Hz
CRI: >74 Ra
DMX input: 3-Pin, iDMX slot
DMX output: 3-Pin
DMX mode: 1-channel, 10-channel, 12-channel, 14-channel, 18-channel, 3-channel, 4-channel, 6-channel, 9-channel
DMX functions: Color Macro, Device Settings, Dimmer, Dimmer Curve, EZ-Chase, RGBWA, Strobe, UV
Standalone Modes: Auto Mode, Static
System Settings: Calibration, Default Settings, Dimmer, Dimmer Response, Display, Fan Mode, LED PWM Frequency, Signal Error, Wireless
Controls: 4 x buttons, down, enter, menu, up
Indicators: OLED display
Relative humidity: < 80%, non-condensing
Protection class IP :IP20
Ambient temperature (drift): -10 - 40 °C
Cooling: Convection, low-noise fan
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power connector: PowerCon Blue I/O
Fuse: T2A
Max. Power consumption: 125 W
Housing: Die-cast aluminium
Cabinet surface: Powder-coated
Cabinet colour: Black
Height: 360 mm
Width: 310 mm
Depth: 250 mm
Weight: 5.1 kg
