Intro – what are Rack Panels for DJ and audio, and why are they smart?
Rack Panels are pre-built panels for power, signal and data that bring all your connections together in one clear place. Instead of loose cables coming out of the back of your DJ booth, mixer or rack, you get a professional Rack Panel mounted in your flightcase or rack. At SoundStoreXL you’ll find Rack Panels for DJ booths, rack panels for XLR and other connector types, as well as practical accessories such as covers and stickers for clear labelling. Everything is developed with a focus on professional and semi-professional users who want control over power, audio, network and USB – without cable clutter.
SoundStoreXL offers, among other things, custom Rack Panels for popular DJ controllers and mixers, rack panels for universal D-type XLR connectors, as well as accessories to customise and organise your Rack Panels. This means you can build a solution that fits your DJ booth, your studio desk or your mobile audio setup precisely.
How to choose the right Rack Panel
When choosing a Rack Panel, it’s all about matching your actual setup: Which DJ booth or mixer are you using, how many outputs and inputs do you need, and which connector types do you need access to on the front of your rack or flightcase. A Rack Panel for a DJ booth typically needs to handle both power, main output, booth, microphone, possibly several phono inputs, network and USB.
At SoundStoreXL, you can choose between pre-built custom Rack Panels designed for specific controllers, or more general rack panels that you can fit with exactly the XLR modules and covers you want. In addition, you can add label stickers to mark channels, network, DMX and other functions, so you can always see what’s what – even in the dark backstage.
Types of Rack Panels for DJ, audio and installation
- Custom Rack Panels for specific DJ controllers and booths
- General 19" Rack Panels for rack mounting with power and signal
- Rack panels with punched holes for D-type XLR chassis
- Plastic covers (blanking plates) for unused XLR holes
- Sticker sheets for clear labelling of Rack Panels and mixers
The different types make it possible either to choose a fully finished solution or build your own panel from scratch. Custom Rack Panels are ideal if you want plug-and-play at your DJ booth, while rack panels with D-type holes are great for fixed installations and more flexible solutions.
Custom Rack Panels for DJ booth – plug-and-play for professionals
Custom rack panels are pre-built, fully tested panels that are ready for mounting in a flightcase or rack. At SoundStoreXL you will find several models designed for popular DJ setups. They are supplied with pre-wired connections for power, XLR, phono, USB and network, so you only need to connect your outputs once on the inside—after that, you work only from the front of the panel.
A typical custom rack panel for a DJ booth includes, for example, PowerCon for connecting power to an internal power strip, multiple XLR outputs for main and booth, XLR for microphone, phono inputs for additional sources, a network feed-through, as well as USB or USB-C for computer connection. This makes setup on gigs significantly faster and minimises the risk of pulling the wrong cables.
Examples of rack panels at SoundStoreXL

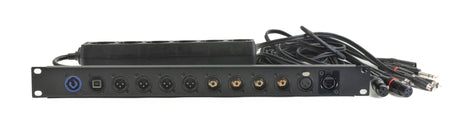

- Custom rack panel MK3 for DJ booth with PowerCon in/out, XLR master and booth, microphone input, network, USB and RCA/phono

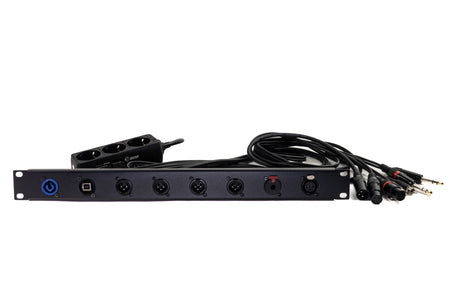

- Custom rack panel MK2 for XDJ-RX3 with PowerCon in, XLR main, XLR to balanced jack for booth, microphone input, USB-B and stereo jack for phono

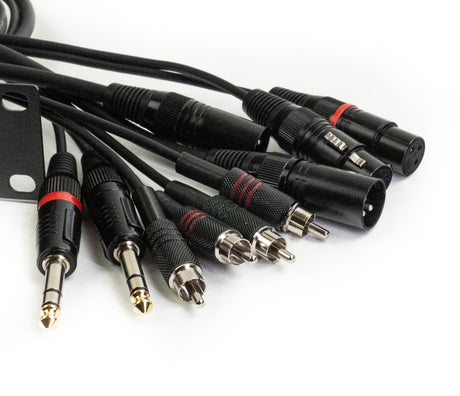

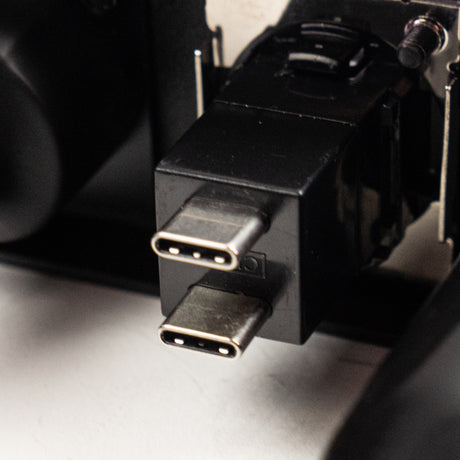

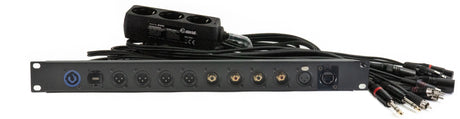

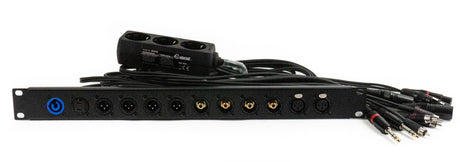

- Custom rack panel for XDJ-AZ with PowerCon in/out, XLR master and booth, microphone input, network, two sets of RCA/phono plus USB-C connection
- Custom rack panel MK4 for DDJ-FLX10 with PowerCon in, four XLR outputs, XLR microphone input, XLR DMX output, two phono inputs and USB-C

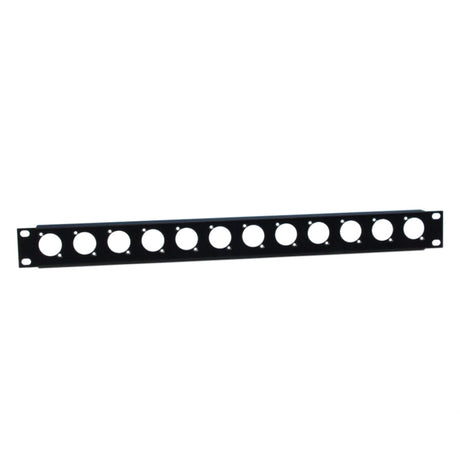

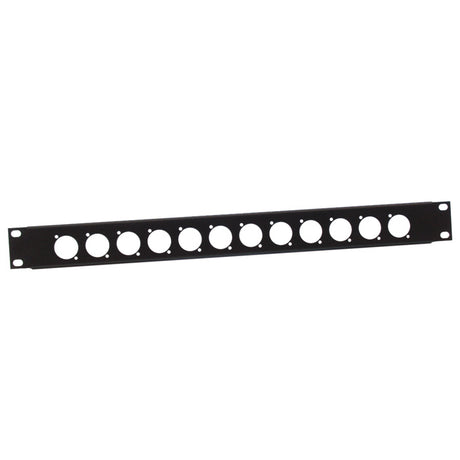

- U-shaped rack panel for 24 D-type XLR chassis for flexible building of your own rack panels
- Plastic covers for unused XLR holes, so the panel has a finished and closed look
- Sticker sheets for labelling rack panels, wireless systems, mixers and DJ equipment
With these options, you can either choose a solution that fits your controller directly, or build your own rack panel with exactly the modules you need. This provides both flexibility and a very professional setup.
Benefits of gathering connections in a panel by the DJ booth
A well-functioning rack panel provides overview and security in your setup, whether you work as a mobile DJ, a permanently installed club DJ, a technician or a sound engineer on small to medium-sized productions. By gathering all important sockets and connections in one panel, you gain a number of practical day-to-day benefits.
- Faster setup and pack-down on gigs
- Less wear on the equipment’s original sockets and connectors
- Fewer cables hanging down and pulling on the DJ booth or mixer
- Easy and clear troubleshooting if something is not working
- Professional and tidy appearance at the front and back of the DJ booth
- Option for permanent labelling of all signal paths
That is why rack panels are particularly suitable for those of you who often move equipment, or where several technicians and DJs need to be able to understand and operate the setup without knowing all the details in advance.
Functions and connections in rack panels for DJ use
Rack Panels for DJ and audio use at SoundStoreXL are put together with a focus on the most important connections in a modern DJ setup. This includes power, audio, networking and computer connectivity. Below are some of the most typical features you will find across the different patch panels.
- PowerCon input for connecting 230V to an internal power strip
- PowerCon output for power pass-through in your rack
- XLR master outputs to the main PA
- XLR to balanced jack for booth or monitor speakers
- XLR microphone input for a DJ or conference microphone
- RCA/phono inputs and outputs for additional audio sources or an extra master
- Network port (Cat/LAN) for e.g. lighting systems or DJ equipment with networking
- USB or USB-C connection to computer and DJ software
- DMX output on selected models for lighting control
A major advantage of these patch panels is that they are pre-wired internally with suitable cable lengths and connector types, so you avoid DIY solutions and loose cables that can introduce noise or faults. The panel is ready to be mounted and put into use immediately.
Rack panels for XLR – build your own patch panel
In addition to complete patch panels, you will also find more neutral rack panels prepared for D-type XLR chassis connectors. This allows you to assemble a panel with exactly the modules you want, for example combinations of XLR, jack, Speakon, etherCON, power or other compatible D-type connectors. A U-shaped rack panel provides extra stability and space for rear cable routing.
Together with universal plastic covers, you can close off unused holes, giving you the option to expand later without compromising on appearance and safety. That way, your patch panel can grow along with your setup and your needs, without having to replace the entire panel.
Accessories for Rack Panels – covers and labelling
A patch panel only becomes truly user-friendly when all connections are clearly labelled and unused holes are covered. SoundStoreXL offers both covers for standard D-type XLR holes and complete sticker sheets designed for DJ and audio use.
- Plastic blanking plates for D-type XLR holes, so unused openings are neatly closed
- Stickers for Rack Panels with texts such as MASTER, BOOTH, DMX, NETWORK, CH1-CH4 etc.
- Labels for wireless microphones and headsets, so you can keep track of channels
- Labels for mixers and controllers with e.g. USB, LINE IN, AUX, MUSIC, MUTE and POWER
When you combine a well-chosen patch panel with clear labelling, it becomes much easier for both you and others to set up the equipment correctly every time. That means fewer mistakes and a calmer working day at the desk.
Who are Rack Panels ideal for?
Rack Panels are relevant for anyone working with audio and DJ equipment, but they really come into their own in setups where equipment is frequently moved, or where multiple users share the installation. Many of SoundStoreXL’s Rack Panels are directly aimed at DJs, but can just as easily be used by technicians and audio professionals with similar needs.
- Mobile DJs with flightcases and rack solutions
- Clubs, bars and venues with fixed DJ booths
- Event companies and rental companies
- Sound engineers at smaller stages and cultural venues
- Studios and rehearsal rooms where easy connection is needed
Common to everyone is the desire for a more reliable and easy-to-use setup. A good patch panel reduces the number of potential fault points and makes it simple to connect and disconnect, regardless of who is behind the booth.
How to plan your patch panel for the DJ booth
Before you order a patch panel, it’s a good idea to get an overview of all the connections you normally use—both now and in the future. Make a simple list of your outputs and any additional needs, so you can match them to the solutions SoundStoreXL offers.
- Note which DJ controller or mixer you use
- Make a list of all audio outputs (main, booth, any additional master)
- Think about microphone requirements and any additional inputs
- Plan network connections if your equipment uses LAN
- Consider how many phono inputs you actually need
- Decide on a USB or USB-C connection to your computer
- Decide whether you also want to route DMX for lighting via the panel
With this list in hand, it’s easier to choose between the different custom Rack Panels or assess whether you should build your own solution with a D-type rack panel. If you have any questions, SoundStoreXL’s customer service will be happy to help clarify which panel best suits your setup.
Installation and practical use of Rack Panels
The Rack Panels you’ll find at SoundStoreXL are designed for the standard 19" rack format and typically come with screws for mounting. Custom Rack Panels for DJ booths are prepared to be mounted directly into your flightcase in front of or behind your controller. This makes installation straightforward, even if you don’t build racks on a daily basis.
- Mount the panel in the desired 19" rack opening in the flightcase
- Connect the PowerCon from the panel to your internal power strip
- Connect XLR, jack, phono, USB and network cables from the panel to your DJ booth
- Secure the cables on the inside so they don’t hang loose and put strain on the connectors
- Label all connections with stickers for quick identification
Once you’ve done the internal wiring once, from then on you only work with the outside of the Rack Panel. When you arrive at a gig, you simply connect power, XLR to the PA, any network, and USB to your computer. The rest is already connected internally.
Maintenance and troubleshooting for Rack Panels
Rack Panels don’t require much maintenance, but as with any other audio gear it’s a good idea to keep an eye on connectors and cables on an ongoing basis. Especially if you’re often on the move, connectors can be put under strain and cables can work loose. A simple routine can significantly extend service life.
- Carry out regular visual inspections of connectors and cables
- Check that screws and nuts on connectors are tight
- Clean contact surfaces with suitable connector cleaning products
- Replace worn or damaged cables immediately
- Make sure that PowerCon connectors lock correctly and don’t wobble
If a signal disappears, the Rack Panel is a logical place to start troubleshooting. Because all connections are gathered in one place, it’s quick to test one output at a time without having to rummage around behind your DJ booth or mixer.
Software and compatibility with DJ equipment
The Rack Panels in this category handle the physical connection of power, audio and data, and are therefore independent of which DJ software or audio program you prefer. The USB and USB-C connections on the custom Rack Panels function as feed-throughs, so you can connect your computer to the controller without having the USB cable hanging directly from the back of the DJ booth.
This makes the Rack Panels compatible with most modern DJ controllers and audio interfaces, as long as you use the correct connector types. Just make sure to choose a Rack Panel where the number and type of USB, XLR and phono connections match your controller and the rest of your equipment.
Price and value – what does a good Rack Panel cost?
The price of Rack Panels depends on whether you choose a fully custom panel or a simpler rack panel you populate yourself. A ready-made Rack Panel for a DJ booth with PowerCon, XLR, phono, network and USB costs more than an empty rack panel, but you save time, reduce potential error sources and avoid the need for specialised tools and soldering work.
A U-shaped rack panel for D-type XLR chassis connectors and individual plastic covers is a budget-friendly solution if you want to build and customise your Rack Panel step by step yourself. For many users, however, it is an advantage to choose a thoroughly tested custom Rack Panel that is ready to use and assembled specifically for their DJ controller. That way, you get a professional solution from day one and minimise the risk of something being connected incorrectly.
FAQ – frequently asked questions about Rack Panels
Below you’ll find answers to some of the most common questions about patch panels for DJ and audio. The answers are based on the specific products and solutions you can find at SoundStoreXL.
Should I choose a specific patch panel for my DJ controller or a general rack panel?
If you use one of the controllers that SoundStoreXL offers custom patch panels for, it’s often the easiest solution. The panel is pre-wired and designed for exactly the setup you have. If you have a more mixed setup or special requirements, a general 19" rack panel for D-type XLR connectors can be ideal. Here you build it yourself, but in return you get maximum flexibility.
Can I install a patch panel in my flightcase myself?
Yes, most DJs and technicians can install a patch panel themselves, as the panels fit standard 19" rack holes, and the custom models are supplied ready for installation. You just need to screw the panel in place, connect the internal cables to your DJ booth, and ensure that the PowerCon and power strip are connected correctly. If you are unsure about the power connection, you should consult a qualified professional.
What if I need more connections later?
If you choose a panel with extra space or a rack panel for D-type connectors, you can often add more modules later. Unused holes can be temporarily covered with plastic covers, which can easily be removed again when you expand. If you use custom patch panels, you can also supplement with additional rack panels in the same flightcase.
Are the patch panels robust enough for mobile use?
Yes, the patch panels at SoundStoreXL are specifically designed for professional use at gigs, in touring setups and in fixed installations. The panels are made for 19" rack mounting, most in metal with solid connectors and feed-throughs. Once mounted correctly, they are well suited to frequent transport and repeated use.
Buy your patch panels at SoundStoreXL
With a well-designed patch panel, you get a more professional, reliable and tidy setup – whether you’re a mobile DJ, permanently installed in a club, or responsible for sound in a smaller venue. In SoundStoreXL’s range you’ll find both custom patch panels for popular DJ controllers, flexible rack panels for XLR, and accessories such as covers and stickers that make it easy to keep track of your connections.
If you need advice choosing a patch panel, we’ll be happy to help you find the solution that matches your equipment and the way you work. Explore the category, compare the different custom models and rack panels, and put together exactly the patch panel setup that fits you and your gigs. Buy your patch panel solution at SoundStoreXL – a 100% Danish retailer.
