What is a DMX terminator
DMX terminators are crucial components in any DMX-based lighting control system, as they help ensure stable data transmission. Without a DMX terminator, signal reflections can occur, which can disrupt the control of the lights. I will explain what a DMX terminator is, why it is important, and how to choose the right DMX terminator for your equipment.
How does a DMX terminator work?
A DMX terminator is essentially a 120-ohm resistor placed between pin 2 and pin 3 in a DMX connector. This ensures that the signal is properly terminated at the end of the DMX chain and prevents it from being reflected back through the DMX cables. This is especially important in large lighting setups where signal integrity must be maintained to avoid unwanted effects such as flickering Lights.
What types of DMX terminators are there?

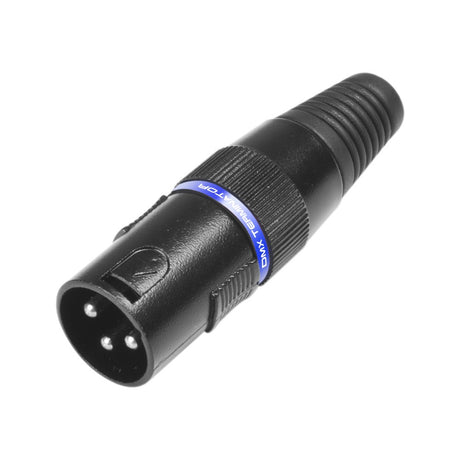

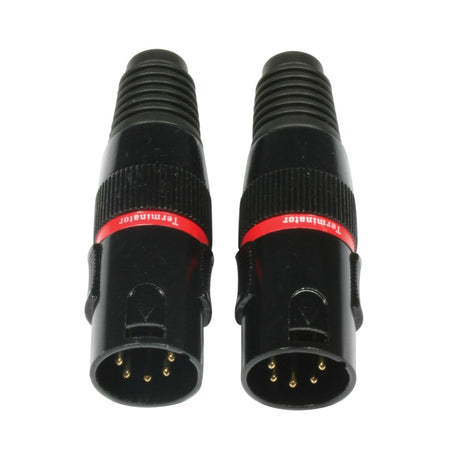

DMX terminators come in both 3-pin and 5-pin versions, depending on the equipment you are using. Most standard DMX systems use 3-pin versions, while some more advanced setups require 5-pin. It is important to choose the terminator that fits your equipment to ensure proper functionality.
Installation and use of DMX terminator
Installing a DMX terminator is a simple process. The terminator is inserted into the last DMX-out port on the last device in the chain. It is important to check that all cables and connections are correct and that the terminator is well seated to ensure optimal signal strength. If you have a complex setup with multiple DMX universes, it may be necessary to use multiple terminators.
When is a DMX terminator necessary?
In large or complex setups where DMX splitters or multiple DMX universes are needed, it may be necessary to use multiple terminators. This helps ensure that signal integrity is maintained across all devices and segments of the DMX network. Without proper termination, signal noise can occur, leading to unpredictable issues with lighting control.
Troubleshooting and using a DMX terminator
If you experience issues such as flickering Lights or irregular changes in your lighting setup, lack of termination may be the cause. Adding a DMX terminator can often resolve these issues by eliminating reflections and signal noise. For larger setups, it may be beneficial to test with multiple terminators to find the best solution.
Choosing the right DMX terminator and understanding its functions is crucial for achieving stable and reliable lighting control. By selecting the correct type, installing it properly, and applying it in complex setups, you can ensure optimal performance of your lighting equipment.
