Description
Description
- StudioMate IN2 audio interface is equipped with 2 microphone preamps and USB
- Equipped with smart gain halo, which indicates the strength of your signal with lights around the gain knobs
- Created with a plug n play design so it's easy to get started
- StudioMate is a Danish brand with a focus on high quality and great service.

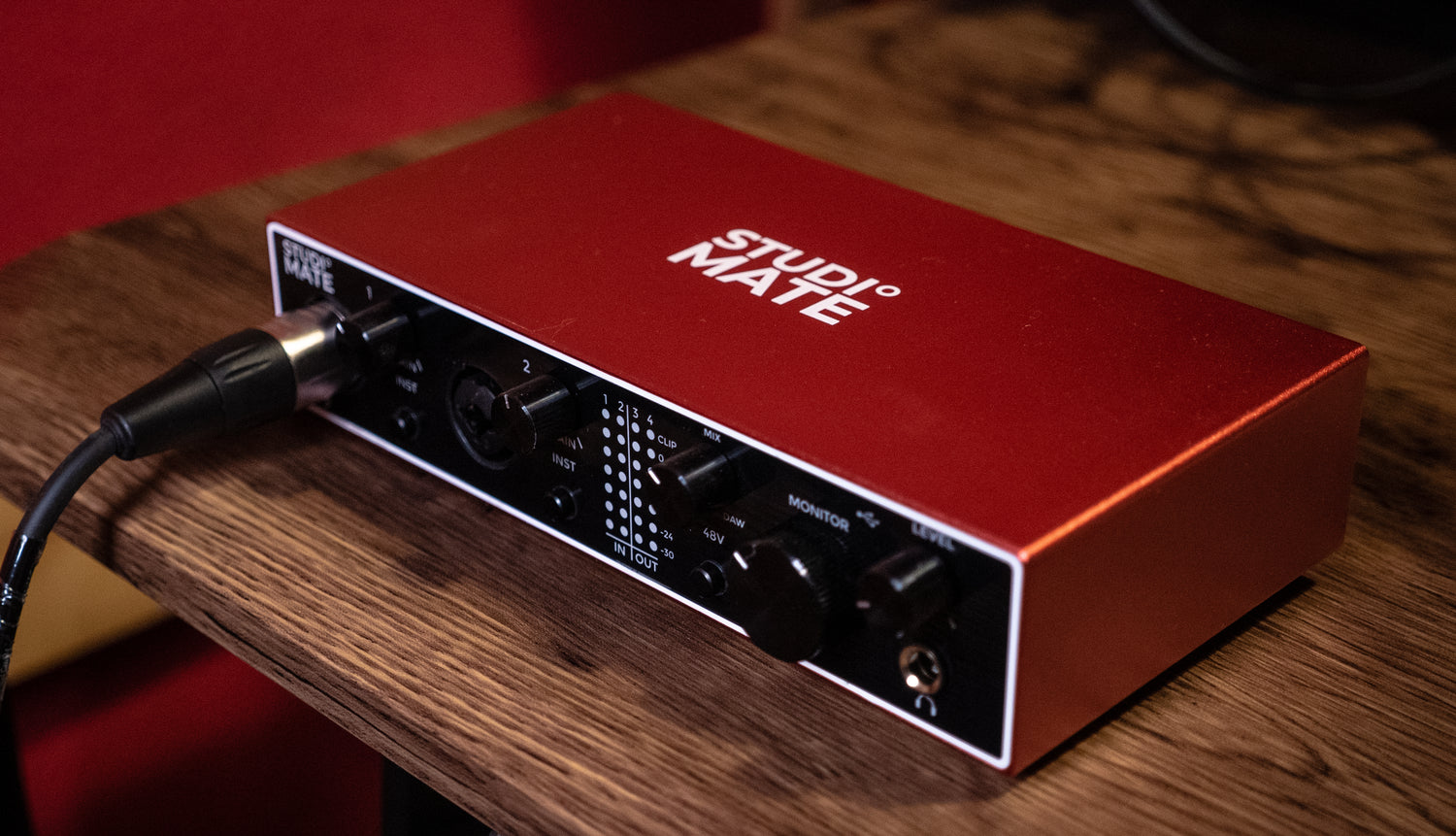

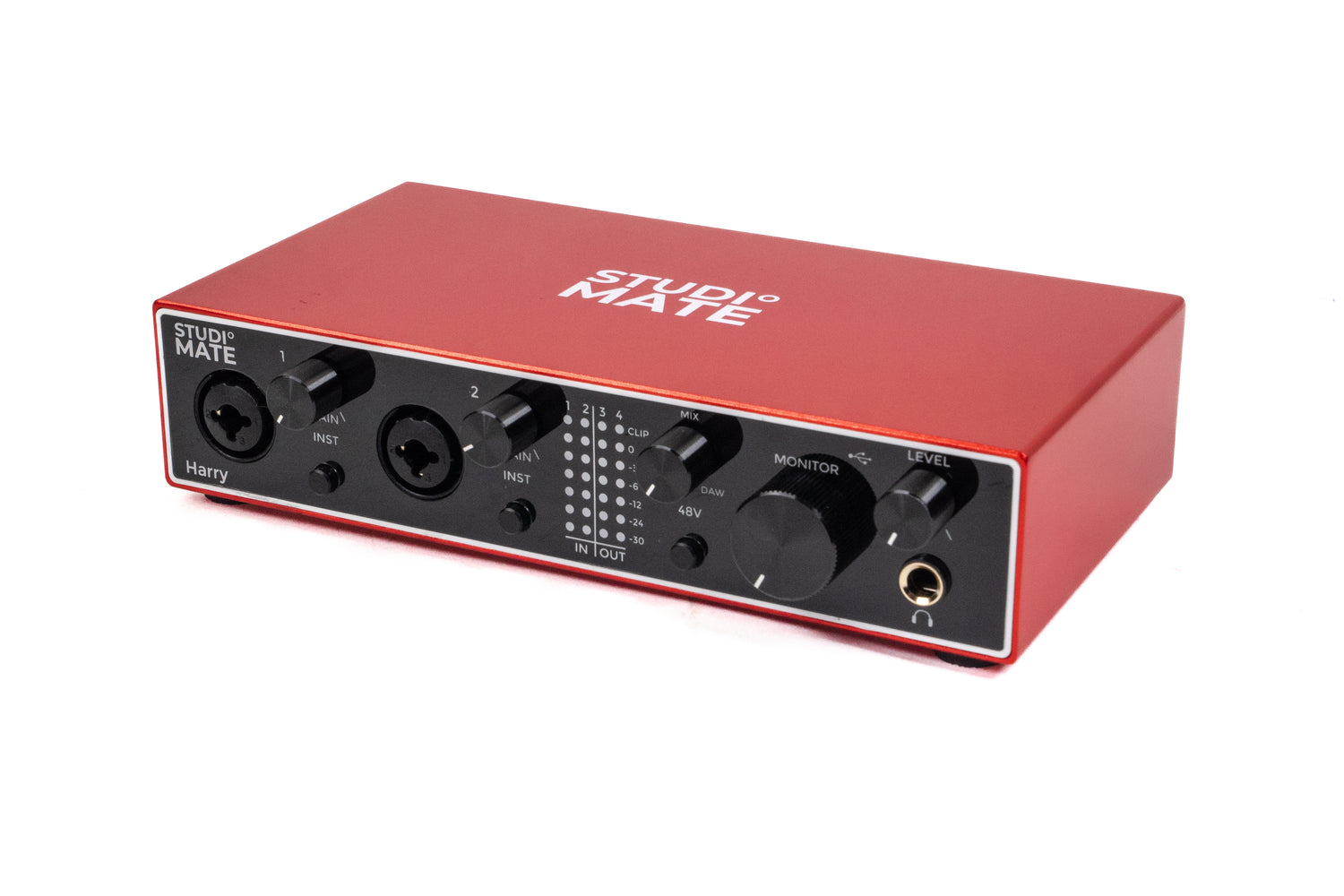

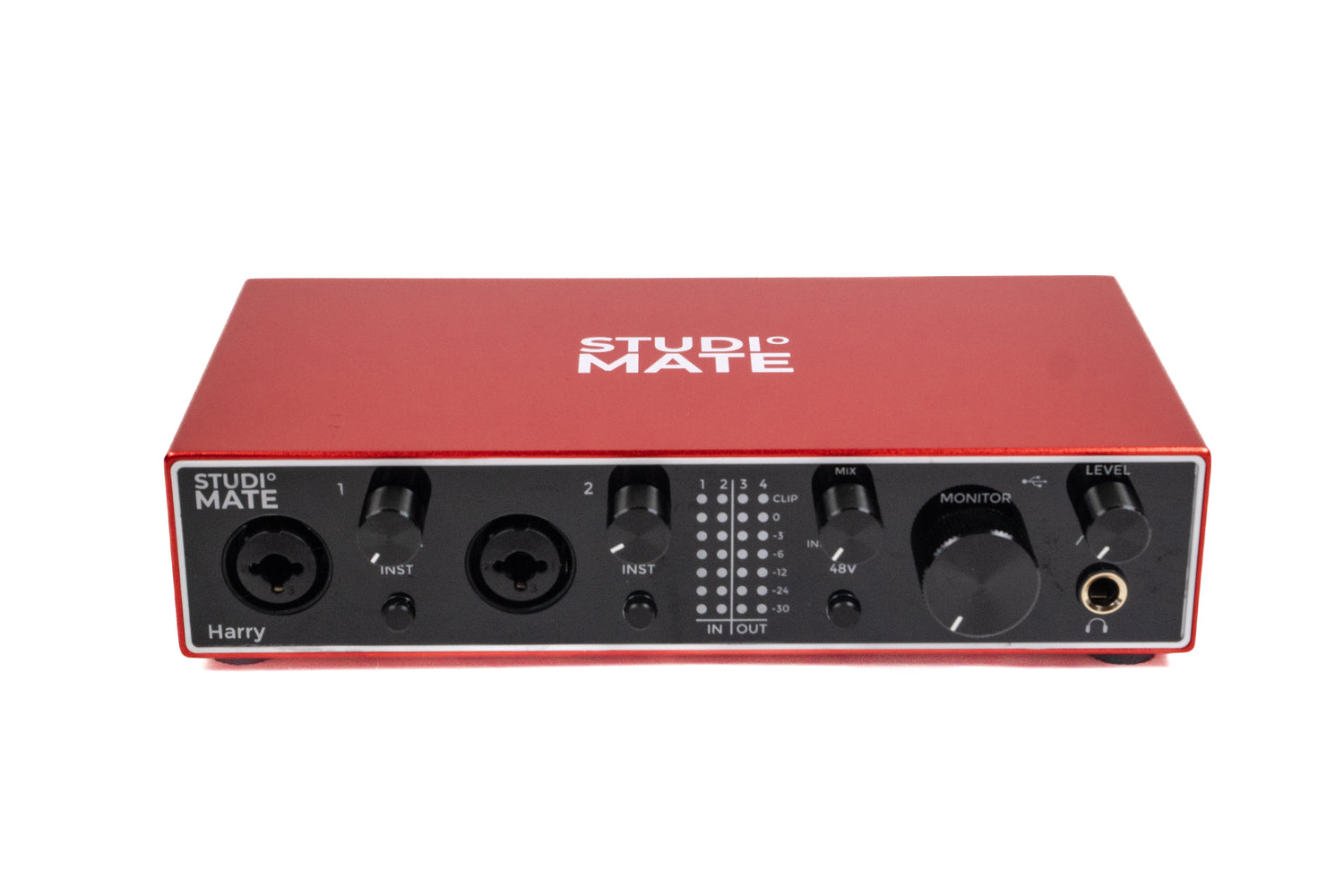

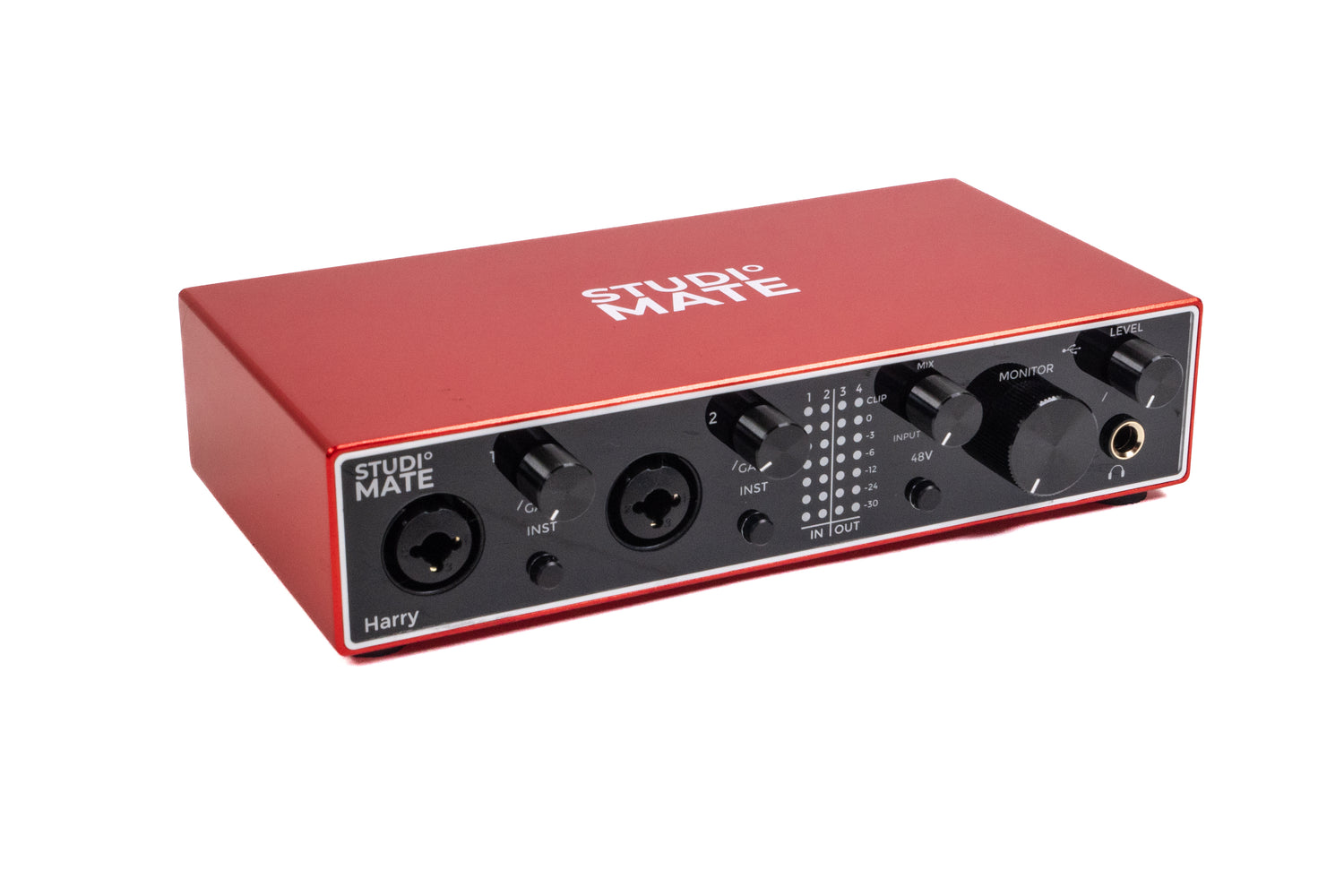

StudioMate IN2 audio interface

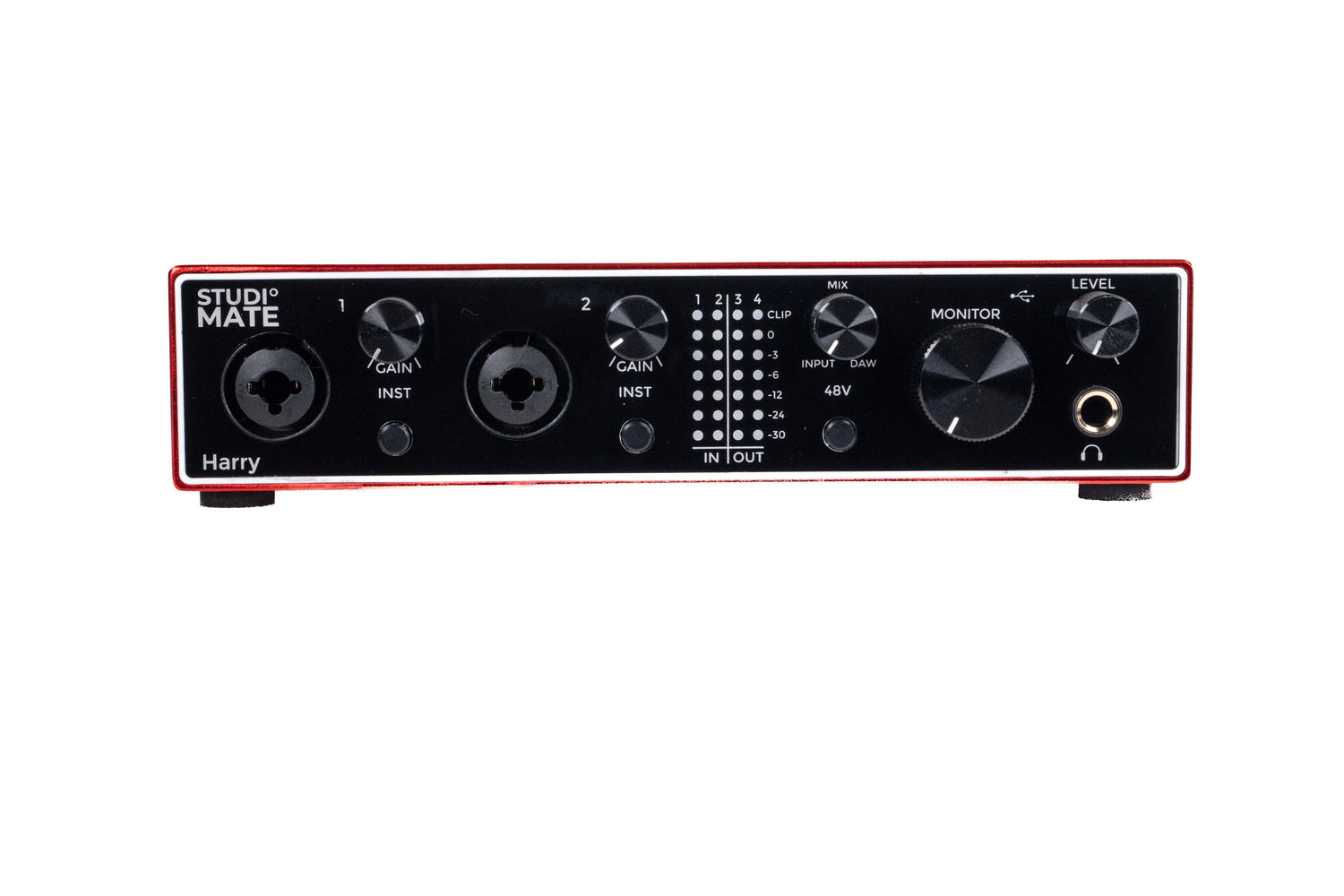

- USB sound card with two combo inputs that can be used for both two microphones and line signals.
- Xlr/jack combo inputs.
- The smart gain halo indicates the volume of your signal to avoid overdriving the preamp.
- Plug'n'play installation.
- One input has a Hi-Z switch that allows you to plug an electric guitar or bass directly into the jack input.
- The monitor mix knob lets you control the balance between the signal from the two inputs and

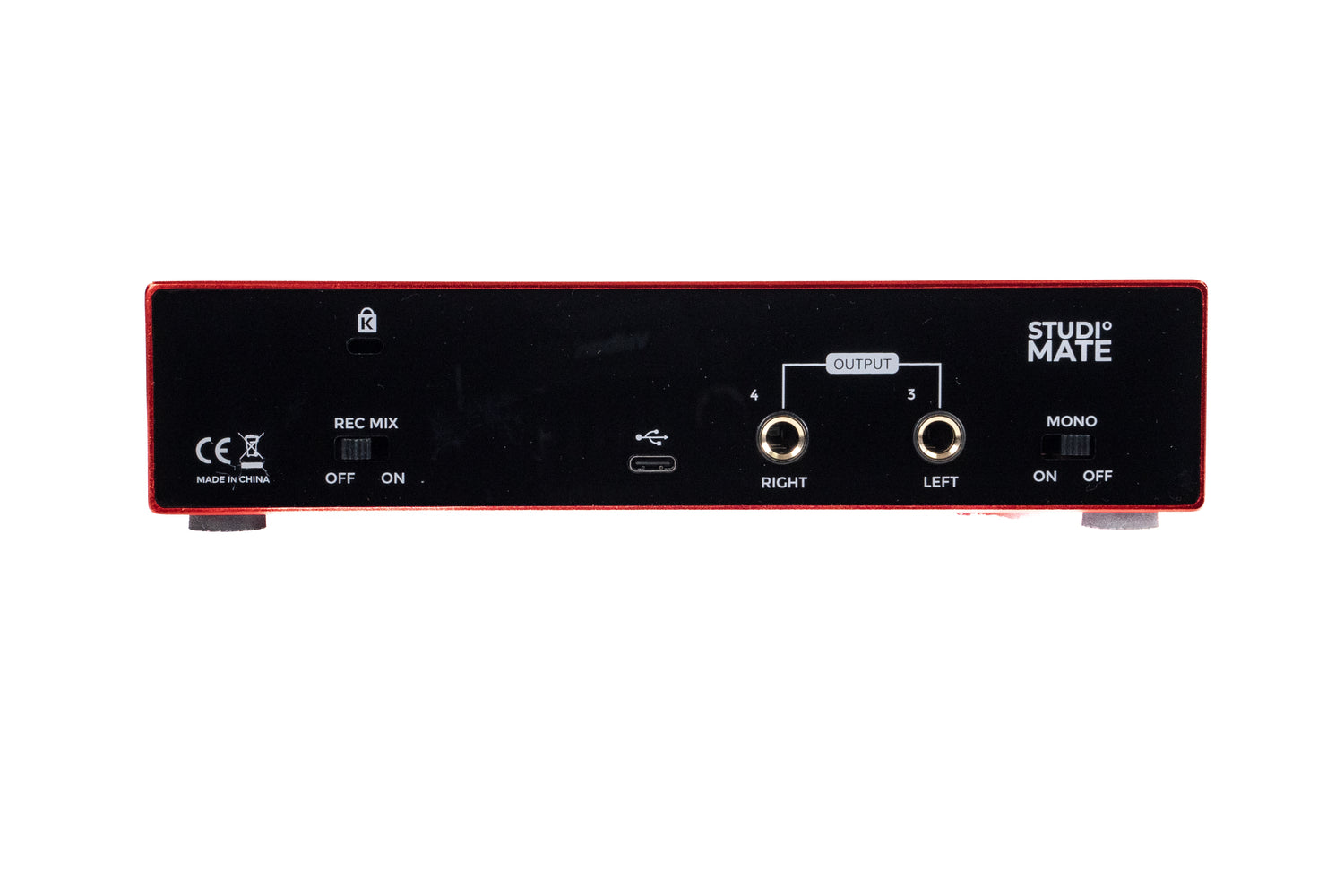

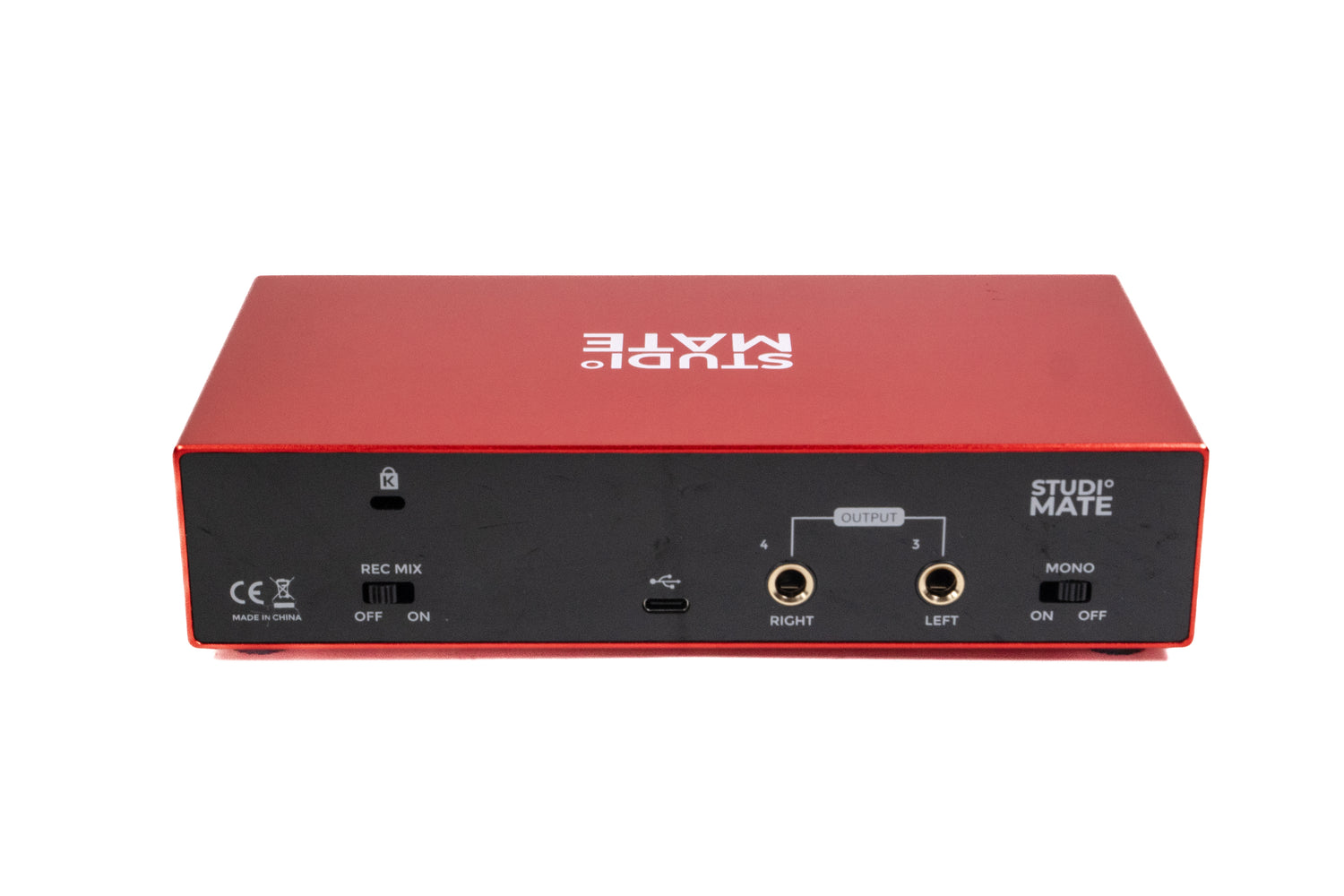

- 48v phantom power, headphone output, monitor outputs.
- Connects via USB C, power via USB.
- Mono switch, to switch between mono and stereo listening - perfect for mixing.
- Compatible with PC and MAC.
Technical specifications
Technical specifications
Mikrofonindgang
- Frekvensrespons: 20 Hz - 20 kHz +/- 0,1 dB
- THD + N: 0,006% (min. forstærkning, input: 400 mV, A-vægtet)
- Støj: -86 dBu
- Forstærkningsområde: 18 dB - 48 dB
Instrumentindgang
- Frekvensrespons: 20 Hz - 20 kHz +/- 0,1 dB
- THD + N: 0,01% (min. forstærkning, input: 400 mV, A-vægtet)
- Støj: -94 dBu
- Maksimalt indgangsniveau: +11,5 dBu
Lineindgang
- Frekvensrespons: 20 Hz ± 0,5 dB, ± 0,1 dB
- THD + N: 0,006% (min. forstærkning, input: 400 mV, A-vægtet)
- Støj: -95 dBu
- Maksimalt indgangsniveau: +18,5 dBu
Lineudgang
- Maksimalt udgangsniveau: +13 dBu balanceret
- THD + N: -88 dB

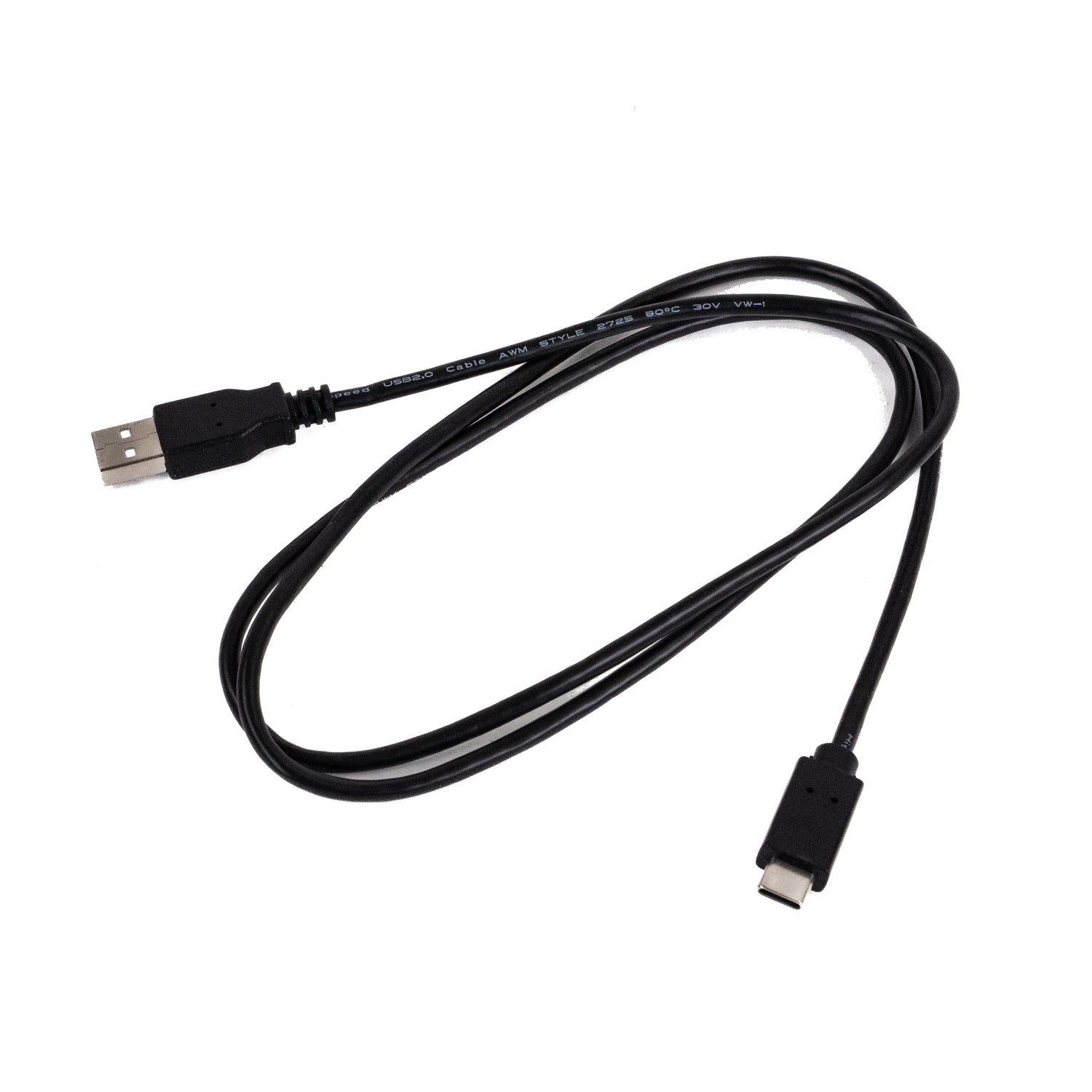

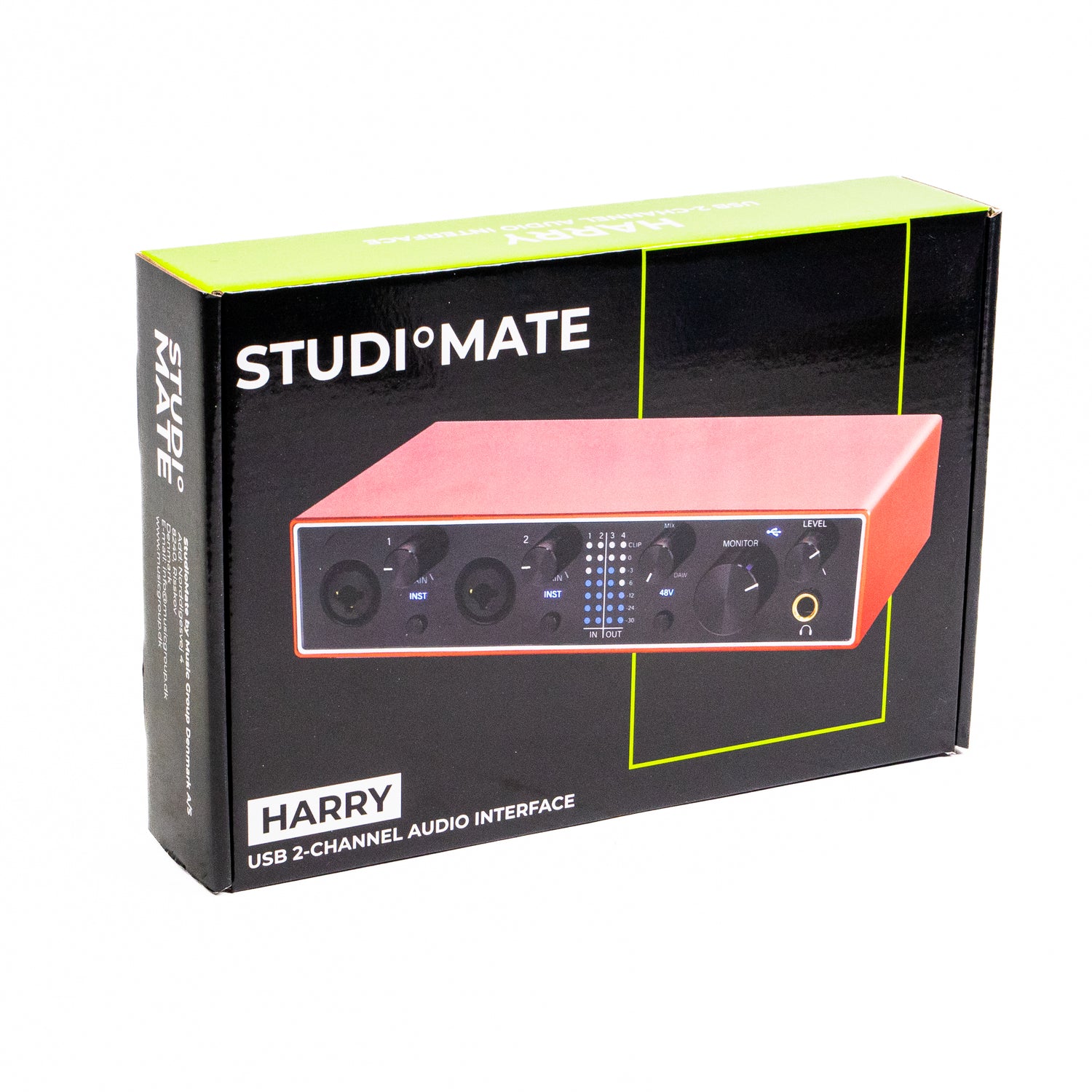

Kassen indeholder: 1x Harry lydkort, 1x USB-USB-C, 1x Manual
