Eurolite LED KLS-180 illuminable (Black)

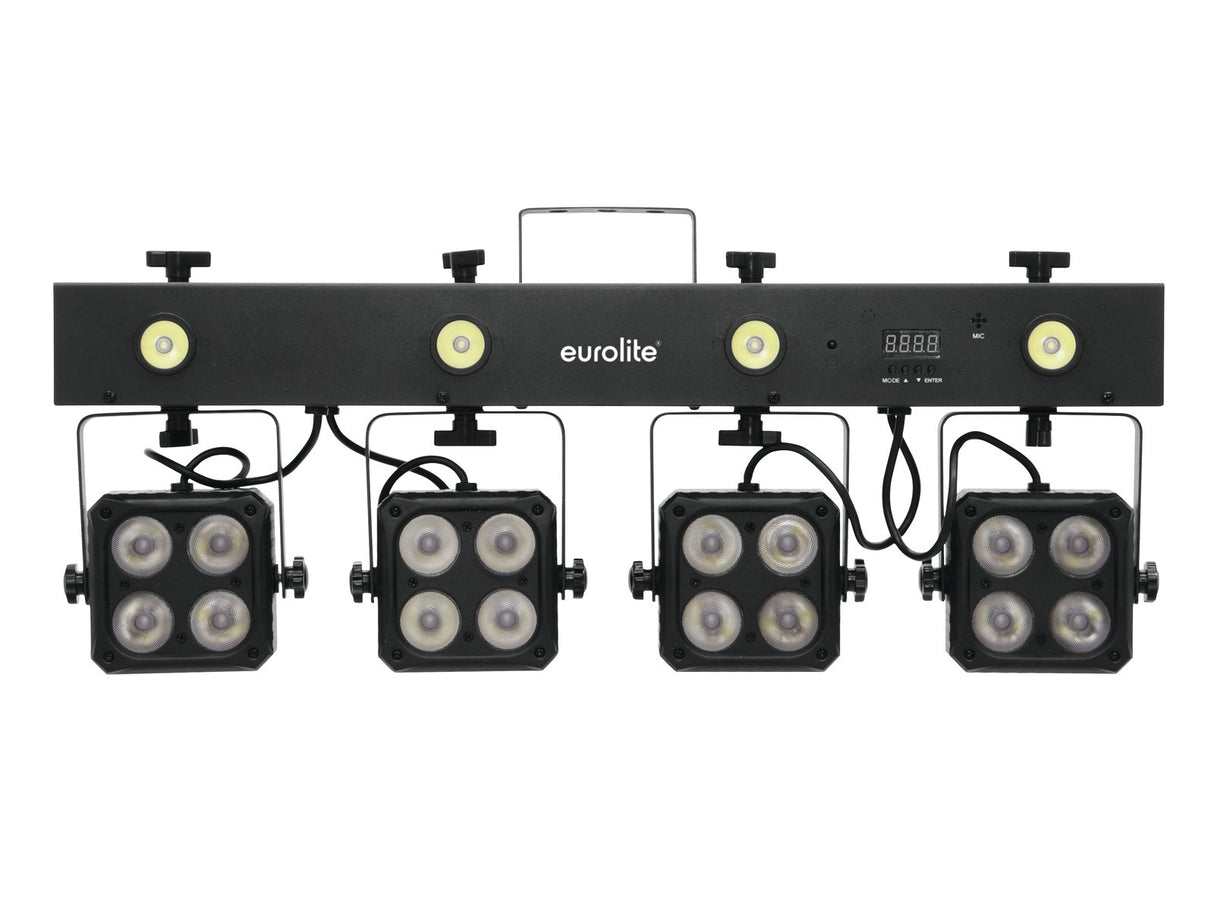

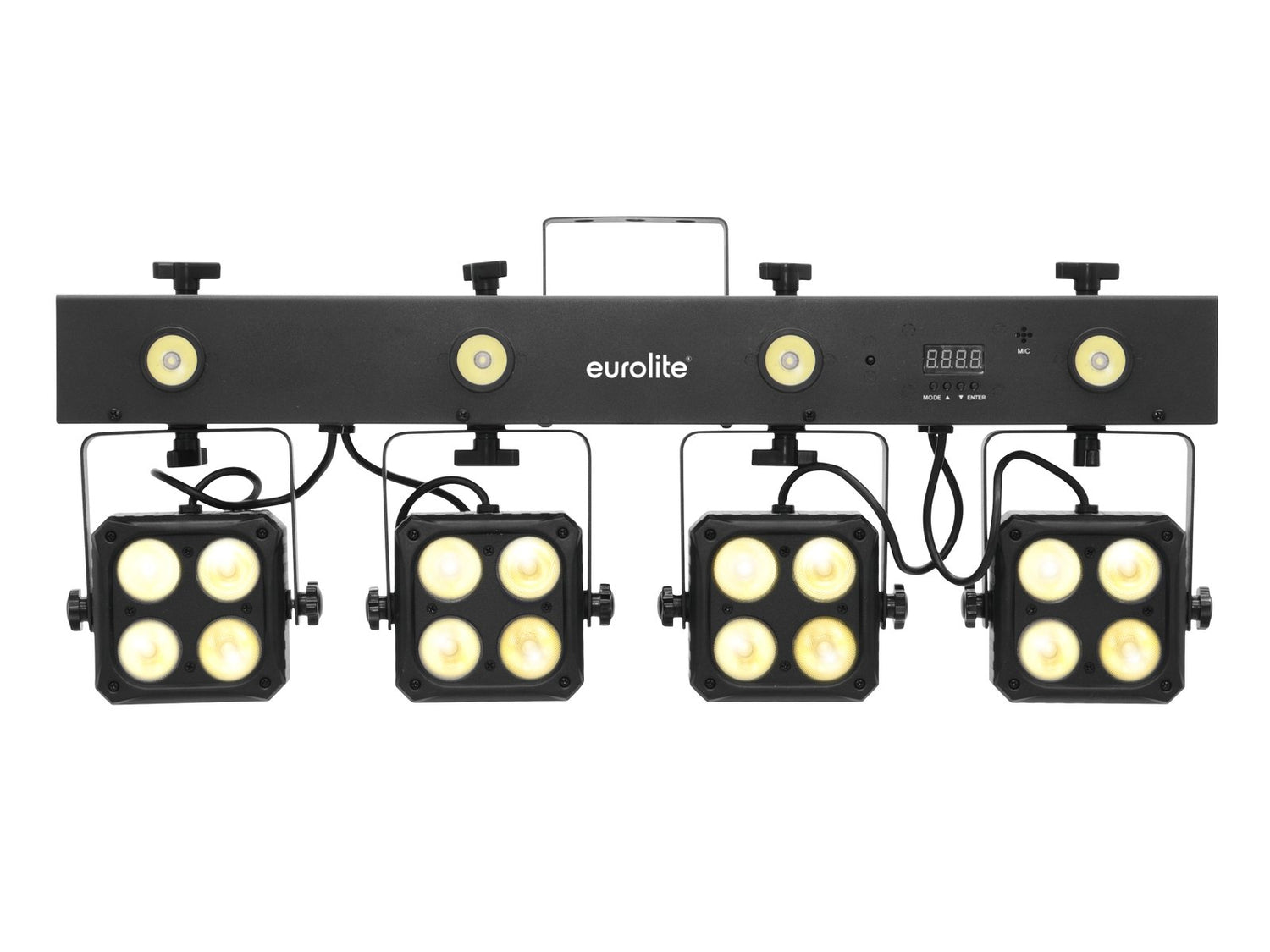

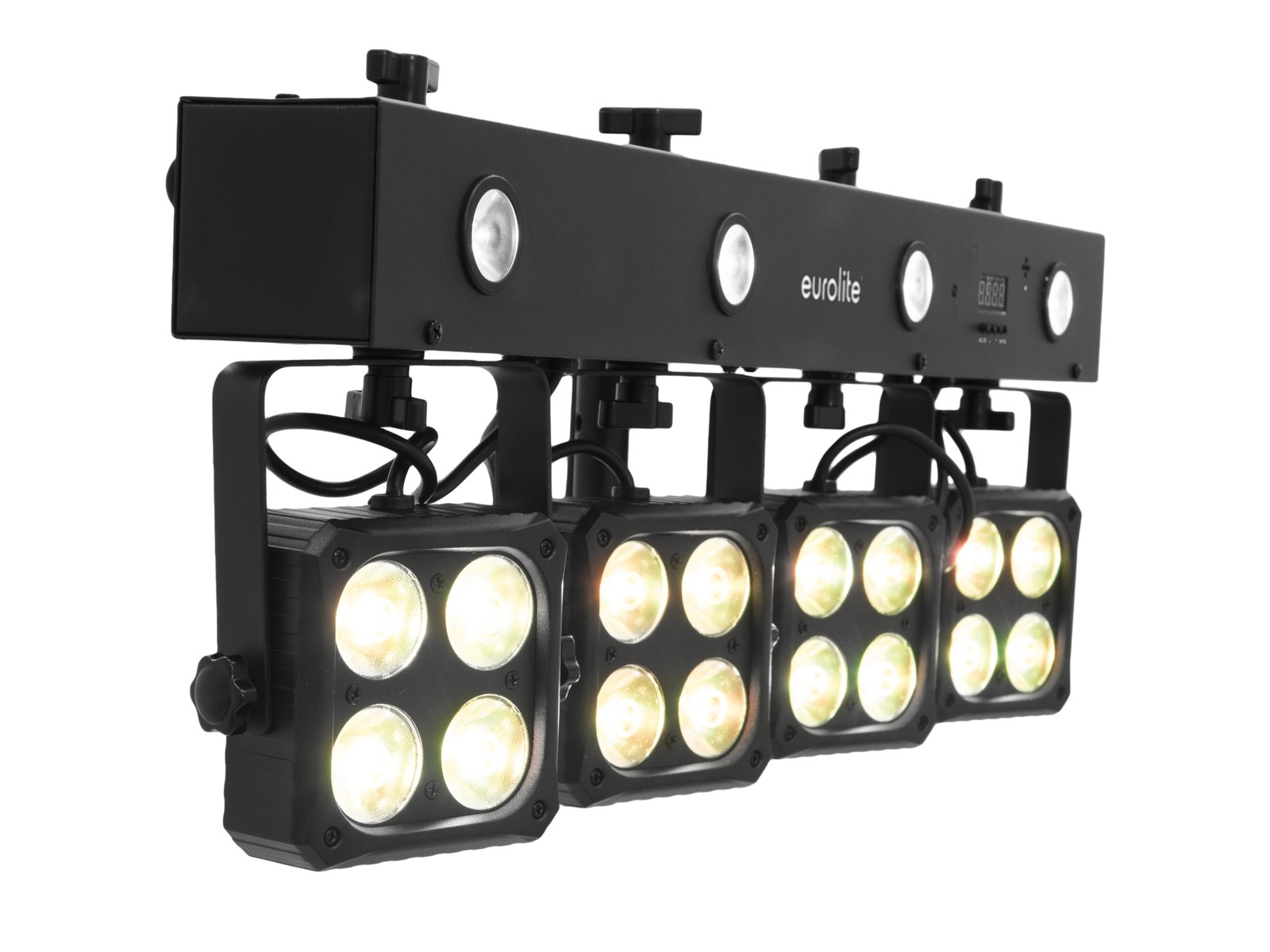

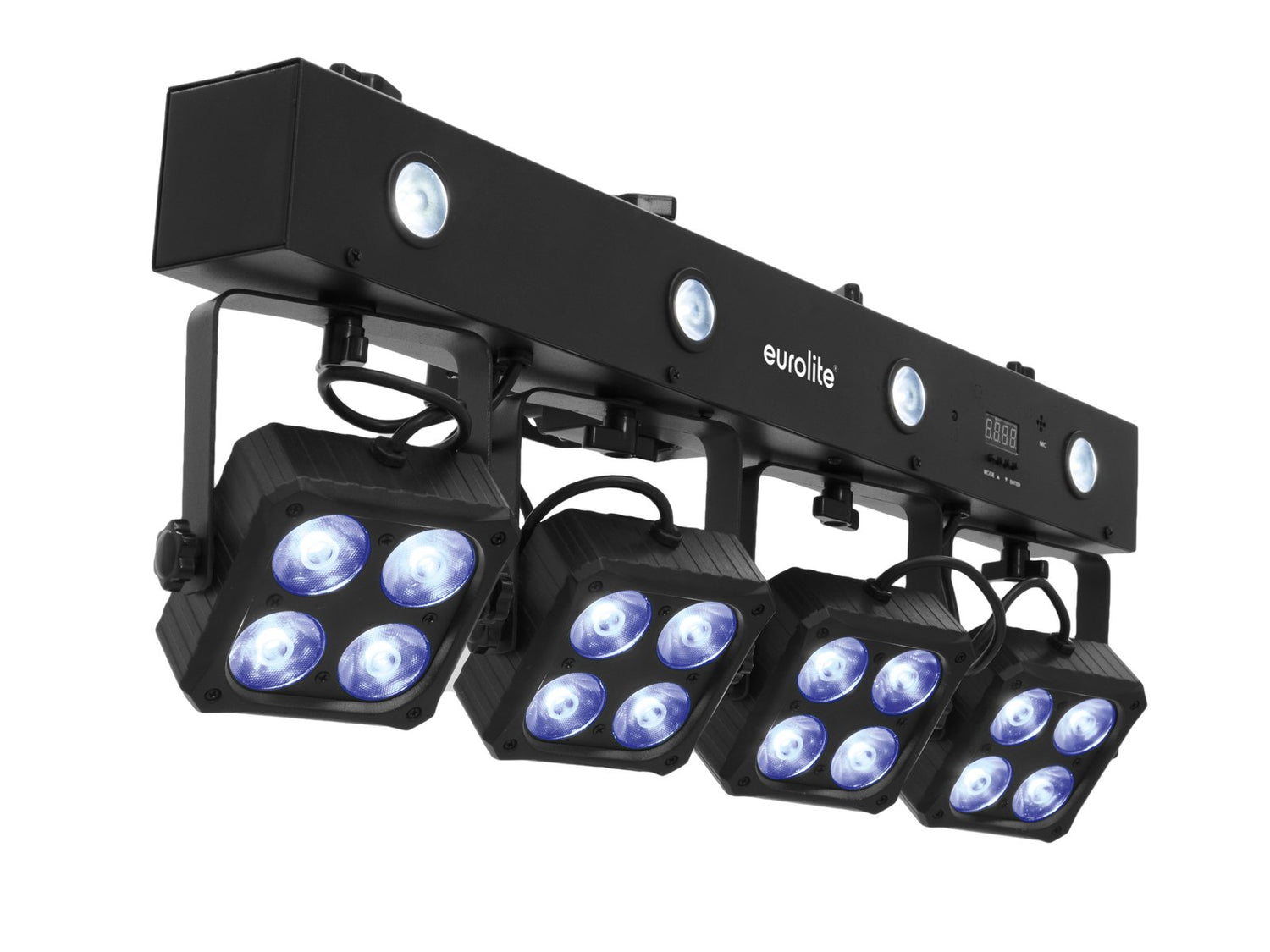

• Light bar with 4 RGBW spot and 4 white strobe LEDs
• Interconnectable with integrated DMX control
• Ideal for mobile use, weight only 5.10 kg
• For orchestras, stages or solo artists

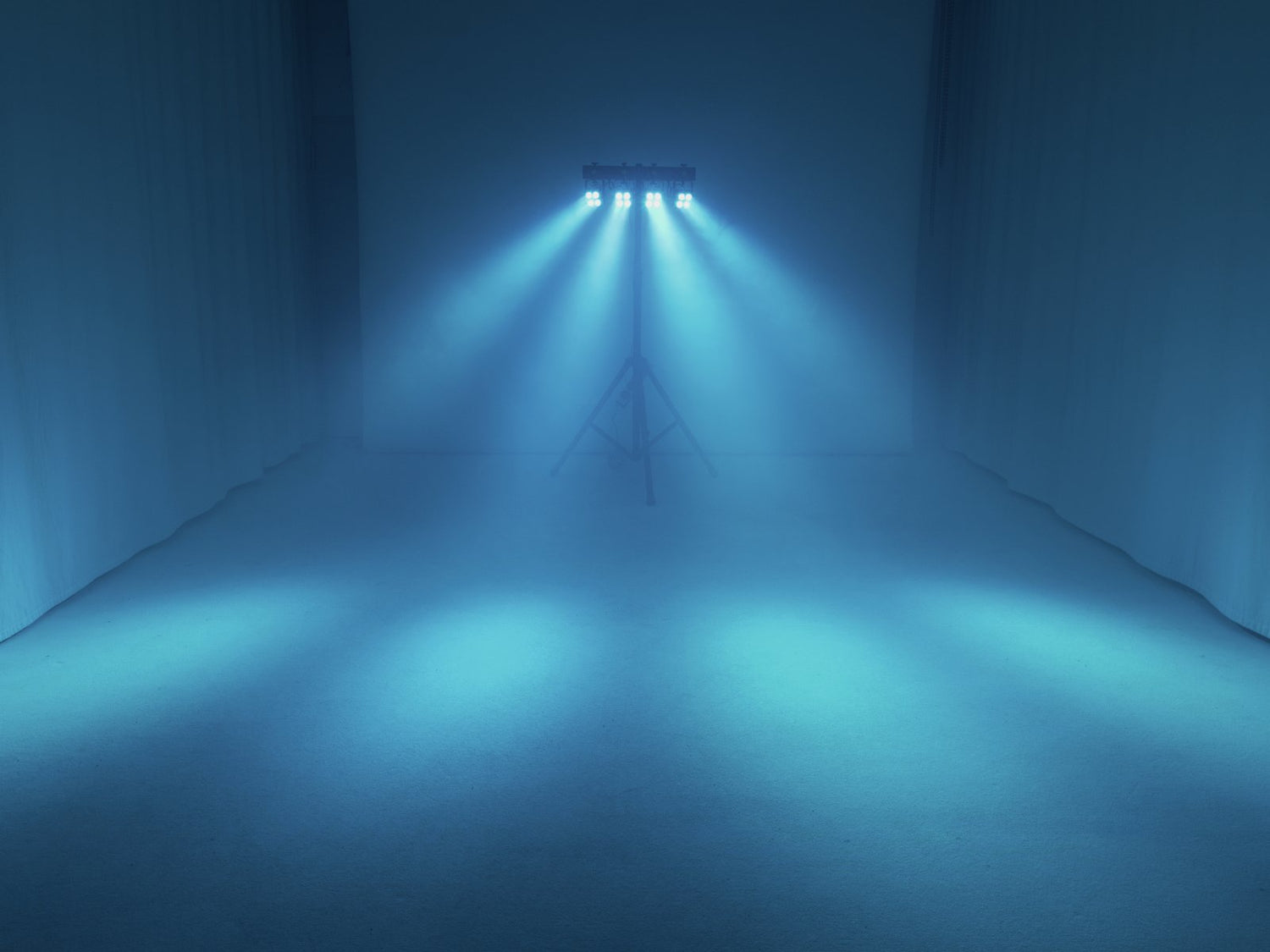

• Can be mounted on speaker stand or truss

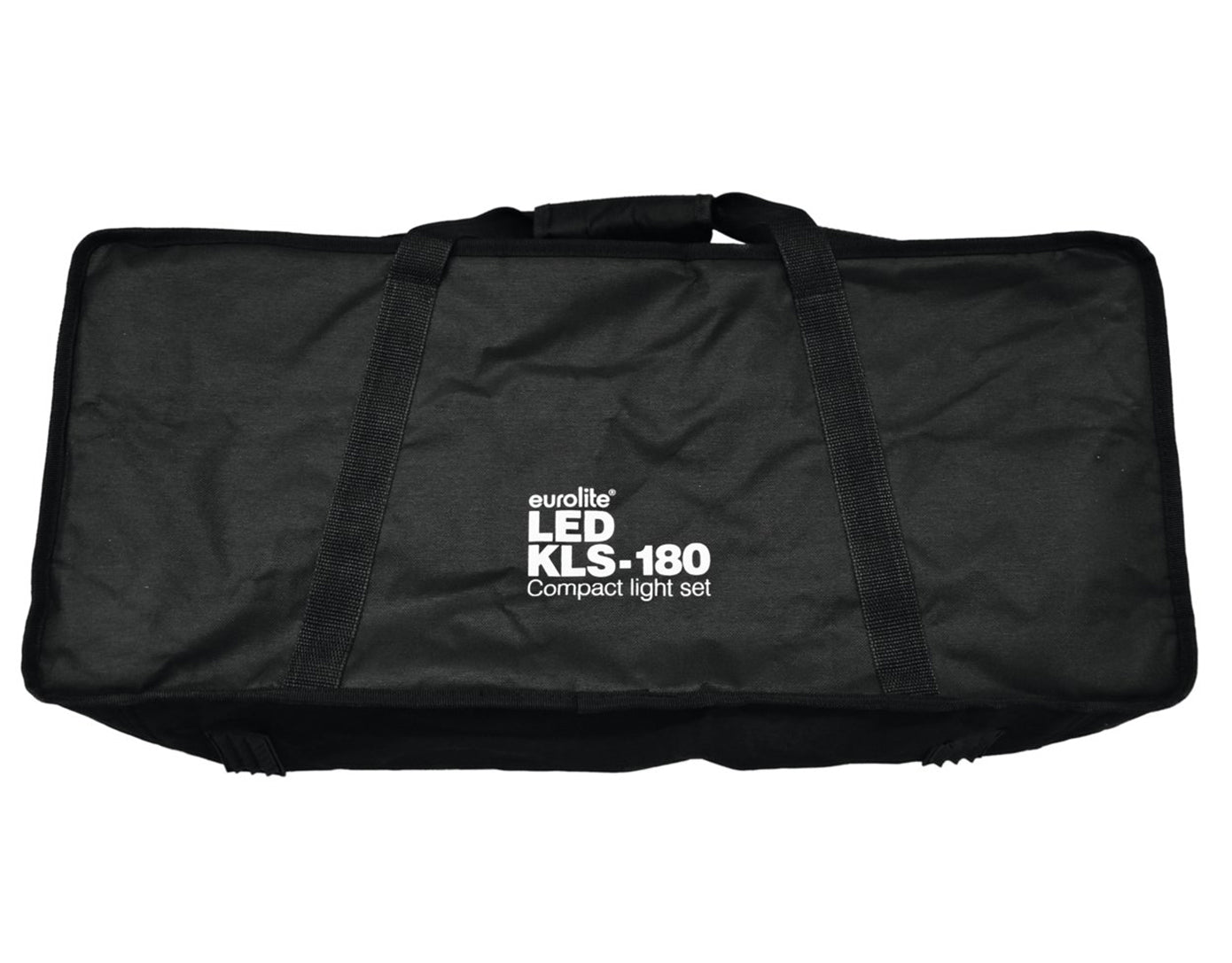

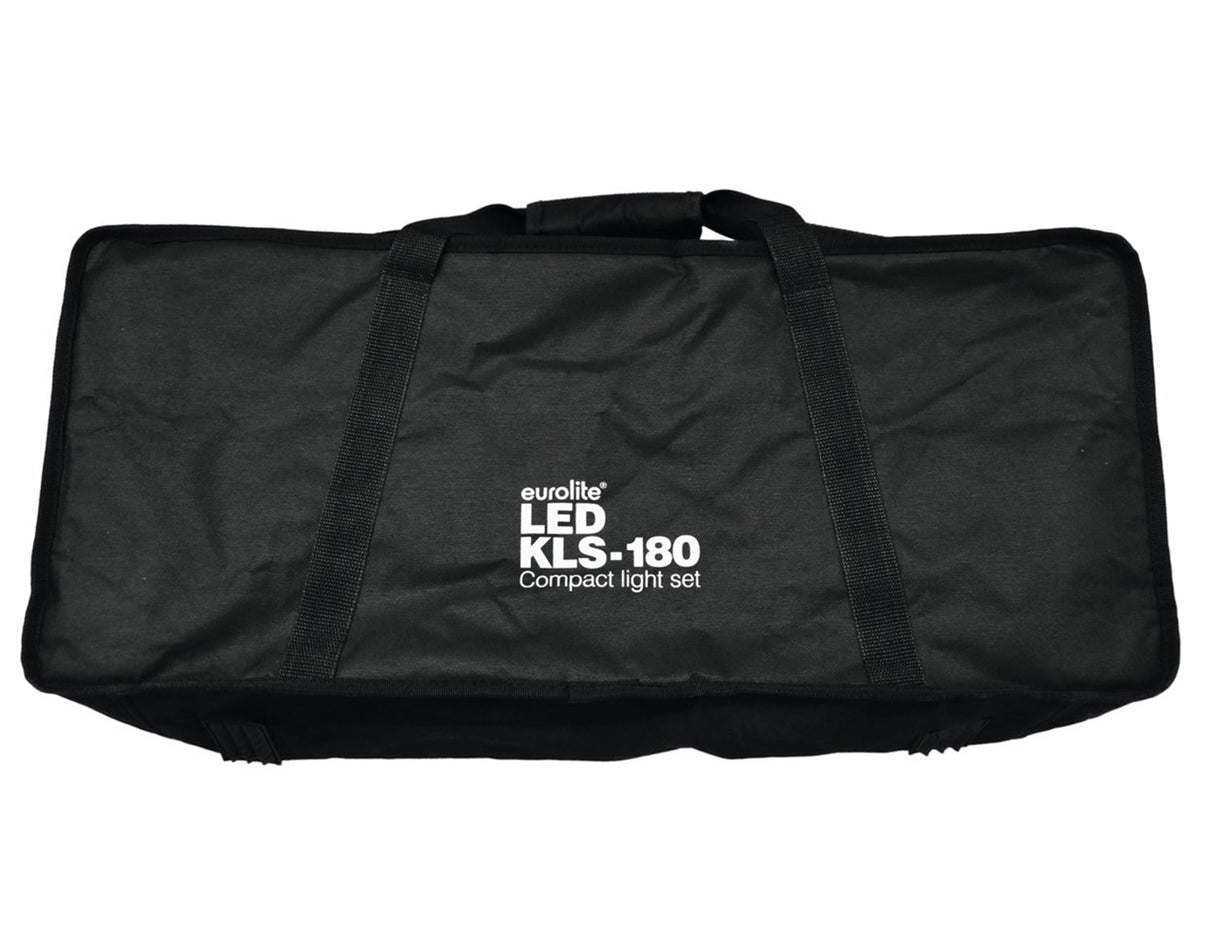

• Practical carrying bag included

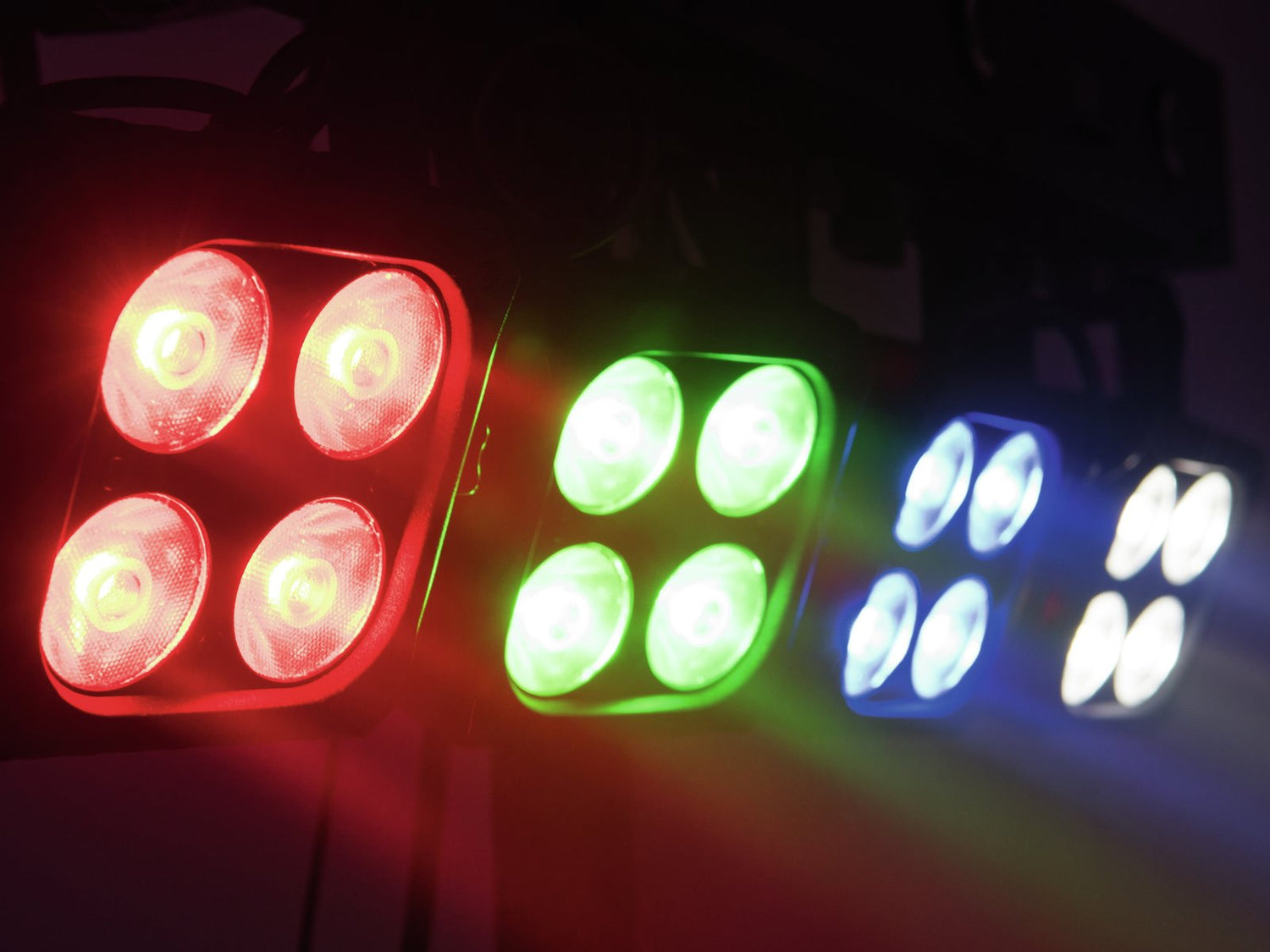

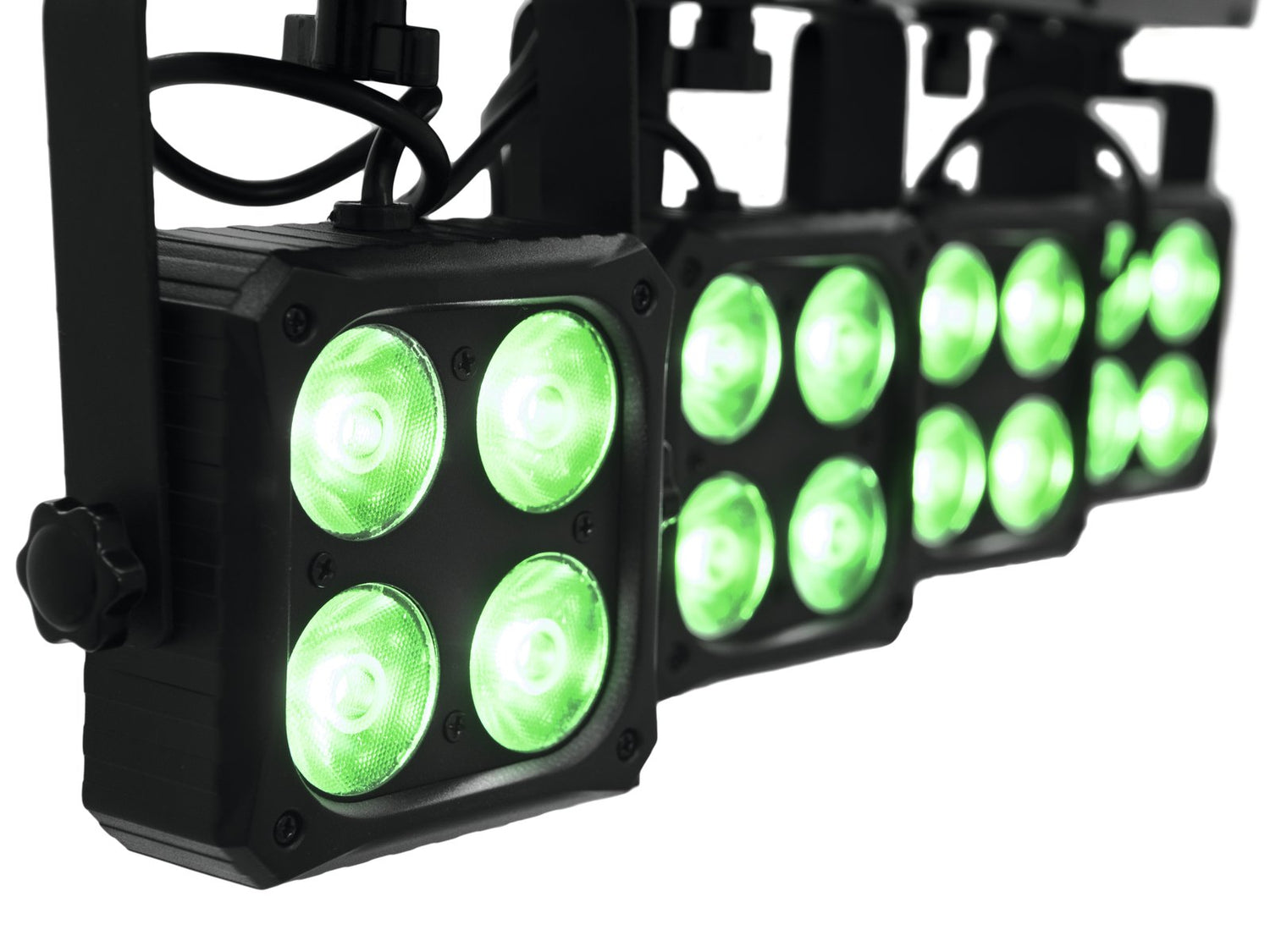

• 4 powerful 4-in-1 LEDs per spot provide an exquisite RGBW colour mix
• Strobe effect with 4 white 1W LEDs
• Each spot is individually controlled via DMX
• DMX- or independent control with Master/Slave function
• Support of QuickDMX - wireless DMX system from Eurolite
• 3, 4, 8 or 21 optional DMX channels

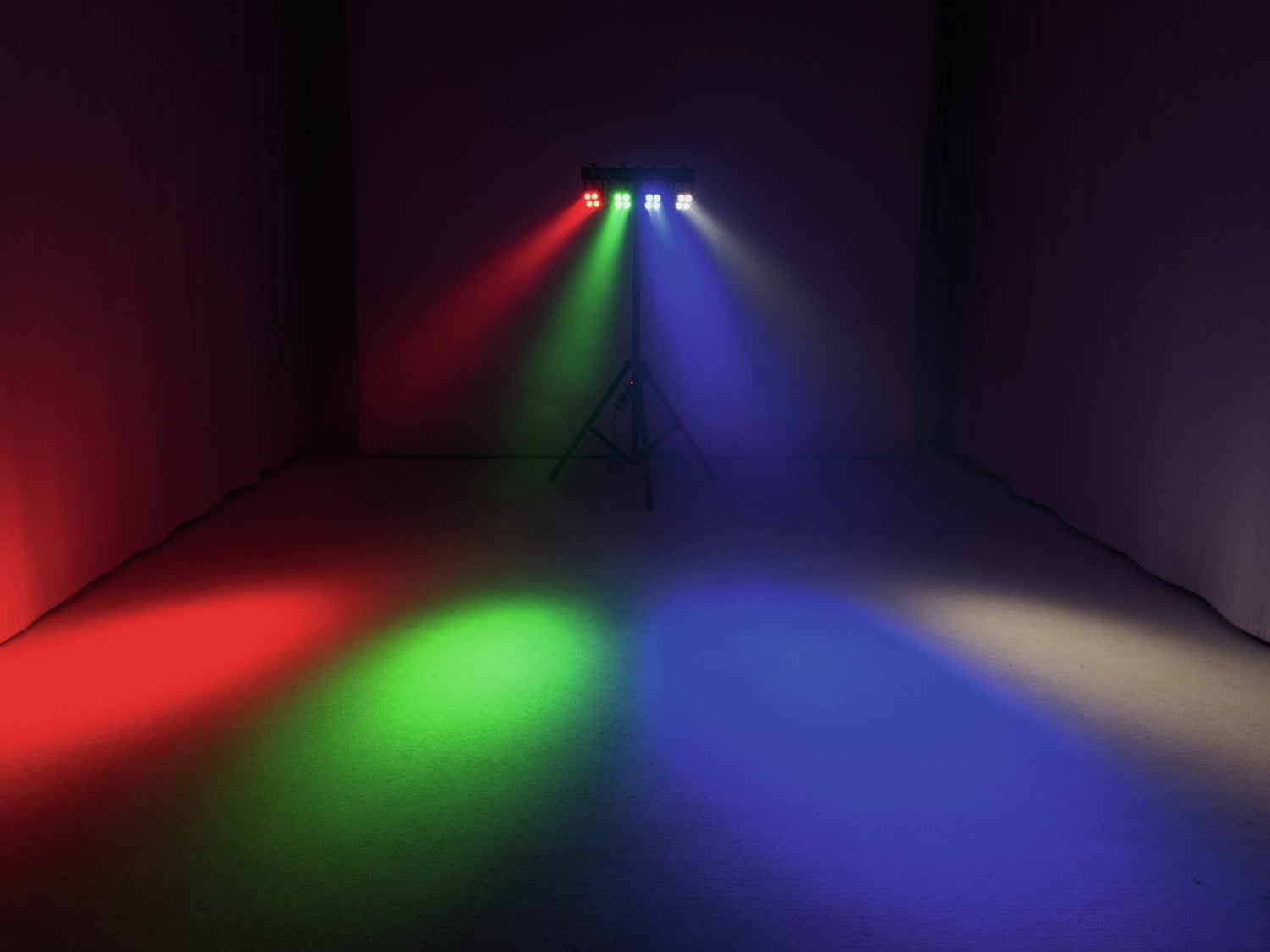

• RGBW color mixing, color presets, built-in programs
• Variable speed strobe effects, dimmer, sound control, Master/Slave
• Addressing and setting via control panel with LED display

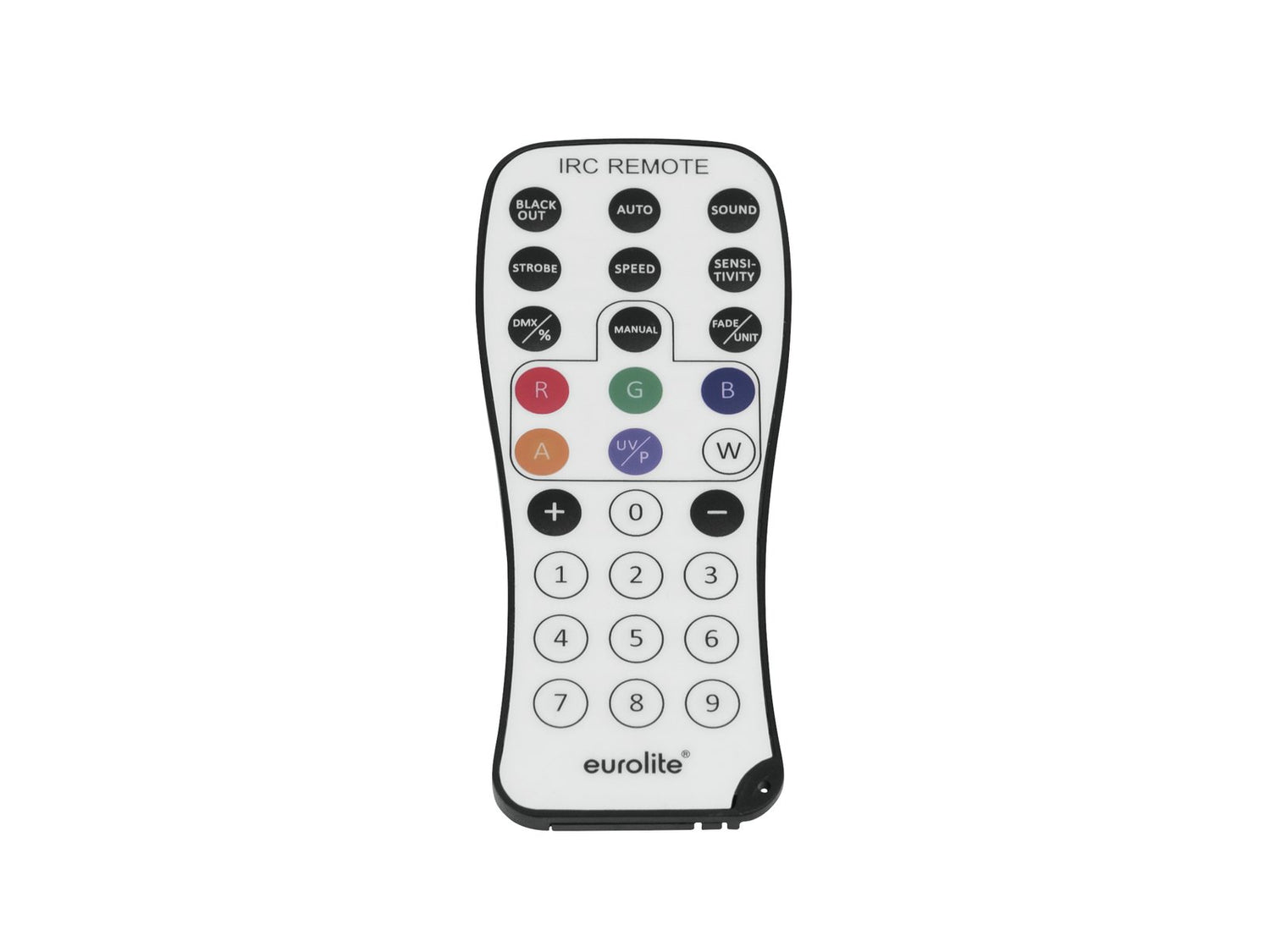

• EUROLITE IR-7 remote control included

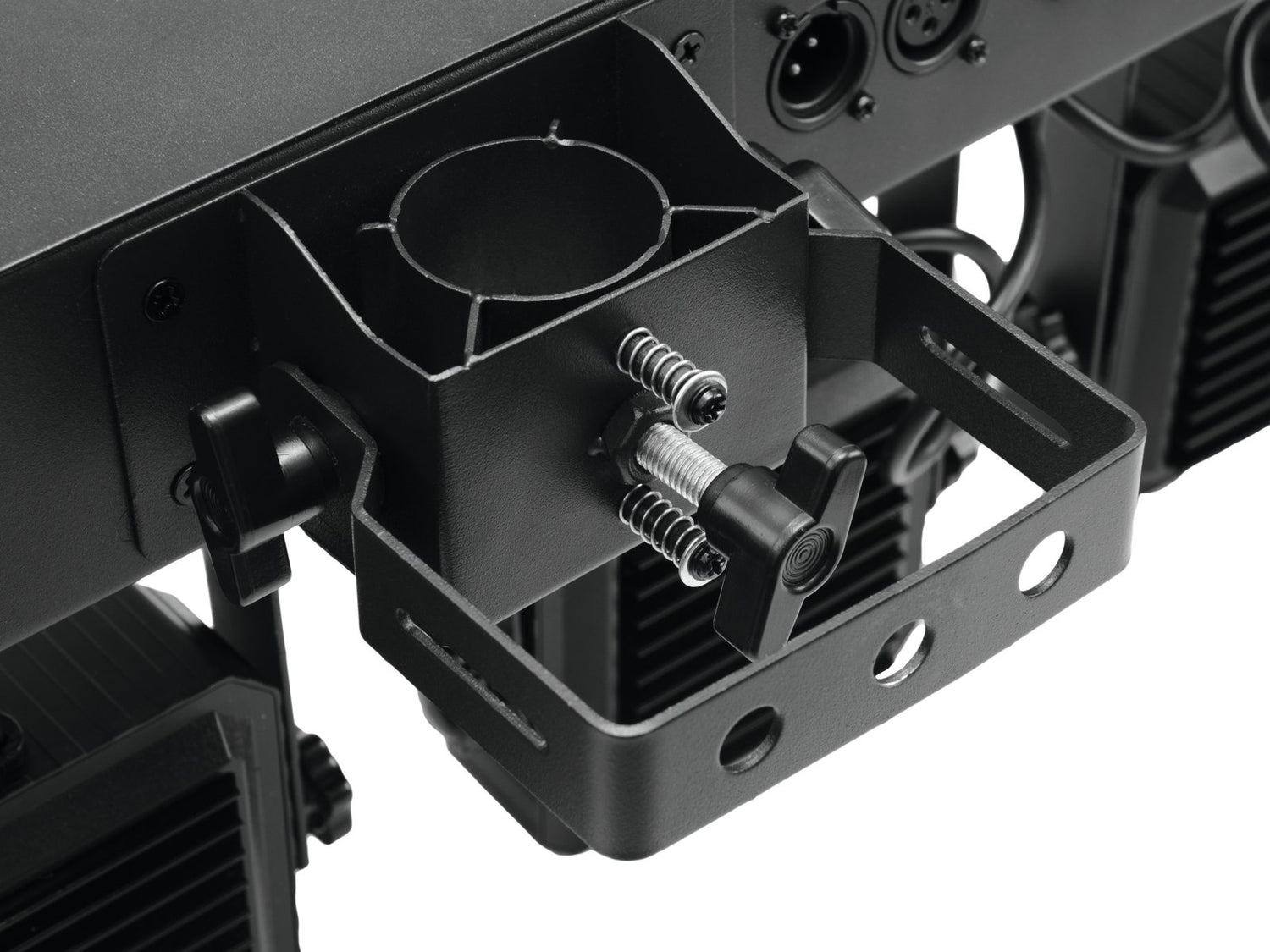

• White lacquered metal with movable mounting bracket
• Convection cooling via cooling fins, no fans, no noise
• Pass-through allows to supply up to 8 units
• LED: Spot separate control of 4 x high power 8 W 4-in-1 QCL RGBW (homogeneous colour mixing)
• LED: Strobe power 4 x high power 1 W CW
• DMX; QuickDMX via USB (optional); Sound to light via microphone; pre-programmed in LETT SHOW
• Flicker-free projection

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 80 W
IP classification: IP20
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length: Approx. 1.1 m
Power output: 1 x IEC connector (F) mounting version
Lamp type: LED lamp
DMX channels: 3; 4; 8; 21

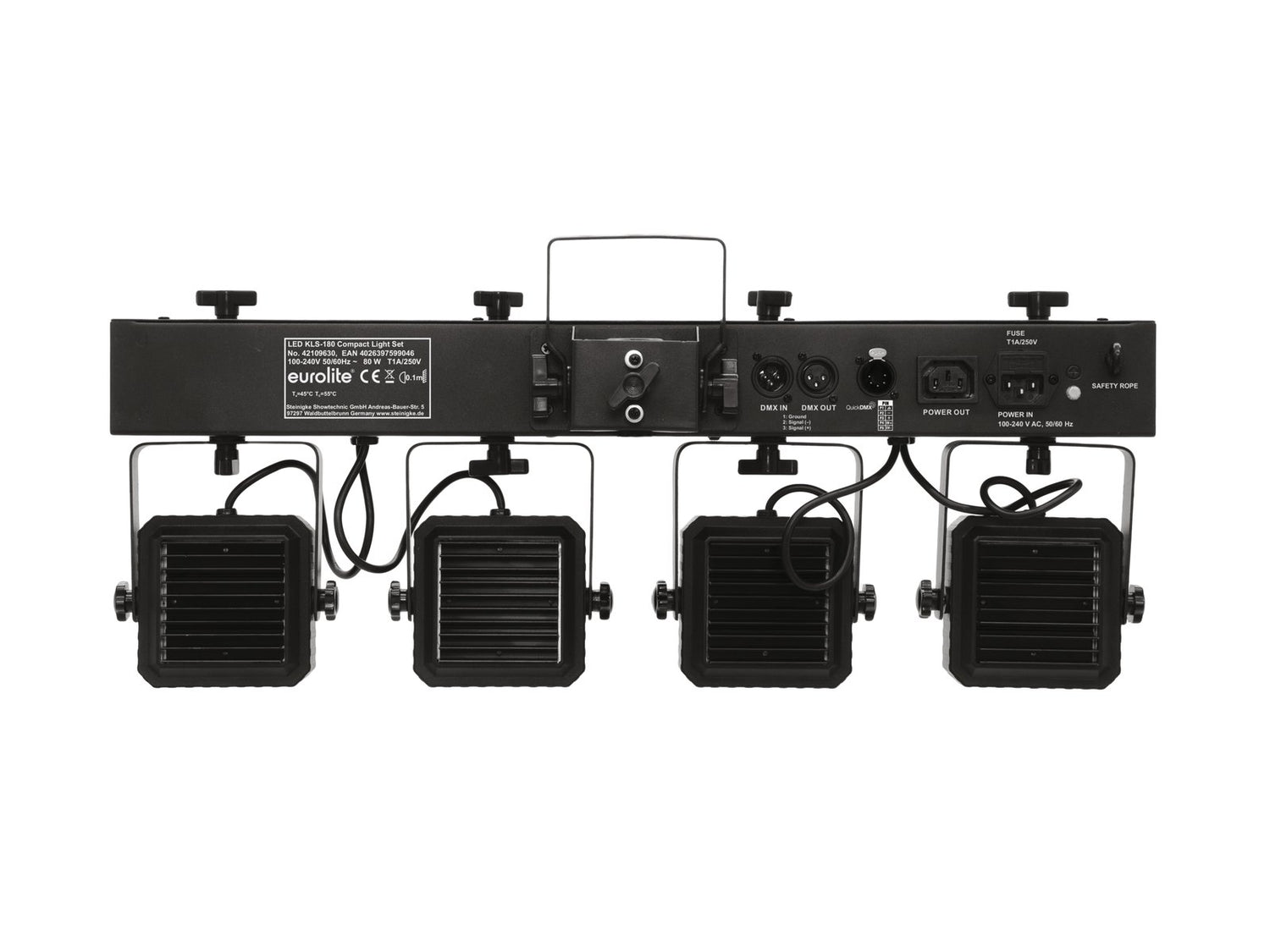

DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function; QuickDMX via 5-pin XLR (M) mounting version (optional)
Preprogrammed in: EASY SHOW 1; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
Projection: Flicker-free
Beam angle: 9°
Beam angle (1/2 peak): 9°
Beam angle (1/10 peak): 18°
Housing color: Black
Attachment system: Mounting bracket
Display type: Monochrome 4 digit 7-segment LED display
Dimensions:

• Width: 60.5 cm
• Depth: 14 cm
• Height: 23 cm
  Weight: 4.85 kg
  Noise classification: Class 0 (no noise at all)
  Photobiological safety: Risk Group 0

Spotlight LED: 4 x 8 W high-power 4in1 QCL RGBW (homogenous color mix)
Bar LED: 4 x 1 W high-power cold white (CW)

Remote control Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

Package contents:

• 1 x spotlight
• 1 x bag
• 1 x remote control
• 1 x battery
• 1 x power cord
• 1 x user manual

Downloads:

• 42109630-Manual-141382-1.100-de_en.pdf (11 MB)
