- Professional rack unit for controlling speakers and audio sources.
- Listen to different audio sources on up to three sets of monitors.
- Hi-fi D/A converter.
- Components of the highest quality.

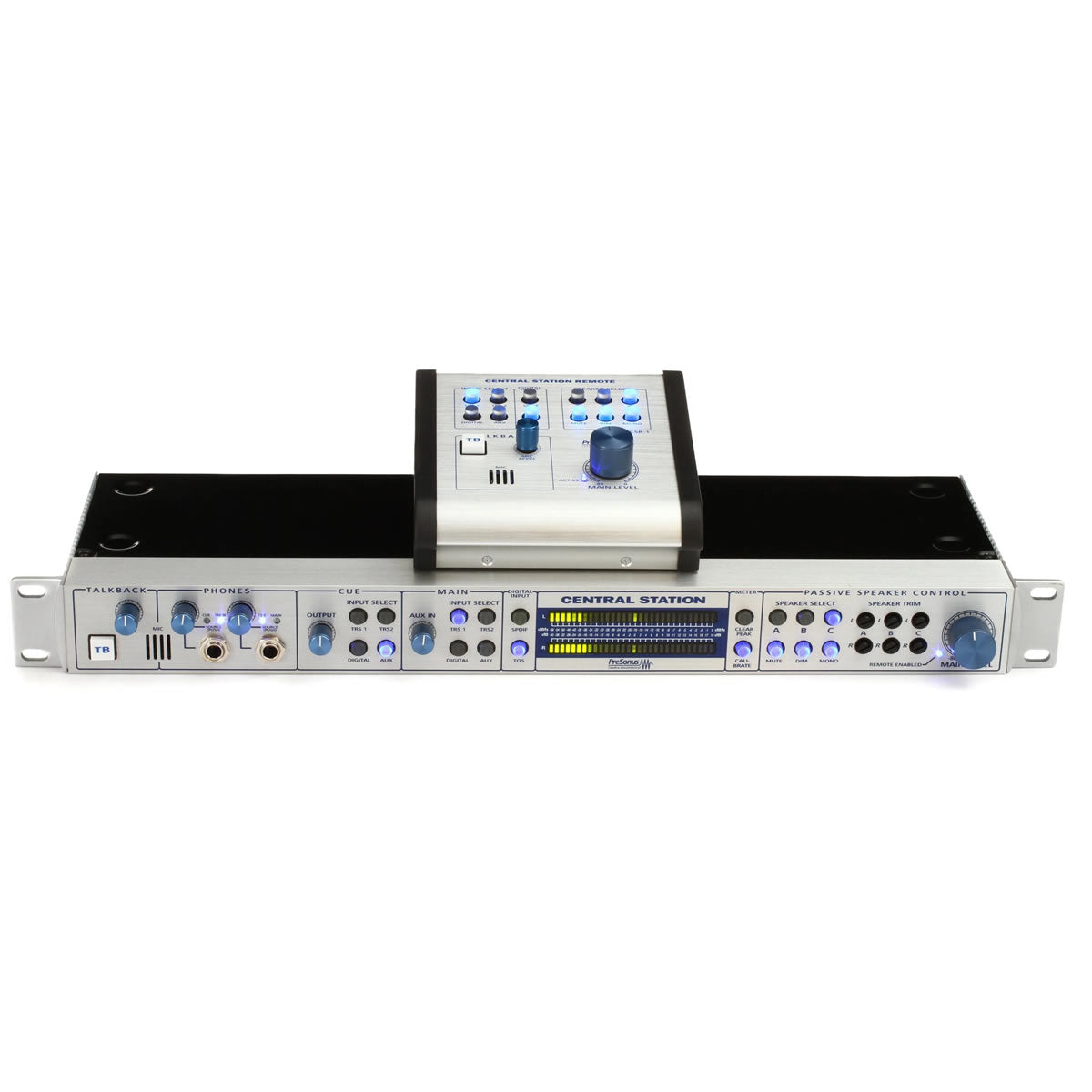

Presonus Central Station Plus
Select Central Station as your monitor controller and you will easily be able to switch between different stereo inputs, as well as analog and digital inputs. The sound can be sent to three sets of monitors with individual volume control, so you can always switch between your speakers seamlessly. The digital input can convert up to 24-bit, 192 kHz digital signal to analog sound of the highest Hi-fi quality. The device automatically detects the current sampling rate. Central Station also combines a lot of functionalities, making it easy for you to keep organized and maintain workflow.
- Inputs for three different stereo sets, analog inputs, and a digital input.
- Easily switch between three sets of monitors with individual trim pots and use 2 pairs of headphones with separate volume controls.
- Digital/Audio converter that converts high-resolution audio up to 24-bit, 192 kHz with a dynamic range of over 115 dB.

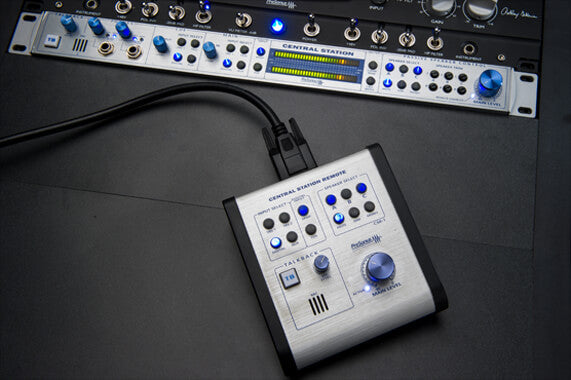

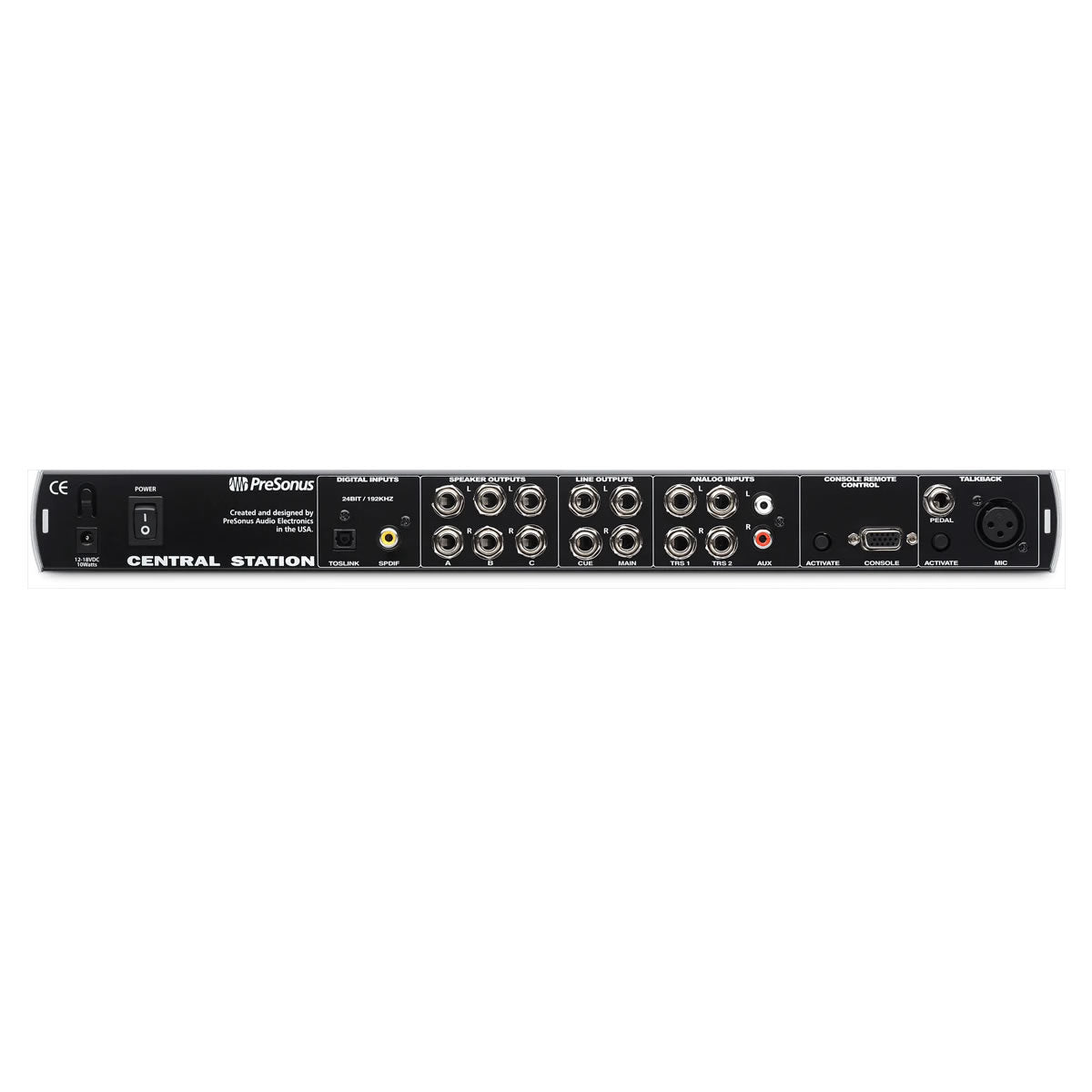

- Avoid cable clutter, with just one connection between the remote and the rack unit, which has all inputs and outputs at the back, where the cables belong.
- Components of the highest quality that ensure clear sound and optimize dynamics and frequency response with minimal noise.
- Handy features for mono summing, Dim, and Mute, allow you to listen on different monitors while maintaining the same levels.
Technical specifications
Technical specifications
Indgange | |
|---|---|
TRS 1 & 2 | |
| Type | ¼" TRS Passive-Balanced |
| Input Impedans | 2-5 kΩ (Speaker load and Trim level dependent) |
| S/N Ratio | > 140 dB |
| THD+N | < 0.0005% (1 kHz @ 0 dBu) |
| Frekvensrespons | > 1 MHz |
AUX | |
| Type | RCA Active-Unbalanced |
| Input Impedans | 8 kΩ |
| S/N Ratio | > 115 dB (1 kHz @ 0 dBu, Unity gain) |
| THD+N | < 0.002% (1 kHz @ 0 dBu, Unity gain) |
| Frekvensrespons | 10 Hz-50 kHz, -0.5 dB |
| Gain Range | -90 dB to +20 dB |
S/PDIF | |
| Types | RCA 75Ω coax and Toslink optical |
| Dynamic Range | 117 dB |
| THD+N | 0.0025% (1 kHz @ -1 dBfs) |
| Maks. output | +18 dBu (Active-Balanced) |
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
Dimensioner | |
|---|---|
Rack Unit | |
| Konstruktion | 1U steel chassis |
| Dimensioner | 19 (W) x 1.75 (H) x 6.25 (D) inches |
| Vægt | 5.0 lbs |
Strømforsyning | |
| Konstruktion | Molded Plastic |
| Dimensioner | 2.5 (W) X 2.3 (H) X 4.0 (D) inches |
| Vægt | 2.5 lbs |
Input Meters | |
|---|---|
| Type | Dual 30 segment LED w/ Peak Hold |
| Range | -48 dB to +18 dB (-66 dBfs to 0 dBfs) |
| Præcision | > 0.25 dB |
| Frequency Range | 10 Hz-22 kHz |
| Calibrate Range | ±18 dB |
Audio udgange | |
|---|---|
Højttalere | |
| Type | ¼" TRS Passive-Balanced |
| Type - med Mono aktiveret | ¼" TRS Active-Impedance Balanced |
| Trim volume range | -90 dB to 0 dB |
| Main volume range | -90 dB to 0 dB |
| Dim volume | -30 dB |
Main | |
| Type | ¼" TRS Active-Balanced |
| Output Impedans | 51Ω |
| THD+N | < 0.0025% |
| Frekvensrespons | 10 Hz-50 kHz, -0.5dB |
Cue | |
| Type | ¼" TRS Active-Impedance Balanced |
| Output Impedans | 51Ω |
| THD+N | Less than 0.003% (1 kHz @ 0 dBu) |
| Frekvensrespons | 10 Hz-50 kHz, -0.5 dB |
| Gain Range | -90 dB to 0 dB |
| Dim volume | -30 dB (Talkback aktiveret) |
Headphones | |
| Type | ¼" TRS Active Stereo |
| Maks. output | 150 mW/channel @ 60Ω load |
| THD+N | 0.015% (150 mW/channel @ 60Ω load) |
| Frekvensespons | 10 Hz-50 kHz, +1 dB |
Talkback | |
|---|---|
Dynamic Microphone Input | |
| Type | XLR Female Balanced |
| Input Impedans | 2,400Ω |
Internal Microphone | |
| Type | Electret Condenser |
| Følsomhed | -42 dB |
Mikrofon Preamps | |
| Gain Range | 15-55 dB |
Strømforsyning | |
|---|---|
| Type | External A.C. Transformer/Internal Linear |
| Power Consumption | 40 VA |

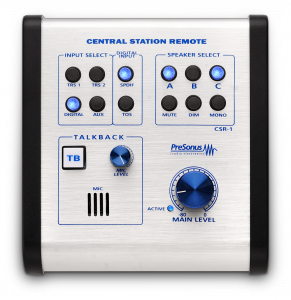

CSR-1 Control Station Remote | |
|---|---|
| Dimensioner | 5.25 (W) x 5.75 (H) x 2.38 (D) inches |
| Vægt | 1.25 lbs. |
| Kabel | 12-foot DB15M to DB15M (male-male) |
