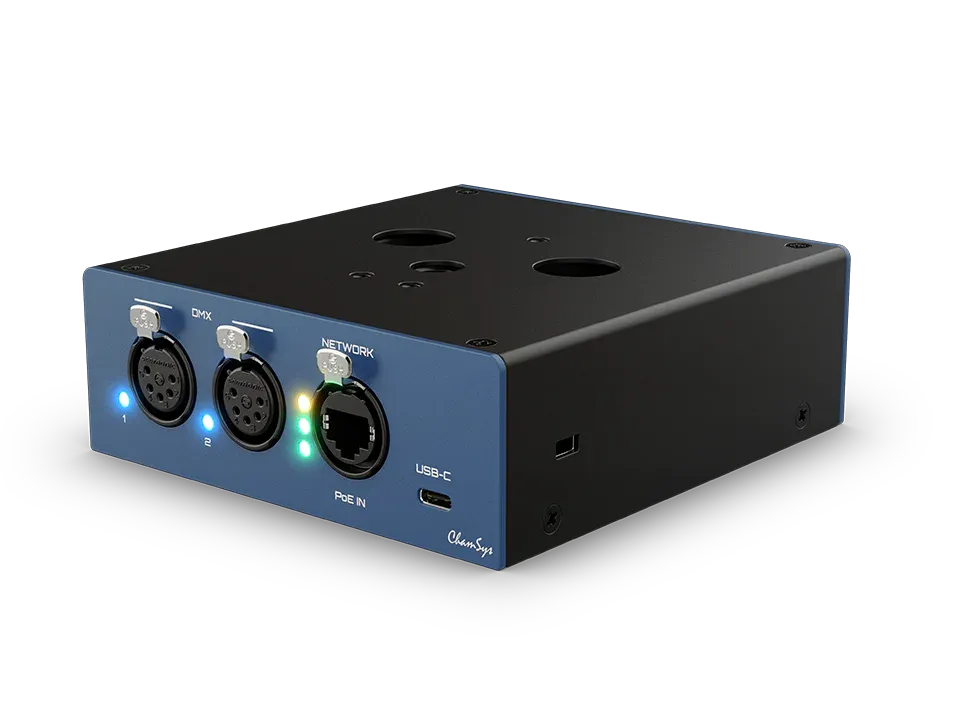

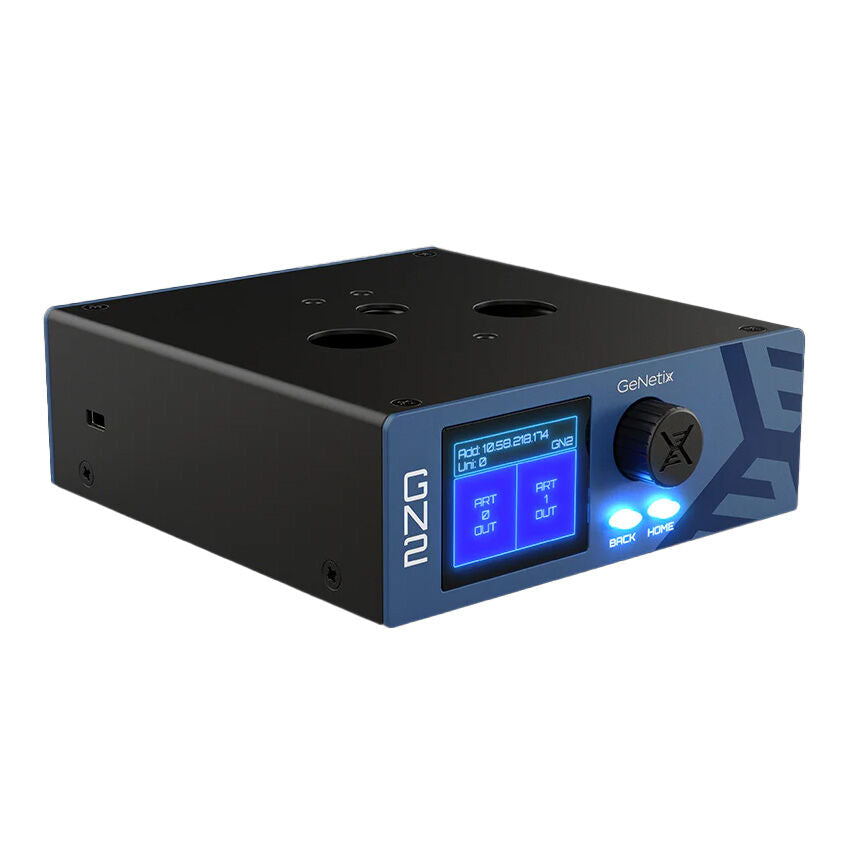

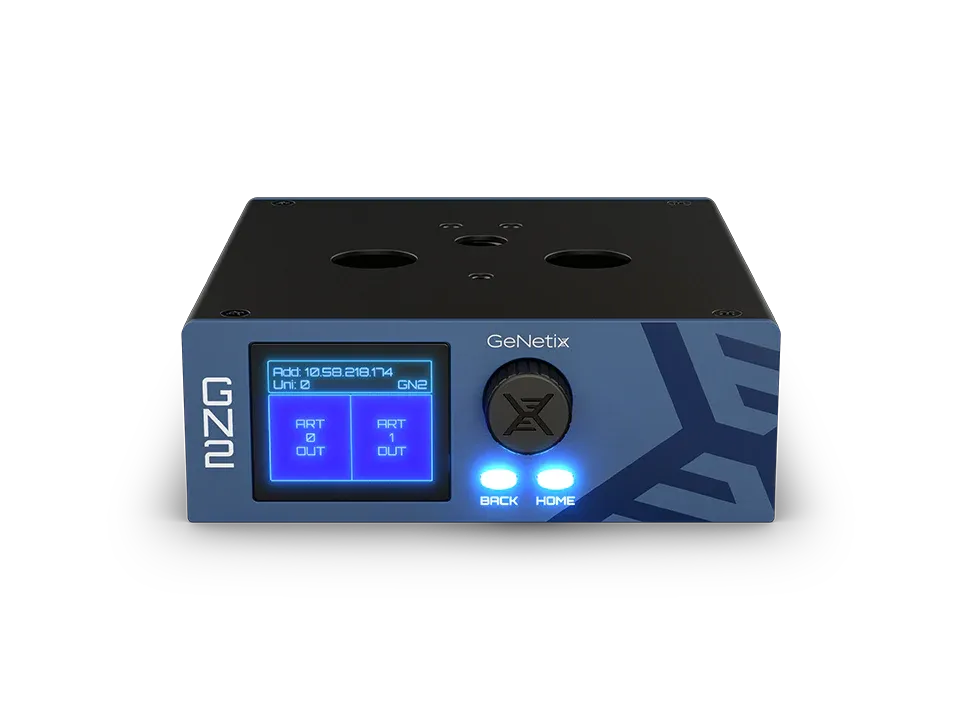

ChamSys GeNetix GN2, 2 Port Node

ChamSys GeNetix GN2 is a professional 2-port DMX node, designed to deliver maximum flexibility in modern lighting setups.
It is fully compatible with Art-Net, sACN and RDM, and both DMX ports can be configured as input or output as required.

GN2 works both as a standalone node and as a USB interface for MagicQ PC systems – and unlocks MagicQ from demo mode to “Reduced Mode” when connected via USB-C or network.

With a built-in web server and local display encoder, configuration can be carried out either directly on the unit or remotely.
Power is supplied via PoE (Power over Ethernet) or via USB-C, and the unit can be mounted both on a DIN rail or in truss via an M10 thread.

Ideal for theatres, live productions, touring rigs and permanent AV installations where stability and flexibility are essential.

• Model: ChamSys GeNetix GN2
• Produkttype: 2-Port Ethernet DMX Node
• Kompatibilitet:
  • Art-Net
  • sACN
  • RDM
  • ChamNet
• DMX-porte: 2 stk. (RDM-kompatible, konfigurerbare som input/output)
• Netværksporte: 1 stk. (PoE på port 1)
• USB-porte: 1 stk. USB-C (til strøm og MagicQ unlock)
• Strømforsyning:
  • PoE (Power over Ethernet)
  • Neutrik powerCON TRUE1, 110–240 VAC
  • USB-C (5V DC)
• Brugerinterface:
  • Indbygget display og encoder
  • Webserver for fjernkonfiguration
• Softwarefunktioner:
  • Art-Net / sACN support
  • ChamNet support
  • Konfigurerbare DMX-timings
  • DMX redundans
  • User scene store
• Montering:
  • M10 truss-montering
  • DIN-skinnebeslag (inkluderet)
• Sikkerhed: Kensington Security Lock
• Inkluderet tilbehør:
  • Neutrik powerCON TRUE1 strømledning
  • DIN rail mount clip
  • USB A–C kabel
• Dimensioner:
  • Bredde: 125 mm
  • Dybde: 133 mm
  • Højde: 44 mm
  • Vægt: 0.85 kg
