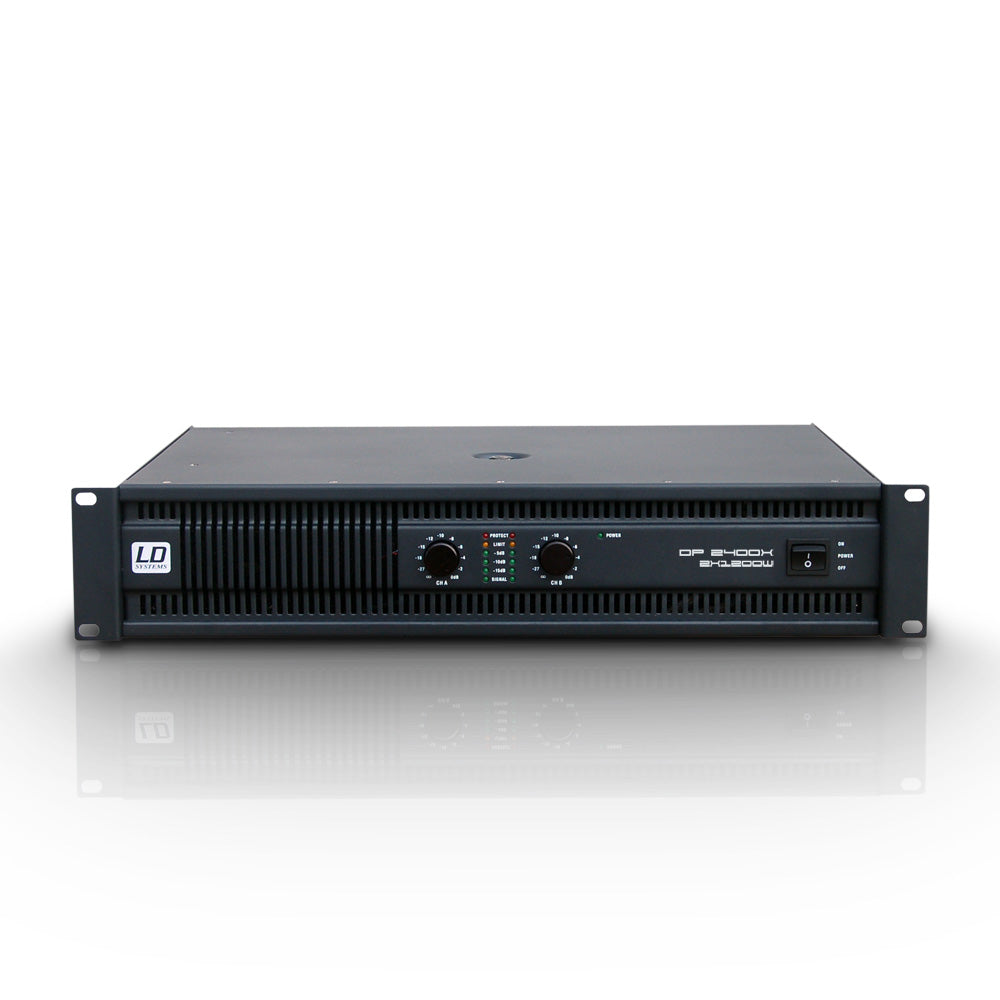

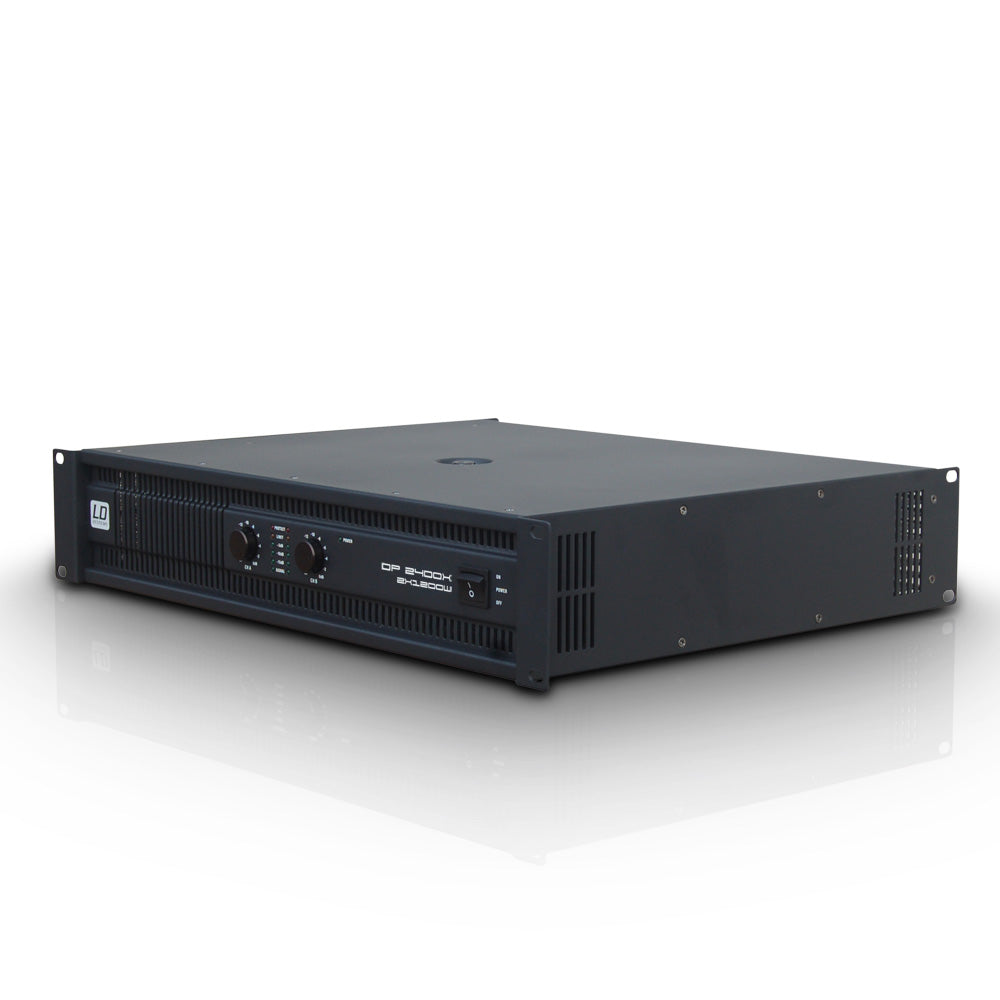

LD Systems DEEP2 2400 X Amplifier 2x600W 8 Ohm

LD Systems The DP2400X is a Class H amplifier of 2 x 600 Watt RMS in 8 Ohm, and with the option of 2 Ohm function as well as bridge coupling it is an extremely popular amplifier for the price.

The DP2400X from LD Systems has Clip Limiter for overload protection, all the connectivity you need, rugged steel cabinet, minimal depth of only 35cm and a very clear sound.

LD Systems DEEP2 2400 X Amplifier 2x600W 8 Ohm

The DP2400X is the newest member of the DEEP2 family of power amplifiers.

In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP2 series. It also follows the DEEP2 design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.

Also known as: DP 2400 X, DP-2400 X, DP 2400X, DP-2400X

Product number:	LDDP2400X
Product type:	power amplifier
Type:	2-channel
Rated output power (1kHz @ 2 Ohms):	2 x 1200W
Rated ouput power (1kHz @ 4 Ohms):	2 x 950W
Rated ouput power (1kHz @ 8 Ohms):	2 x 600W
Rated output power (1kHz @ 4 Ohms, bridged):	2200W
Rated output power (1kHz @ 8 Ohms, bridged):	1800W
Output circuitry:	Class H
Frequency response:	20 - 20000Hz
THD:	< 0,1 %
Signal-to-noise ratio:	106dB
Damping factor:	> 450
Crosstalk:	>76dB
Gain:	39dB
Input sensitivity:	0,775
Protection circuits:	DC protection, short circuit, clip limiter, thermal overload

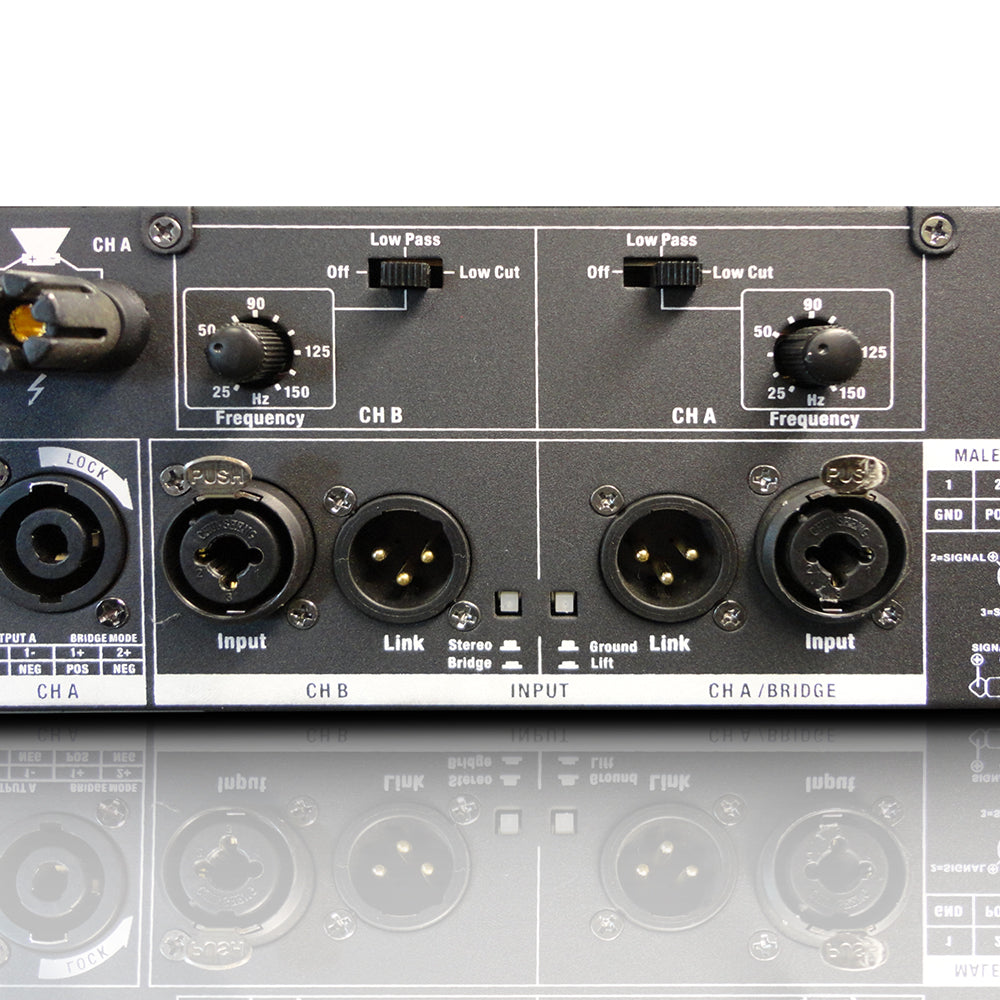

Controls:	2 x volume, mains switch (on/off), bridge/stereo mode selector, ground lift, 2 x highpass/lowpass (switchable)
Display:	signal, limit, level, Power, protect (protection circuit engaged)
Loudspeaker outputs:	2

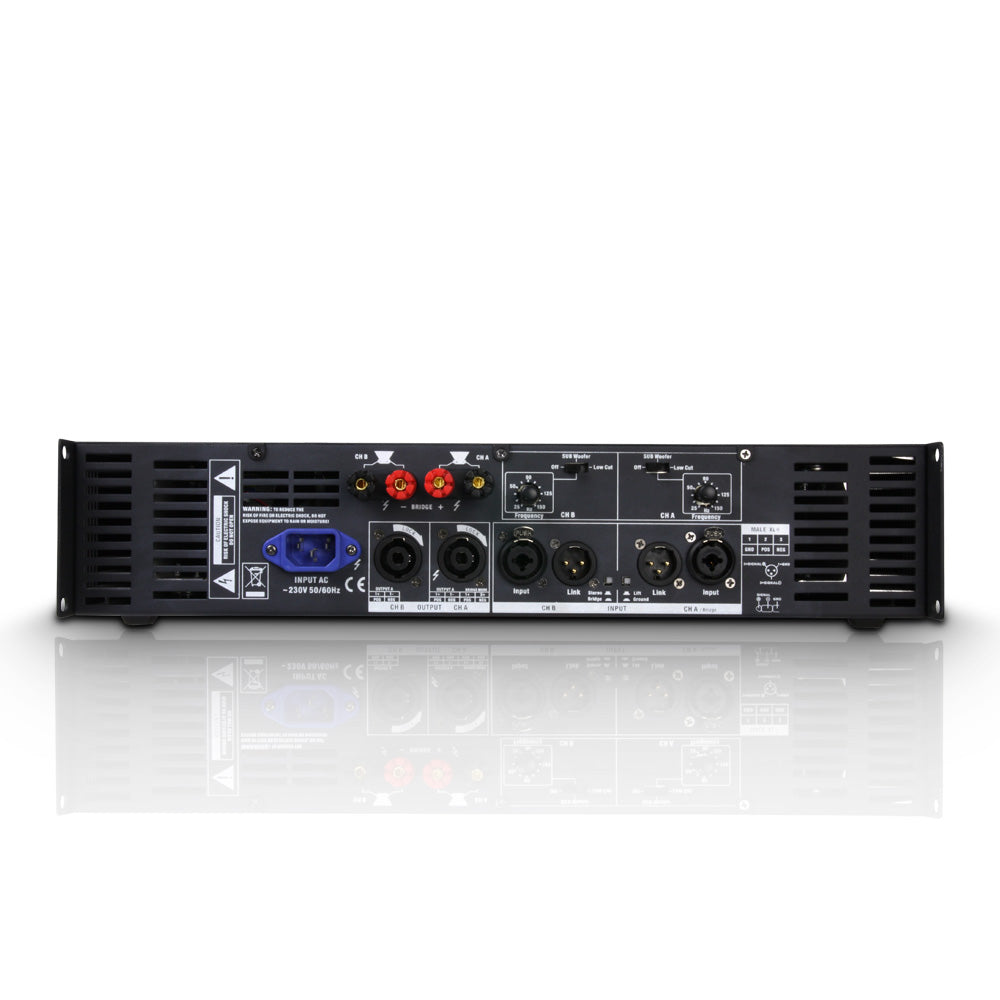

Speaker output connections:	Terminal posts, Speakon compatible
Cooling:	highly efficient, automatic
Operating voltage:	transformer, 230 V AC / 50-60 Hz
Weight:	17,6kg
Features:	Volex mains socket
