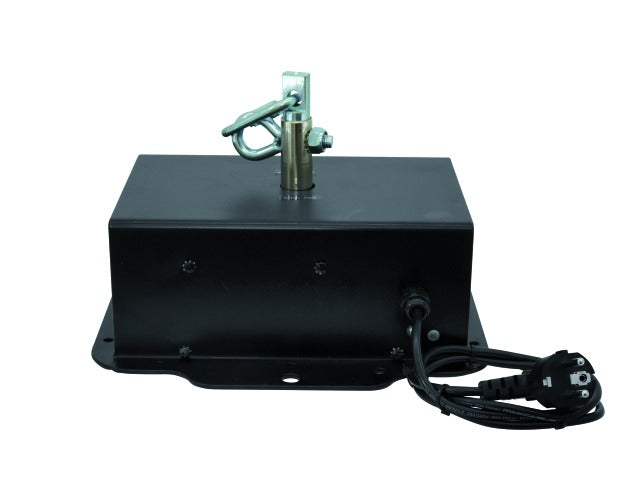

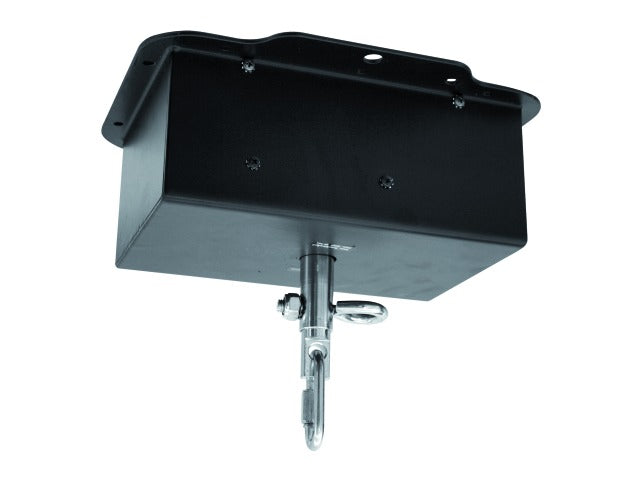

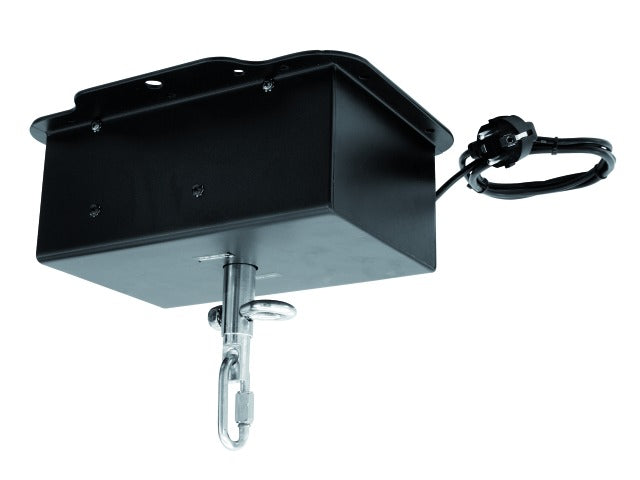

Eurolite MD-3010 Mirror ball motor (100cm)

• Safety rotary moto
• Suitable for driving mirror balls up to a maximum weight of 40 kg
• This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
• The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
• 2 chains and 4 quick links must be ordered separately
• 1 rotation per minute
• For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
• The motor always has to be installed with a secondary safety attachment
• Before taking into operation for the first time, the installation has to be approved by an expert

Motor for mirror balls of max. 100cm or 40Kg, 1 rotation per minute.

Specifications:

• Suitable for driving mirror balls up to a maximum weight of 40 kg
• This weight corresponds with a diameter of 100 cm for the EUROLITE mirror balls
• The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material (e.g. screw-on chain link)
• 1 rotation per minute
• For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
• The motor always has to be installed with a secondary safety attachment
• Before taking into operation for the first time, the installation has to be approved by an expert
• Dimensions (LxWxH): 280 x 240 x 110 mm
• Weight: 5 kg

• Strømforsyning: 230 V AC, 50 Hz
• Strømforbrug: 7 W
• IP-klassifikation: IP20
• Beskyttelsesklasse: Beskyttelsesklasse I
• Strømforbindelse: Fast strømforsyningsledning med sikkerhedsstik
• Kabelkonstruktion: 3 x 0,75 mm² H05VV-F
• Kabellængde: Ca. 0,9 m
• Hastighed: 1 RPM, 360°
• Styring: Plug and play
• Maksimal belastning: 40 kg
• Maks. spejlkuglediameter: 100 cm (EUROLITE)
• Husfarve: Sort mat
• Diameter monteringshuller: 2 x Ø12mm; 4 x Ø7mm; 10 x Ø6mm
• Materiale: Metal, 3 mm
• Dimensioner:
  • Længde: 28,5 cm
  • Bredde: 23,5 cm
  • Højde: 18,5 cm
• Vægt: 5,60 kg
