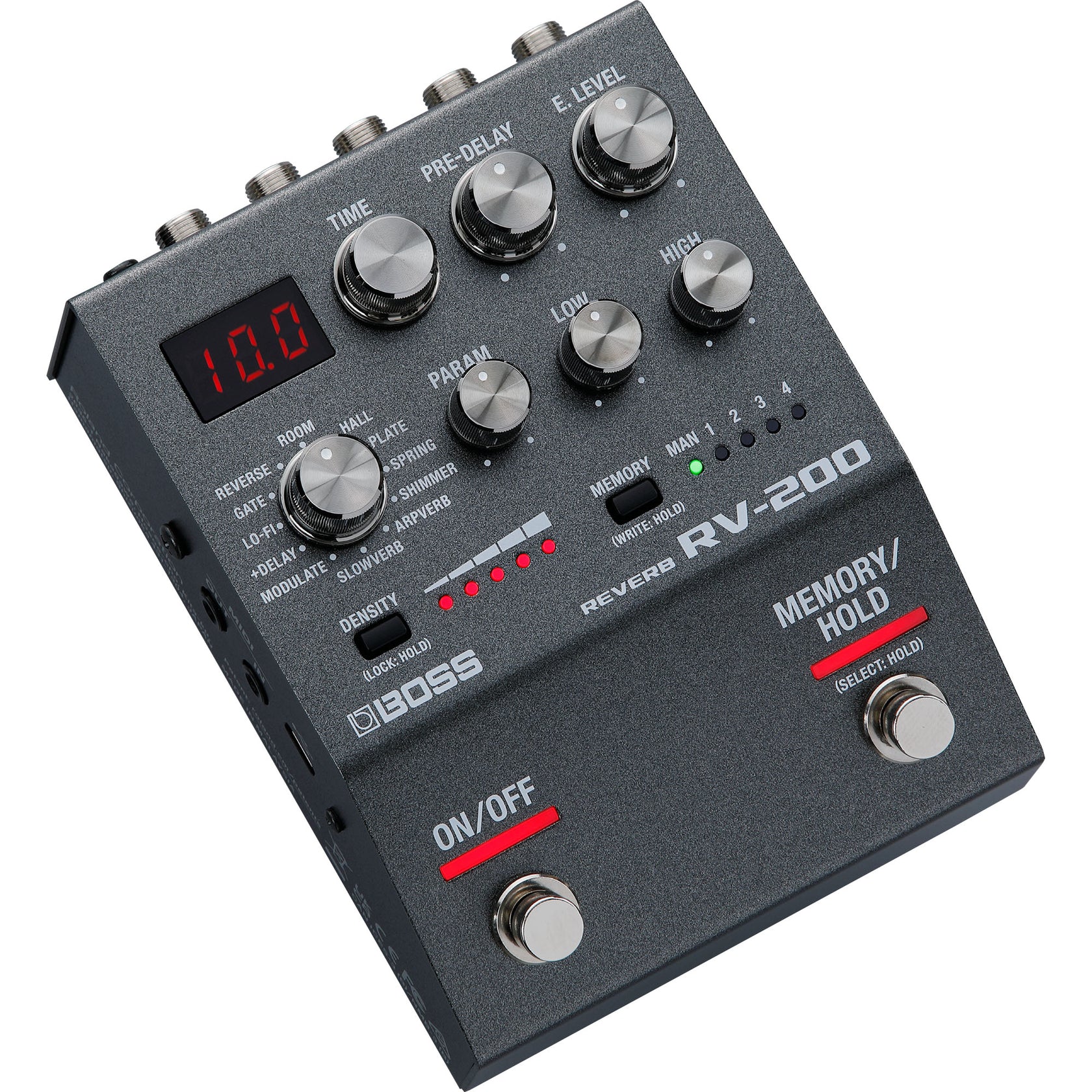

Boss RV-200 Reverb

• Reverb pedal from the Boss 200 series with 12 built-in high-quality reverbs
• Including the newly developed Arpverb effect
• Everything from subtle room to grandiose dreamy textures
• 127 memories, versatile onboard controllers and switches
• Possibility of carryover on/off
• Plenty of external connectivity options

Boss RV-200 Reverb

• Reverb pedal from the Boss 200 series with 12 built-in high-quality reverbs.
• Lots of options for tweaking the sound and great creativity.
• Includes the newly developed Arpverb effect.
• Everything from subtle room to grand dreamy textures.
• 127 memories, versatile onboard controllers and switches.
• Cool audio tools like Hold, Warp, Twist and more.
• 32-bit AD/DA, 32-bit floating point processing and 96 kHZ sampling rate.
• Optional carryover on/off so the reverb fades out when you change presets or bypass the pedal.
• Stereo I/O with wet/dry and dry mute output options.
• Plenty of external connectivity - footswitches, expression pedal, TRS MIDI I/O.
• Connect and control 200 devices simultaneously via MIDI.
• Can run on three AA batteries or AC adapter (both optional).

- Sampling Frequency
96 kHz

- AD/DA Conversion
32 bits

- Processing
32-bit floating point

- Modes
12 modes
ROOM, HALL, PLATE, SPRING, SHIMMER, ARPVERB, SLOWVERB, MODULATE, +DELAY, LO-FI, GATE, REVERSE

- Memory
127 + Manual

- Nominal Input Level
INPUT A/MONO, B: -10 dBu

- Maximum Input Level
INPUT A/MONO, B: +7 dBu

- Input Impedance
INPUT A/MONO, B: 2 M ohms

- Nominal Output Level
OUTPUT A/MONO, B: -10 dBu

- Maximum Output Level
OUTPUT A/MONO, B: +7 dBu

- Output Impedance
OUTPUT A/MONO, B: 1 k ohm

- Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater

- Bypass
Buffered bypass

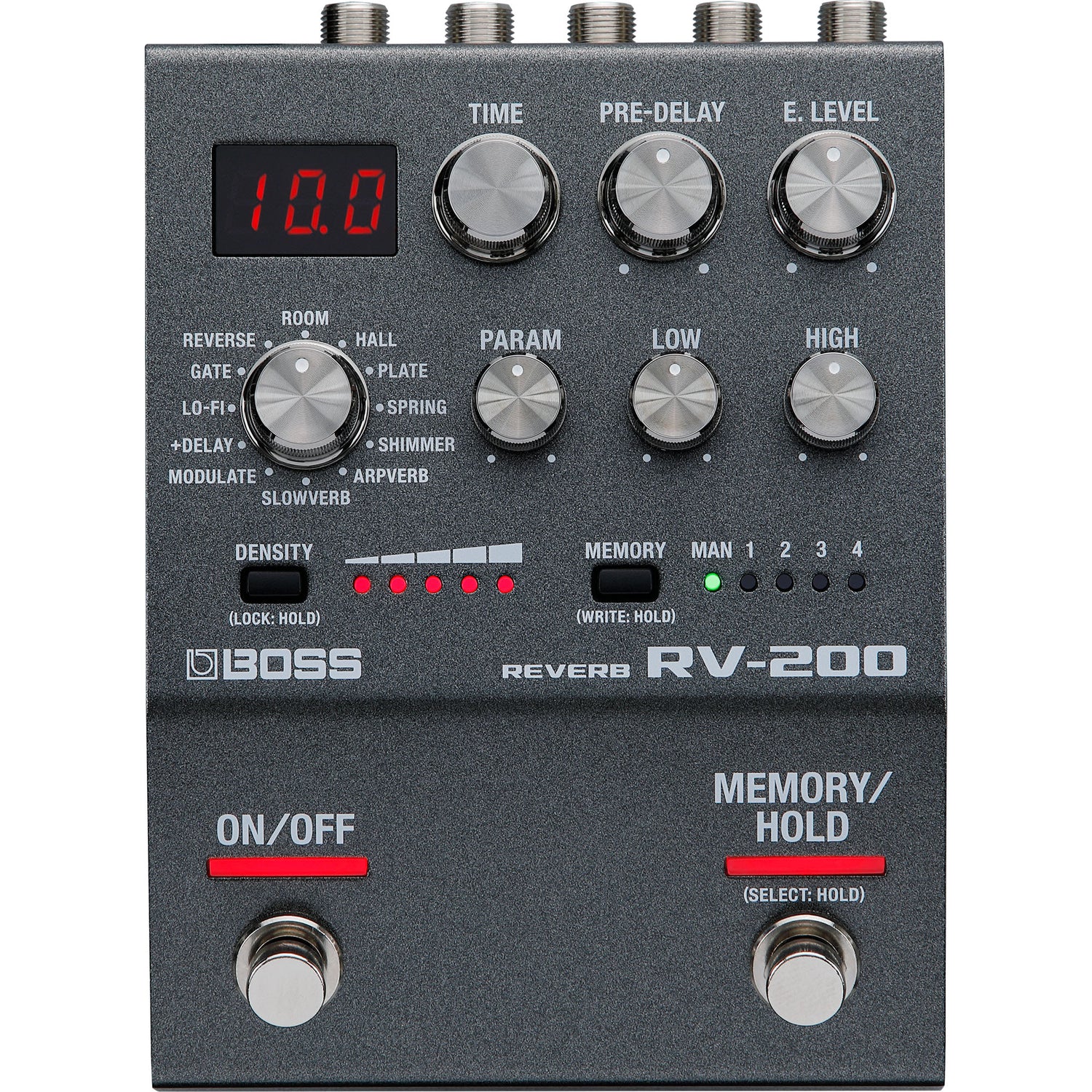

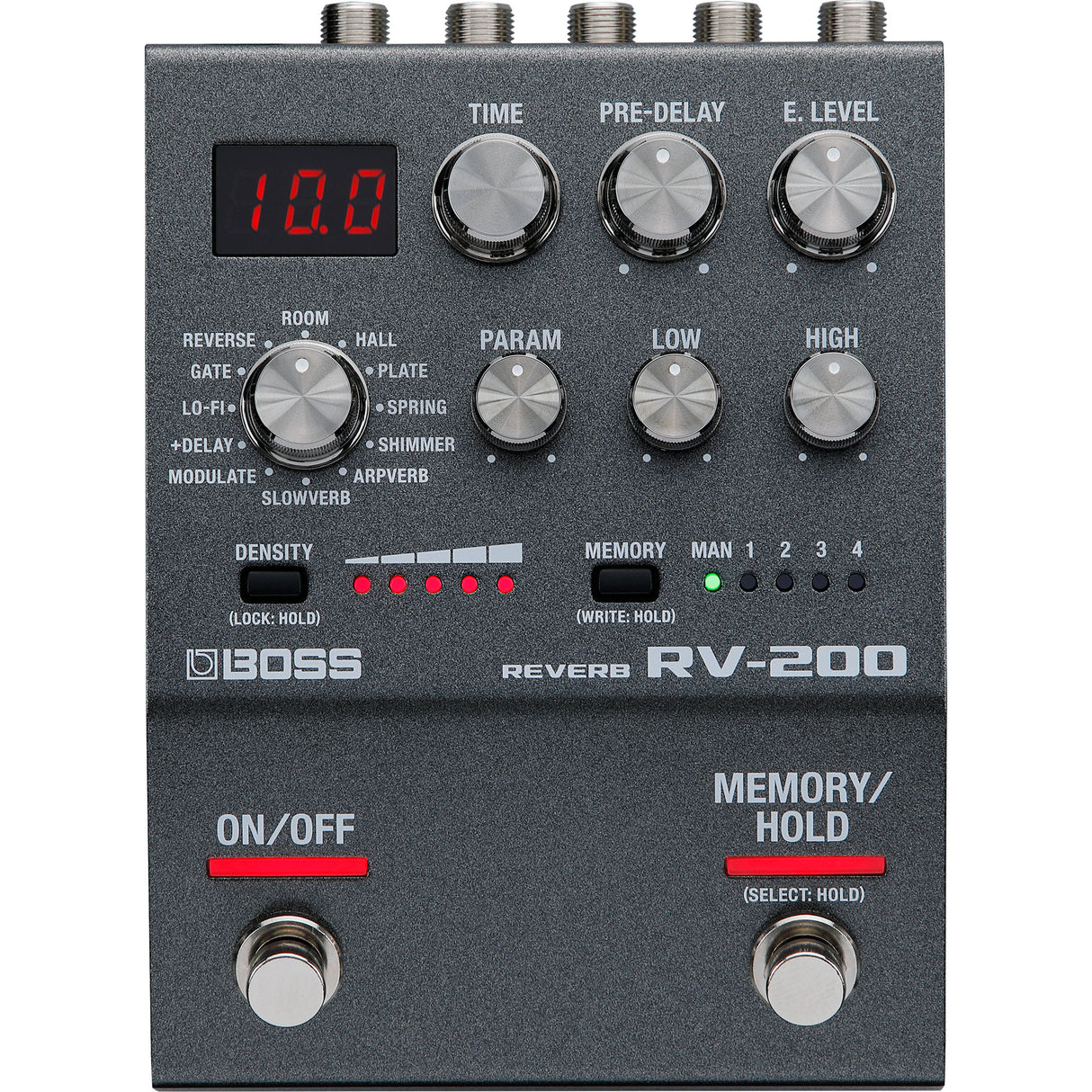

- Controls
ON/OFF switch, MEMORY/HOLD switch
MODE knob, TIME knob, PRE-DELAY knob, E. LEVEL knob, PARAM knob, LOW knob, HIGH knob
DENSITY button, MEMORY button

- Display
7 segments, 3 characters (LED)

- Indicator
DENSITY indicator, MEMORY (MAN, 1--4) indicators

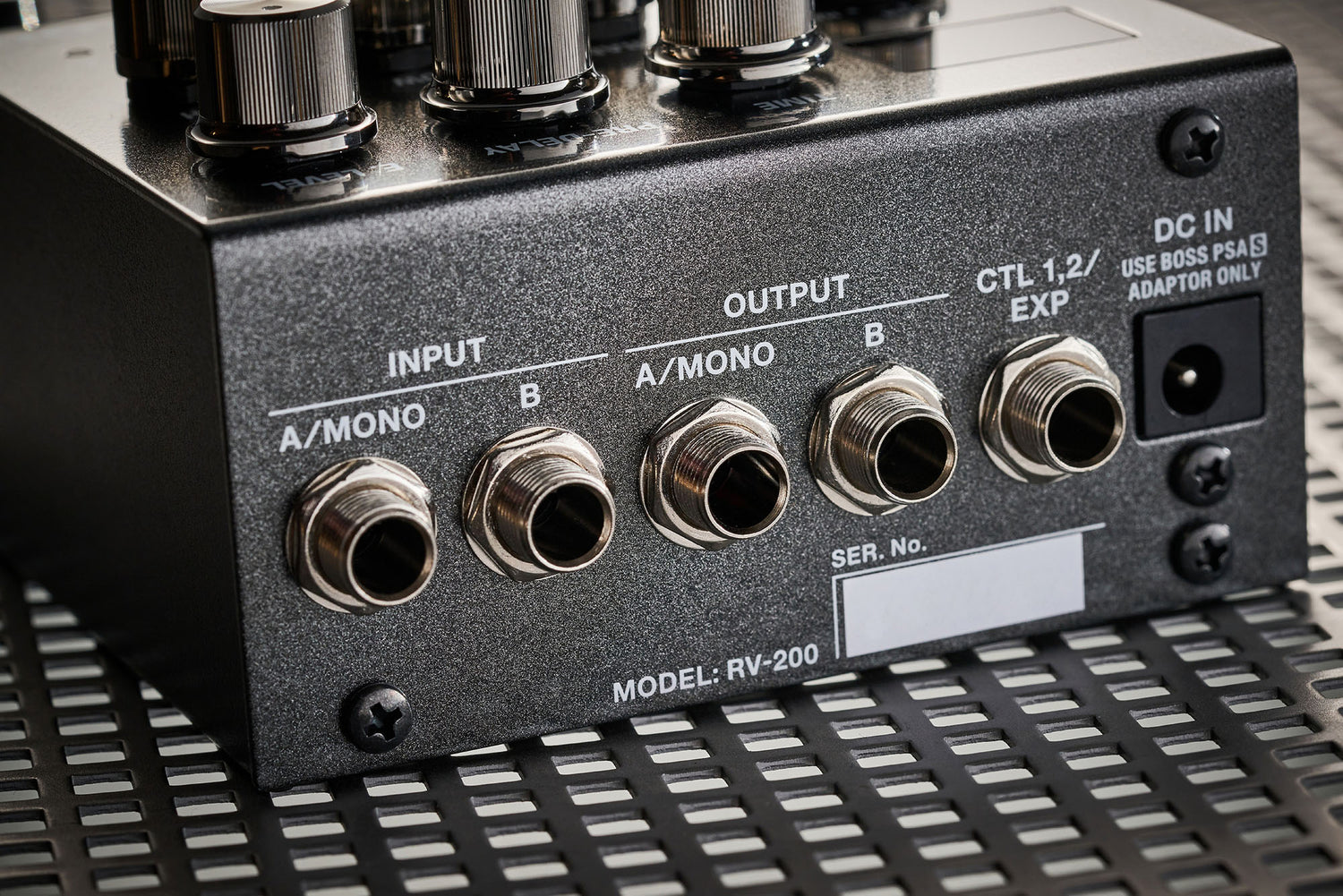

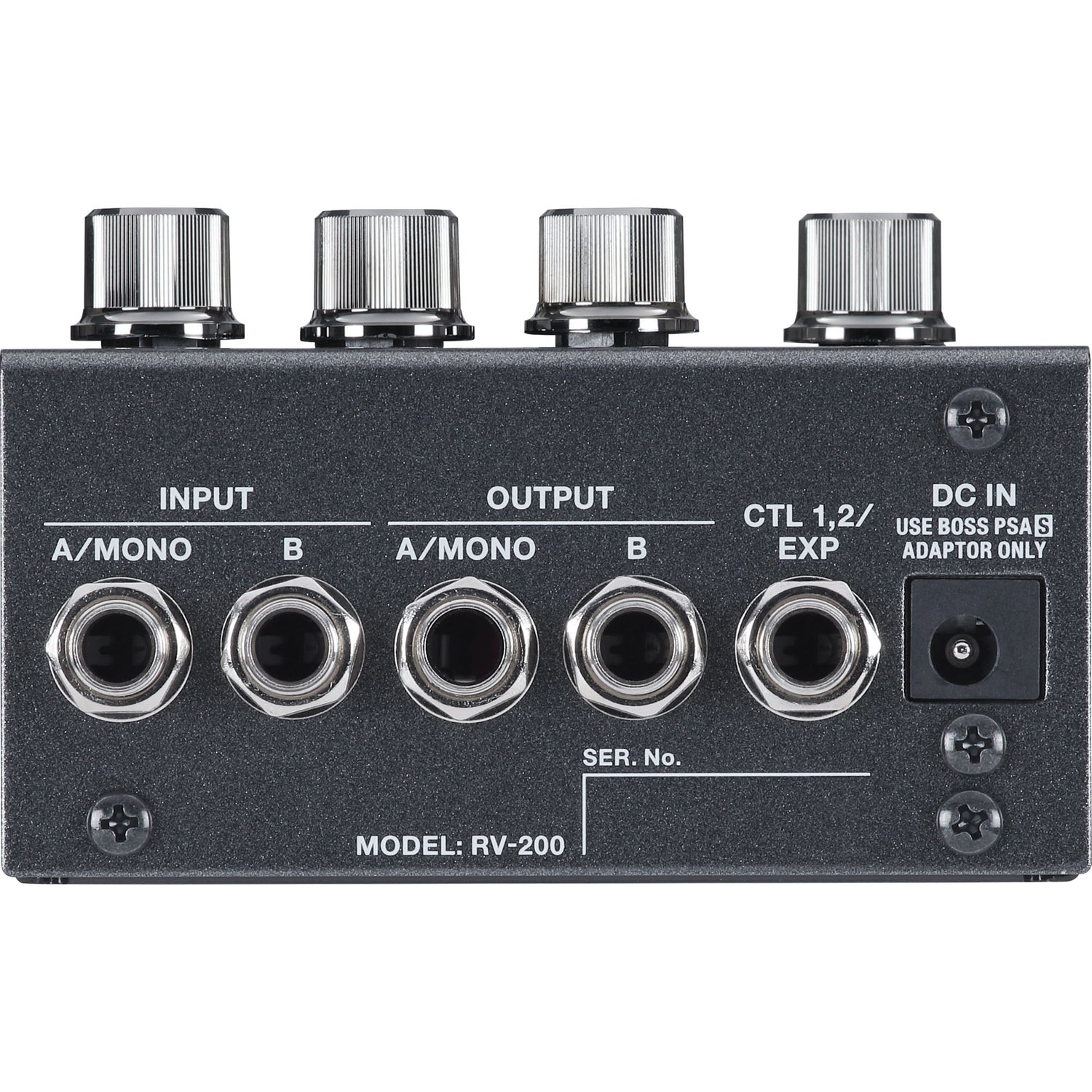

- Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

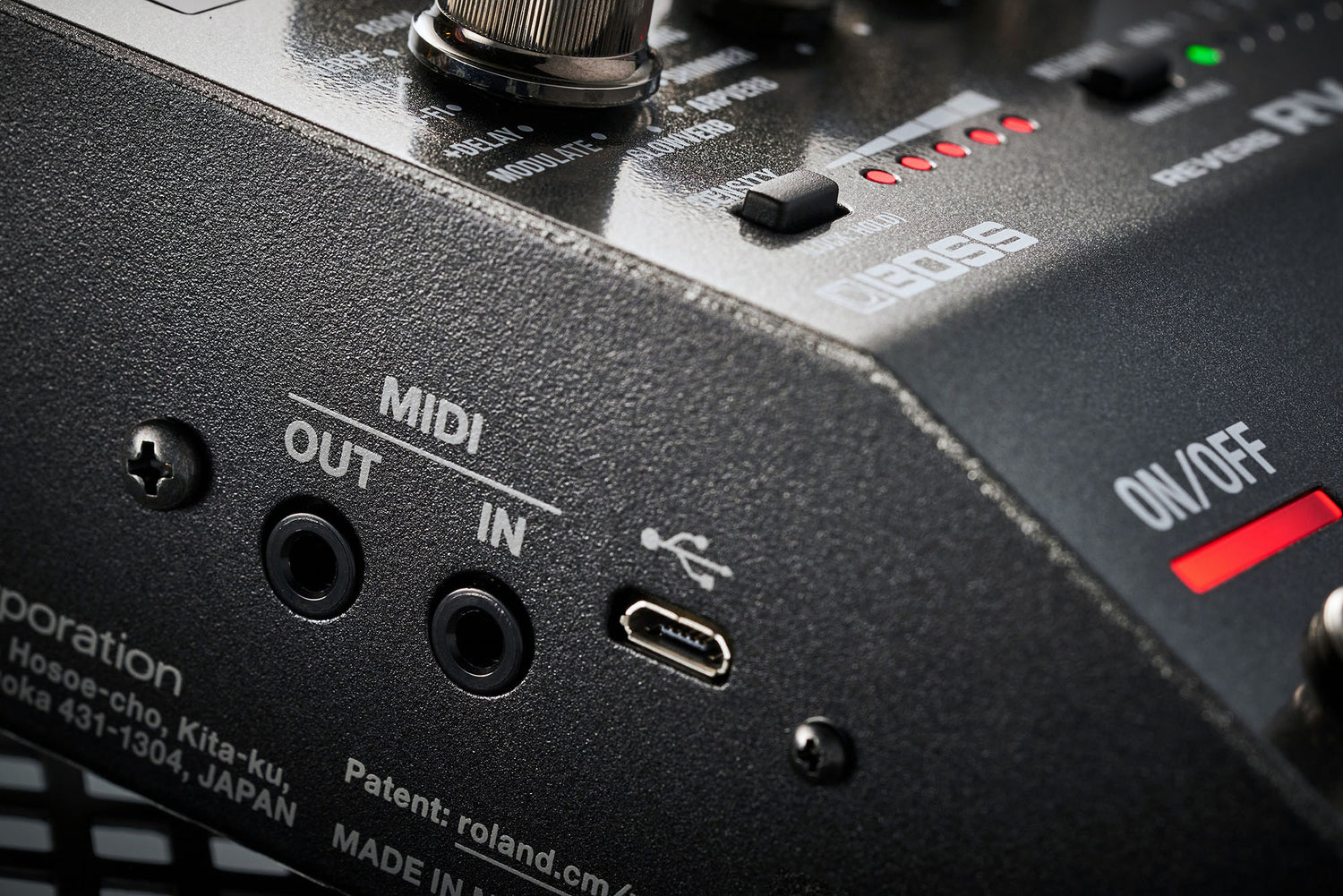

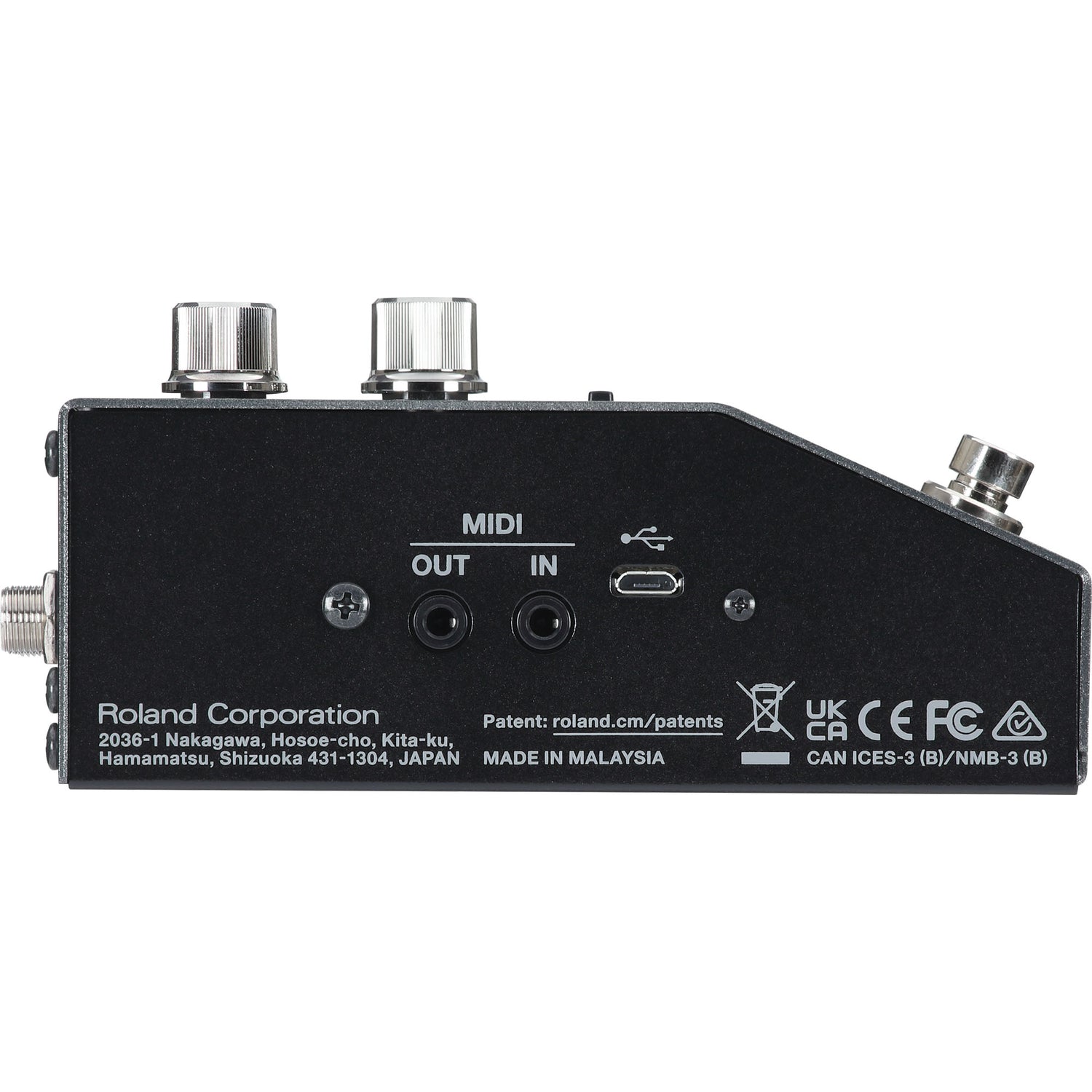

MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB2.0 micro B (program update only)

- Power Supply
Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)

- Current Draw
260 mA

- Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.

- Dimensions
101 (W) x 138 (D) x 63 (H) mm / 4 (W) x 5-7/16 (D) x 2-1/2 (H) inches
101 (W) x 138 (D) x 65 (H) mm / 4 (W) x 5-7/16 (D) x 2-9/16 (H) inches (including rubber feet)

- Weight
610 g / 1 lb 6 oz
680 g / 1 lb 8 oz (including batteries)

- Accessories
Leaflet "USING THE UNIT SAFELY"
Leaflet "To obtain the Owner’s Manual"

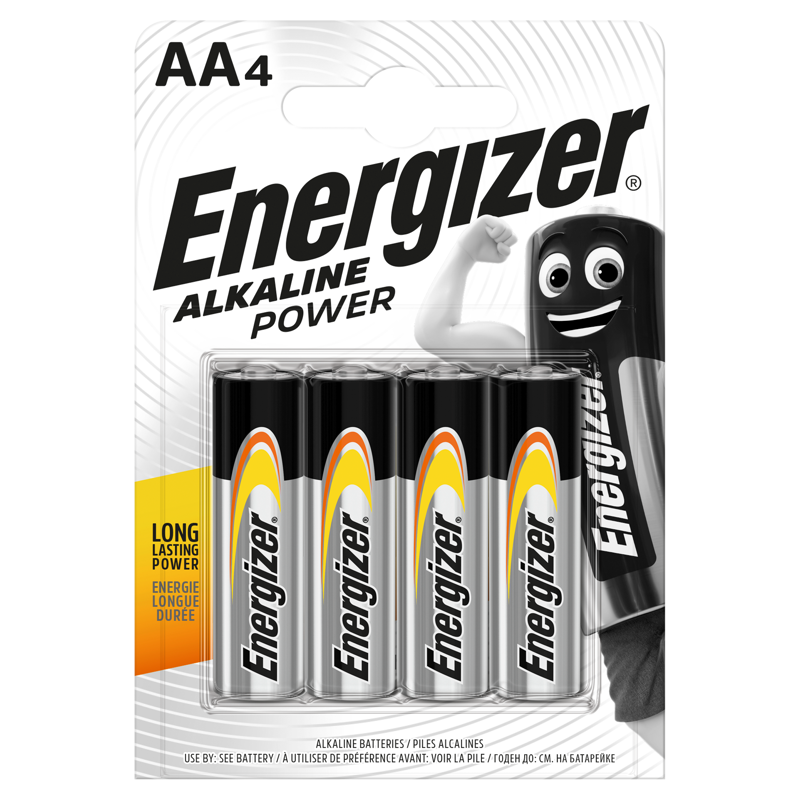

Alkaline battery (AA, LR6) x 3
Rubber foot x 4

- Options (sold separately)

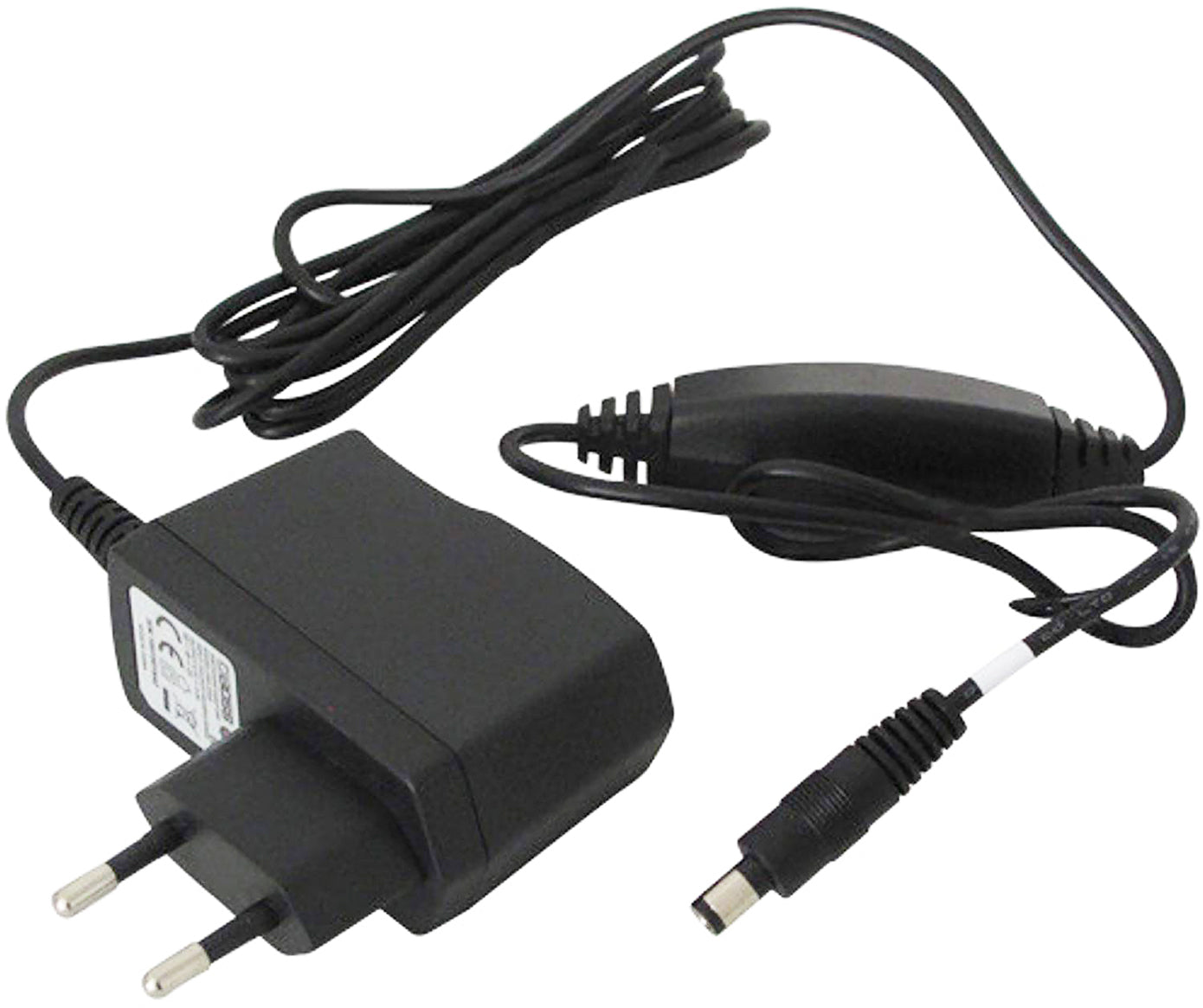

AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5

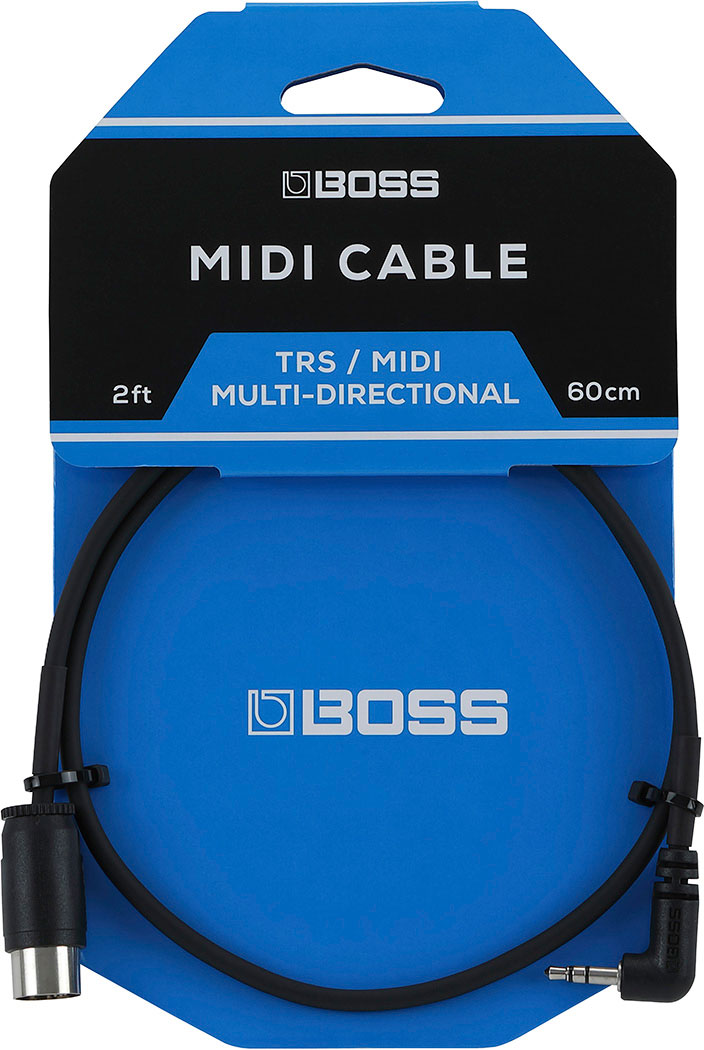

TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

* 0 dBu = 0.775 Vrms
