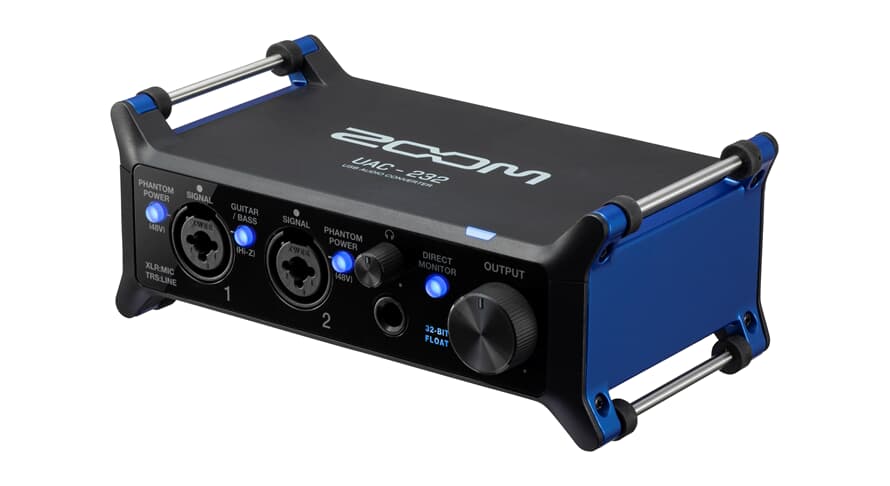

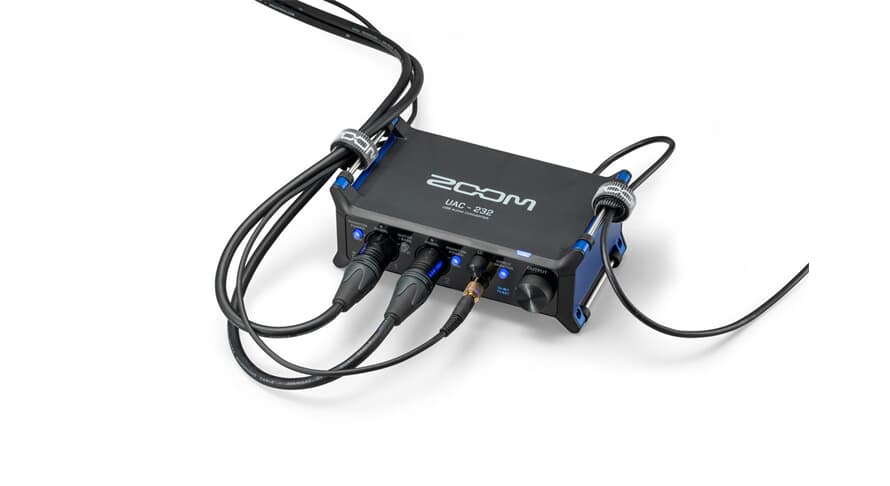

Zoom UAC-232 Sound card

• 32-bit sound card with a wealth of possibilities
• Experience professional quality where every detail has been thought of
• Easy to use with the device's many user-friendly features

Zoom UAC-232 Sound Card

• Take your music productions to the next level with ZOOM UAC-232 USB Audio Converter!
• The dedicated 32-bit float audio interface allows you to record low-level audio recordings without having to adjust gain
• With the same clean and low noise amplifiers used in professional F-series recorders, the UAC-232 guarantees high quality recordings in any environment
• Mix Control software lets you adjust I/O routing, enable loopback, and control input and monitoring levels
• Music mode to route the music to your DAW or Streaming mode to combine all inputs into a single signal for streaming software

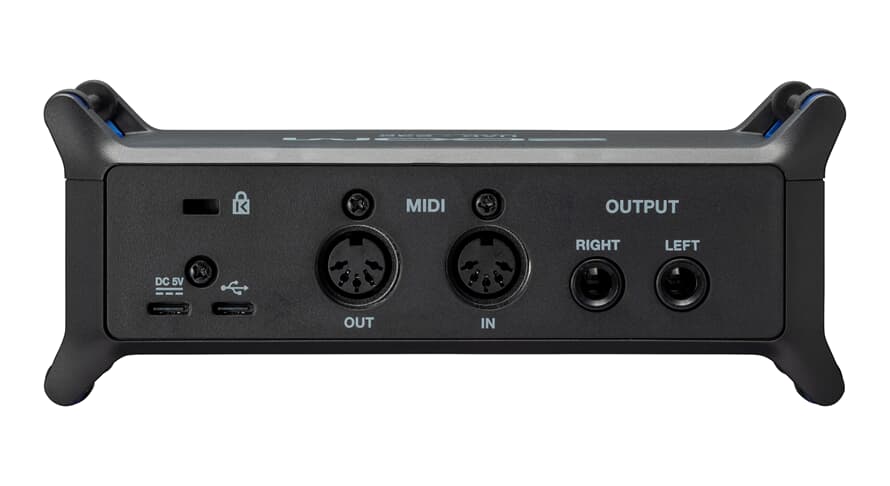

• Compatible with Windows, Mac and iOS devices and features MIDI IN/OUT for connecting external MIDI peripherals
• With the UAC-232, you can record and stream in 24-bit and get a powerful 100 milliwatts of headphone output
• Compact design with many user-friendly options

• Antal inputkanaler: Mono (MIC/LINE) 2
• Antal udgangskanaler: Stereo (TRS) 1, Stereo (TELEFON) 1 og Stik

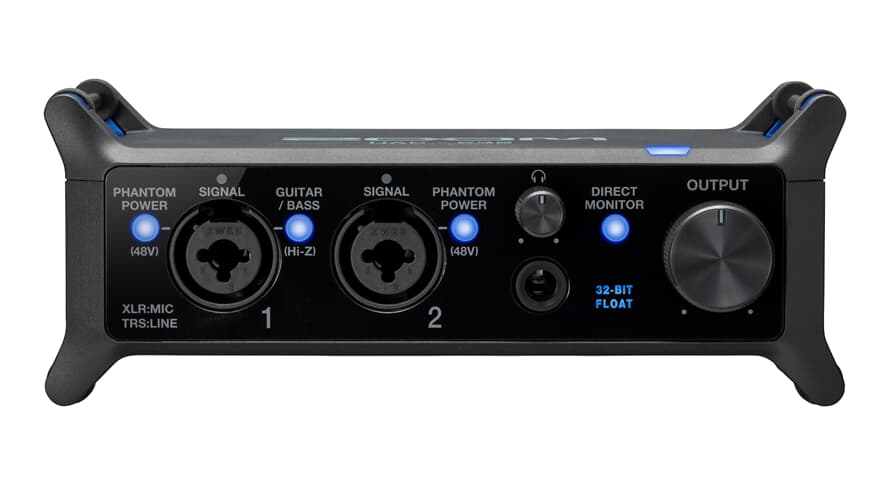

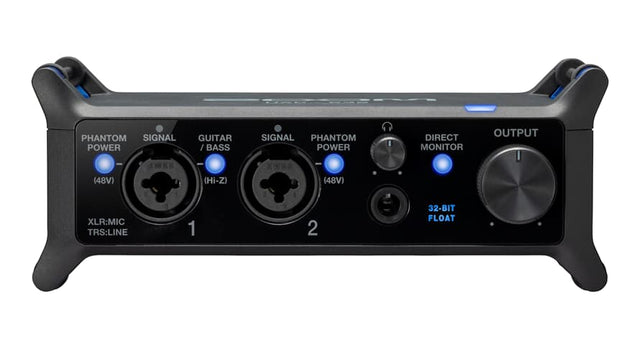

• Indgang 1–2: XLR/TRS combo-stik (XLR: 2 HOT, TRS: TIP HOT)
• Indgangsimpedans: XLR: 2,7 kΩ og TRS: 4 kΩ / 1 MΩ (når indstillet til Hi-Z)
• Maksimalt inputniveau: XLR: +6 dBu, TRS: +24 dBu / +11,5 dBu (når indstillet til Hi-Z)
• Fantomkraft:+48 V
• TRS telefonstik (balanceret)
• Maksimalt udgangsniveau: +18 dBu (ved 0 dBFS)
• Udgangsimpedans: 100 Ω
• Telefon: 3,5 mm stereo telefonstik , 100 mW + 100 mW (32 Ω belastning)
• Udgangsimpedans:12 Ω
• USB: USB Type-C (audio interface funktion)
• DC 5V
• USB Type-C (til strømforsyning)
• Frekvensrespons
• Indgange: 44,1 kHz: 20 Hz – 20 kHz, +0,1 dB / −0,2 dB, 192 kHz: 20 Hz – 80 kHz, +0,1 dB / -0,2 dB
• Udgange: 44,1 kHz: 20 Hz – 20 kHz, +0,0 dB / -0,1 dB, 192 kHz: 20 Hz – 80 kHz, +0,0 dB / −1,0 dB
• Hovedtelefoner: 44,1 kHz: 20 Hz – 20 kHz, +0,0 dB / -0,5 dB, 192 kHz: 20 Hz – 80 kHz, +0,0 dB / −1,0 dB
• Tilsvarende inputstøj: –127 dBu eller mindre (IHF-A)
• Lyd interface
• Input og output kanaler
• Optagelse: 2 kanaler
• Afspilning: 2 kanaler
• Sampling frekvenser: 192 kHz, 176,4 kHz, 96 kHz, 88,2 kHz, 48 kHz, 44,1 kHz
• 32-bit Float / 24-bit
• USB Audio Class 2.0
• Vekselstrømsadapter (ZOOM AD-17): DC 5 V/1 A
• USB bus strøm er understøttet.
• USB/AC-adapter (5 V): 293 mA
• Strømforbrug: 5 W maksimum
• Dimensioner: 164 mm (B) × 105,5 mm (D) × 65 mm (H)
• Vægt: 355 g
