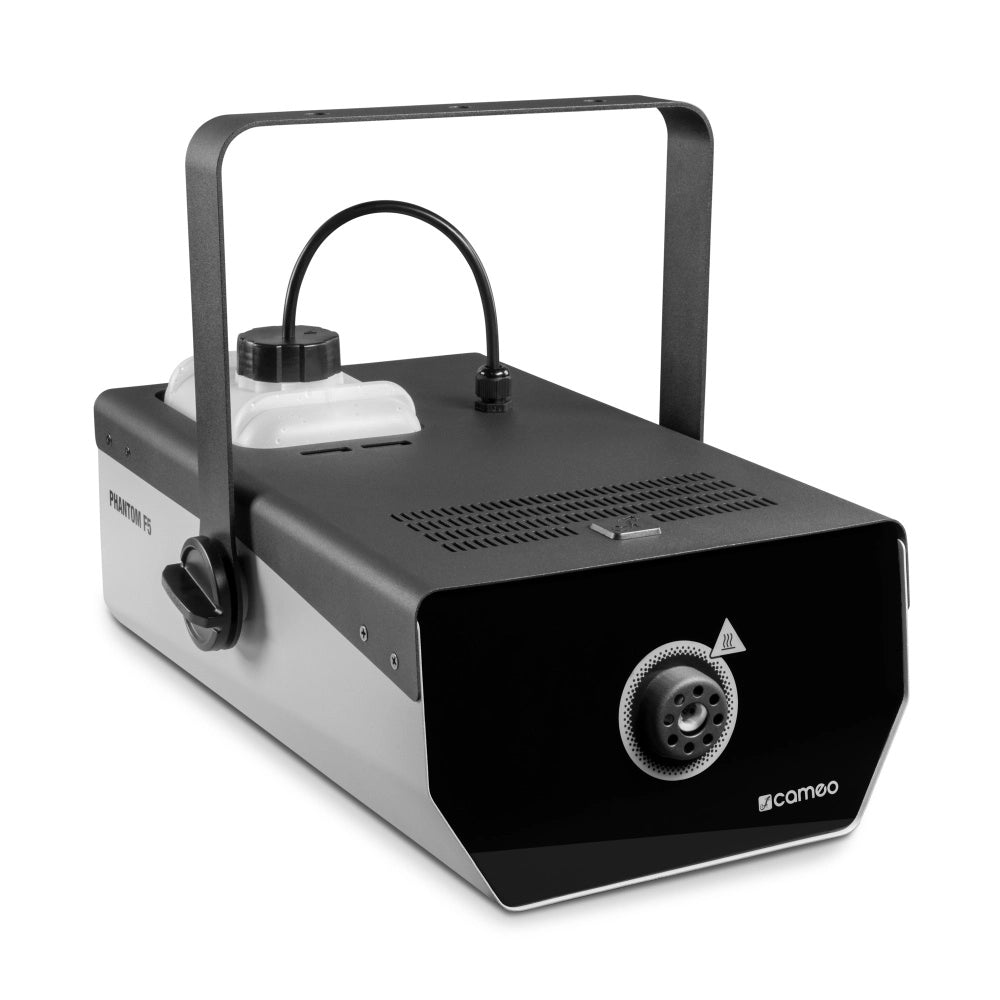

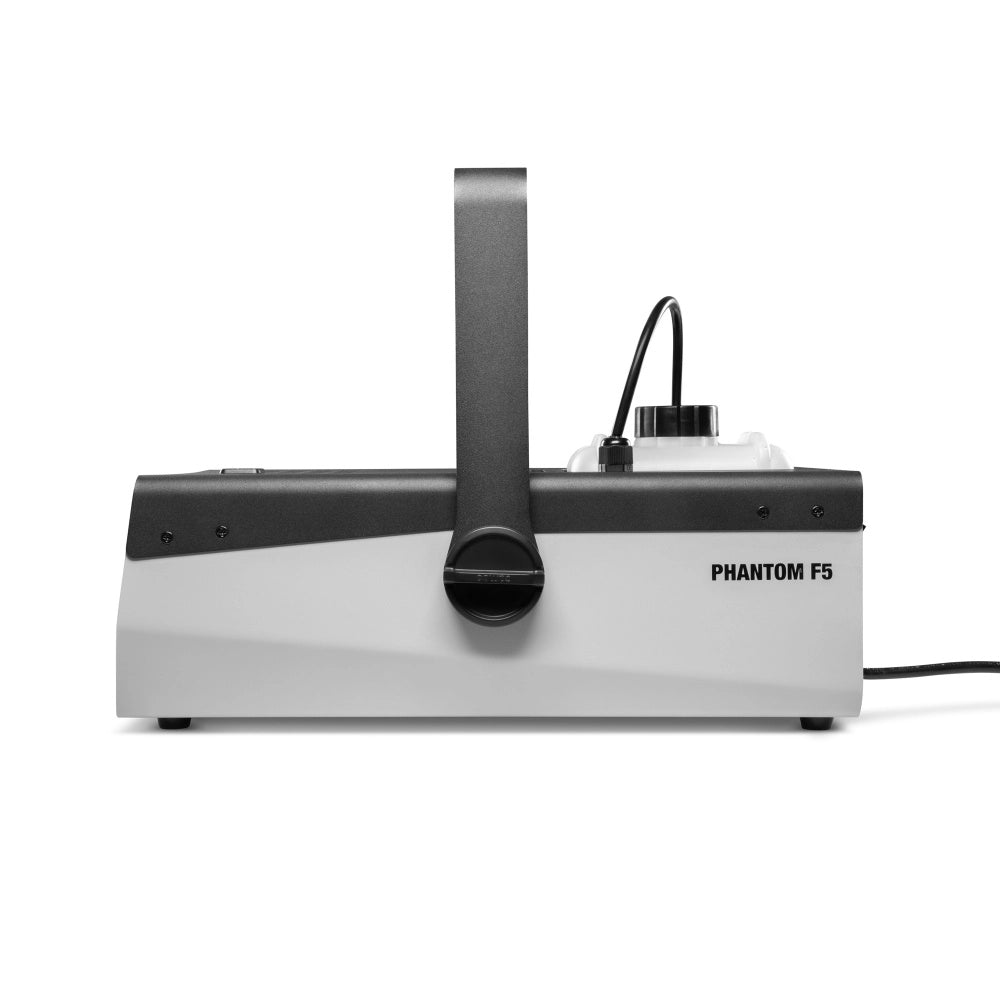

Cameo PHANTOM F5 Fog Machine

• Great smoke machine with 1500 w heat output
• Short heating time (about 4 minutes)
• Output up to 509 m³/min
• Tank with 1.8 L capacity and two-colour level indicator.
• Compatible with standard water-based smoke fluid
• DMX control and stand-alone function
• Mounting bracket and multi-function remote control included
• LED display for easy setting

Cameo PHANTOM F5 Smoke Machine

• Highly efficient heating element with 1500 w heat output.
• Short heating time (approx. 4 minutes).
• Output up to 509 m³/min.
• Tank with 1.8 L capacity and two-colour level indicator.
• Compatible with standard water-based smoke fluid.
• Tank can be removed, making refilling hassle-free.
• DMX control and stand-alone function.
• Optimal coordination of pump and heat, ensures uniform smoke at any thickness.
• Mounting bracket and multi-functional remote control included.
• LED display for easy setting.

Product type

Fog Machine

Type

Fog Machine

Power

1500 W

Output volume

ca. 509 m³/min

Range of fog output

approx. 7 m

Warm-up time

approx. 3 min

Fog duration

ca. 14 s

Reheating time

ca. 12 s

Fluid tank capacity

1.8 l

Fluid Consumption

ca. 90 ml/min

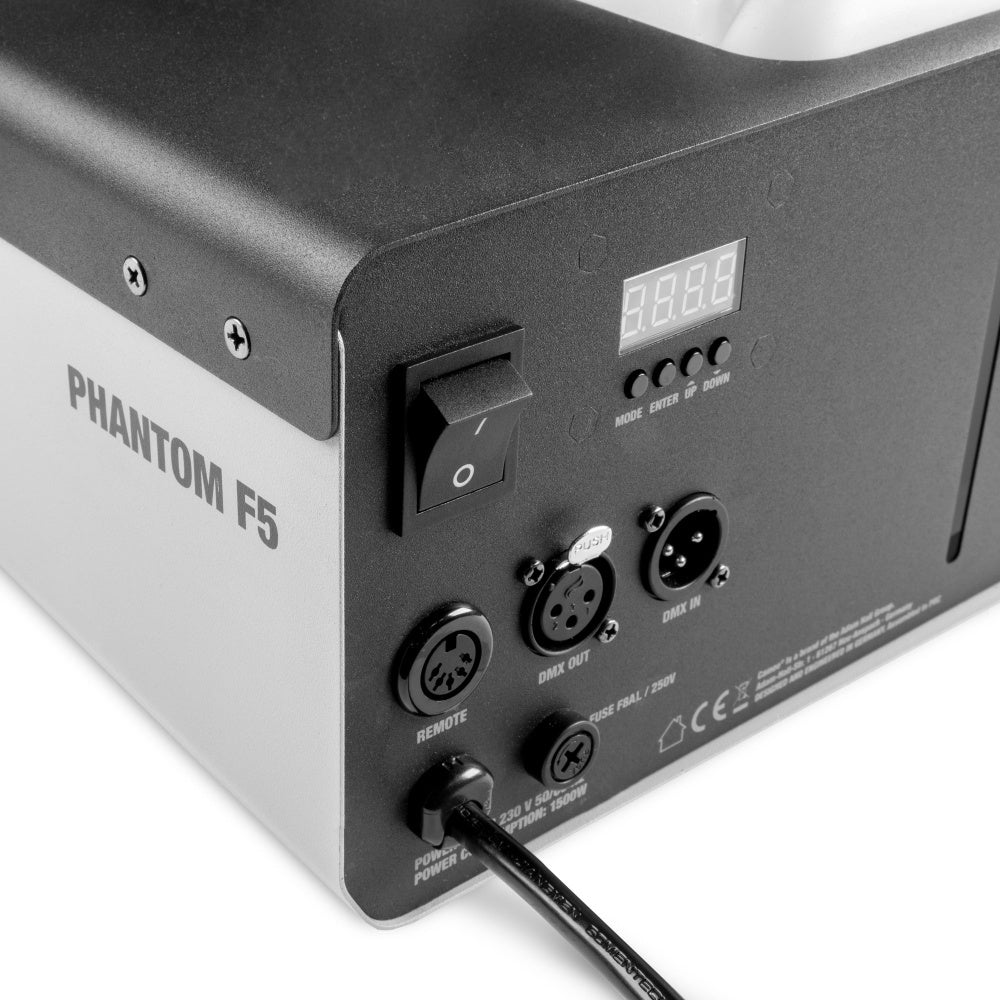

Remote connection

DIN 5-Pol male

Remote cable length

10 m

Remote functions

Continous output, Duration, Interval, manual, Time, volume

DMX input

XLR 3-pin male

DMX output

XLR 3-pin female

DMX mode

1-channel, 3-channel

DMX Functions

Fog output on/off, Timer Duration, Timer Interval

Controls

Down, Enter, Mode, Up

Indicators

4-digit LED display

Operating voltage

230 V AC / 50-60 Hz

Fuse

F8AL / 250 V

Power consumption

1450 W

Ambient temperature (in operation)

5 - 40 °C

Relative Humidity

< 85 %, not condensing

Power connector

CEE 7/7, Fixed connection cable

Housing material

Metal

Cabinet colour

Black, grey

Width

250 mm

Height

150 mm

Length

420 mm

Accessories (included)

4 rubber feet, Cable remote, canister

Weight

7,9 kg
