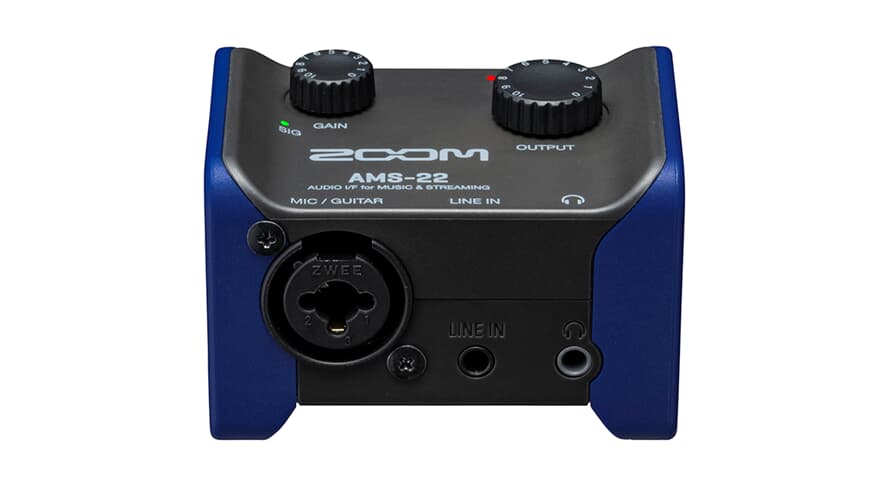

Zoom AMS-22 Sound card

• The AMS-22 sound card has a uniquely high sound level
• Easy to use - connect your devices seamlessly
• Great value for money

Zoom AMS-22 Sound card

• AMS-22 is the perfect tool for streaming and mobile recording

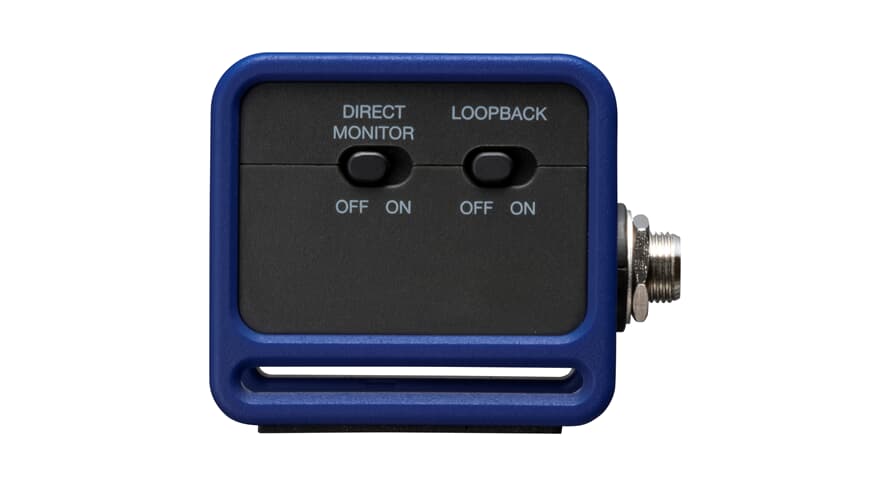

• Whether for Mac, PC, iOS or Android, you can easily connect the AMS series to your device and perform direct monitoring, loopback functions and other recording-related tasks

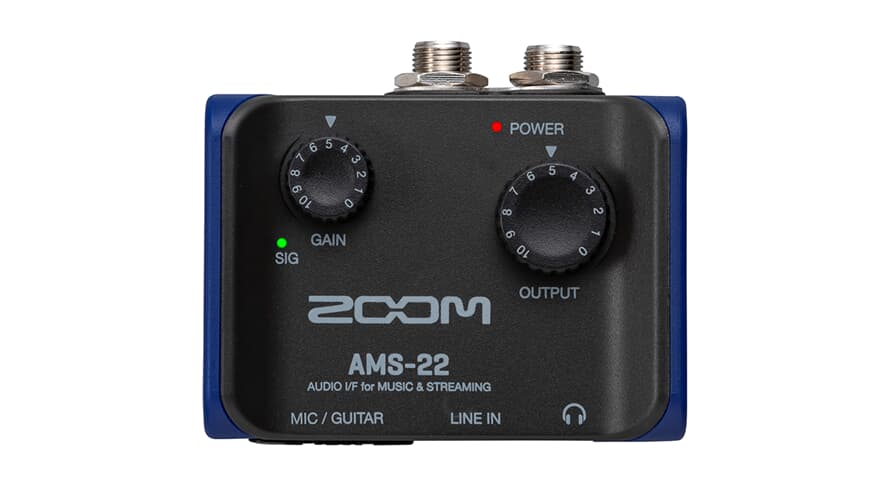

• Built-in hardware controls to simplify the process
• Power connection using USB-C
• AMS Series delivers smooth and accurate audio files every time
• Very easy to use
• Long-lasting

• Number of input channels Mono (MIC/GUITAR) 1
•   Stereo (LINE IN) 1
• Number of output channels Stereo (TRS) 1
•   Stereo (TELEPHONE) 1

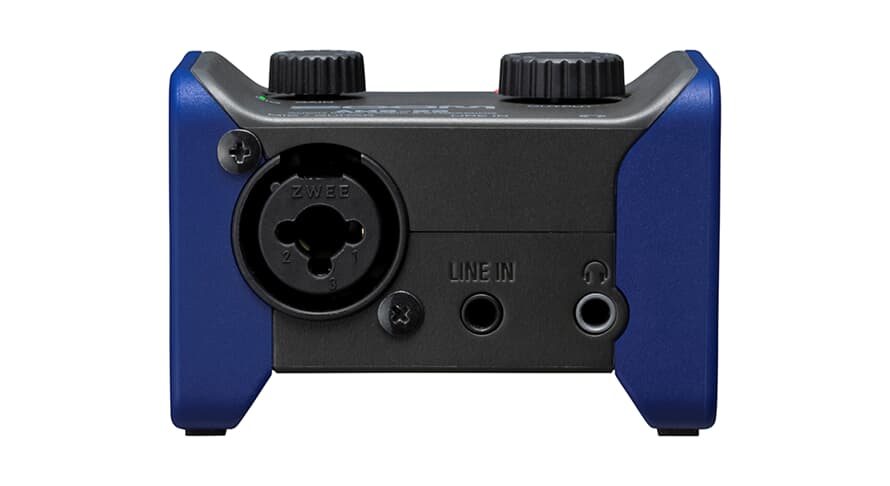

• MIC/GUITAR Type XLR/TRS combo jack
•   (XLR: 2 HOT, TRS: TIP HOT)
•   Input Gain +8 - +54 dB (MIC) / +8 - +54 dB (GUITAR)
•   Input impedance XLR: 2 k (MIC)
•   TS: 1 M (GUITAR)
•   Maximum input level XLR: +0.6 dBu (MIC)
•   TS: +11 dBu (GUITAR)

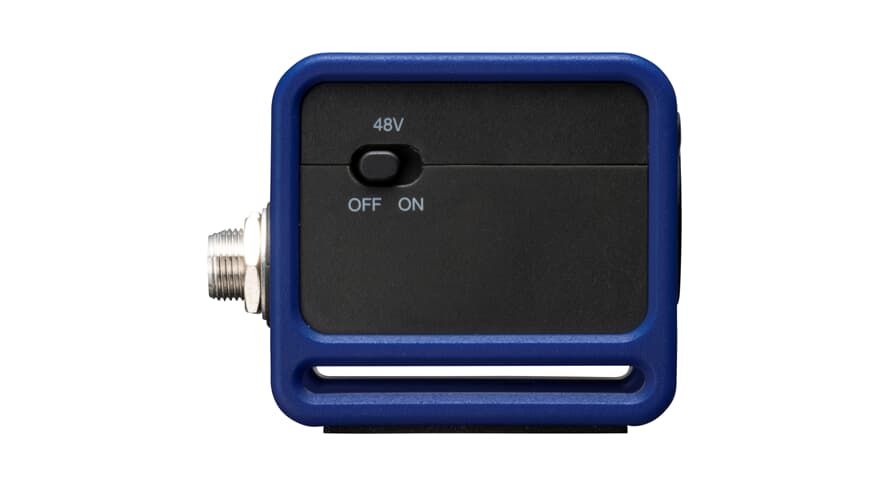

•   Phantom power +48 V

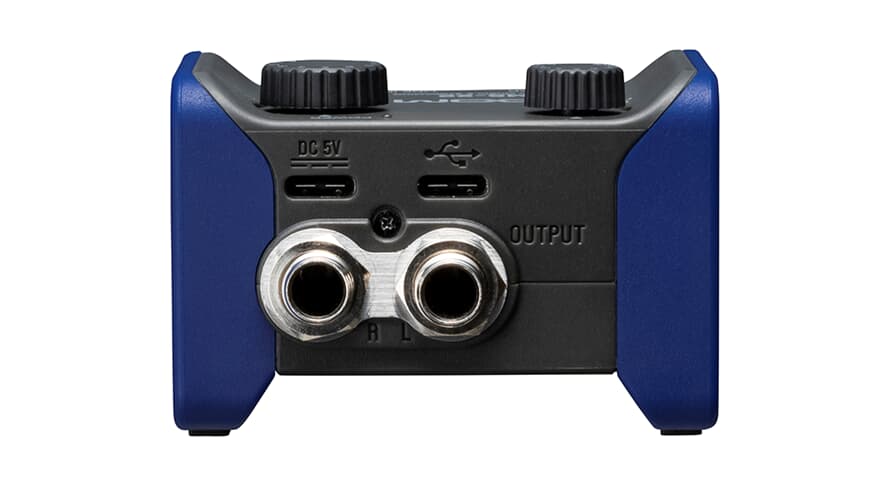

• OUTPUT (standard phone jack) Type TRS phone jack (impedance balanced)
•   Maximum output level -2 dBu (at 0 dBFS)
•   Output impedance 100
• OUTPUT (main phone jack) Type 3.5 mm stereo mini jack
•   20 mW + 20 mW (32 load)
•   Output impedance 10
• USB USB Type-C (audio interface function)
•   - Use a USB cable that supports data transfer. USB bus power is supported.
• DC 5V USB Type-C (for power supply)
• LINE IN Type 3.5 mm stereo mini-jack
•   Input impedance 20 k
•   Maximum input level +1.5 dBu
• Frequency response: 44.1 kHz: +0/-2 dB (20 Hz - 20 kHz)
• 96 kHz: +0/-3 dB (20 Hz - 40 kHz)
• Corresponding input noise
•   -120 dBu or less (IHF-A) at +54dB/150 input
• Audio interface
• Input and output channels Recording: 2 channels
•   Playback: 2 channels
• Sampling rates: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
• Bit depth: 24-bit
• Interface USB: 2.0
• Class USB Audio Class: 2.0
• Power: AC adapter (ZOOM AD-17): DC 5 V/1A
• USB bus power supported.
• Rated current:   USB bus power / DC 5 V power supply: 170 mA
• Power consumption:   1.8 W maximum
• Dimensions: 68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H)
• Weight (unit only):  85 g
