Description
Description
- Professional and successful PA speakers
- Robust plywood construction
- Very good frequency response
- Holes for various stands and eyebolts

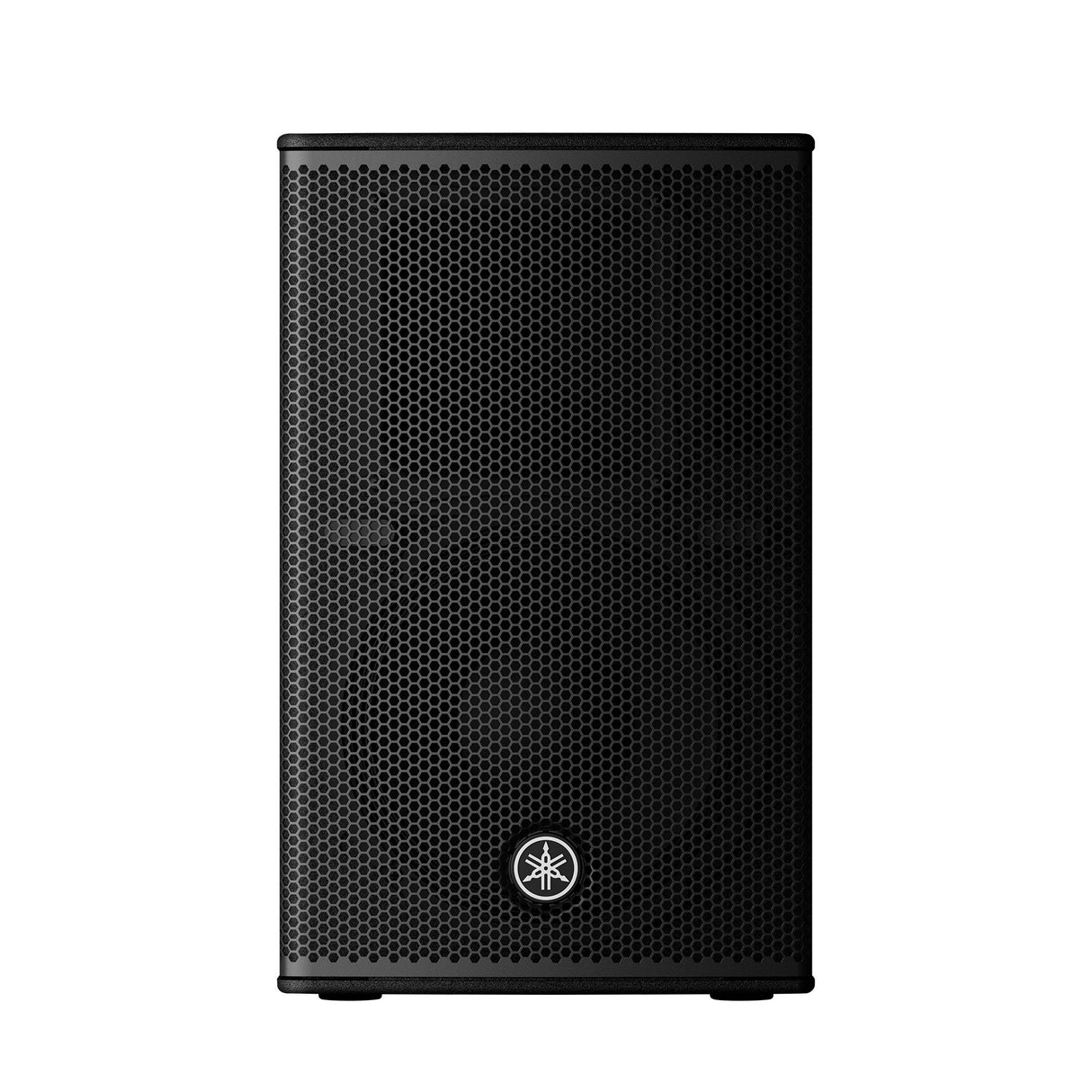

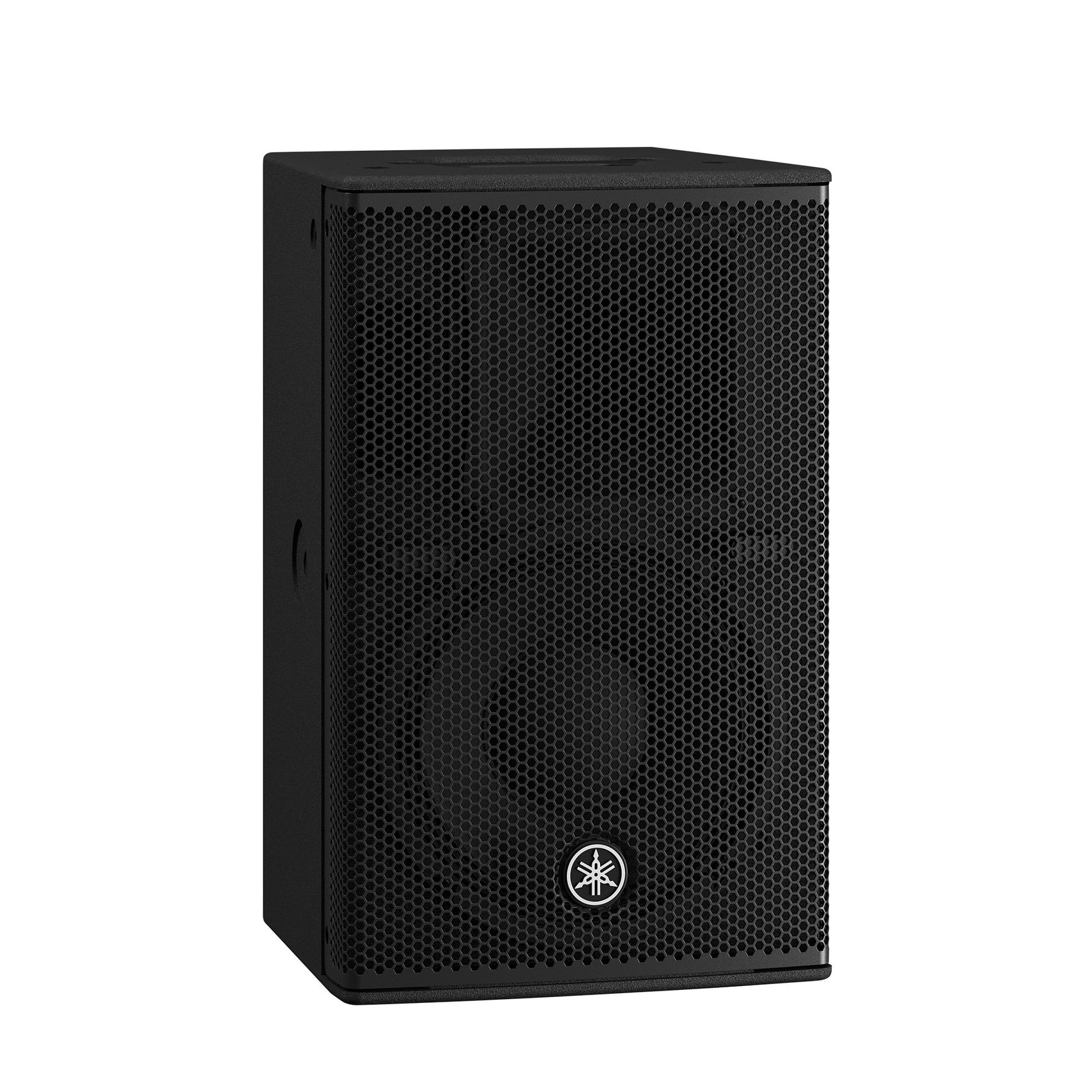

Yamaha CHR10 Passive Speaker
The CHR10 is a professional PA speaker with 10- and 1.4-inch carefully selected units. The cabinet is constructed in the same veneer design as Yamaha's high-grade speakers in the CZR series. With the CHR10 you get the best sound in the price range and a perfect speaker for the professional and fixed PA.
- Professional speaker, perfect for the fixed PA system that needs many configurations.
- Strong plywood construction with a resistant surface, so the speaker stays nice for a long time.
- Compact format with super frequency response in the two units.
- U-bracket can be purchased so you have options to use the speaker in both vertical and horizontal configurations.
- Holes for stand and eye bolts, so you can place and hang the speaker wherever you want.
Technical specifications
Technical specifications
| Højttalertype | 2-way, Bass-reflex |
| Frekvensområde (-10dB) | 55 Hz til 20 kHz |
| Udbredelse af lyd | H90° x v60° (Horisontal konfiguration) |
| Crossover | 1,8 kHz |
| Følsomhed (1w, 1m) | 93 dB SPL |
| Max SPL | 122 dB |

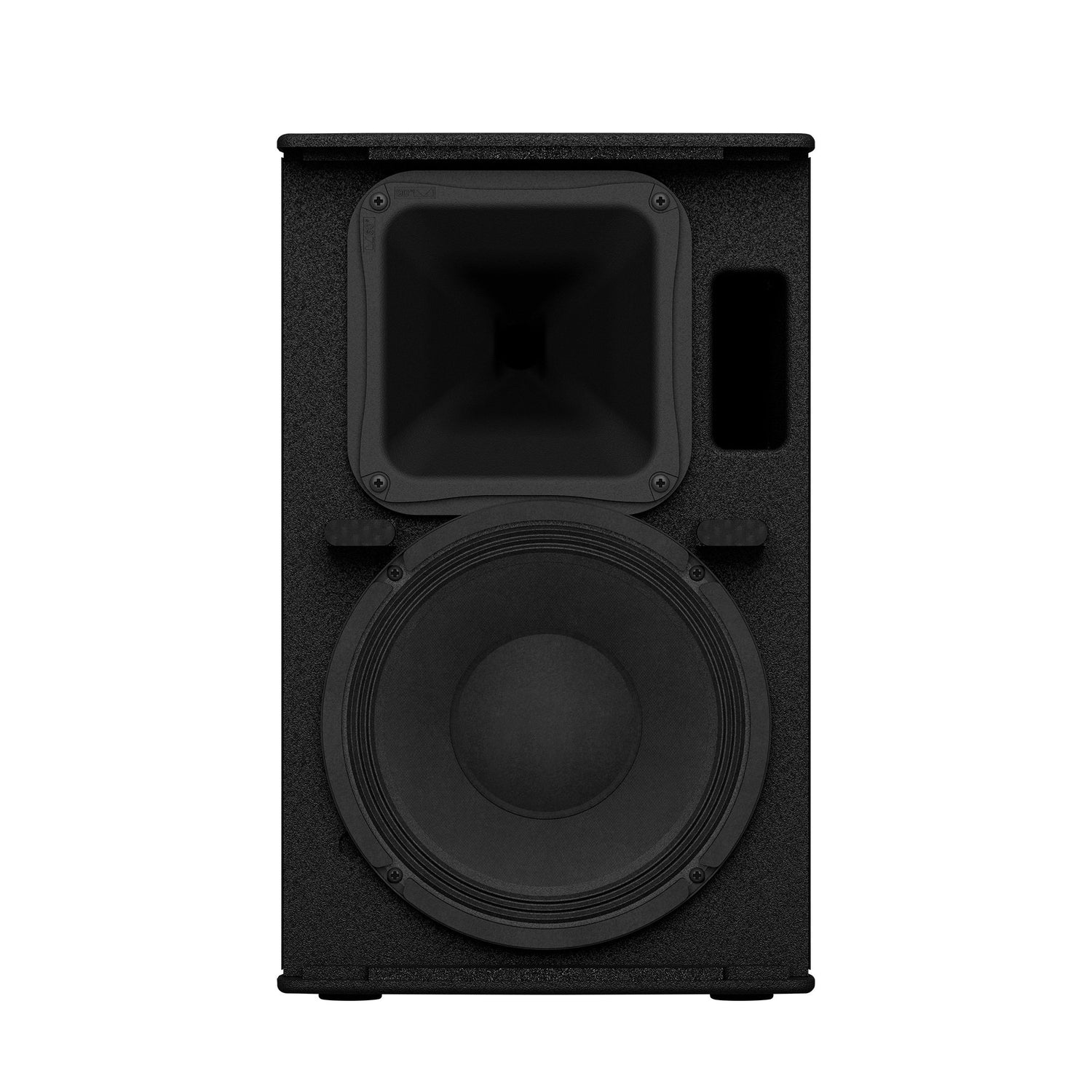

| Enheder | 10" (cone) og 1,4" (1" throat compression) |

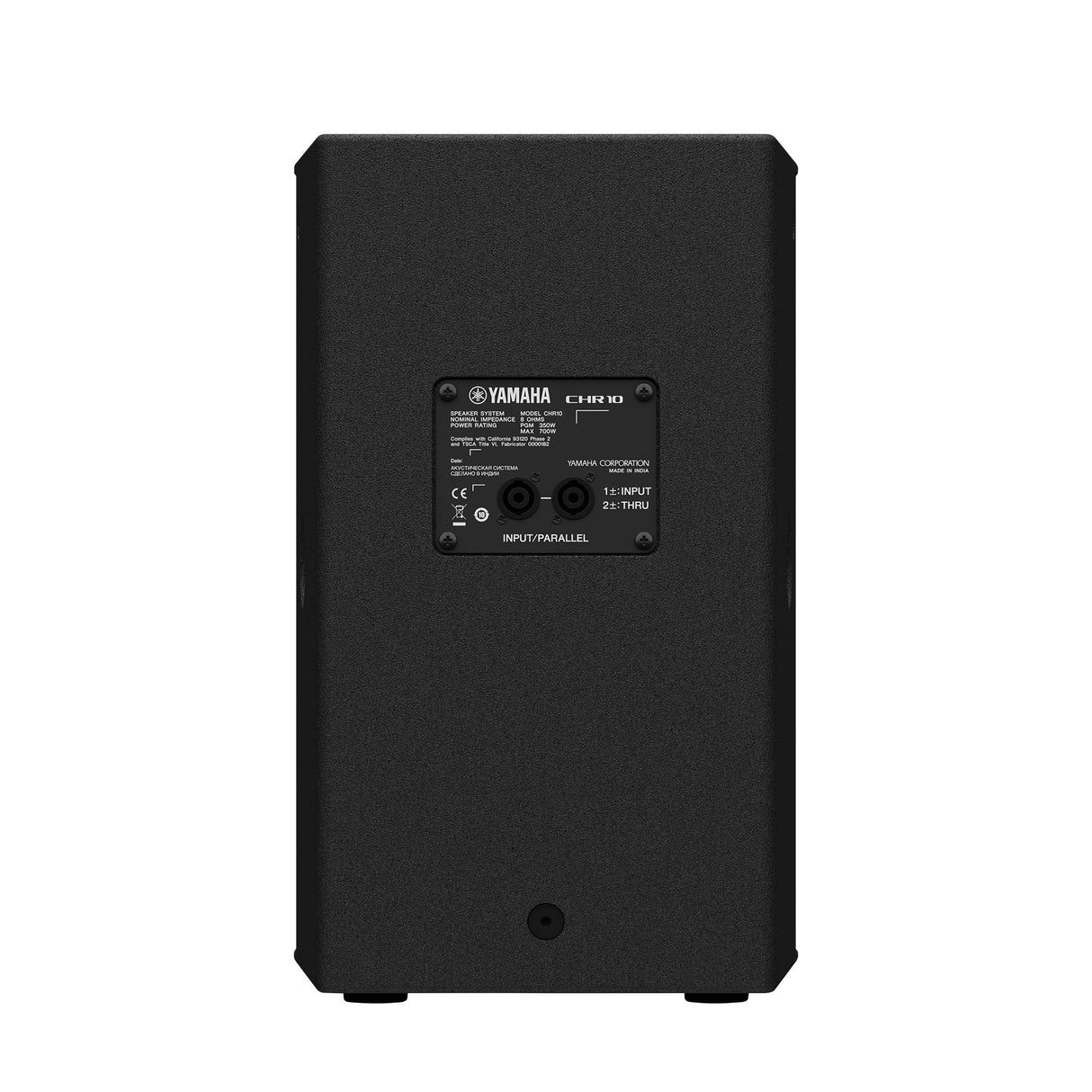

| Audio ind/ud | SpeakON NL4MP |
| Kabinet | Krydsfiner, Polyurea, 1 håndtag |
| Dimensioner | B x H x D: 305 x 494 x 300 mm |
| Vægt | 13,7 kg |
