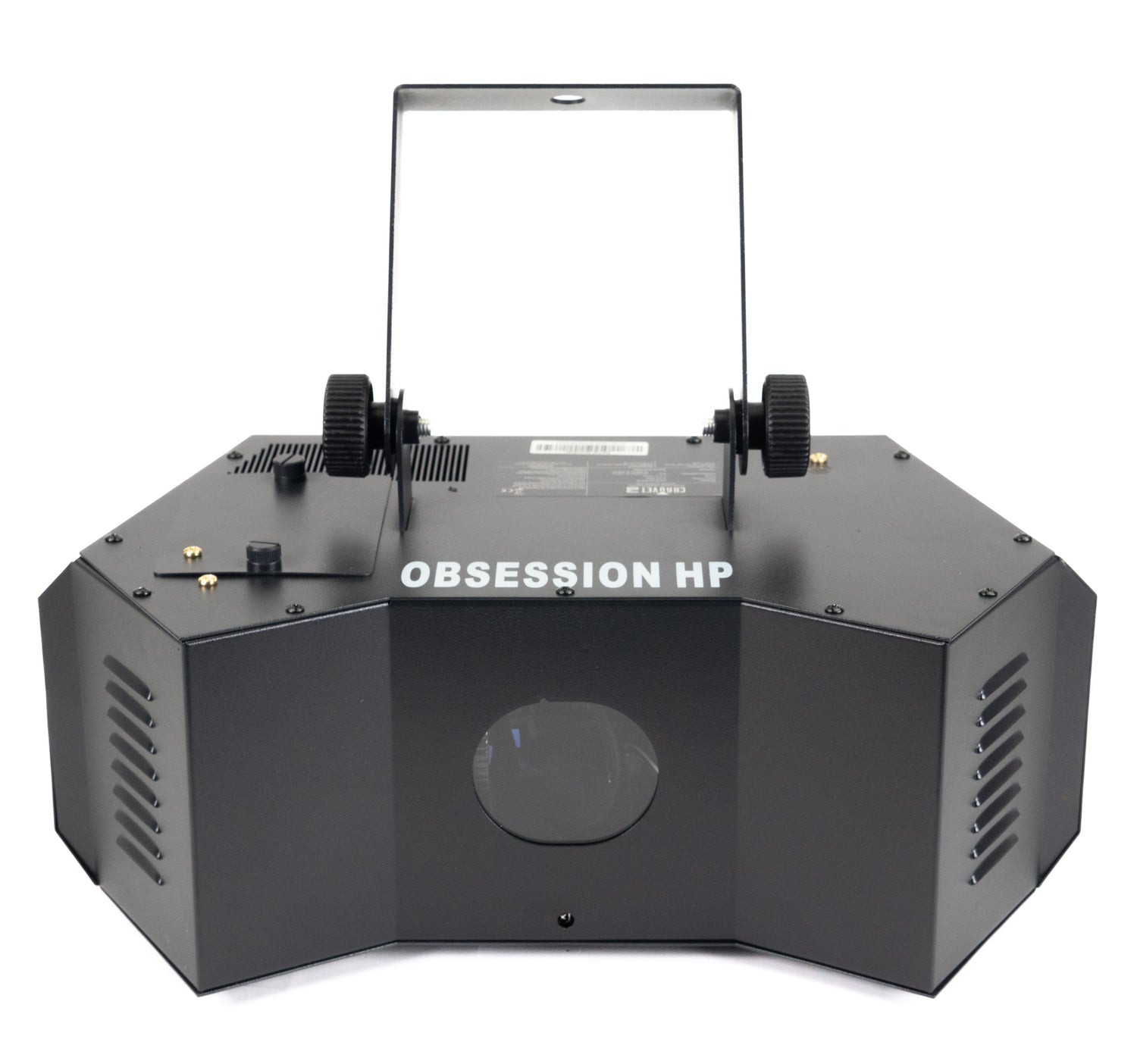

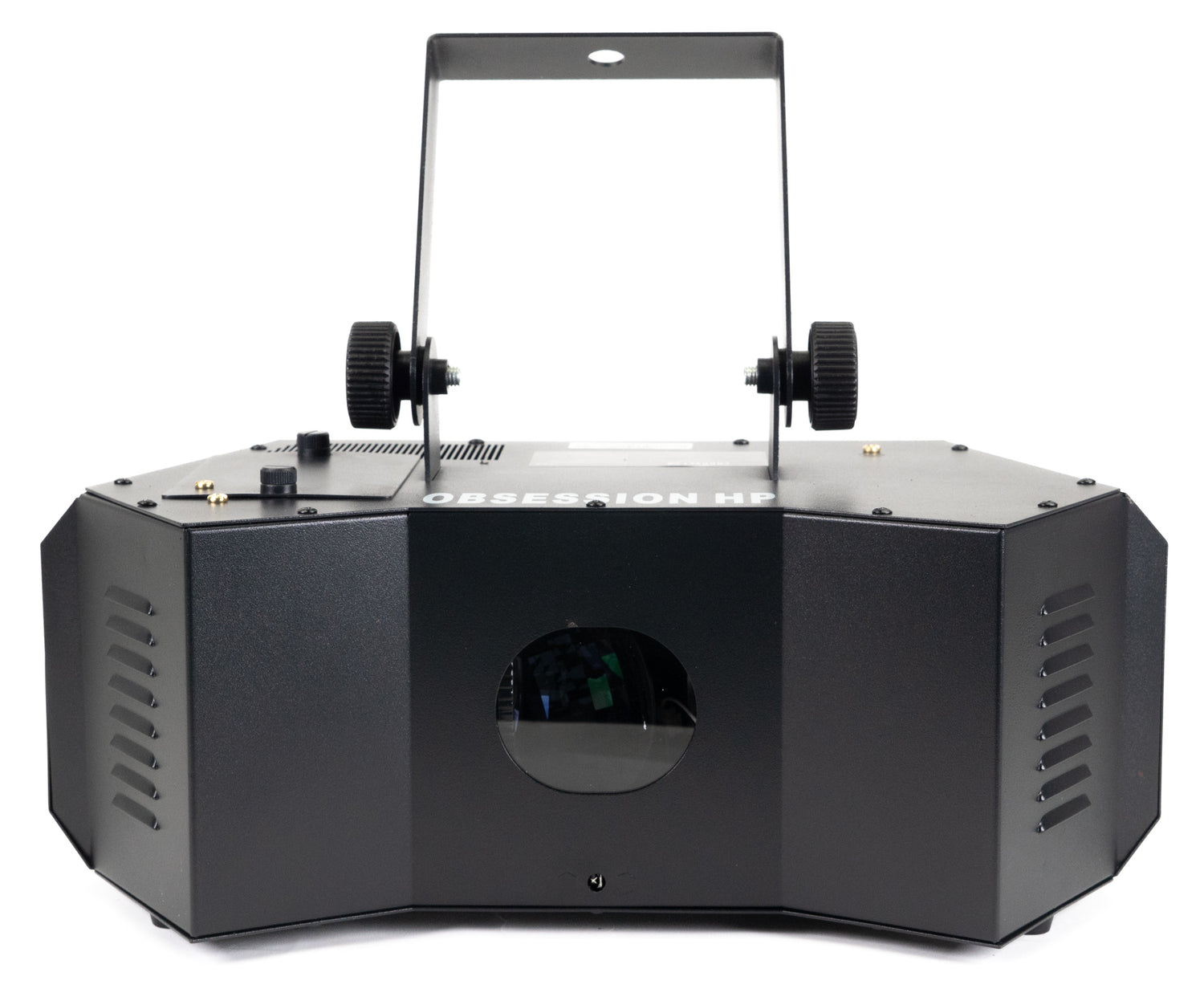

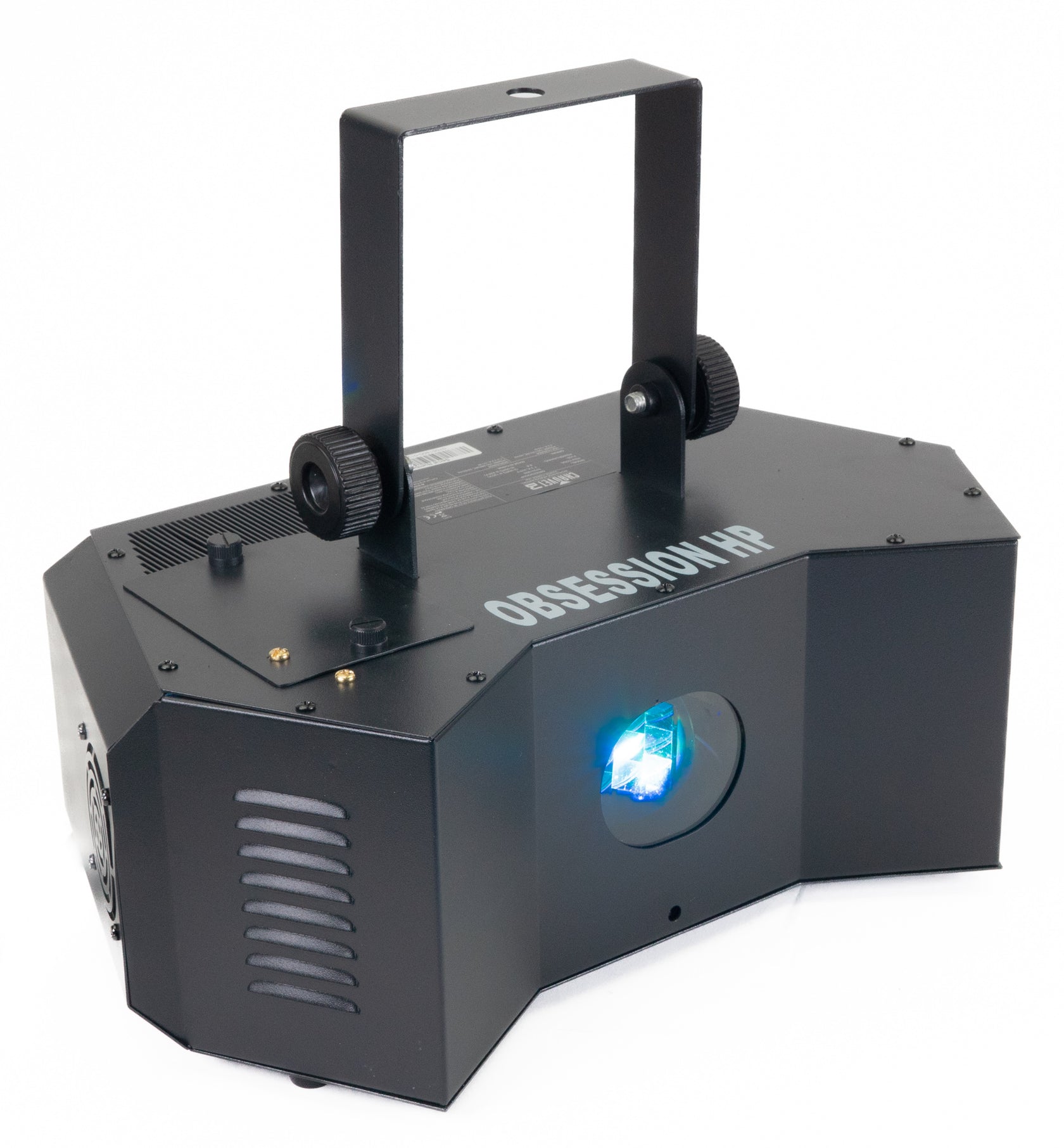

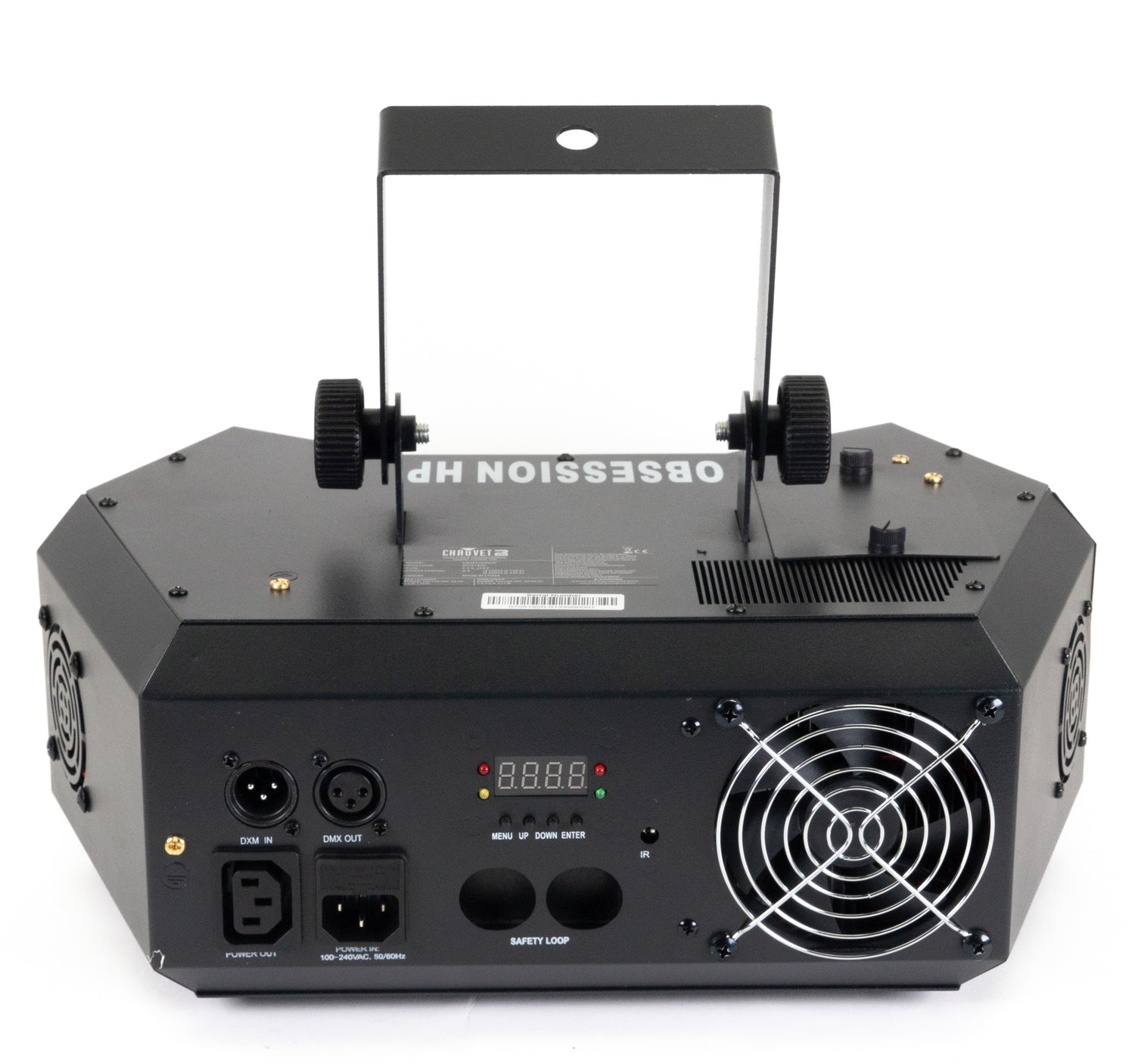

Chauvet Obsession HP

• Compact LED effect light fitted with a 100W LED projects multi-colored, rotating gobos
• Increase design flexibility and effects with inter-changeable gobos
• Easily generate complex looks using the rotating gobo wheel plus mirror dish
• Generate a synchronized show in Master/Slave mode with up to 2 units
• Separate color and gobo wheels allow for creative programming
• Quickly and easily change gobos using the easy-access gobo door
• Includes 10 popular holiday gobos
• Compatible with IRC-6 for flexible control over all features
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-40 VIP Gear Bag

• DMX Channels: 2 or 8

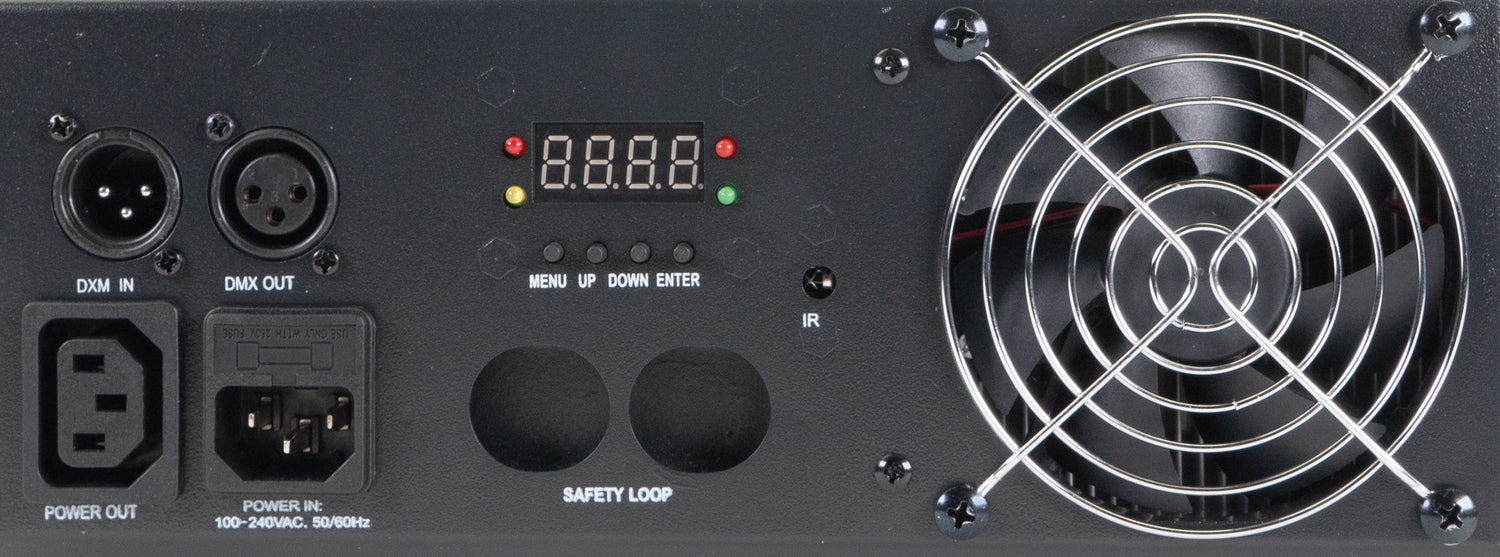

• DMX Connectors: 3-pin XLR
• Colors: 6 + white, split colors, continuous scroll at variable speeds
• Gobos: (7 metal), rotating, indexing, interchangeable, continuous scroll at variable speeds
• Light Source: 1 LED (cool white) 100 W, (4 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 4 KHz
• Coverage Angle: 116°
• Power Linking: 3 units @ 120 V; 6 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 176 W, 2.2 A @ 120 V, 60 Hz
  171 W, 1.3 A @ 230 V, 50 Hz
• Gobo Size: 18.6 mm outside, 12 mm image, 5 mm max thickness
• Weight: 10.2 lb (4.7 kg)
• Size: 14.96 x 8.26 x 12 in (380 x 233 x 305 mm)
• Approvals: CE
• Optional Controller: IRC-6

Downloads:

• Obsession HP Quick Reference Guide
• Obsession HP User Manual
• Obsession HP ShowXpress Profile
