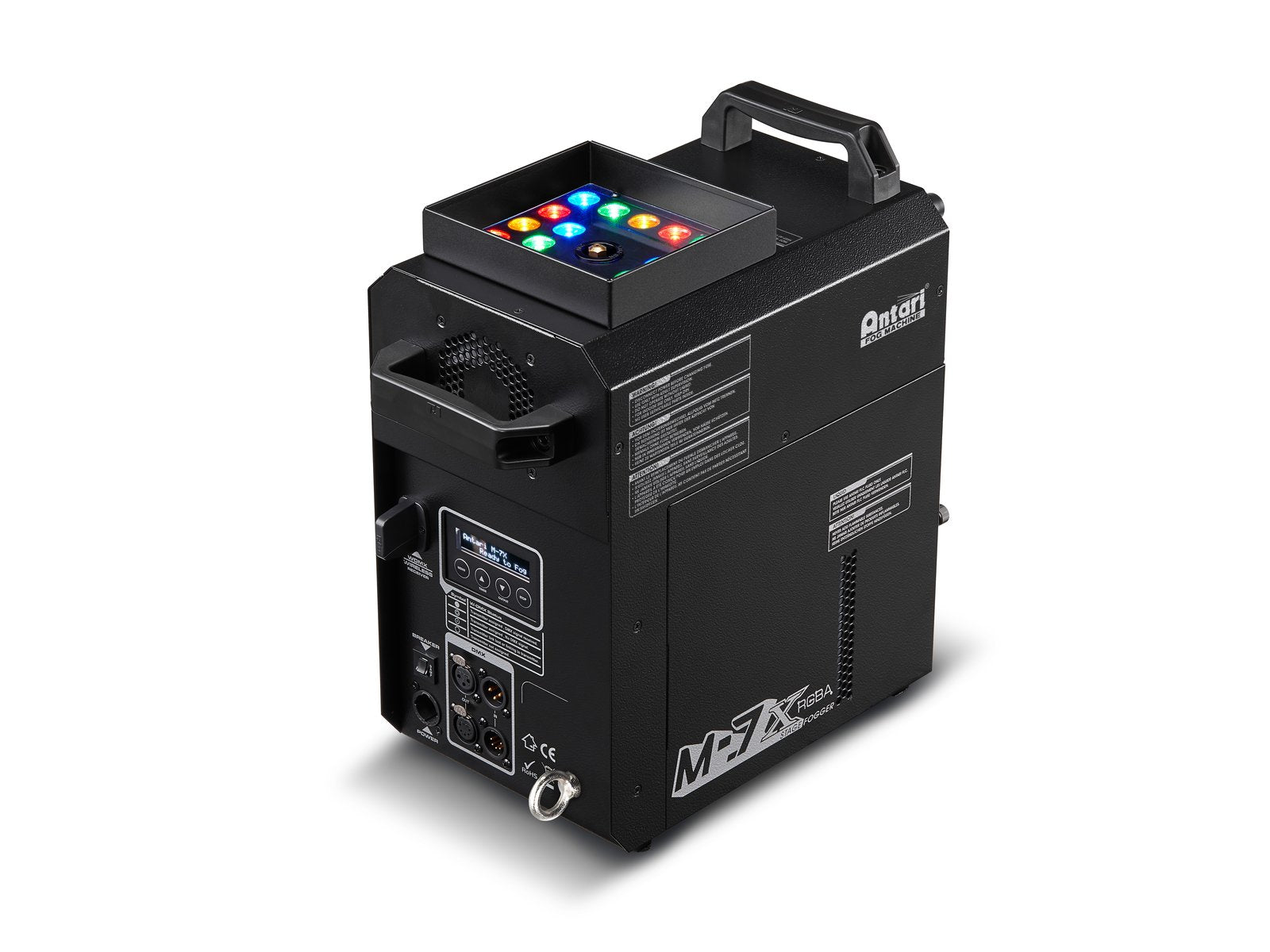

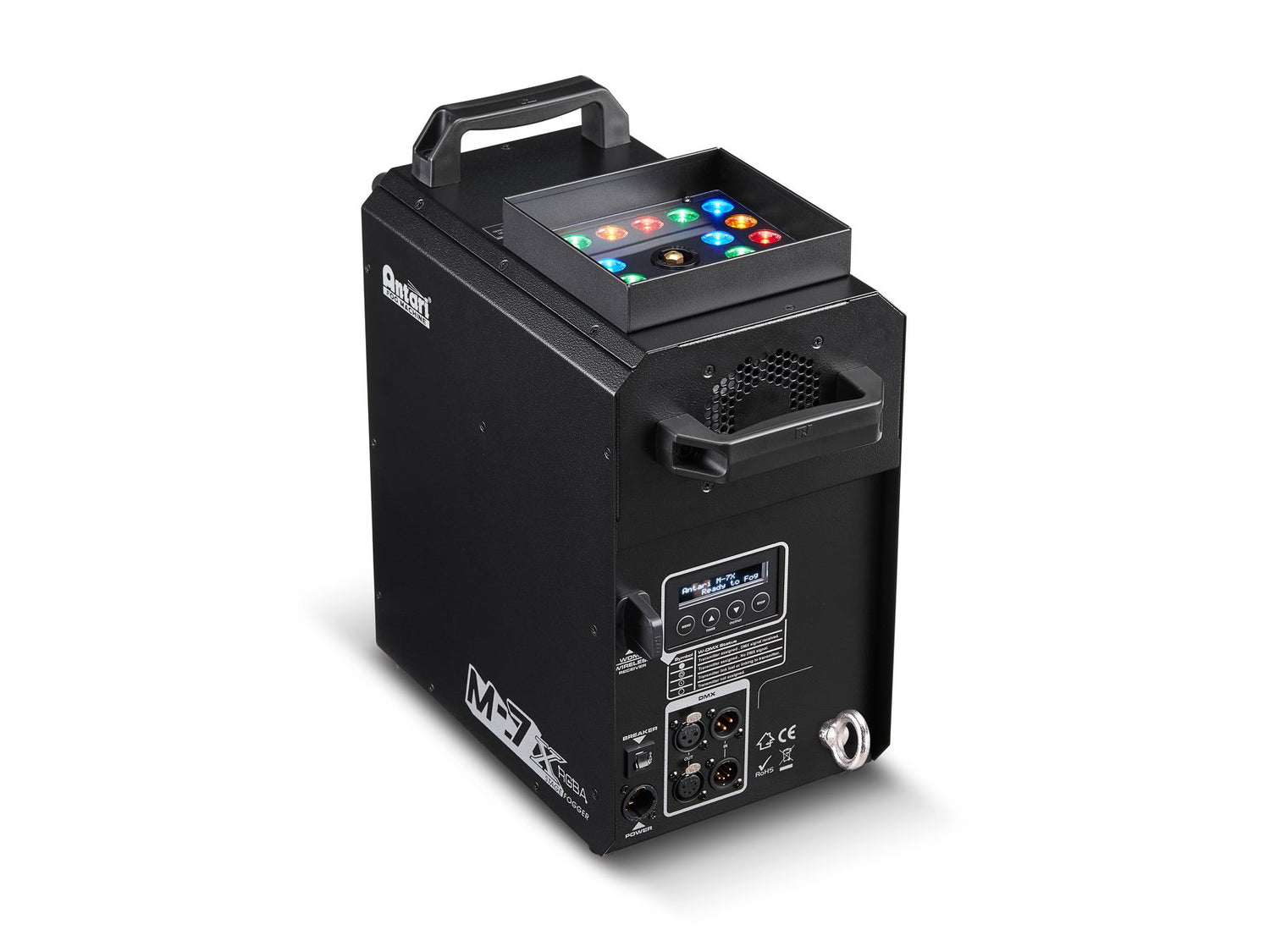

Antari M-7X (1516W)

• 1500 W fog machine with LED lighting and adjustable vertical/horizontal output.
• Control options include stand-alone, timer, DMX, wireless remote control, and W-DMX (upgradable).
• Output distance: Horizontal approx. 12 m, vertical approx. 10 m.
• Robust metal housing with removable tank and level indicator, as well as monochrome LCD display.
• Suitable for mobile use, stage, theater, and rental.

• Powerful and 1500 W fogger for stage and touring applications
• Output nozzle with RGBA LED illumination for impressive effect presentations
• 10 color macros and 15 chases selectable
• Vertical and horizontal fog output possible
• New housing design allows upward and downward fog output
• Intelligent wireless control system W-2 with 50 m range
• Wireless DMX receiver (WDMX) optionally available (item 51702168)
• Control via integrated DMX interface or control module with LCD screen
• Adjustable timer with interval, duration and output volume
• Continuous activation via handy transmitter
• Operates on standard water-based fluid

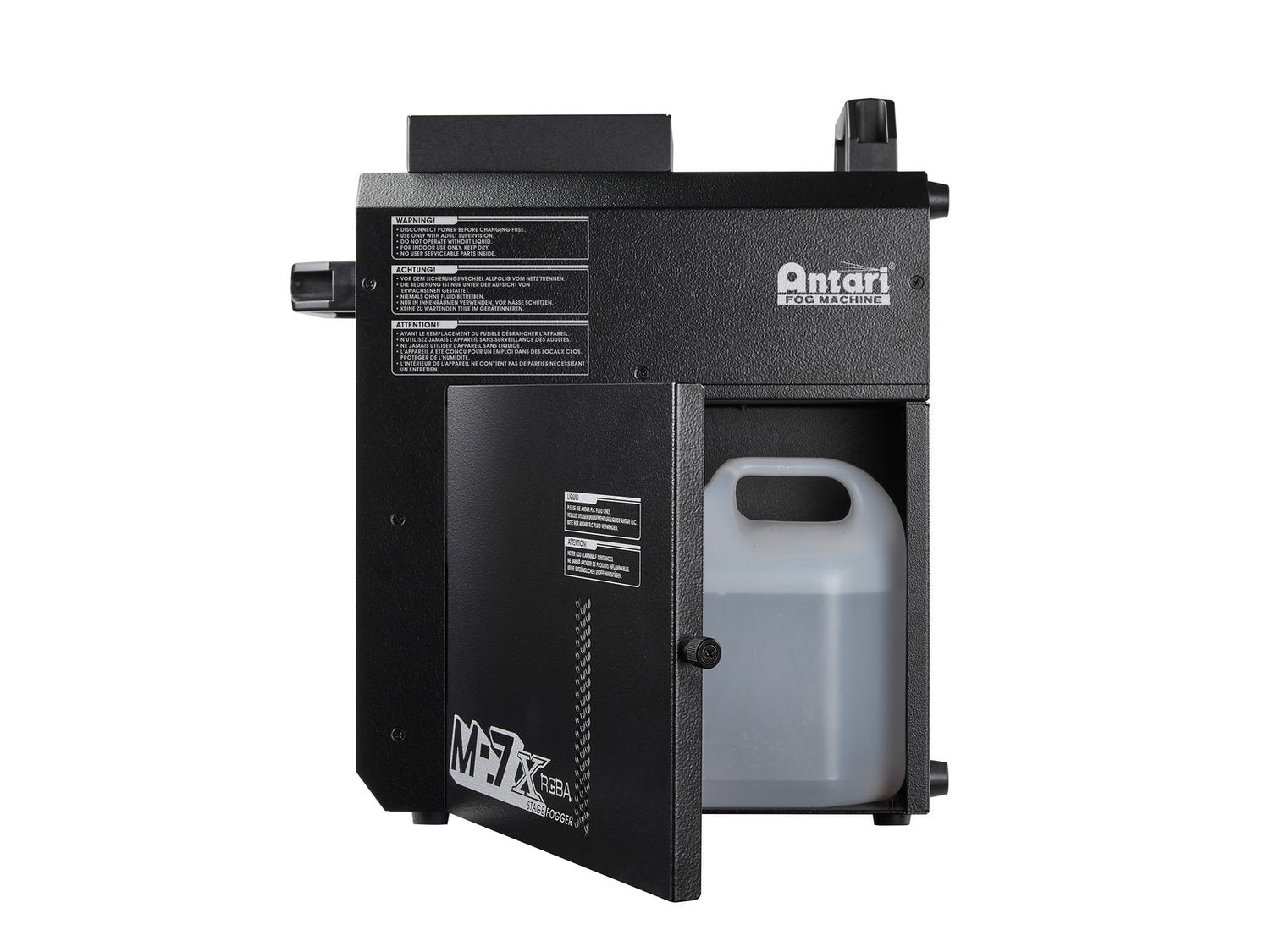

• Large fluid tank compartment, fluid level indication

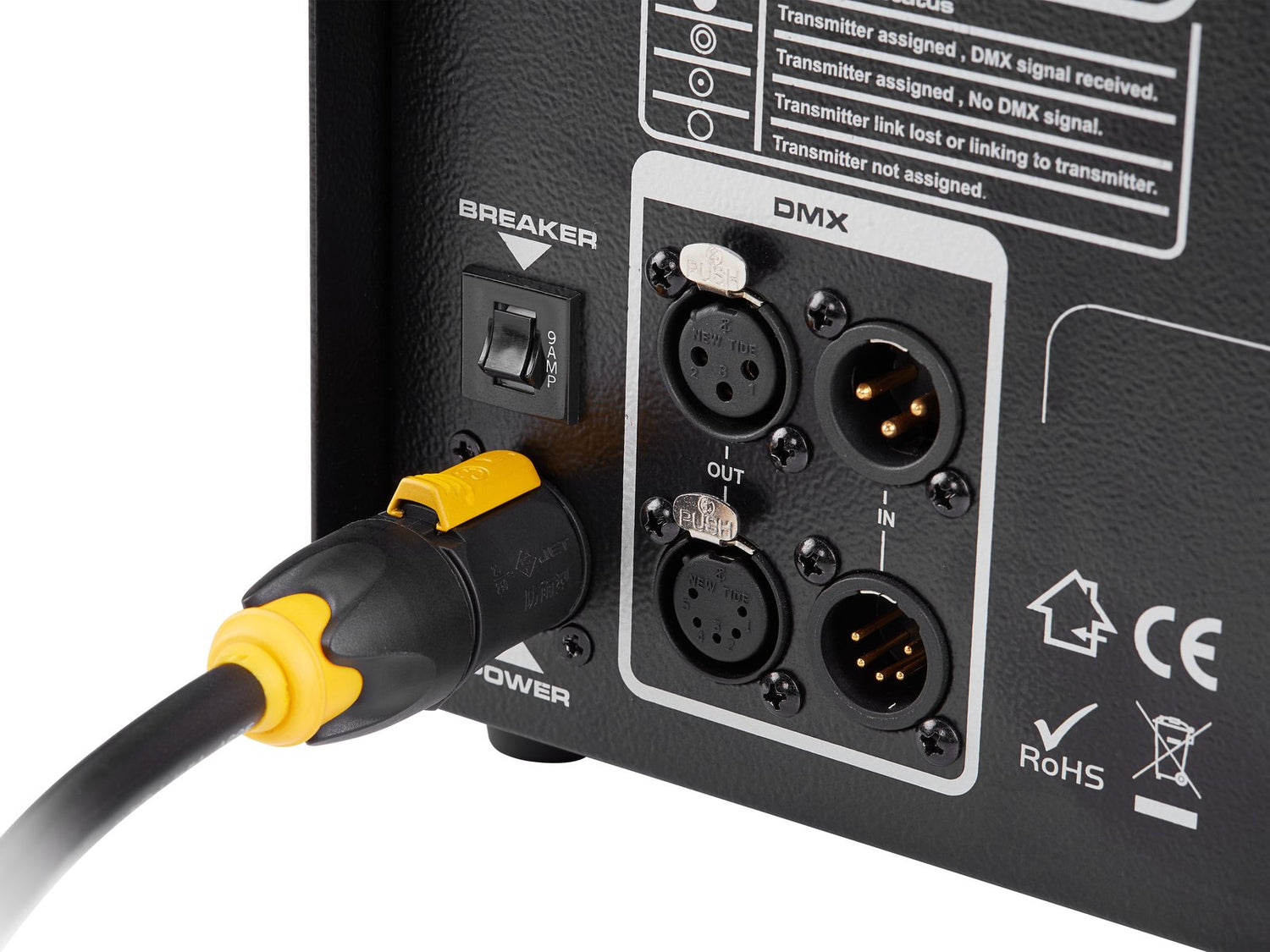

• DMX interface with 3- and 5-pin connectors
• Sturdy metal housing with carrying handles
• PowerCon mains connector (cable included)
• Great fit for rental companies
• Output distance: Approx. 10 m
• Can be operated in 9 CH mode
• Controlling by Stand-alone; Timer; DMX; Wireless remote control; W-DMX by wireless solution upgradeable

Power Supply: 230 V AC, 50 Hz
Power Consumption: 1450 W
IP Classification: IP20
Protection Class: Protection class I
Power Connection: Mains input via PowerCON TRUE (M) mounting version power supply cord with safety plug (provided)
Warm-up Time: Approx. 8 min
Output Distance:

• Vertical: approx. 10 m
• Horizontal: approx. 12 m
  Tank Capacity: 2.4 l water-based fluid removable tank
  Fluid Consumption: Approx. 130 ml/min
  DMX Channels: 9
  DMX Input:
• 1 x 3-pin XLR (F) mounting version
• 1 x 5-pin XLR (F) mounting version
  DMX Output:
• 1 x 3-pin XLR (M) mounting version
• 1 x 5-pin XLR (M) mounting version
  Control: Stand-alone; Timer; DMX; Wireless remote control; W-DMX by wireless solution upgradeable
  Range: Wireless remote control: range up to 50 m
  Carrier Frequency: 433.92 MHz
  Housing Color: Black
  Display Type: Monochrome LCD display
  Use of Brands: Built with NEUTRIK connector
  Color: Black
  Dimensions:
• Width: 19.3 cm
• Depth: 34.4 cm
• Height: 38.1 cm
  Weight: 14.25 kg
  Noise Classification: Class 3 (clearly perceptible sounds)
