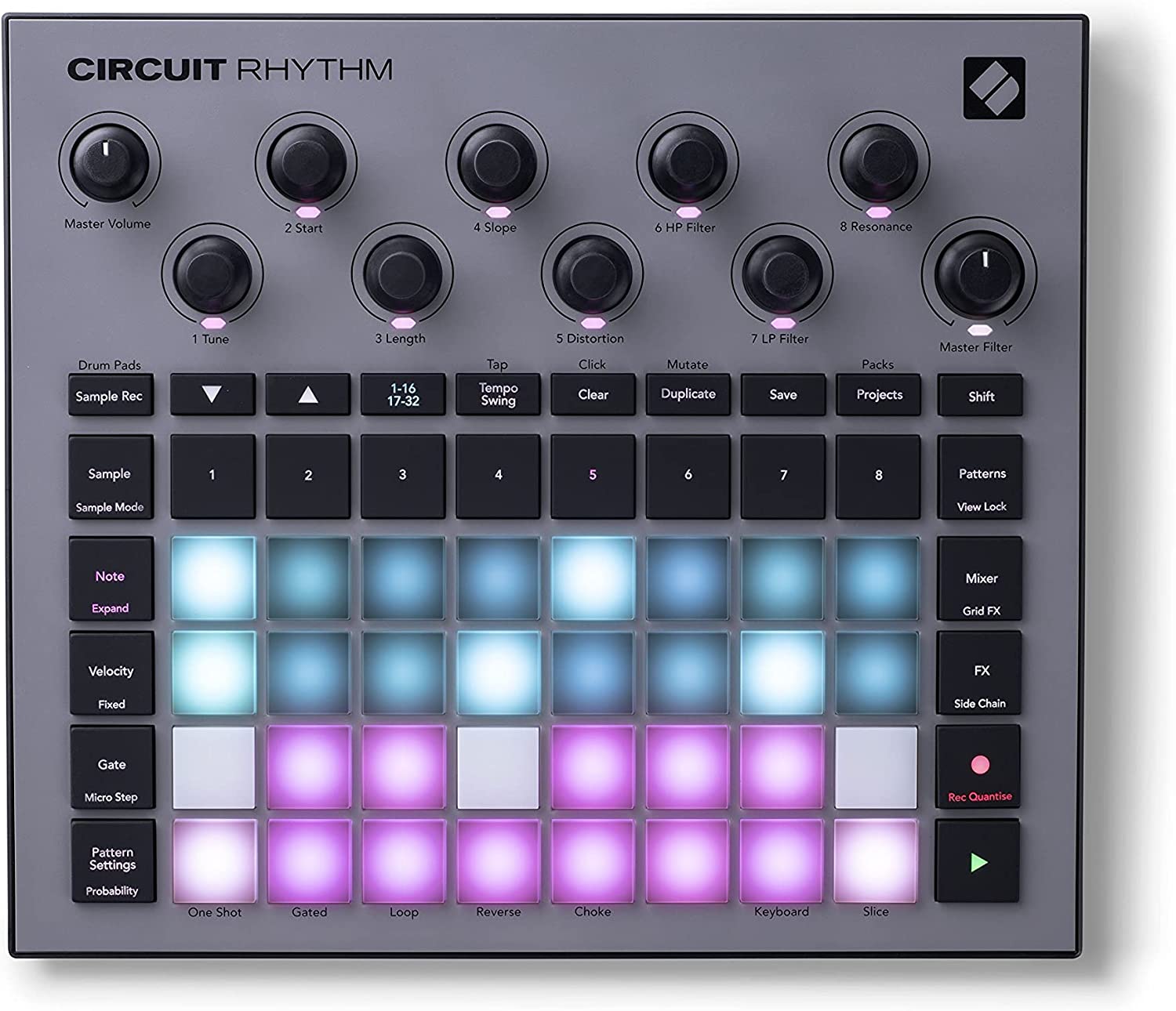

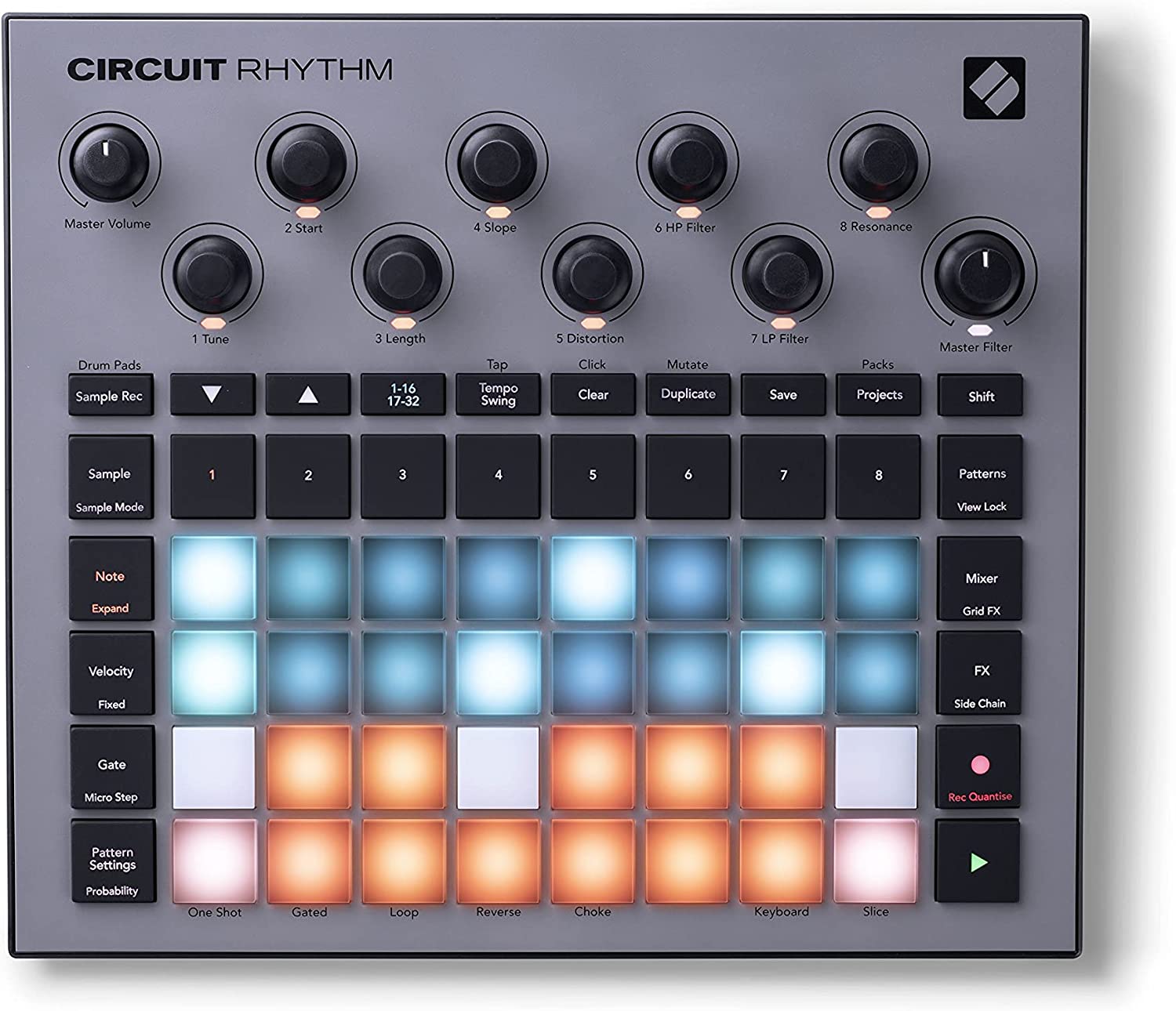

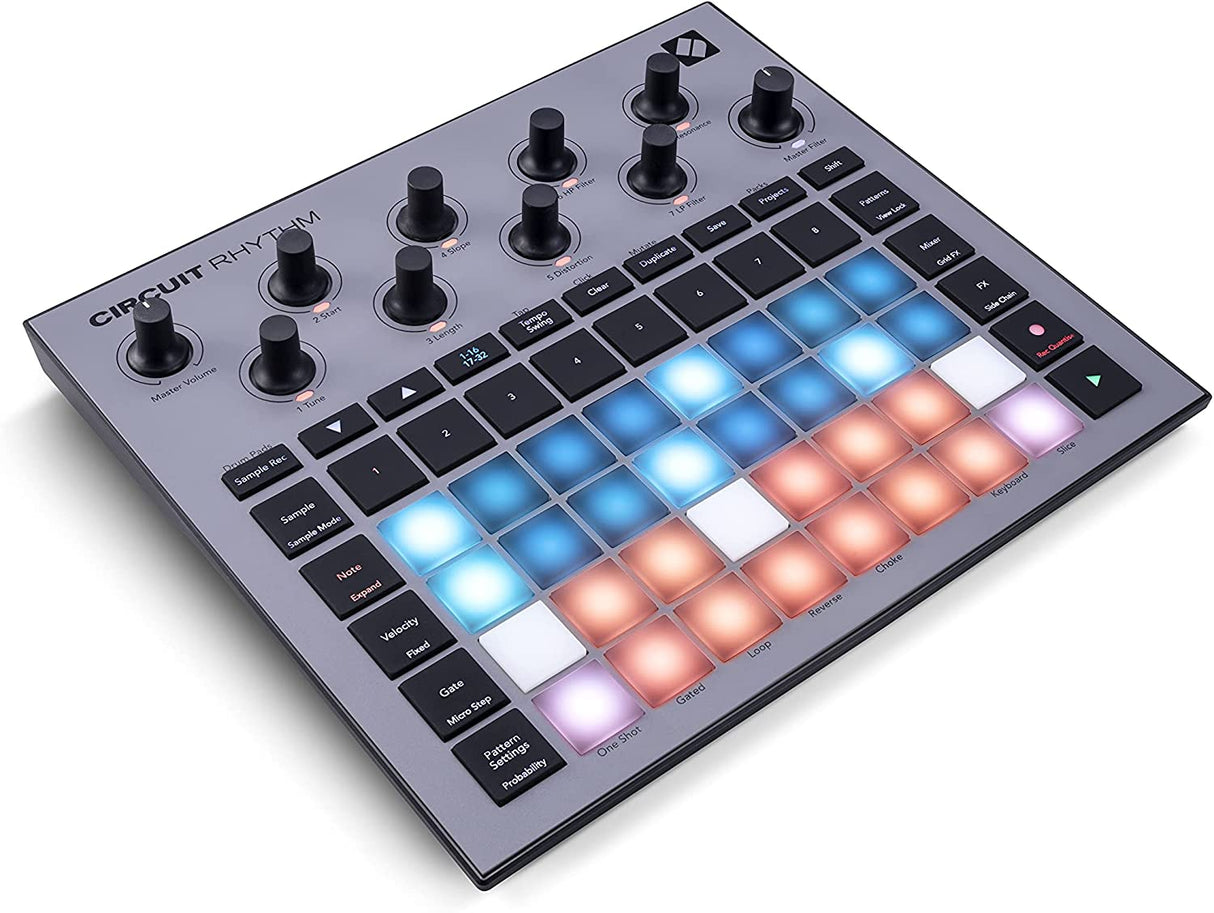

Novation Circuit Rhythm Drum Machine

• Compact, portable and versatile sampler
• 32x back-lit colour sensitive pads
• Lots of effects
• Direct MIDI/USB connections
• Up to 128 step sequences across the 8 tracks
• Novation Components
• Novation Sound Collective
• Built-in lithium-ion battery

Novation Circuit Rhythm

• Powerful and versatile sample based sequencer and workstation.
• Extensive RGB illuminated 4x8 pad matrix makes sequencing both intuitive and a party.
• The 32 pads with velocity effect are super comfortable to play on.
• The multiple effect knobs give you full control over the sound of your sequences.
• Transfer samples directly to Circuit Rythm or upload via a microSD card.
• Transform your samples with the Grid FX functions - repeat, reverse, gates, auto-files, bitcrusher and more.
• Save and load up to 64 projects in internal memory.
• Instantly switch between different sample patterns in a live scenario.
• Chain several different 8-step patterns and create sequences of up to 256 steps.
• Built-in lithium-ion battery lets you play on the go.
• USB and MIDI connections.
• Get additional tools and settings for the sequencer via the Novation Components internet library.
• Get additional plugins and content for free via Novation Sound Collective.

• Maximum Polyphony (8 voices)
• Recordable Samples = 4096 (128 samples x 32 Packs [1 internal Pack / 31 Packs on micro SD Card])
• Patterns (8 patterns x 8 tracks x 64 projects x 32 Packs)
• Max Sampling Time (228 seconds per Pack (32 seconds max per pad))
• Import Format (WAV, MP3)
• Pattern Sequencer/Step Sequencer
• Resolution (24ppqn quarter note)
• Pattern length (1/32 note to 64 bars)
• Recording method (Real-time Quantization on/off, Programmable Step Sequencer with Micro-steps/Probability/Mutate)
• Playback direction (forwards, reverse, ping-pong, random)
• Effects (Delay Send with 16 presets, Reverb Send with 8 presets, Side Chain with 7 presets)
• Grid FX (Vinyl Sim, Beat Repeat, Reverse, Filter, Gater, Phaser, Digitiser)
• Sample playback (Slice, Chromatic, One-Shot, Gated, Looped, Reverse)
• 8 macro knobs (Pitch, Start, Length, Envelope, Overdrive, HP Filter, LP Filter, Resonance), Master volume
• Master Filter (High/Low Pass)
• 32 RGB backlit velocity-sensitive pads
• 28 RGB backlit tactile click buttons
• Power button with charge status LED
• Rechargeable battery (up to 4 hours battery life)
• Expandable Storage (slot for microSD card (sold separately) for 31 extra packs)

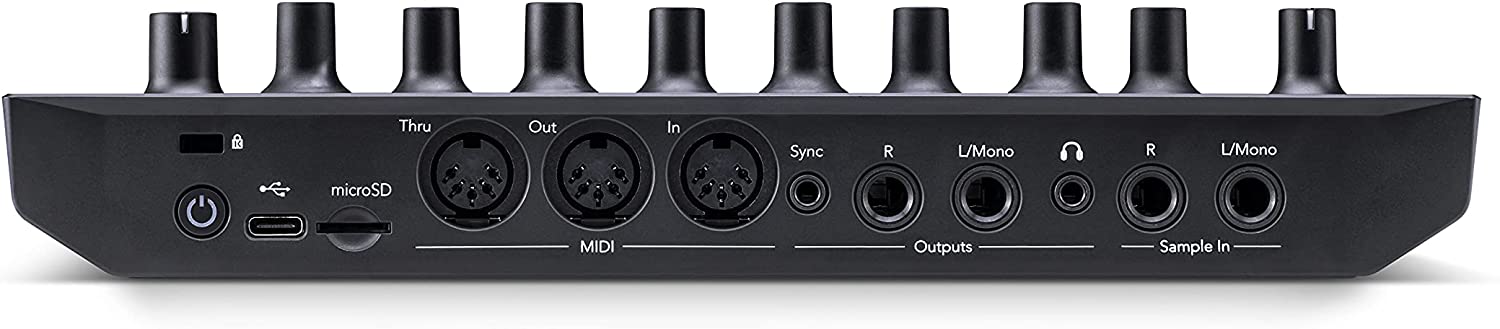

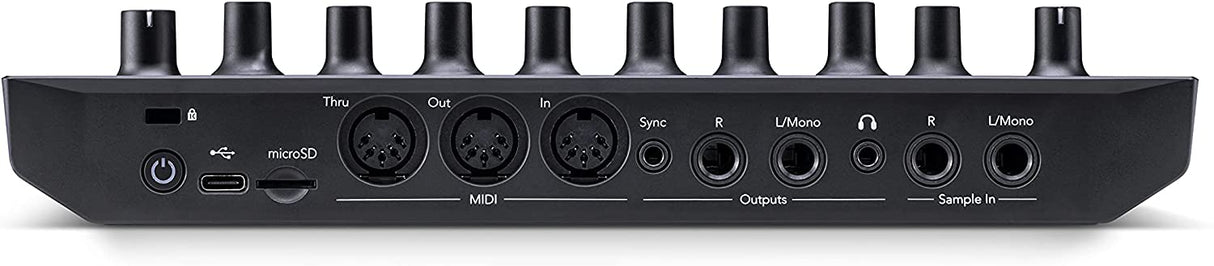

• USB-C socket (power delivery, charging, MIDI)
• Kensington MiniSaver slot
• MicroSD card slot
• 3x MIDI DIN (In, Out, Thru)
• 3.5mm sync out
• L/R Sample In Pair (for recording samples)
• L/R Audio Out Pair
• Headphones out
• 8x endless encoders with RGB indicators
• Master volume pot
• Master filter pot with centre detent
• Kensington MiniSaver slot
