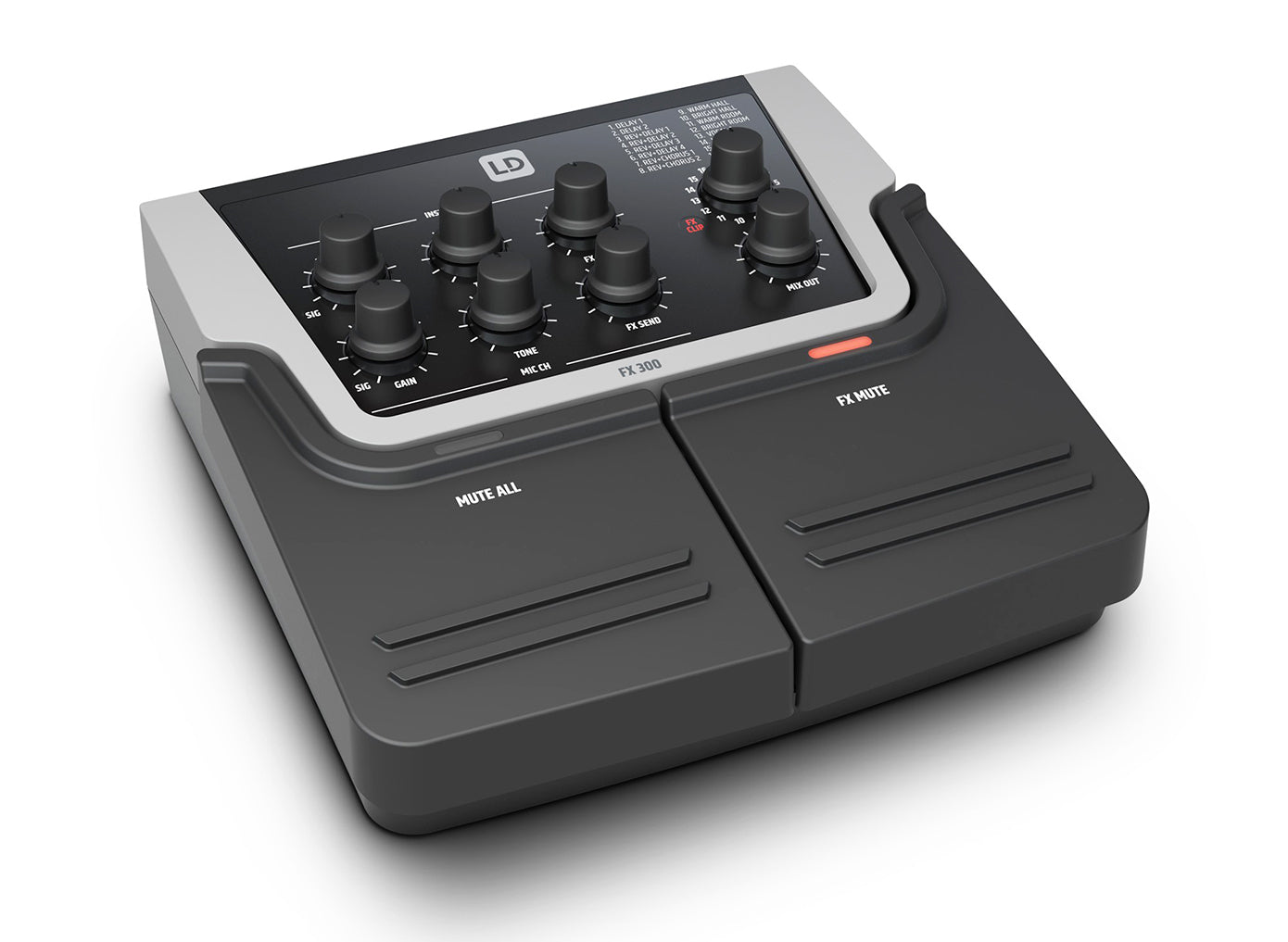

LD Systems FX 300
Description
Description
- Perfect for singer/songwriters on stage or in the studio
- Also works as a 2-channel mixer
- Easy access to mute function with hands or feet
- FX Mute allows you to speak in normal voice to the audience
- Input for dynamic and condenser microphone
- 16 digital presets, 16 bit quality
- Low-noise, high-impedance instrument input
- Separate FX sends for both channels
- Additional FX loop for instrument input
- Microphone input with HPF and +48 V phantom power
- Signal/peak LED on both channels
- "Clip" LED on effects
- FX MUTE pedal to mute effects
- Balanced and unbalanced output
- Power supply: 9V battery
- Adapter 9VDC / 250mA not included
Spécifications
Spécifications
-
Weight (kg)
More specifications
More specifications
Microphone channels
Microphone channels
1
Mic inputs
XLR/6.3 mm jack
Frequency Response Microphone Channel
50 - 20000 Hz
Amplification range Microphone channel XLR input
42 dB
Mono Mic Input Input THD-N
<0,03%
Impedance XLR input
6000 Ohm(s)
Phantom power
+48V DC to XLR Input
Microphone channel Jack input Input type
electronically balanced
Amplification range Microphone channel Jack input
20 dB
THD jack input
<0.045%
Microphone Equalizer
+5/-8dB @ 8kHz
Microphone channel controls
FX SEND , Gain , tone
Microphone Channels Display Elements
channel signal
Instrument channels
Instrument inputs
1
gain range
23 dB
THD
0.03%
Equalizer
+7/-8dB @ 10kHz
Channel Inserts
1
Controls
FX SEND , Gain , tone
Indicators
3-colour LED (SIG) , channel signal
Main Section

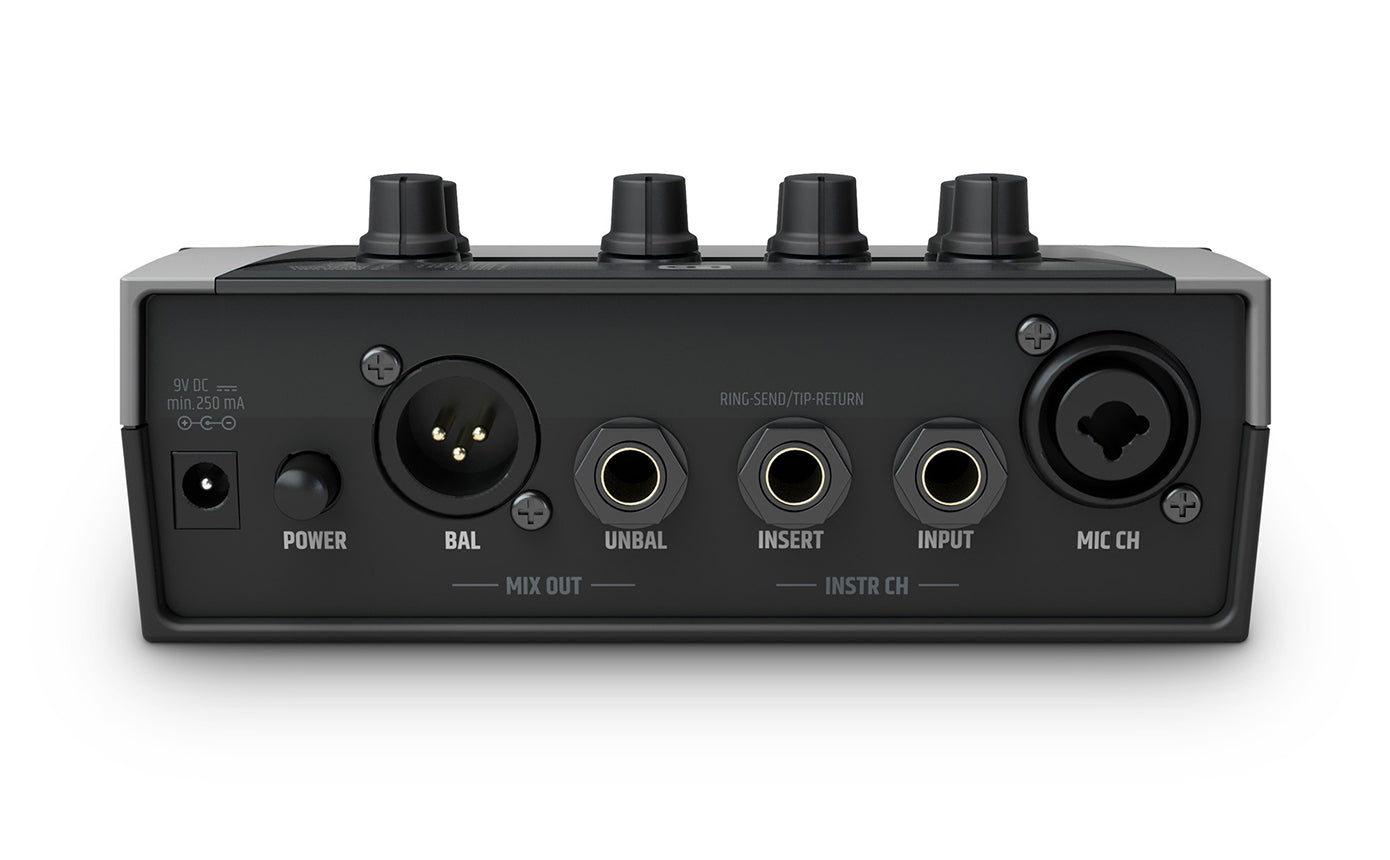

Line outputs
2
Line output connectors
6.3 mm TRS , XLR
Output level XLR
Max. +17dBu, balanced
Impedance XLR output
150 Ohm(s)
Output level Jack output
Max. +5dBV, unbalanced
Impedance jack output
40 Ohm(s)
Digital Effects Processor
Yes
Number of Presets
16

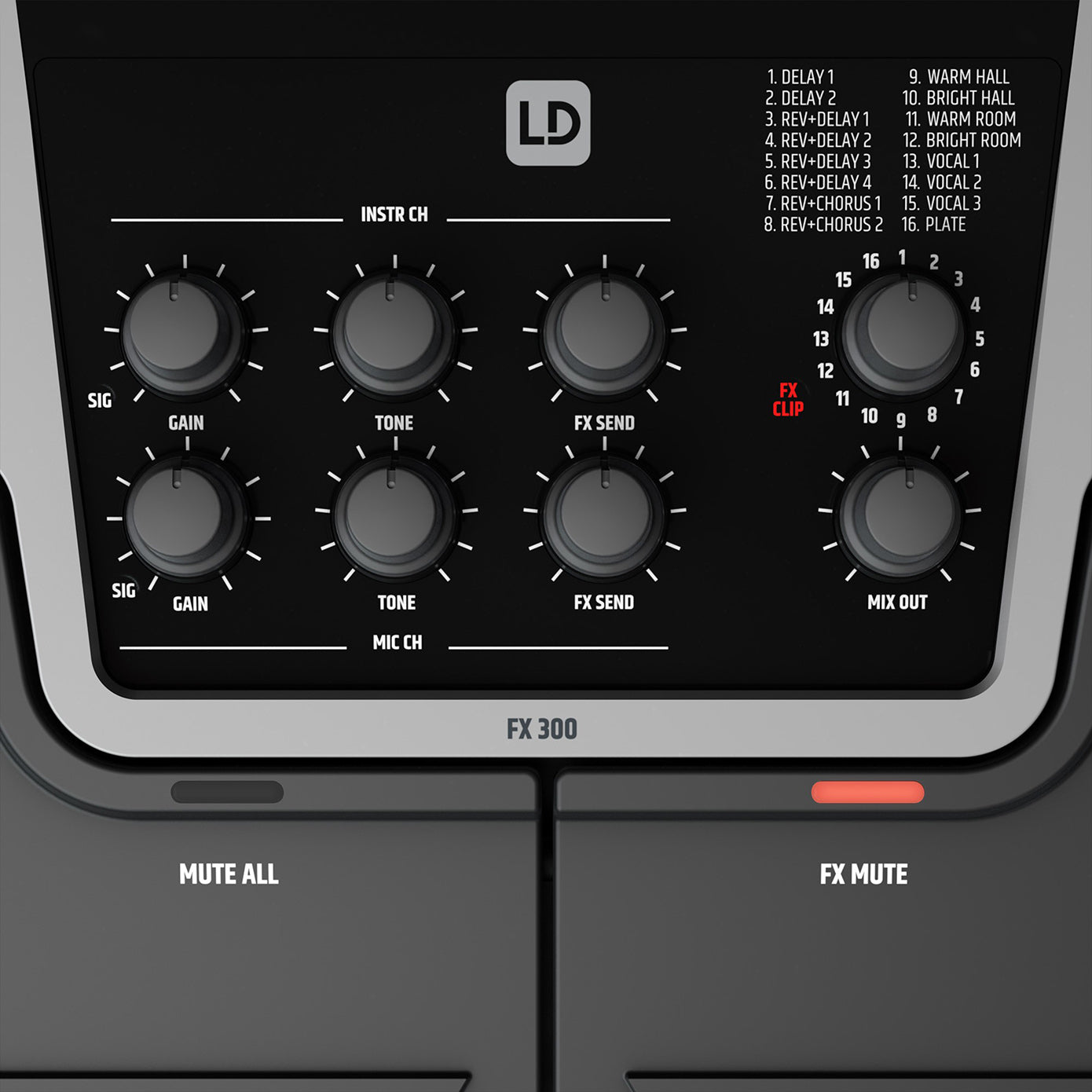

Main section controls
DFX Presets , FX MUTE , MIX OUT , MUTE ALL , Power
Display elements Main section
Effekt-Clip , FX MUTE , MUTE ALL , red LED (FX CLIP)
General Specifications
Operating voltage
9 V block , External mains adapter 9VDC / 250mA (not included
Ambient temperature ( in operation )
0 - 40° °C
Relative Humidity
< 80% (non-condensing)
Width
160 mm
Height
55 mm
Length
163 mm
Weight
0,65 kg
Features
Preparation for microphone stand mounting
