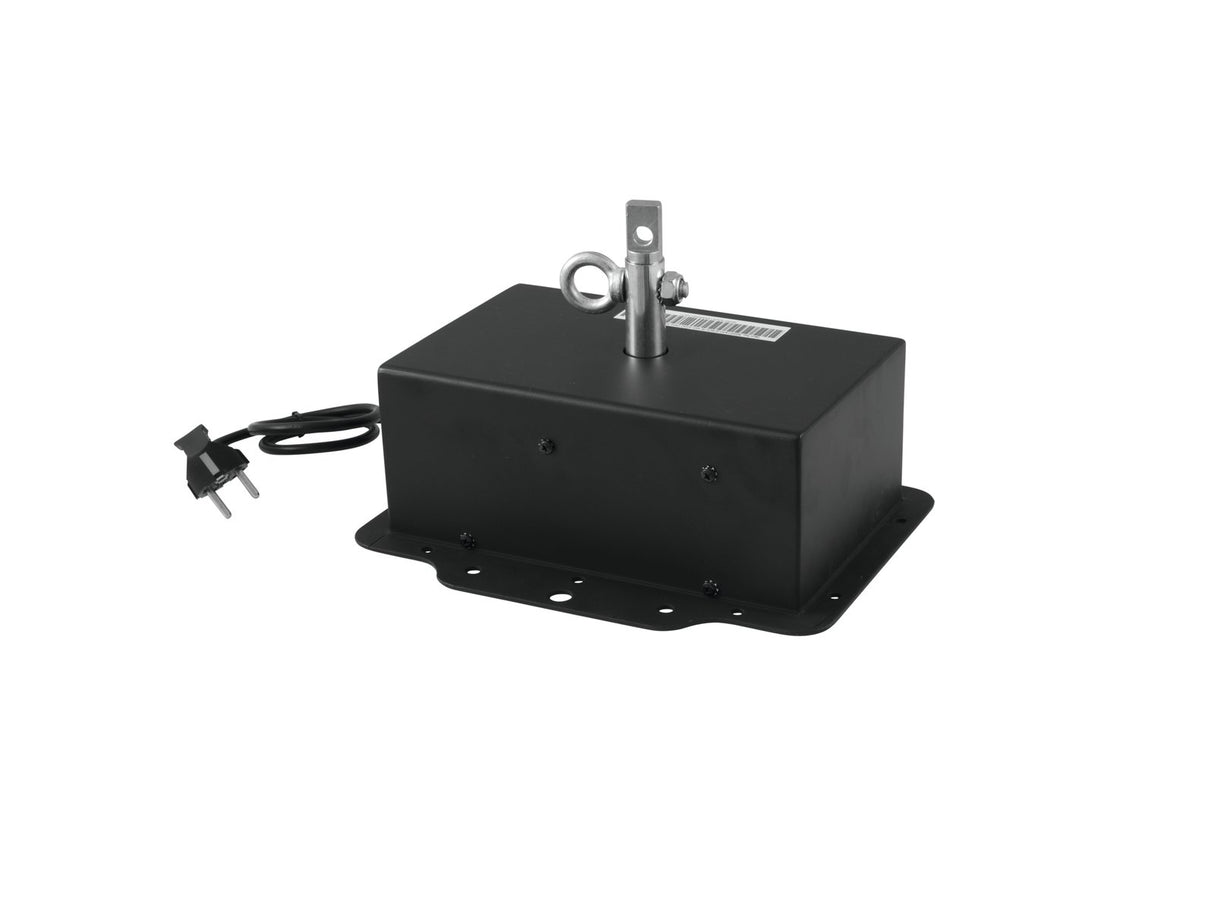

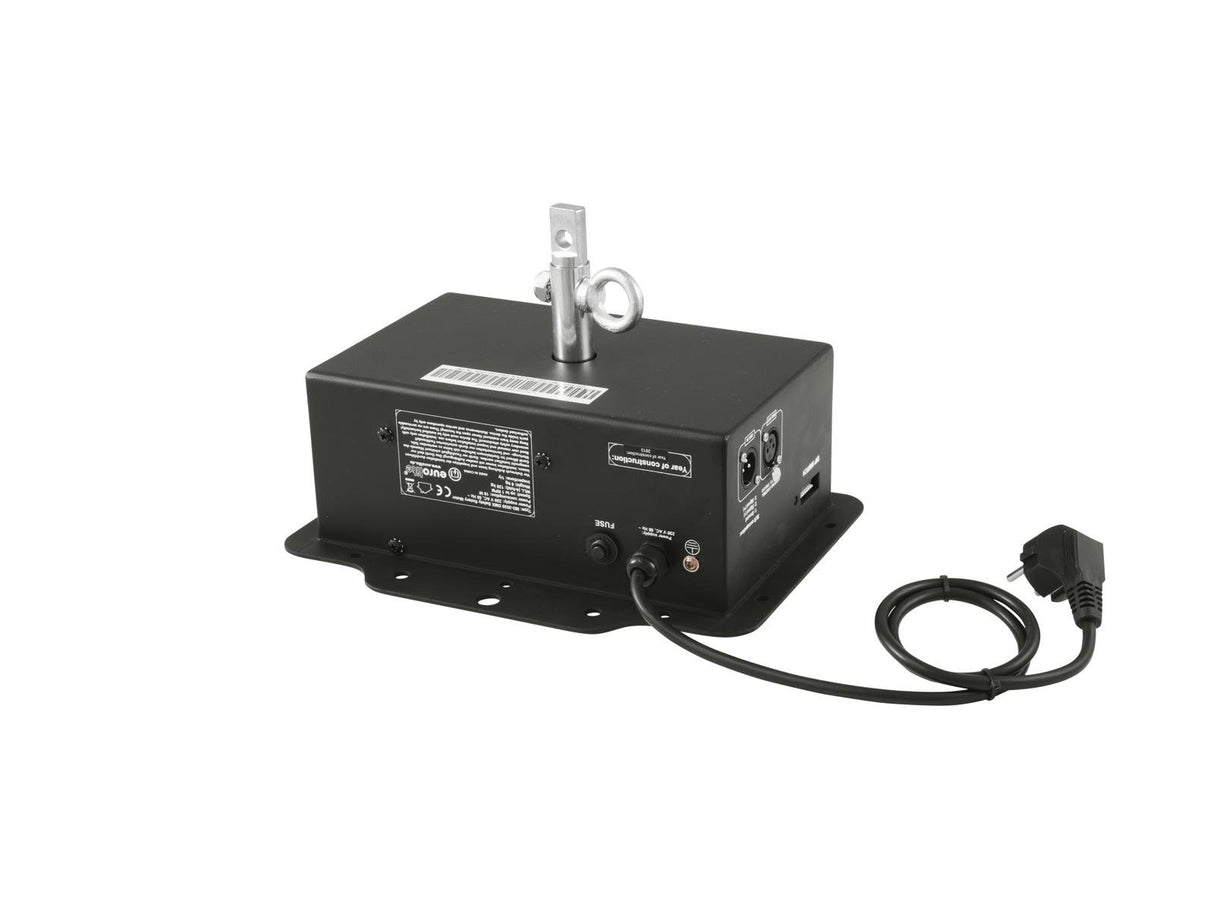

Disco ball motor with DMX (100 cm)

This robust mirror ball motor can carry a load of up to 40 kg.

This corresponds to a mirror ball of approx. 100 cm.
The motor has an adjustable speed. This creates either calm or faster effects.
To get the most out of these effects, you can add a Pinspot to illuminate the mirror ball.

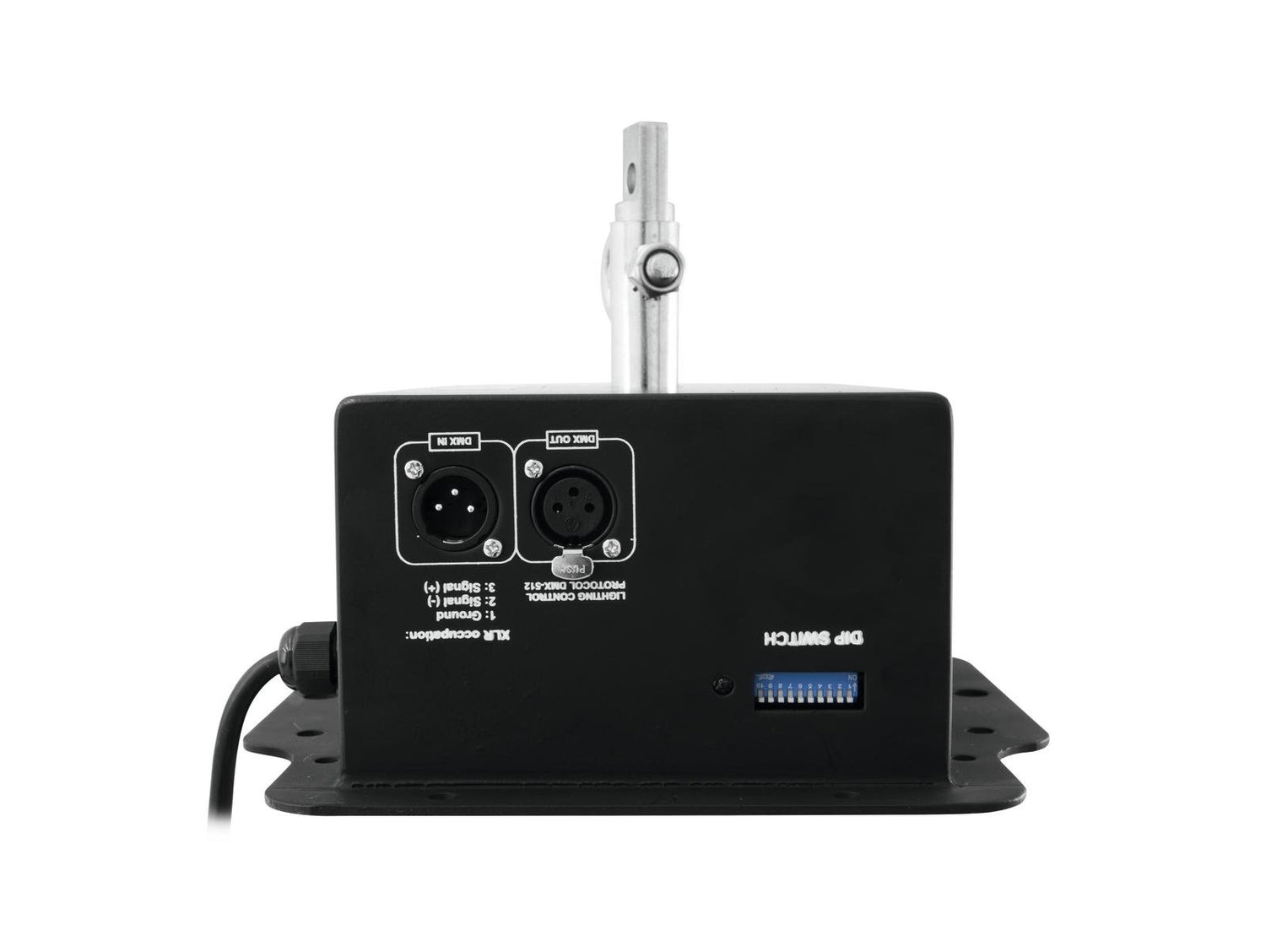

The rotation direction and speed can be controlled via the DIP switches or any commercial DMX controller.

For larger lighting installations, master/slave operation with multiple units running synchronised is also possible, with no external control required.

The motor is equipped with a patented mechanical anti-fall protection to prevent accidental loosening of the axle, as well as the required secondary eye for attaching the safety chain.

• Suitable for mirror balls up to a maximum weight of 40 kg
• This weight corresponds to a diameter of 100 cm for mirror balls
• The maximum load always refers to the mirror ball’s weight including the mirror ball chain, safety chain and mounting hardware
• Operable in stand-alone mode or via DMX control
• Functions: rotation direction, rotation speed, master/slave
• Programmable via DIP switches
• Chains and quick links must be ordered separately
• Ready for connection via mains cable
• For professional use, e.g. in discos, bars, nightclubs, etc.
