• 8 powerful 10 W SMD 4in1 QCL RGBW LEDs and 96 powerful 0.2 W SMD 5050 3in1 TCL RGB LEDs
• Electronic dimmer, color fade, color change, color mixing, rotation speed, and rotation direction
• Control via stand-alone, DMX, QuickDMX, W-DMX, CRMX, and Sound to light via microphone
• Multi-beam effect with 2 integrated show programs and fuzzy sound control for automatic continuation during periods without music
• Flicker-free with 4-digit 7-segment LED display, Omega bracket, and holder for wall mounting

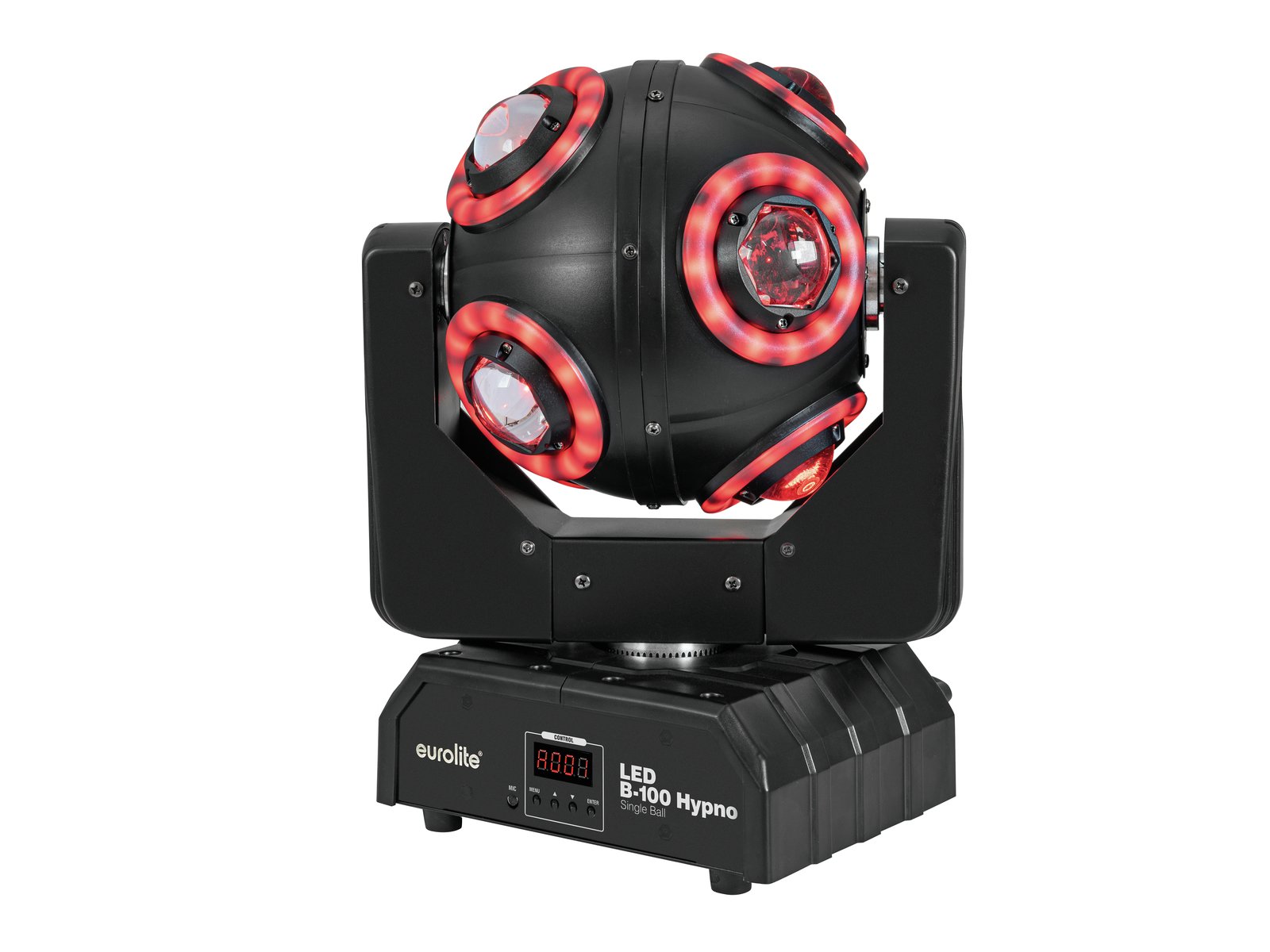

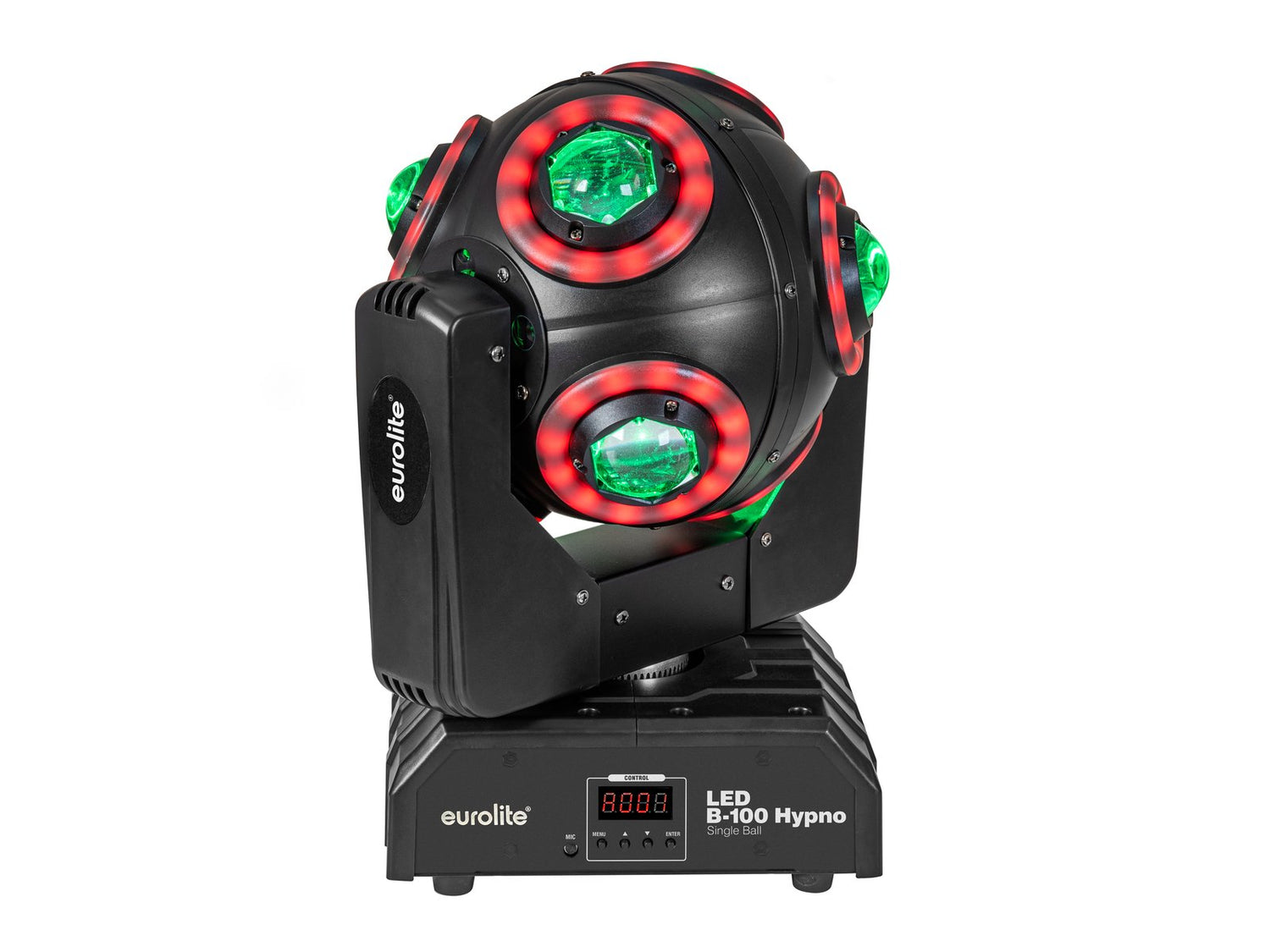

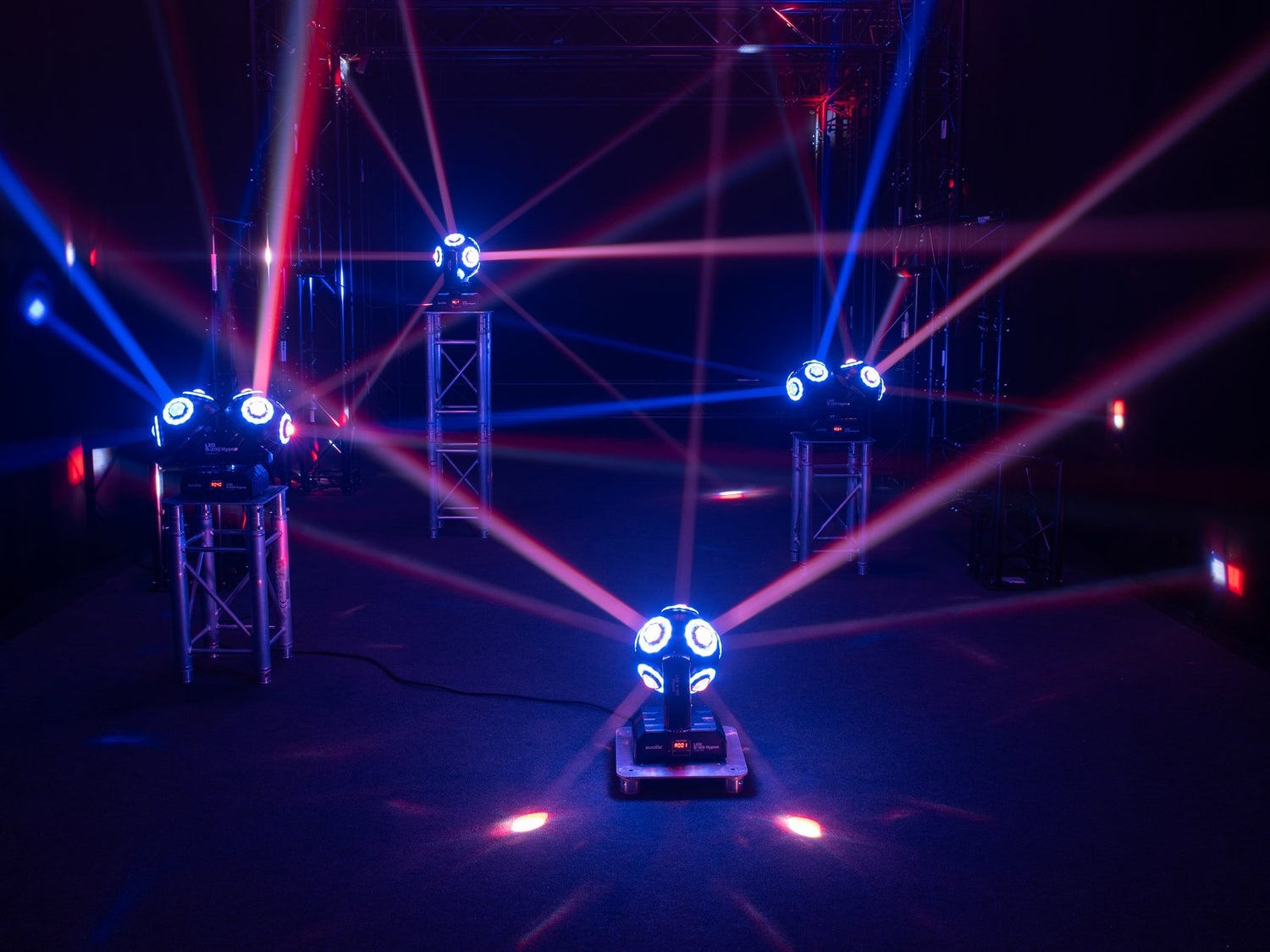

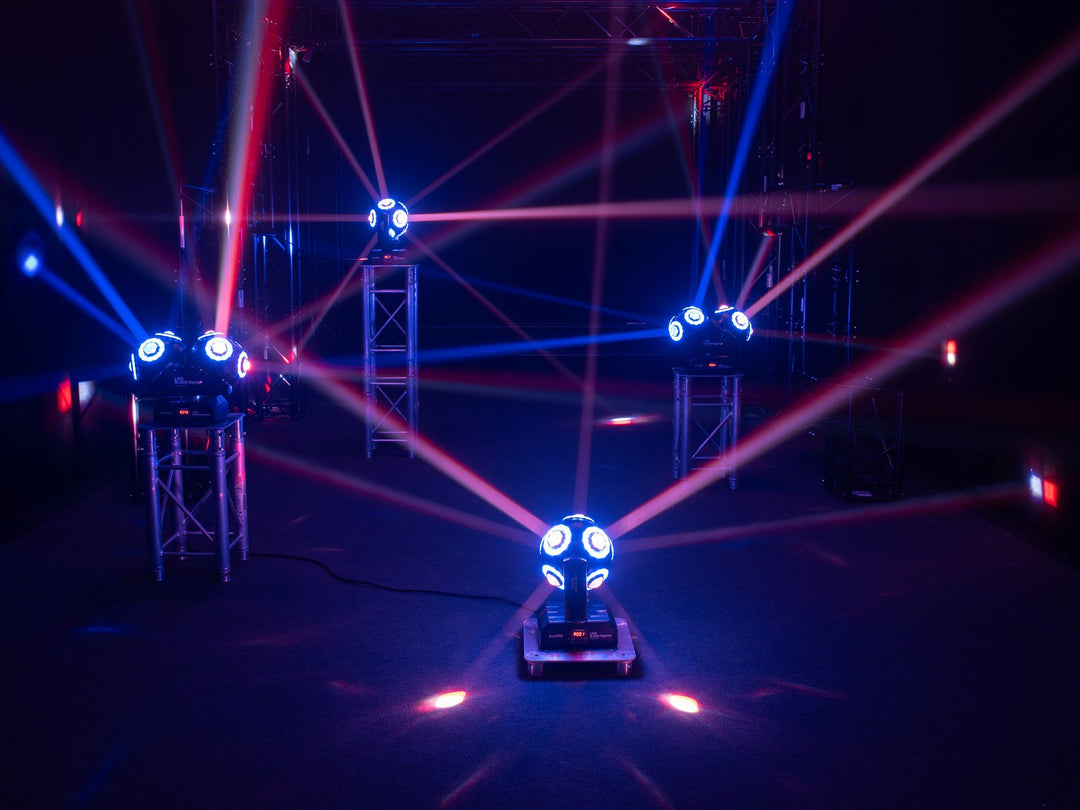

Eurolite LED B-100 Hypno Single Ball Beam Effect

• LED beam effect with RGBW color mixing and 8 RGB hypno rings
• 8 powerful 10 W SMD 4in1 QCL RGBW LEDs
• 96 powerful 0.2 W SMD 5050 3in1 TCL RGB LEDs
• Electronic dimmer; color fade; color change; color mixing; rotation speed; rotation direction

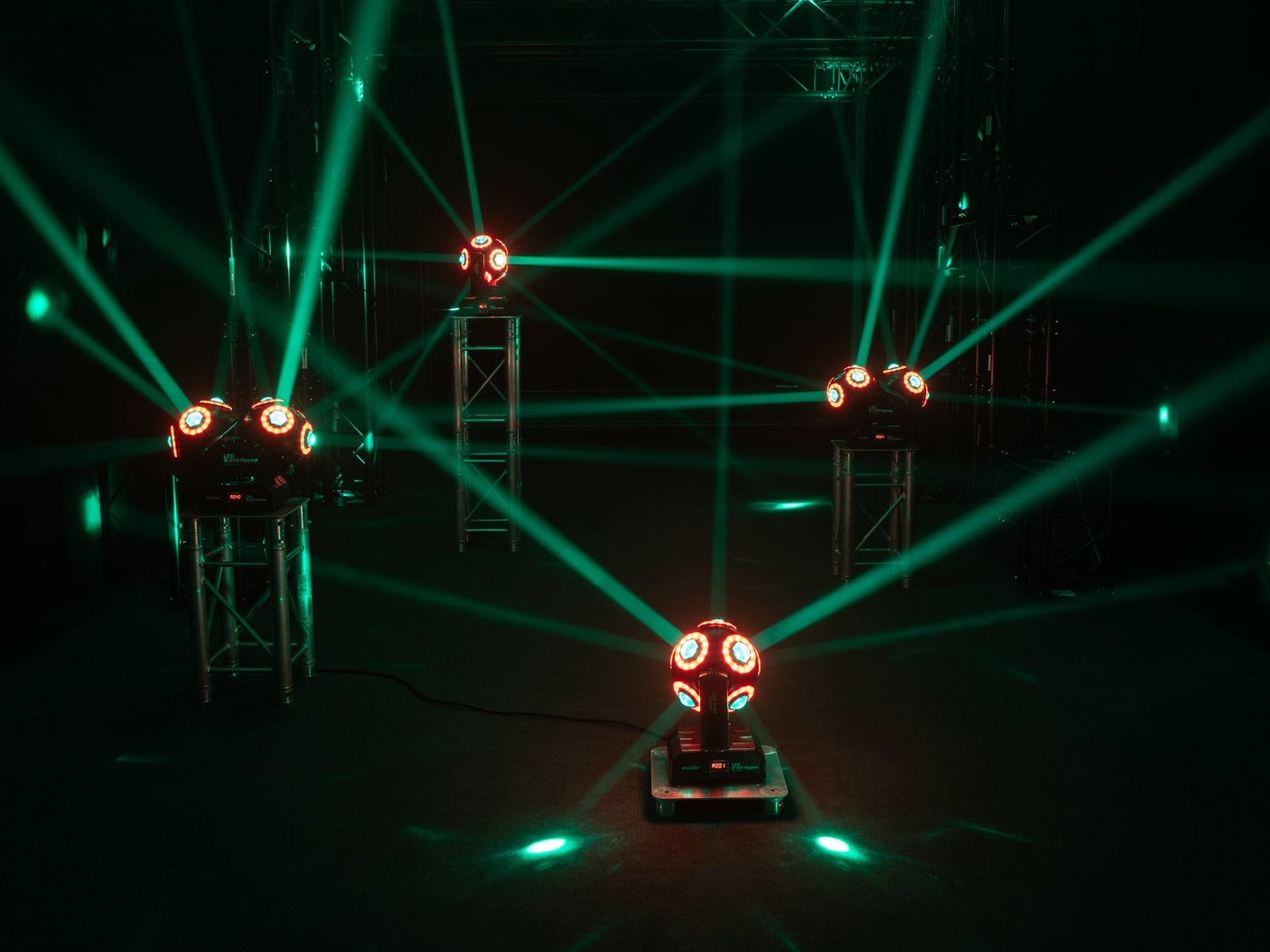

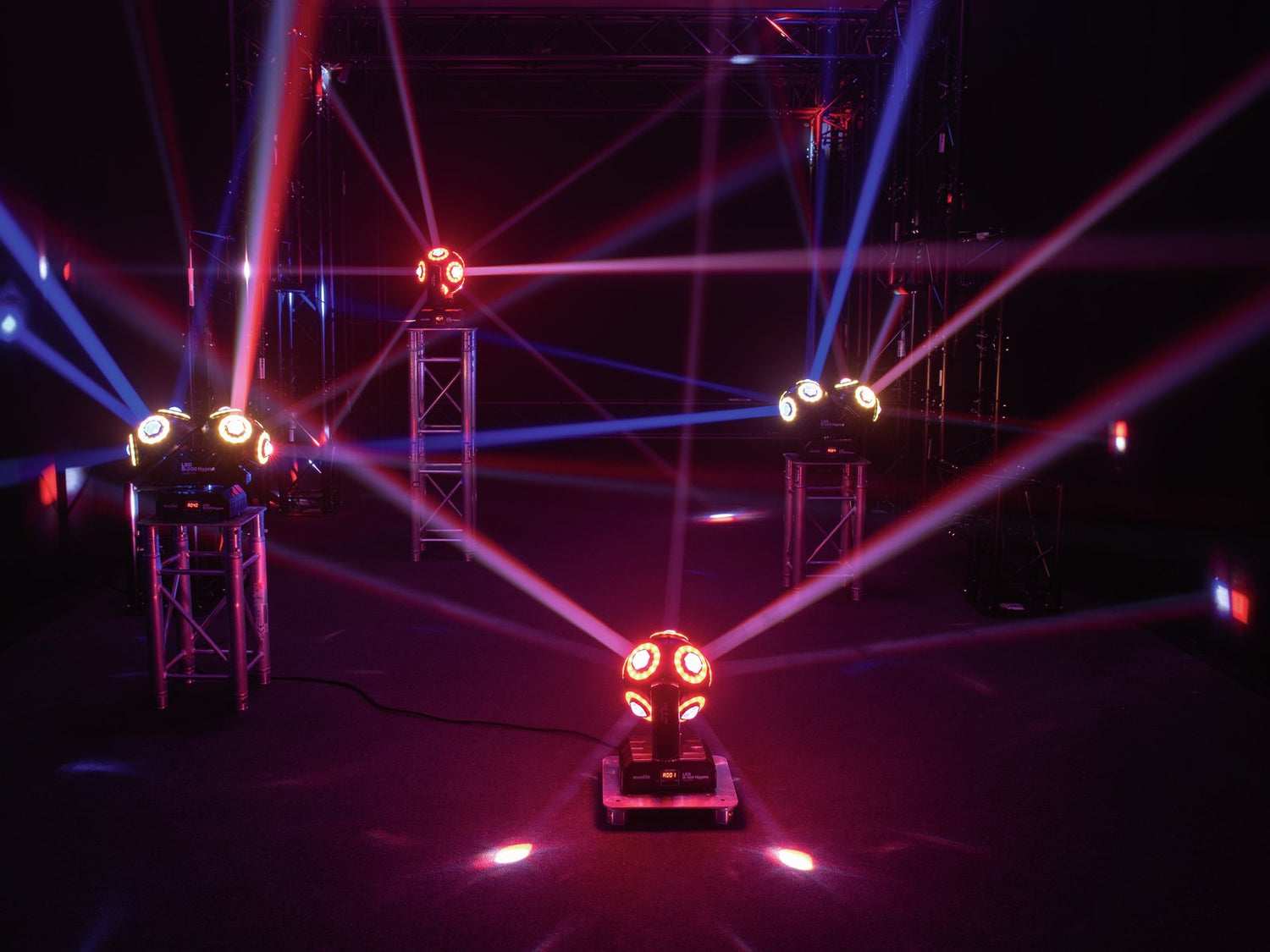

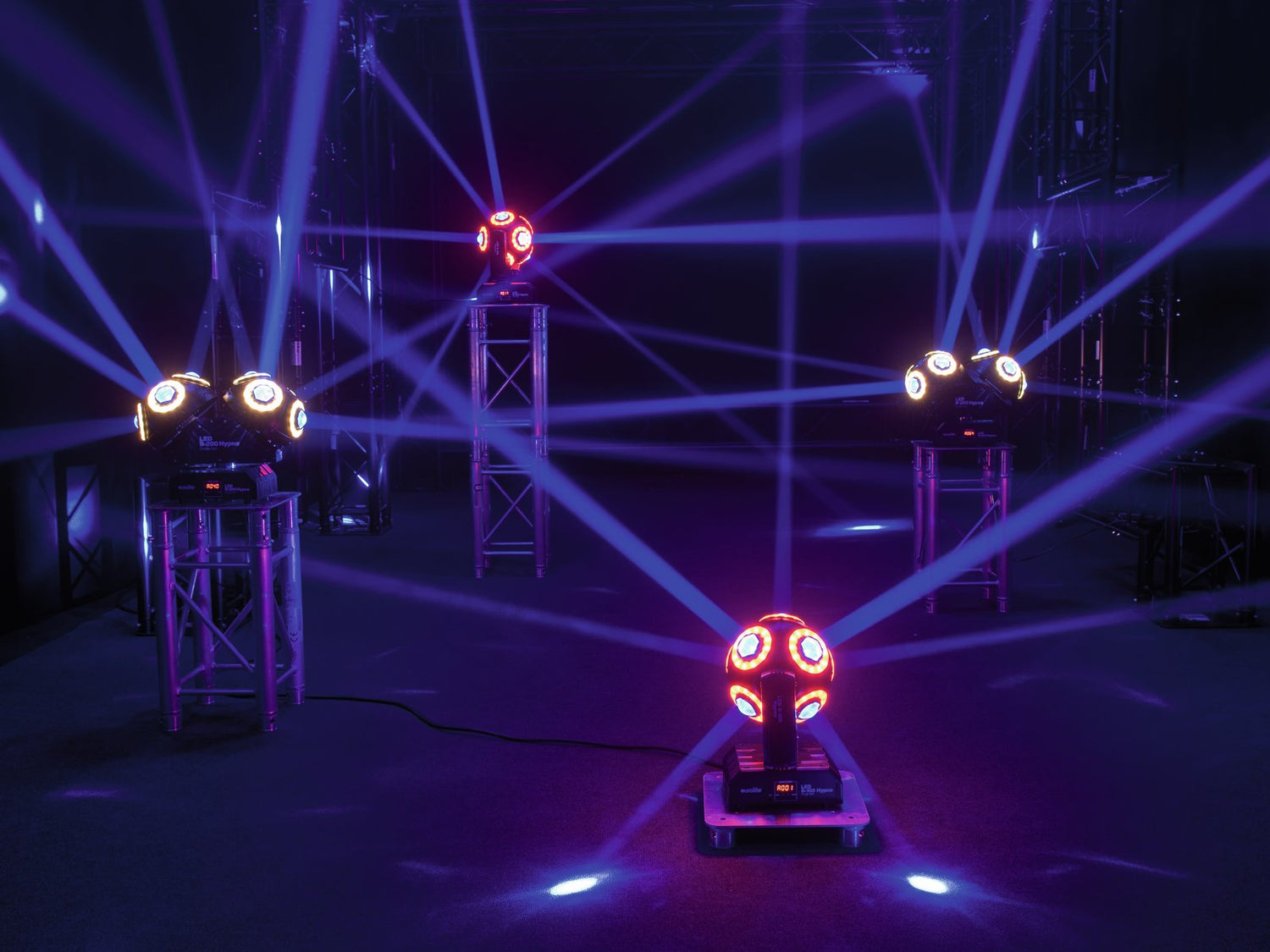

• Multi-beam effect
• 2 integrated show programs
• The unit is cooled by a cooling fan
• Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX via LumenRadio via USB (optional); Sound to light via microphone; Master/slave function
• Fuzzy sound control: the program continues automatically during periods without music or bass beat
• Flicker-free
• 4-digit 7-segment LED display

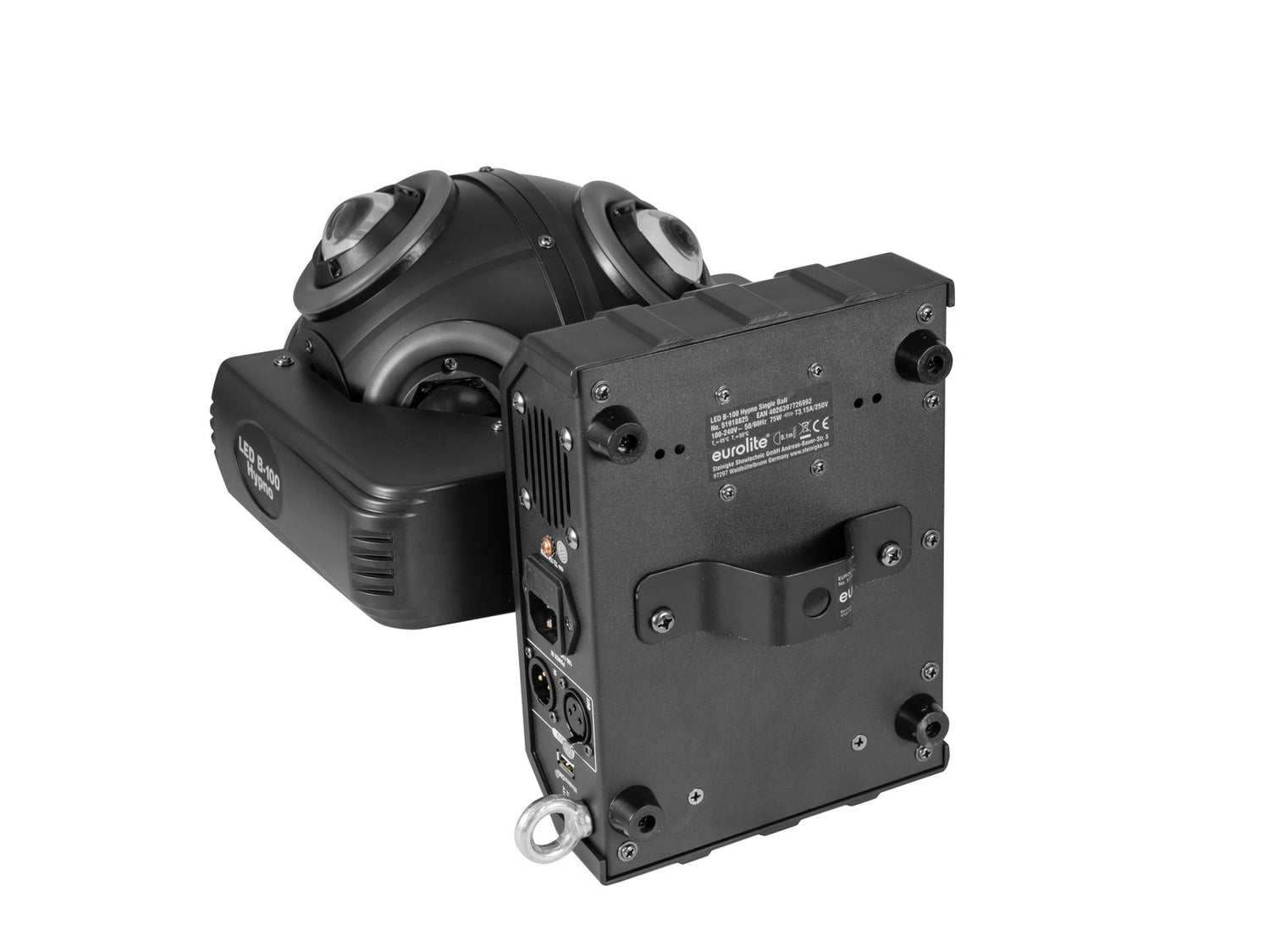

• With Omega bracket; with holder for wall mounting
• Usable: Standing; hanging
• Pre-programmed in Light Captain; Colorchief
• For applications such as: Club/dance school; Wedding/gala/events; Event venue; Mobile DJs/entertainers; Restaurants, bars, and hotels
• Package contents:
• 1 x unit, 1 x user manual, 1 x power cable, 2 x Omega brackets, 2 x screws

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 75 W
• IP classification: IP20
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug
• Fuse: 5 x 20 mm, T 3,15 A Fuse replaceable
• Lamp type: LED lamp
• LED: 8 x 10 W SMD 4in1 QCL RGBW, 96 x 0,2 W SMD 5050 3in1 TCL RGB
• Max. TILT movement: 360° Positioning infinity
• Max. PAN movement: 540°
• Flash rate: 0 - 20 Hz
• DMX channels: 16

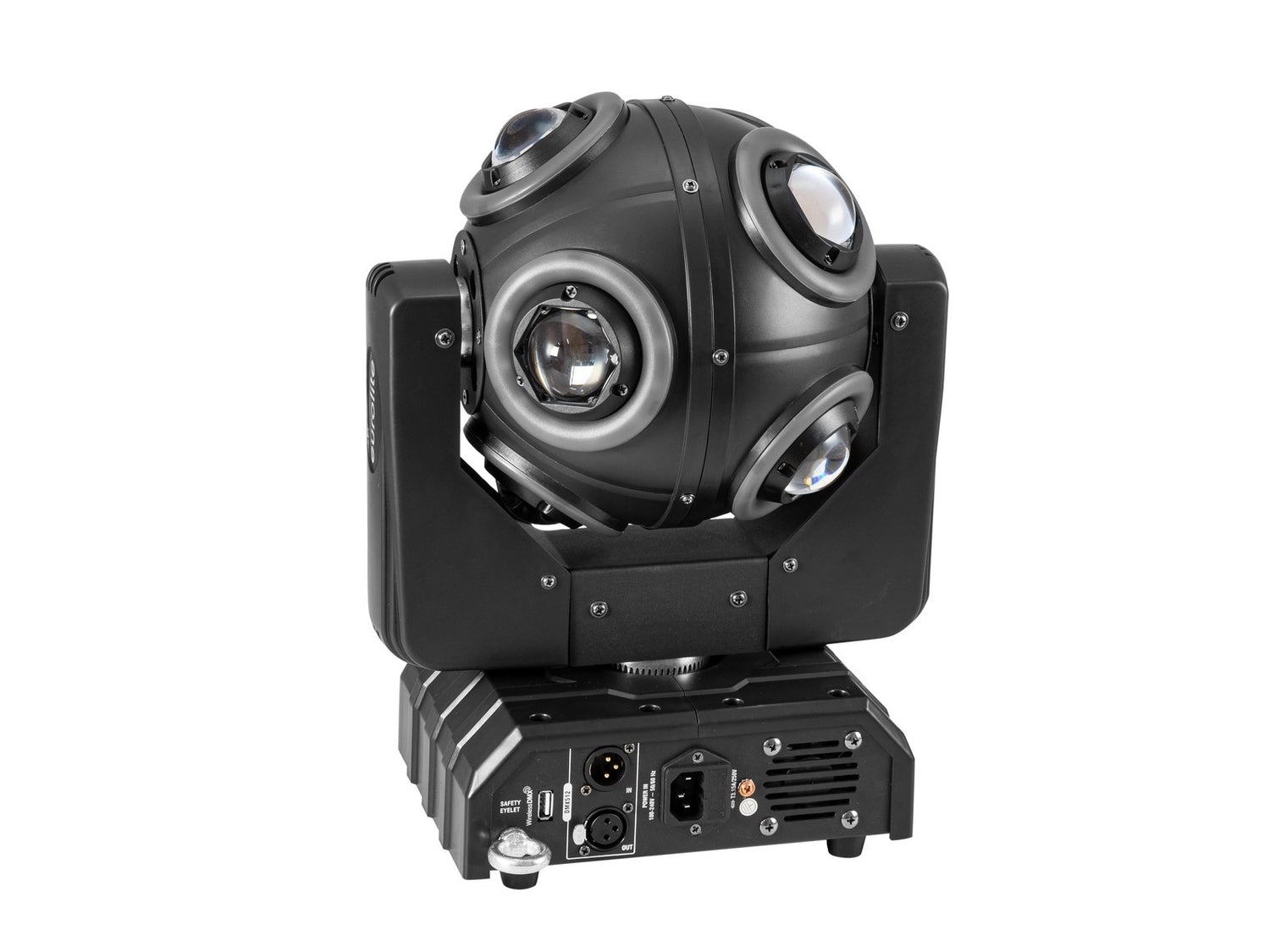

• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; Master/slave function
• Preprogrammed in: Light Captain; Colorchief
• Projection: Flicker-free
• Illuminance in Lux (lx): Red (R) 1m: 4812 lx, 3m: 1146 lx, 6m: 271 lx, Green (G) 1m: 8250 lx, 3m: 2434 lx, 6m: 723 lx, Blue (B) 1m: 3015 lx, 3m: 604 lx, 6m: 153 lx, Cold white (CW) 1m: 14513 lx, 3m: 3918 lx, 6m: 817 lx
• Housing color: Black

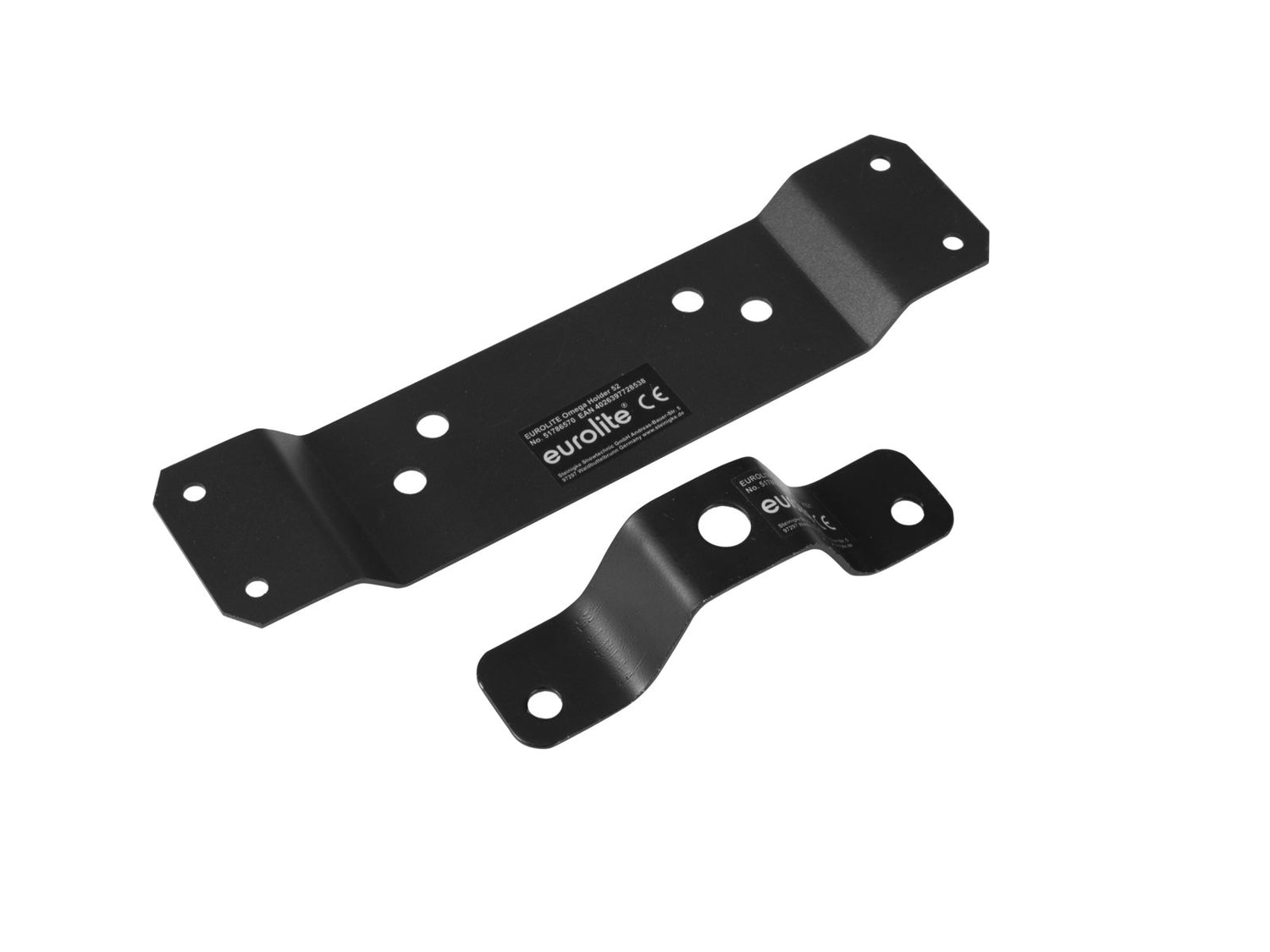

• Attachment system: Omega bracket, Holder for wall mounting
• Display type: 4 digit 7-segment LED display
• Diameter mounting holes: 4 x Ø5mm
• Material: Plastic
• Dimensions: Width: 27,0 cm, Depth: 21,0 cm, Height: 35,5 cm
• Weight: 4,50 kg
• Noise classification: Class 2 (slight noise)

Legal specifications:

• Special product: Not designed for household room illumination
• Intended use: Show effect lighting

Downloads:

• Eurolite LED B-100 Hypno Single Ball Beam Effect manual
