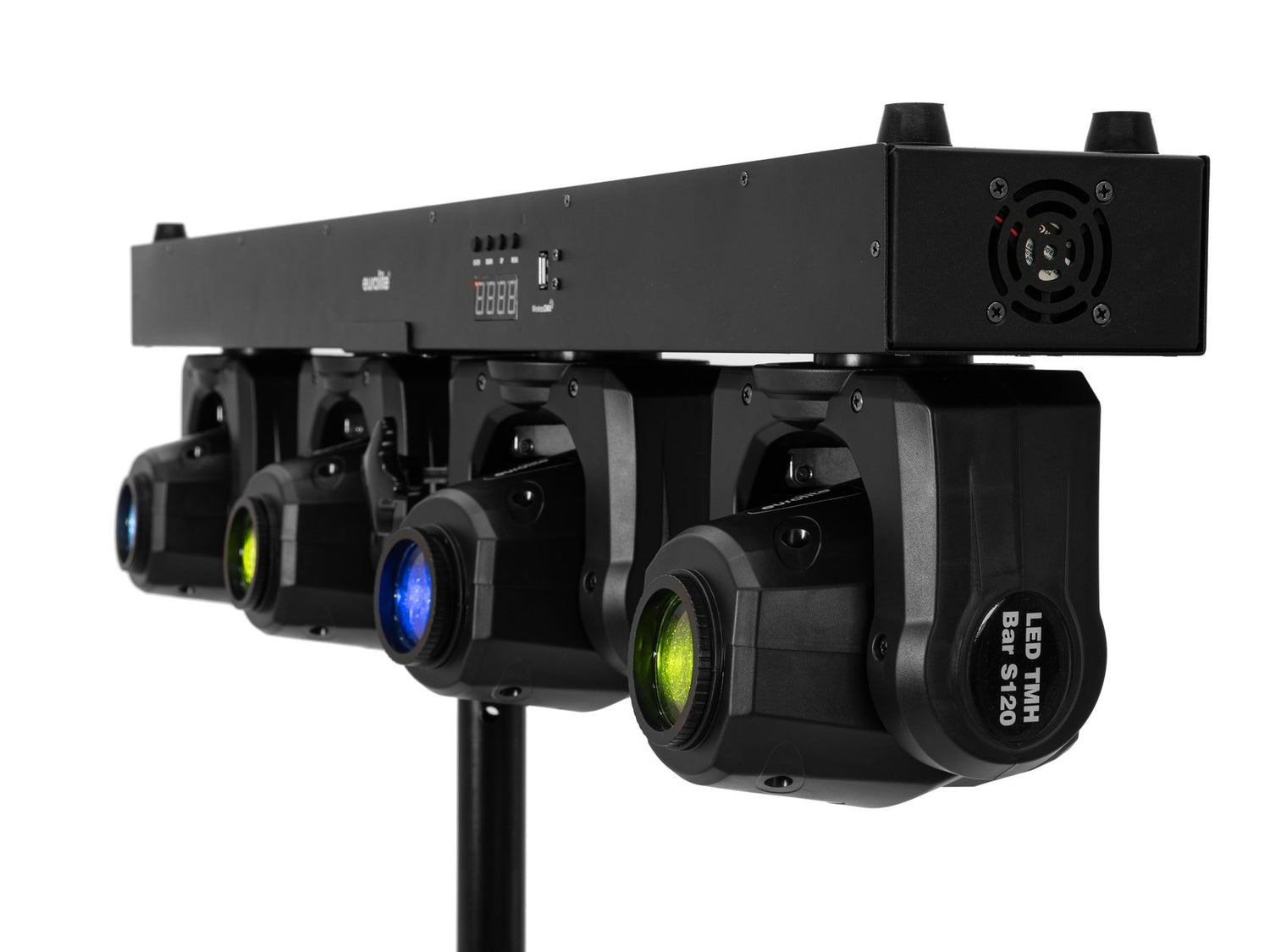

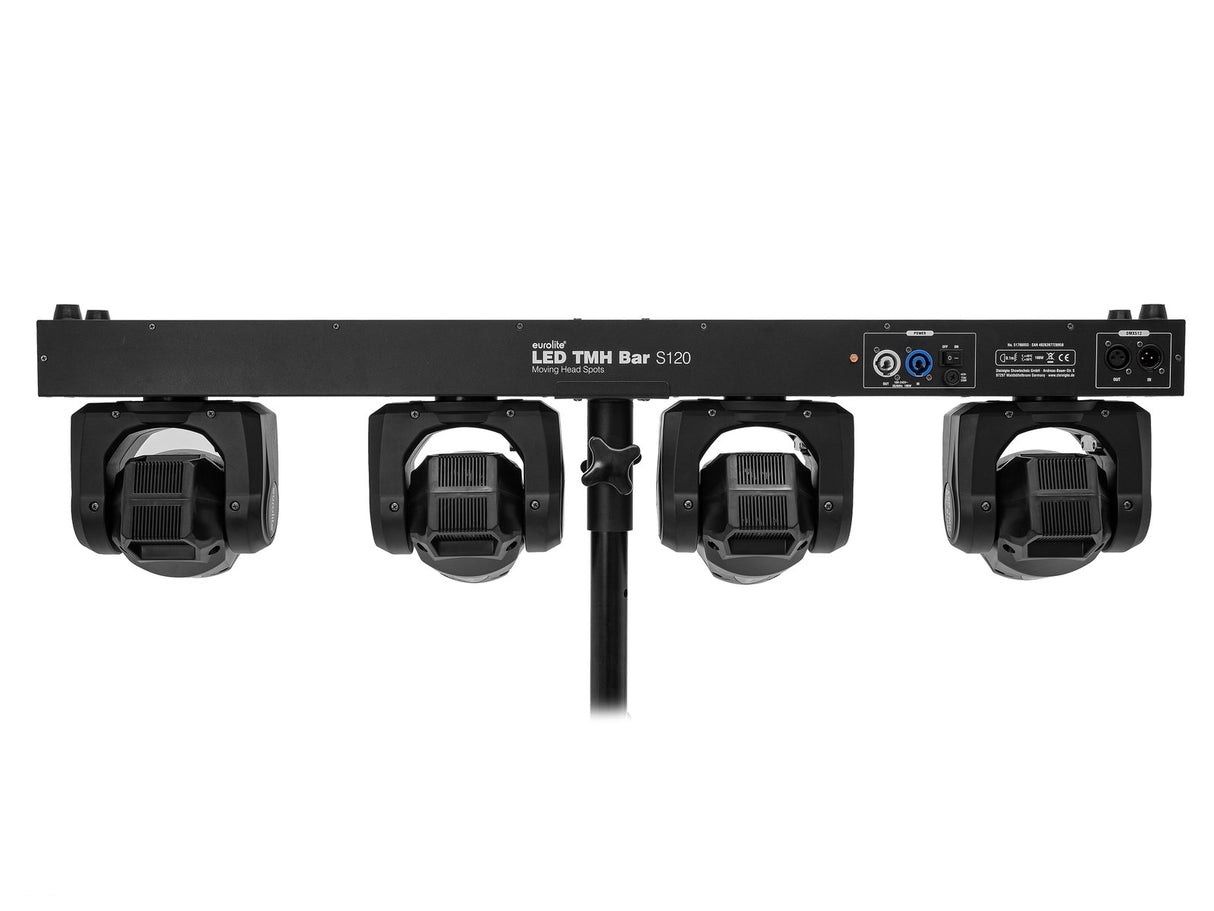

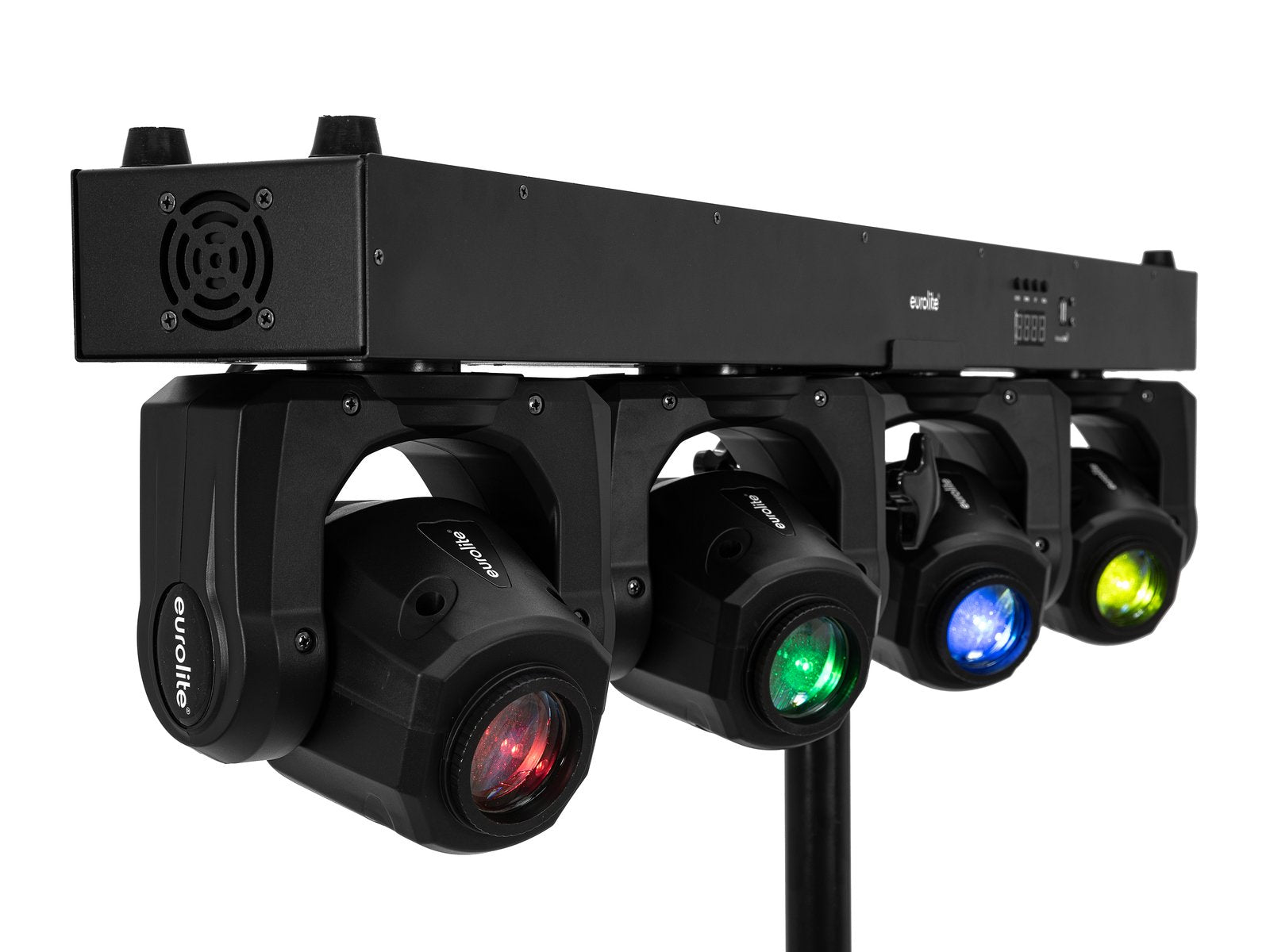

Eurolite LED TMH Bar S120 Moving Head

• LED lighting system with 4 individually controllable 30W moving heads and gobo- and color wheels
• 4 powerful 30 W COB LEDs for intense brightness
• Control via stand-alone, DMX, Sound to light, Master/slave, QuickDMX via USB, CRMX by LumenRadio and W-DMX (optional)
• Gobo-Color wheel with 7 gobos, color wheel with 7 dichroic filters, strobe and beam effect
• 540° PAN and 180° TILT, electronic dimmer, flicker-free technology and 13° beam angle

Eurolite LED TMH Bar S120 Moving Head

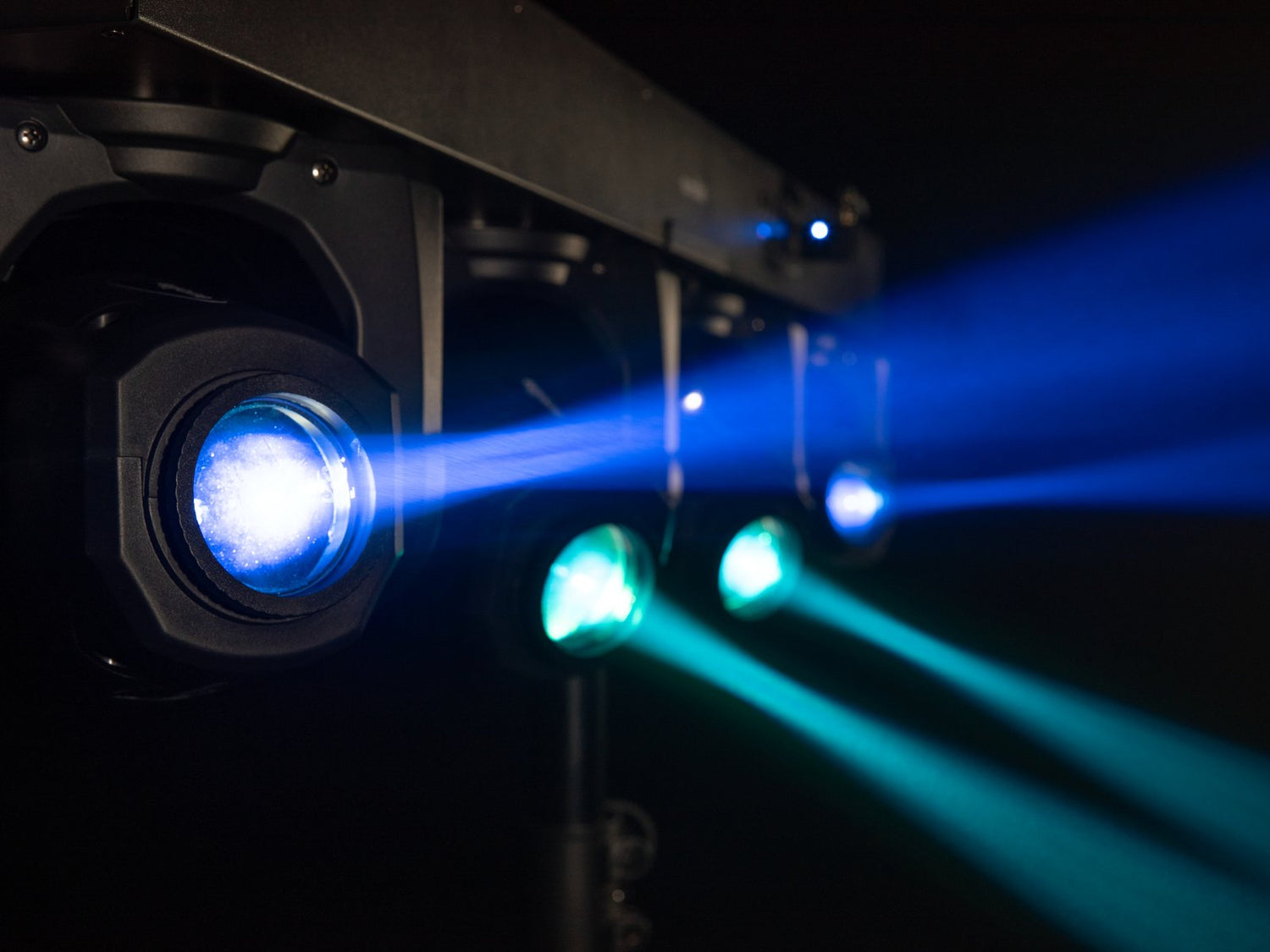

• 4 individually controllable 30 W moving heads with COB LEDs for intense brightness.
• Control options: stand-alone, DMX, Sound to light, Master/slave, QuickDMX via USB (optional), CRMX by LumenRadio via USB (optional), W-DMX by wireless solution (optional).
• Gobo-Color wheel with static gobos, manual focus and 7 gobos plus open position and shake effect.
• Color wheel with 7 dichroic filters plus open, half-color and Rainbow effect with adjustable speed.
• Strobe effect and beam effect for dynamic light shows.
• 540° PAN and 180° TILT with precise positioning thanks to 16-bit resolution.
• Electronic dimmer and flicker-free technology.
• Beam angle of 13° for focused light output.

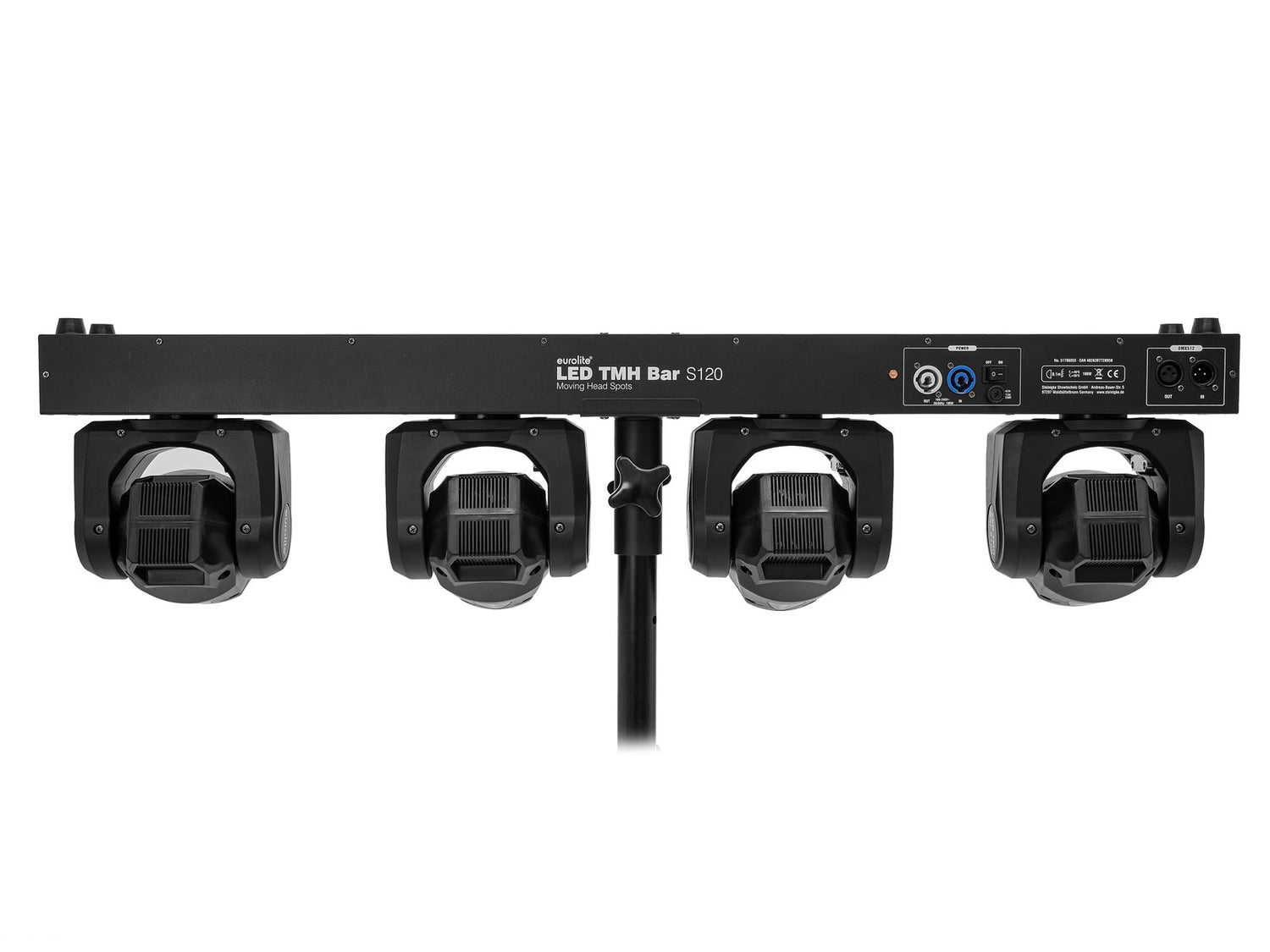

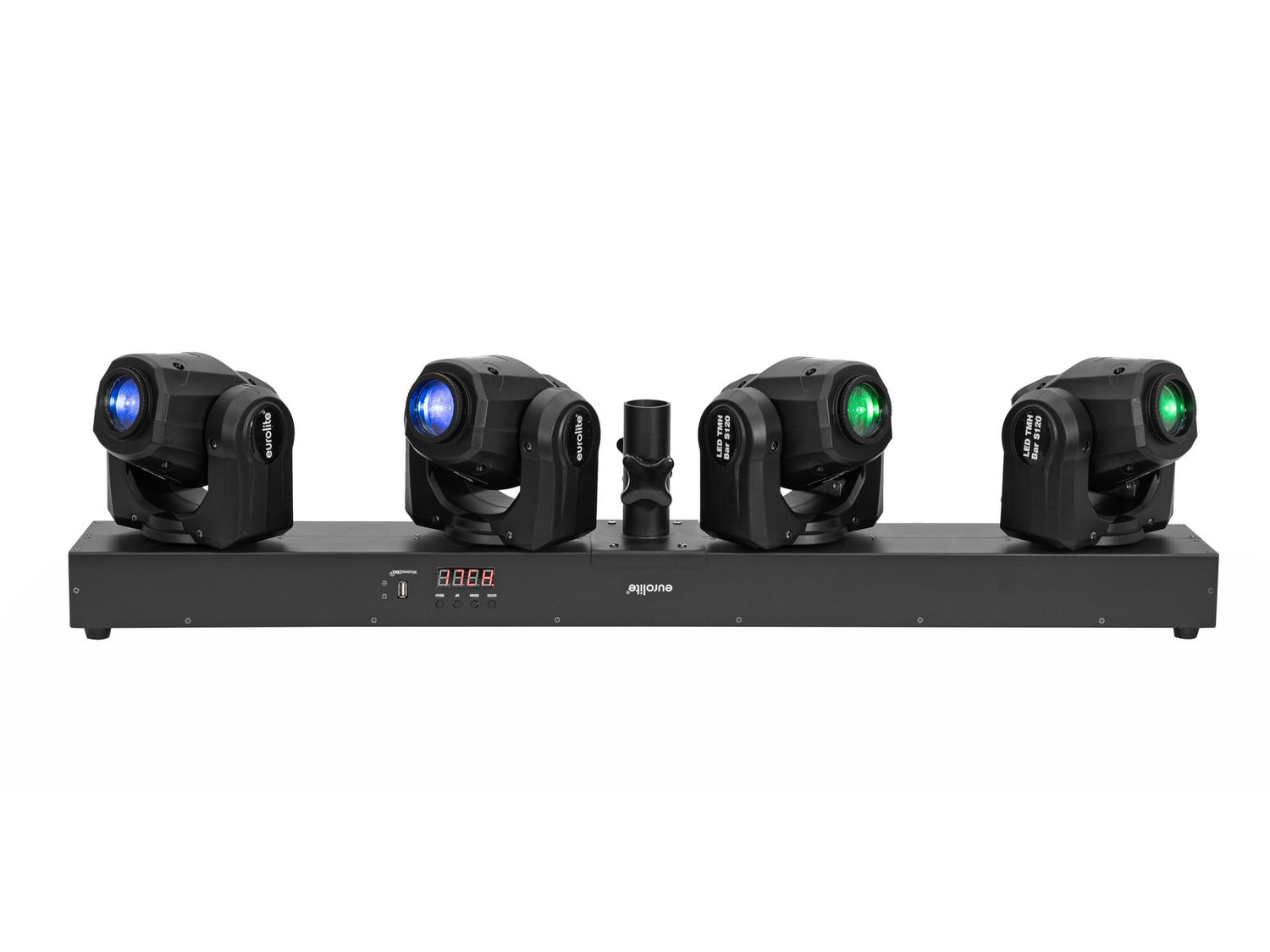

• Crossbar with integrated DMX controller and stand holder for easy setup and control.

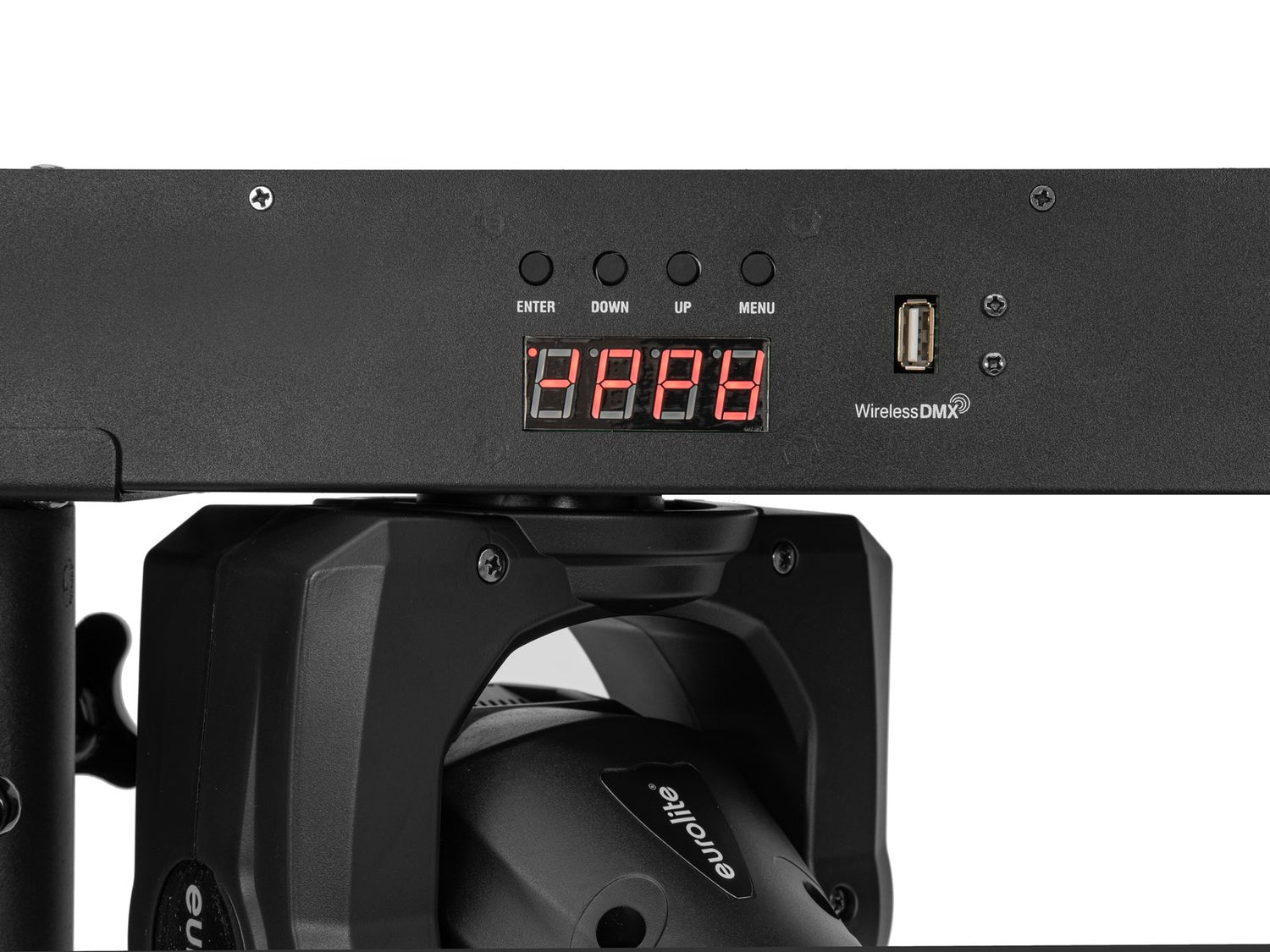

• Omega bracket for secure mounting and 4-digit 7-segment LED display for clear visual indications.
• Efficient cooling with temperature controlled fan and power input/output for powering up to 8 units.
• Pre-programmed in Colorchief, Light´J and Light Captain.
• Suitable for clubs, dance schools, weddings, galas, banquet halls and by mobile DJs and entertainers.
• Can be used standing, suspended or on a stand.

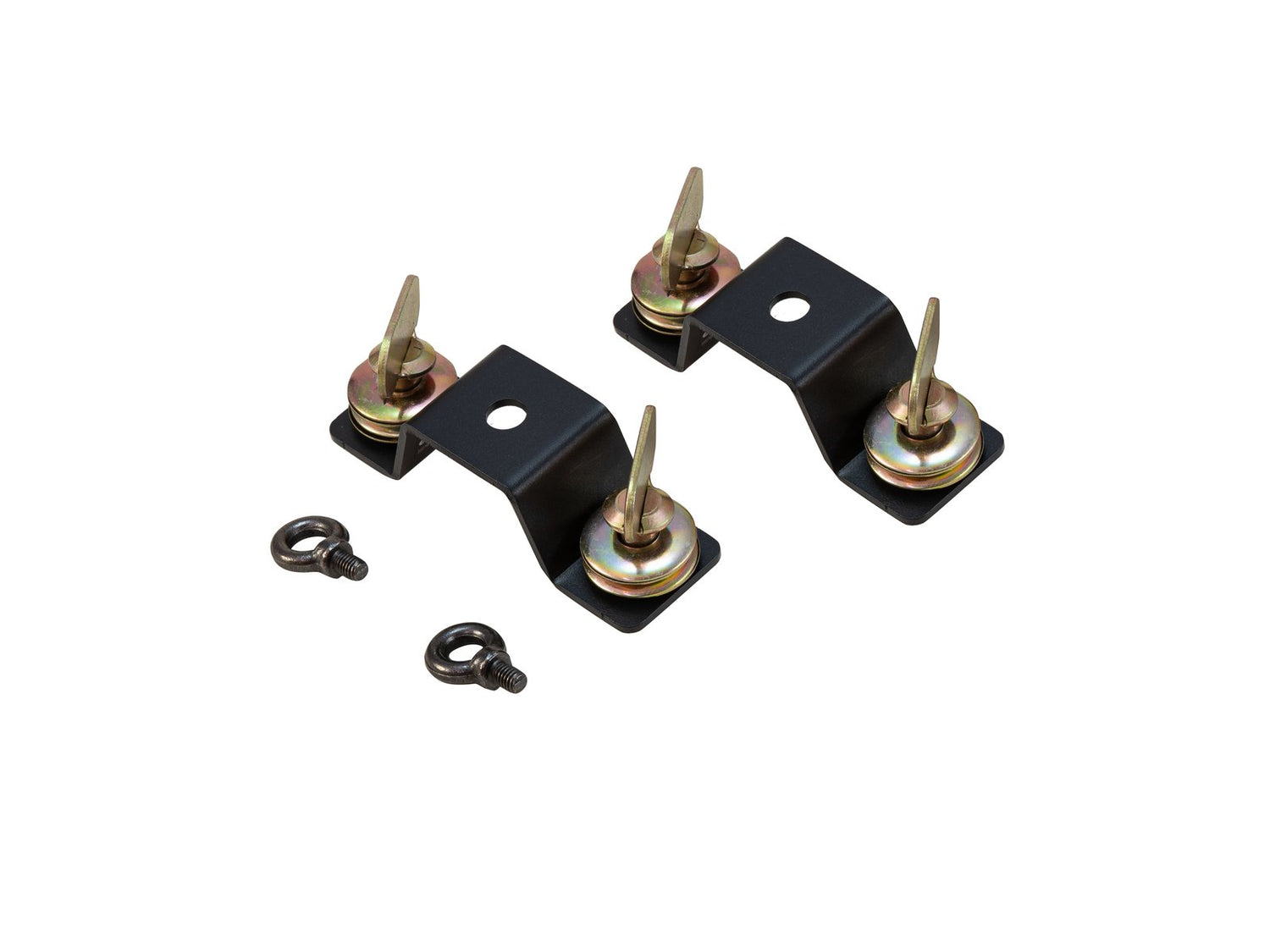

• Includes: 1 x moving light, 1 x user manual, 1 x power cable, 2 x omega brackets, 2 x safety eyes.
• Stand not included.

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 100 W
• IP rating: IP20
• Protection class: Protection class I

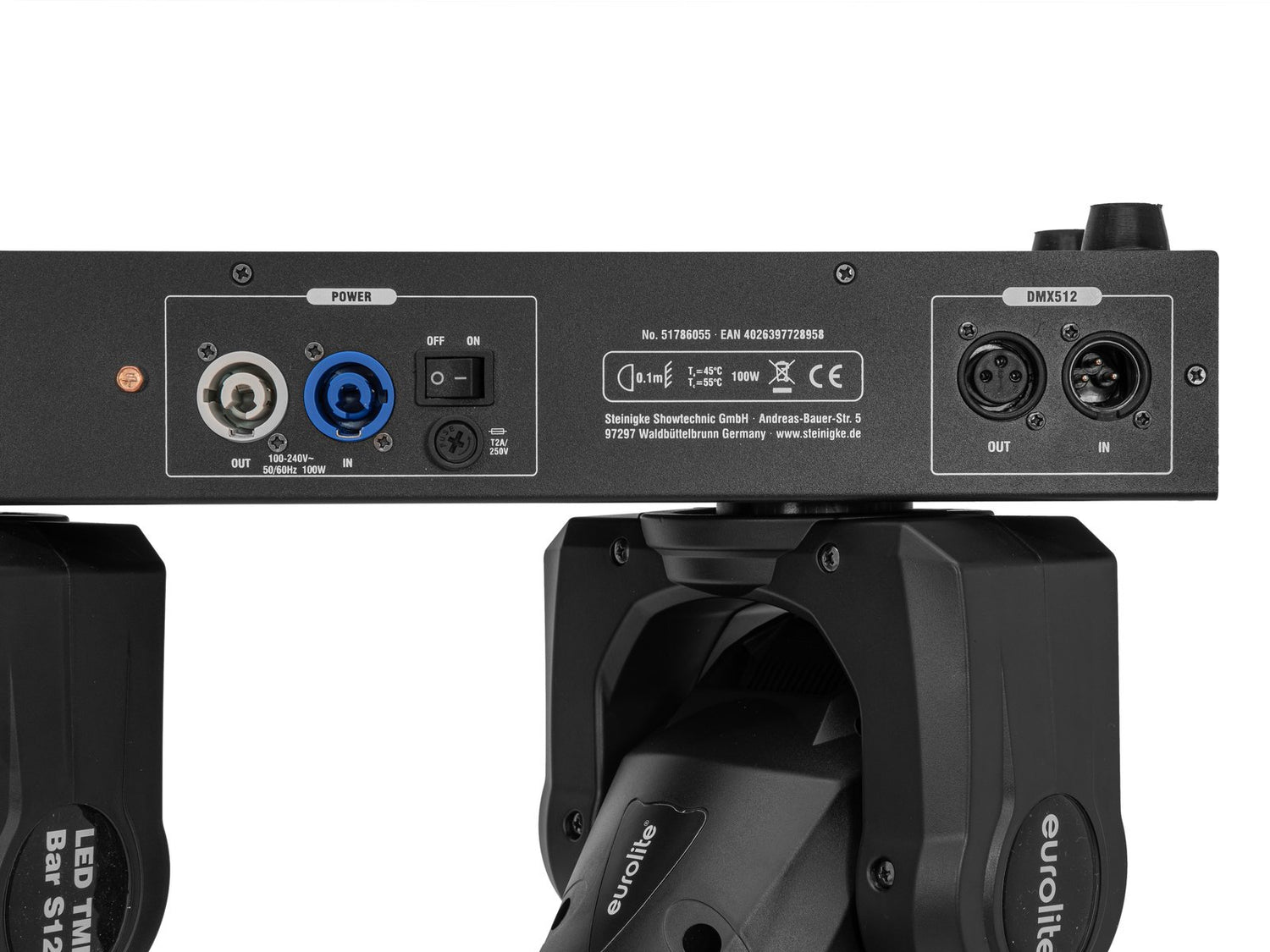

• Power connection: Mains input via P-Con (blue), mounting version power cable with safety plug (included)
• Power output: P-Con (gray), mounting version
• Fuse: 5 x 20 mm, T 2 A Fuse replaceable
• Lamp type: LED lamp
• LED: 4 x 30 W COB (chip-on-board)
• Color temperature: 7300K
• Max. TILT movement: 180° Positioning; Accurate positioning (16 bit resolution)
• Max. PAN movement: 540° Positioning; Precise positioning (16 bit resolution)
• Equipment: Gobo wheel with static gobos; Manual focus; Color wheel
• Color generation: Color wheel with 7 dichroic filters plus open; Half colors selectable; Rainbow effect with adjustable speed
• Gobos: Gobo wheel with static gobos, 7 gobos and open; Shake effect
• DMX channels: 3; 5; 9; 11; 17; 21; 30; 38
• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Temperature controlled fan
• Control:
  • Stand-alone
  • DMX
  • Audio to light via microphone
  • Master/slave function
  • QuickDMX via USB (optional)
  • CRMX from LumenRadio via USB (optional)
  • W-DMX via wireless solution (optional)
• Pre-programmed in:
  • Colorchief
  • Light´J
  • Light Captain
• Projection: Flicker-free
• Beam angle: 13°
• Beam angle (1/2 top): 13°
• Illuminance in Lux (lx):
  • Cool White (CW) 1m: 8899 lx
  • 3m: 856 lx
  • 6m: 205 lx
• Housing color: Black
• Mounting system: 2x Omega brackets
• Display type: 4-digit 7-segment LED display
• Transportation aid: Rubber feet
• Dimensions:
  • Width: 1 m
  • Depth: 17.5 cm
  • Height: 28.0 cm
• Weight: 13.00 kg
• Noise classification: Class 3 (clearly perceptible sounds)
