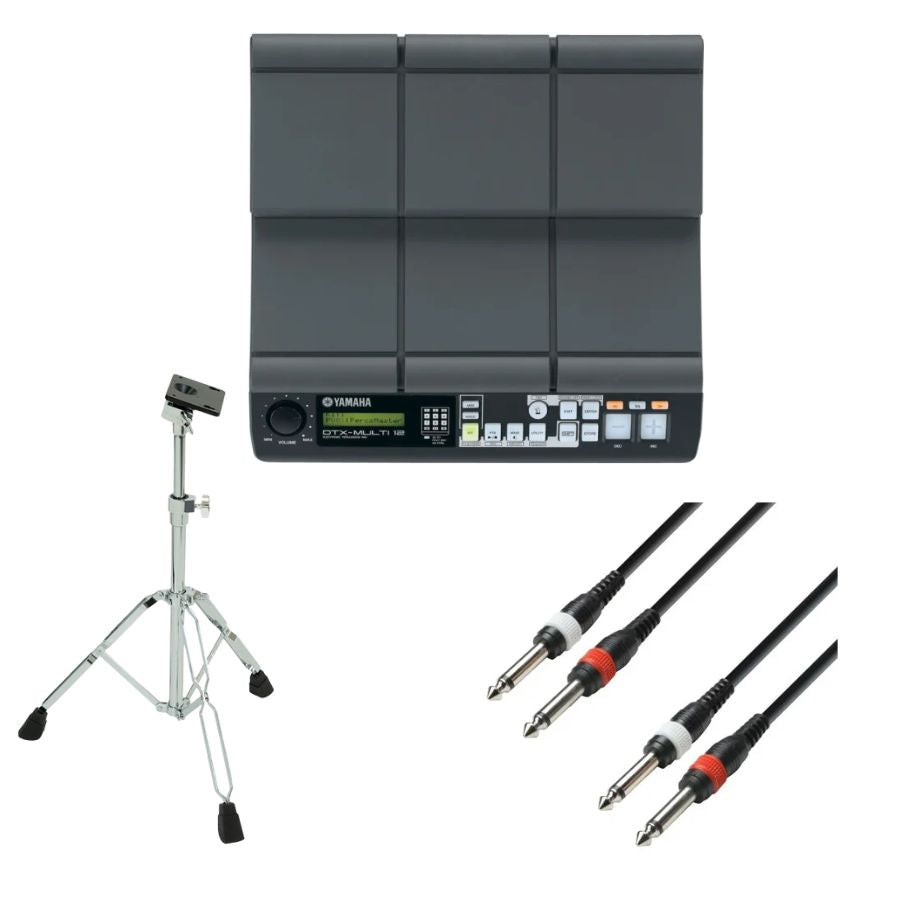

Yamaha DTX12 Multi Starter Kit
Description
Description
- Cool percussion pad from Yamaha
- Lots of great sounds and samples
- Can be played with your hands
- Input for triggers
- Tripod stand in solid quality
- Easy to adjust to all positions
- Works with Roland SPD and HandSonic instruments.
- High-quality audio cable
- 2x 6.3 mm jack cable at both ends
- Cable length: 6 meters
- Color: black

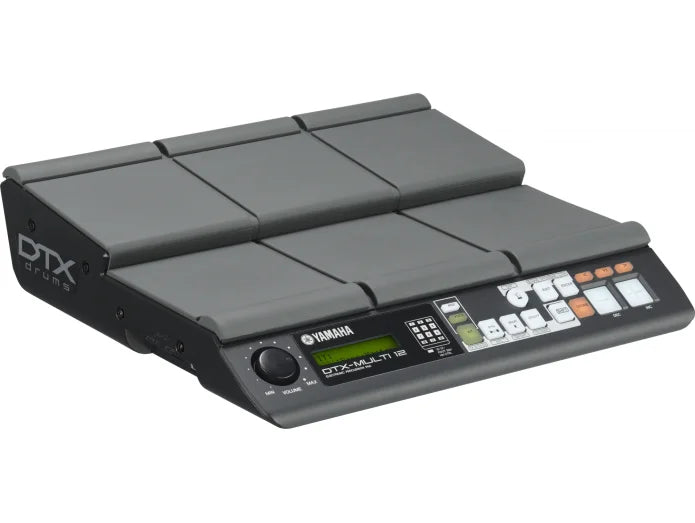

Yamaha DTXM12
All-in-one percussion instrument!
For all levels, all genres and all situations - The most advanced all-in-one percussion instrument suitable for everyone from beginner to professional and for all styles and situations.
The DTX-MULTI 12 is equipped with 12 pads that are easy to use - even on a dark stage. You can use the DTX-MULTI 12 in different ways, for example as a percussion pad with acoustic drums or as an extra spice with many different sounds for almost any kind of music.
Or how about using it as an input device for a computer with the included Cubase AI5 so you can program drums with sticks instead of the mouse?
Plug in a bass drum pedal and you have a completely compact drum kit!
In addition to the many sounds from our world-famous MOTIF series of synthesizers, the DTX-MULTI 12 also features many new percussion sounds recorded with Yamaha's advanced sampling techniques - 1277 built-in sounds in total! The DTX-MULTI 12 also has sounds for DJ use, a wide range of percussion, chromatic percussion, folk and acoustic instruments.
You can also import your own WAV and AIFF files from USB memory. The DTX-MULTI 12 can thus function as a sample playback device with 64MB Flash ROM. Add to this amazing reverb, chorus and other effects that can also be used on entire drum kits.

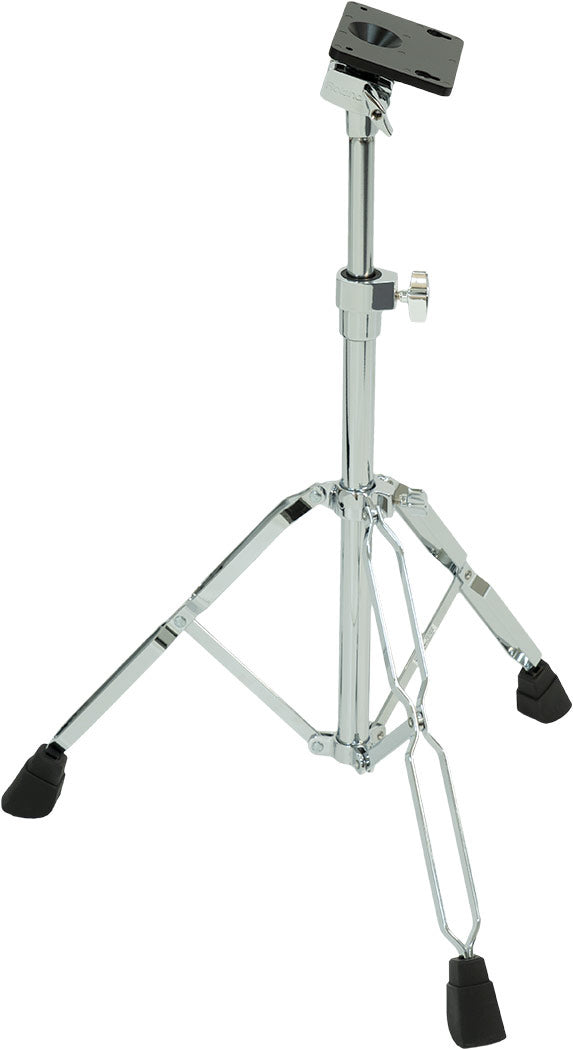

Roland PDS-20
- Tripod stand with double-reinforced steel legs in chrome finish
- Stable rubber feet.
- Wide and sturdy mounting plate.
- New clamp design for a flexible setup.
- Easy to adjust to standing or sitting position.
- Works with Roland SPD and HandSonic percussion instruments.

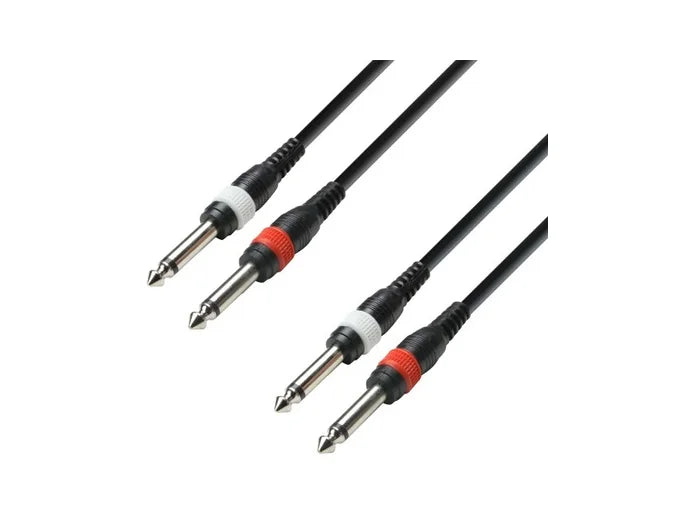

Jack cable 2x 6.3mm jack to 2x 6.3mm jack (6m)
Solid audio cable with 2x 6.3mm jack on both ends.
Spécifications
Spécifications
-
Weight (kg)
More specifications
More specifications
Specifications
Size/Weight
| Dimensions | Width | 345mm |
|---|---|---|
| Height (Height) | 96mm | |
| Depth | 319mm | |
| Weight | Shipping weight | 3.3kg |
Pad section
| Built-in pads | 12 | |
|---|---|---|
| External inputs | 5 (three-zone x 1; monaural x 4) | |
Tone generator
| Maximum Polyphony | 64 notes | |
|---|---|---|
Synthesis
| Sounds | Drum and percussion: 1,061 Keyboard: 216 | |
|---|---|---|
Sound generator
| Effects | Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer | |
|---|---|---|
Tone generator
| Drum kits | Preset: 50 User-defined: 200 | |
|---|---|---|
| Wave memory | 100 MB (16-bit linear conversion) | |
Sequencer
| Note Resolution | Quarter note / 480 | |
|---|---|---|
| Patterns | Preset patterns: 128 phrases (including 3 demo patterns) User-defined patterns: 50 phrases | |
| Sequence formats | Proprietary SMF Format 0 (for loading only) | |
| Sequence capacity | 152,000 notes | |
| Recording method | Real-time overdubbing | |
Waves
| Readable quantity | 500 | |
|---|---|---|
| Bit depth | 16 bit | |
| Wave memory | 64 MB | |
| Maximum size | Mono sample: 2 MB Stereo sample: 4 MB | |
| Sample formats | Proprietary, WAV, and AIFF | |
Other sample formats
| Display | Backlit LCD with 2 rows of 16 characters | |
|---|---|---|
| Connectors | PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch) PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger) HI-HAT CONTROL jack (standard stereo-phone plug) FOOT SW jack (standard stereo-phone plug) OUTPUT L/MONO and R jacks (standard phone plugs) PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN. | |
| Power Consumption | 9W (DTXM12 and PA-5D adapter) | |
| Package Contents | Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5) | |
Trigger section
| Pad functions | Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages | |
|---|---|---|
Click-track
| Tempo | 30 to 300 BPM. Tap tempo functionality | |
|---|---|---|
| Beats | 1/4 - 16/4, 1/8 - 16/8, 1/16 - 16/16 | |
| Note timing | Accent notes, quarter notes, eight notes, sixteenth notes, triplets | |
