• Fully featured RGBW LED yoke wash fixture with LED zone control and zoom

• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

• 37 RGBW LEDs, 25 W each

• 3- and 5-pin DMX input/output connections

• 9 zones of LED control for pixel mapping effects

• Unique lens design offers excellent color mixing

• Fast, smooth pan and tilt movement

• RDM enabled for remote addressing and trouble shooting

• User-selected calibrated white for 7500 K at full output

• Selectable LED maximum output to match legacy Rogue R3 Washes

• Selectable PWM options for camera operation

• 6 distinct dimming modes for different dimming needs

• Omega mounting bracket, fits all Rogue and Maverick fixtures

• Easy to read OLED display with simple, effective menu options

• Simple and complex DMX channel profiles for programming versatility

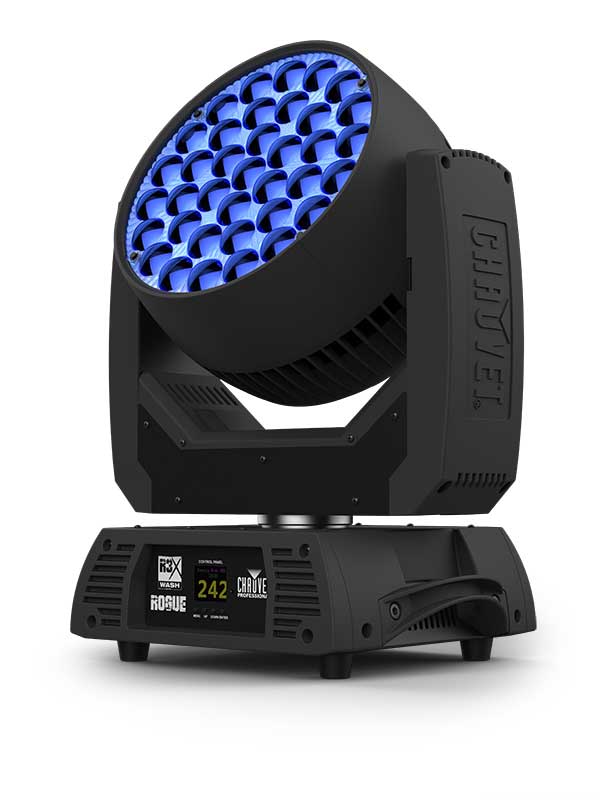

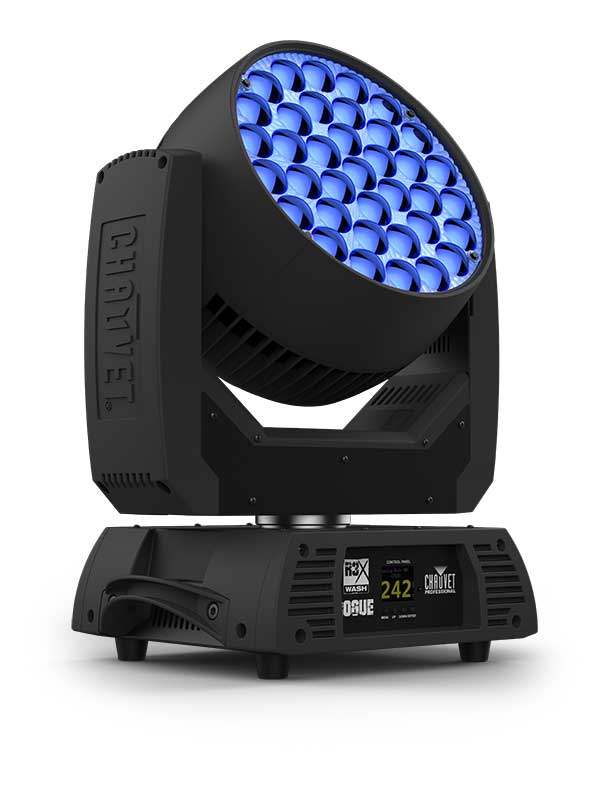

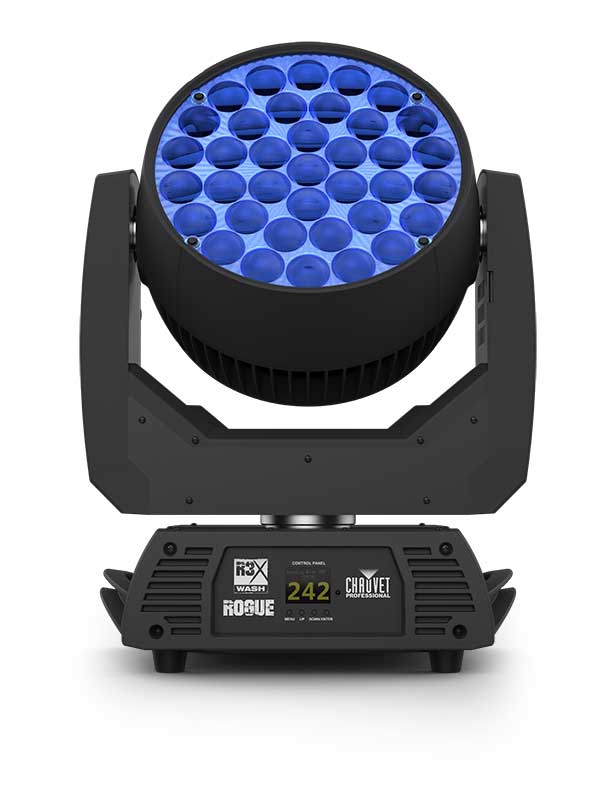

• Rogue R3X Wash is a feature packed moving wash workhorse ideal for rental and production inventories.
• It outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 (25 W) RGBW quad-LEDs.
• A quick moving zoom range of 12° - 49° gives it the spread to cover large areas.
• Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.

OPTICAL

• Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2,800 to 10,000 K
• Beam Angle: 9.3° to 33.9°
• Field Angle: 11.6° to 49.5°
• Zoom Angle: 11.6° to 49.5°
• Lumens – Source: 17,000
• Lumens – Output: 13,440
• Illuminance (11.6°): 18,260 lux @ 5 m
• Illuminance (49.5°): 1,556 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

• Dimensions: 15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
• Weight: 38.5 lb (17.46 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

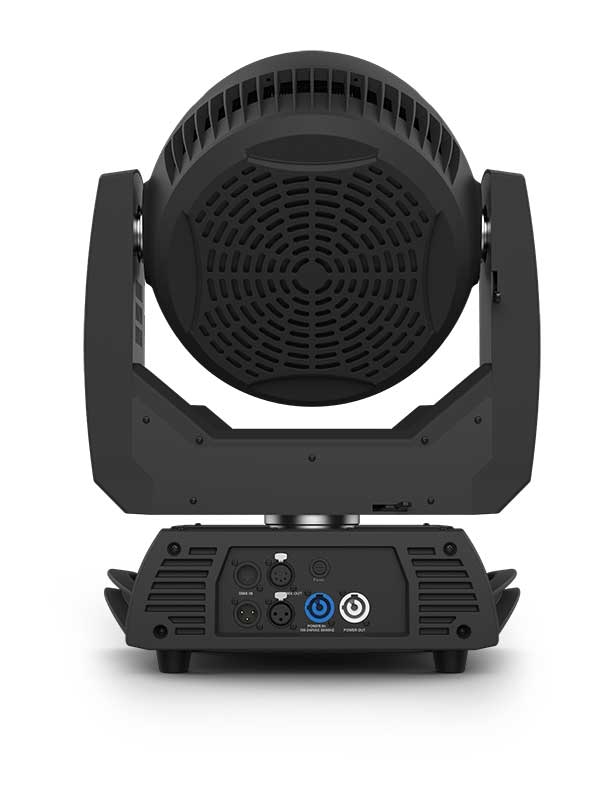

CONNECTIONS

• Power Connection: Edison (local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 21, 62, 71, 107
• Modes/Personalities: 4 personalities

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 3 units @ 208 V; 4 units @ 230 V
• Power and Current: 661 W, 5.60 A @ 120 V, 60 Hz
• Power and Current: 653 W, 3.136 A @ 208 V, 60 Hz
• Power and Current: 650 W, 2.85 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Rogue R3X Wash
• Neutrik® powerCON® power cord
• 2 Omega brackets with mounting hardware

DOWNLOADS

• Rogue R3X Wash Quick Reference Guide
• Rogue R3X Wash User Manual
• Rogue R3X Wash DMX Chart
• Rogue R3X Wash - CAD File
