Electro-Voice EKX-12

Name: Electro-Voice EKX-12
Brand: Electro-Voice
SKU: EKX-12
Price: 603.95 EUR
Availability: InStock

1 4

€603,95

Free shipping

Made to order. Estimated delivery in 6–10 business days.

€603,95

Description

1400 W passive speaker
SST waveguide
SPL of 131 dB

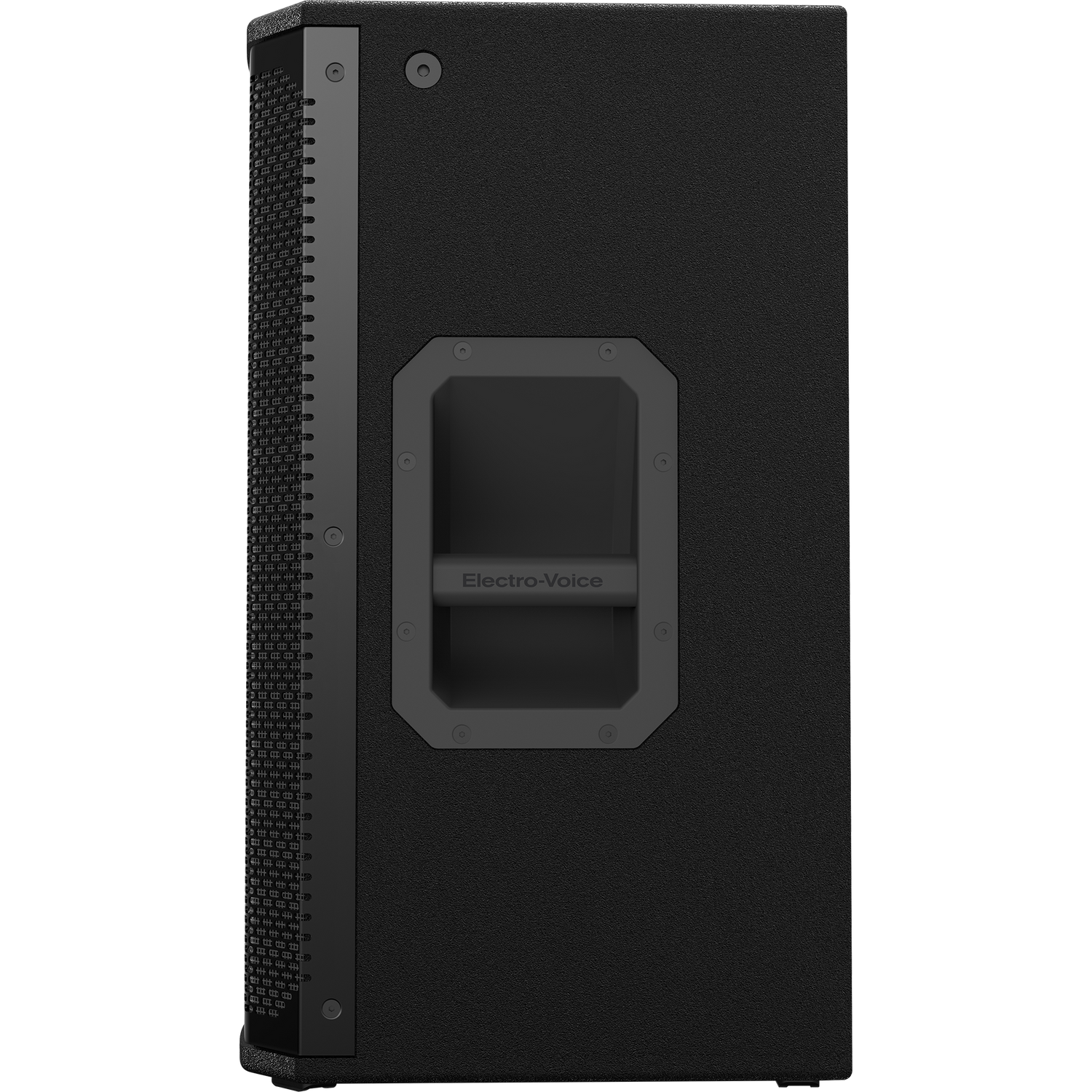

Built-in handles and mounting points
Compact and durable

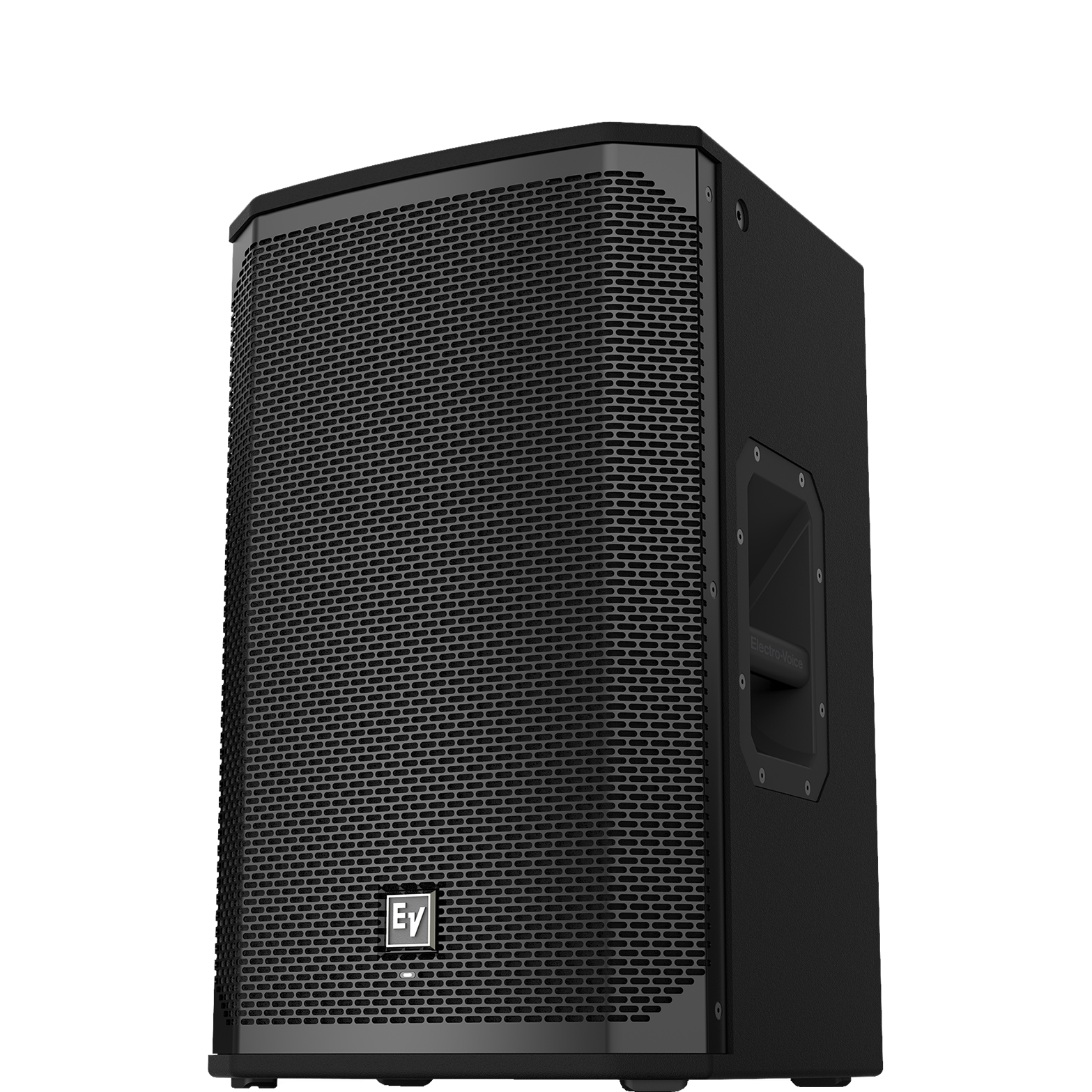

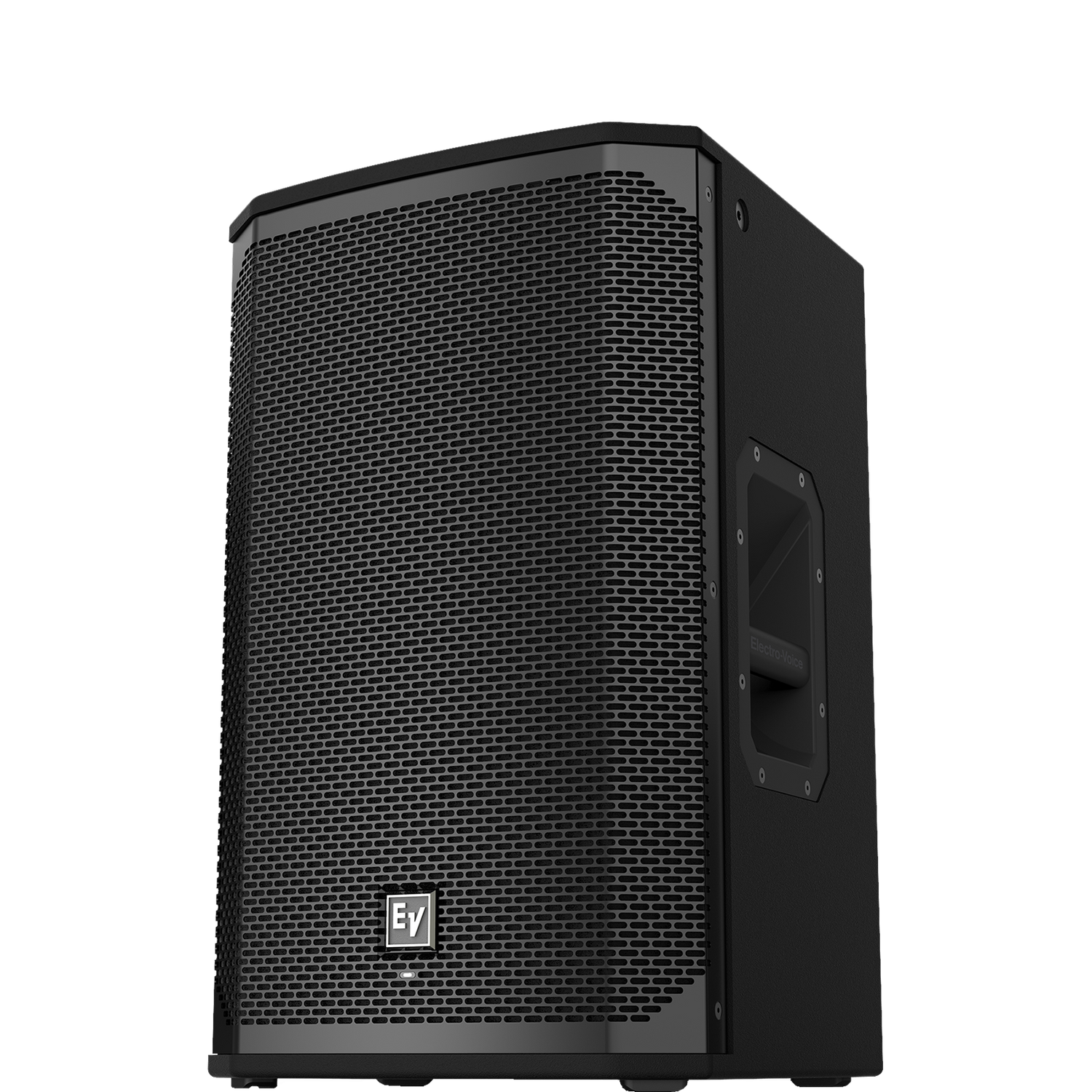

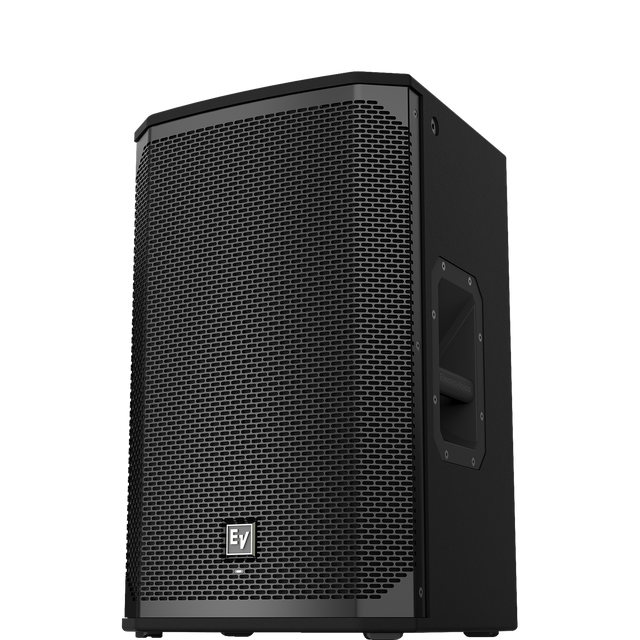

Electro-Voice EKX-12 Passive Speaker

Electro-Voice EKX-12 is a 1400 W passive speaker with built-in handles and mounting points for pole mounting. The loudspeaker has a lightweight construction and a compact wooden enclosure with a durable EVCoat finish.

Signal Synchronized Transducers

Electro-Voice The EKX-12 is designed with the Signal Synchronized Transducers (SST) waveguide system, providing a precise coverage area of 90 x 60 degrees. The speaker can also be used as a 40 degree floor monitor.

High sound pressure level

Electro-Voice The EKX-12 produces sound with a maximum sound pressure level of 131 dB.

Technical specifications

Specifications

Axial Sensitivity (SPL, 1 W @ 1 m)	95 dB
Connector Type	Dual NL4
Coverage (Nominal -6 dB) H	90 °
Crossover Frequency	1.6 k Hz
Enclosure Material	15 mm, plywood with EVCoat
Frequency Response (-10 dB)	55 Hz - 20 k Hz Full Space Measurement
Frequency Response (-3 dB)	82 Hz - 18 k Hz Full Space Measurement
Grill	18 AWG steel with powdercoat
HF Transducer	DH-1M 1-inch titanium compression driver
LF Transducer	EVS-12M 300 mm (12 in)
Maximum SPL	131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Minimum Impedance	7.5 Ω
Nominal Impedance	8 Ω
Power Handling (Continuous / Peak)	350 W/1400 W
Recommended High-Pass Frequency	55 Hz
Shipping Weight	21.4 kg (47.18 lbs)

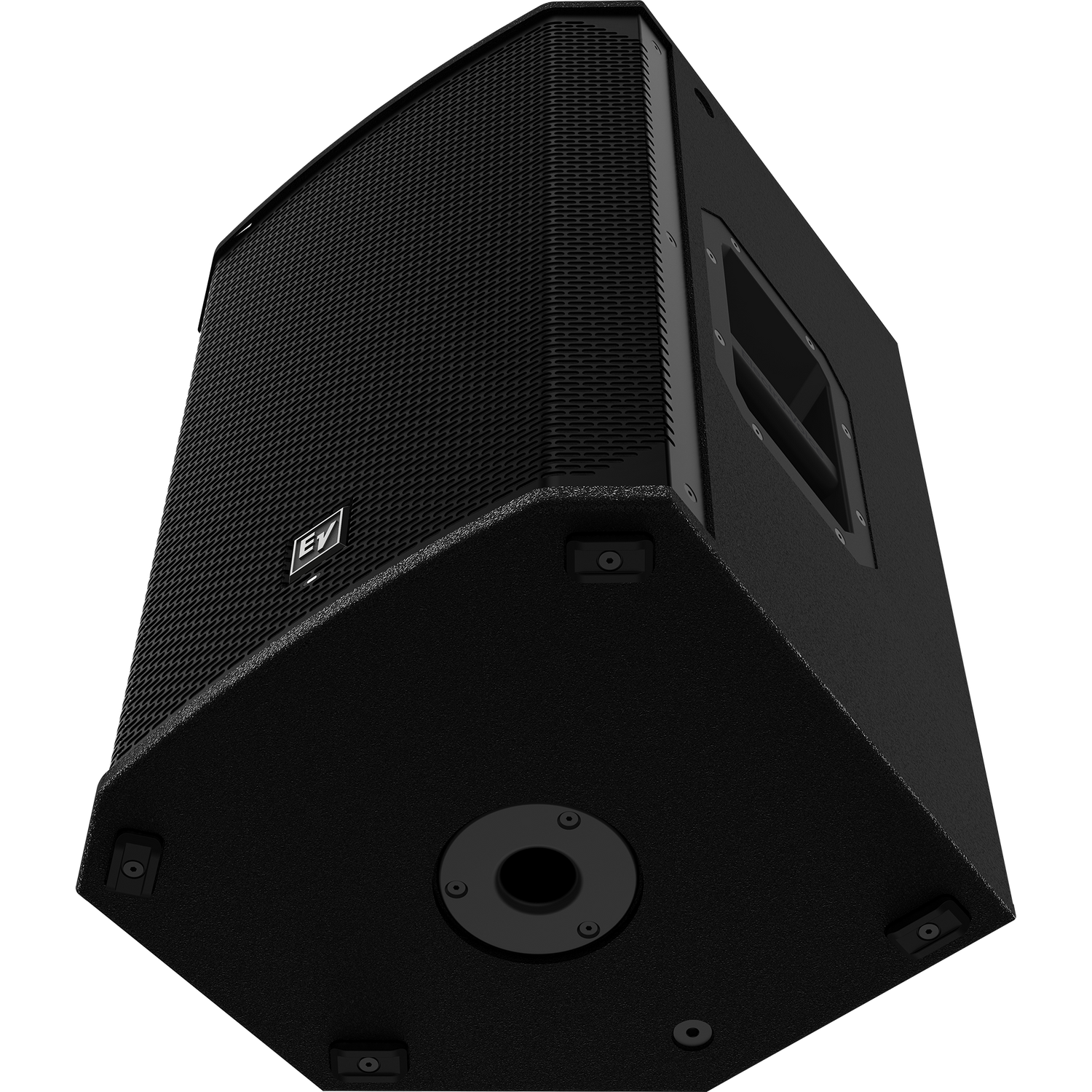

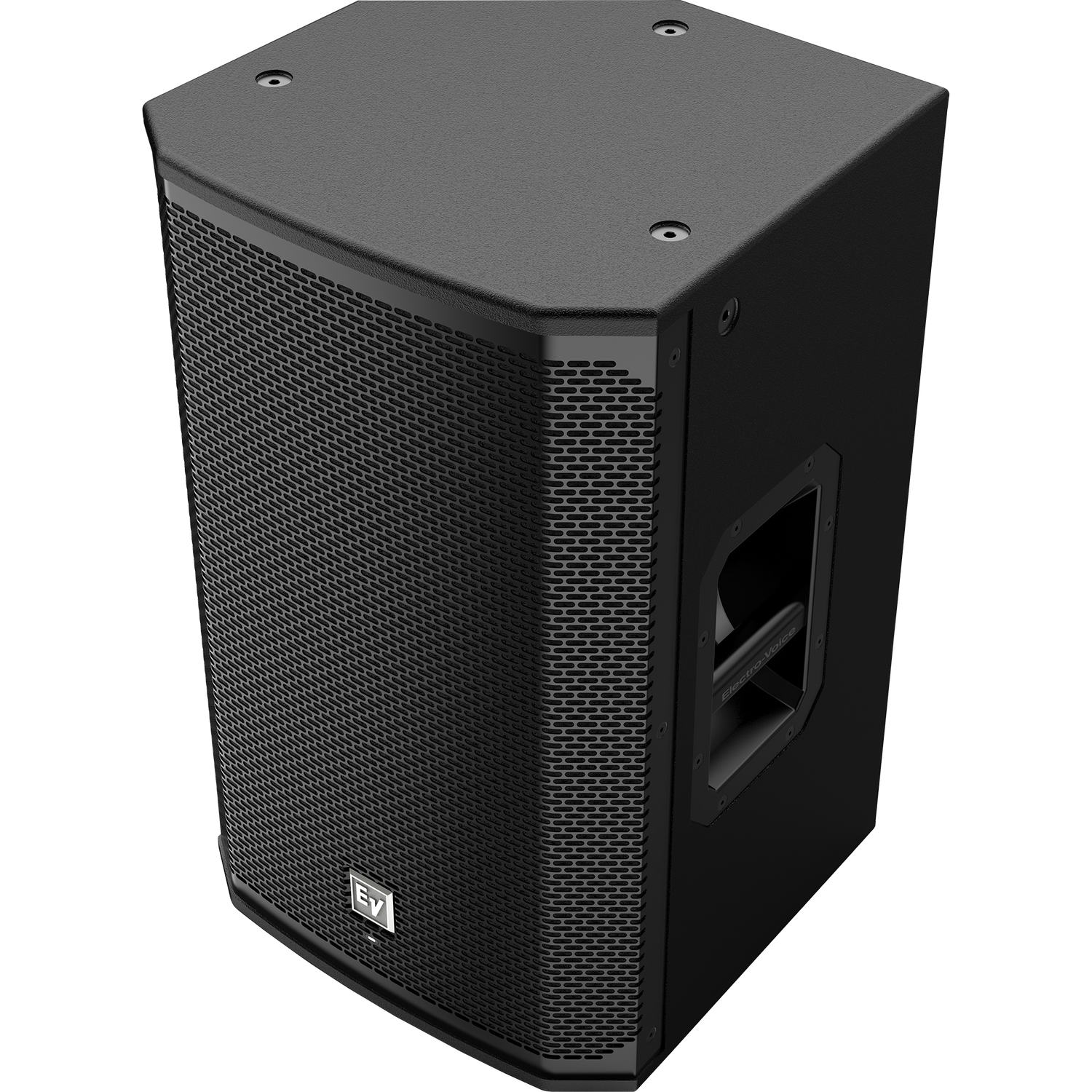

Suspension	(8) M10 threaded mounting points
Height	14RU 607 mm (23.9")
Width	375 mm (14.76")
Depth	356 mm (14.02")
Weight Net	17.4 kg (38.36 lbs)

Brand: Electro-Voice

SKU: EKX-12

EAN: 8717332960606

Weight: 17.4 kg
