Description
Description
- 12" 2-way active speaker
- Class D amplifier
- 400 MHz Sharc DSP
- HiQnet Network Connection
- Built-in LCD screen

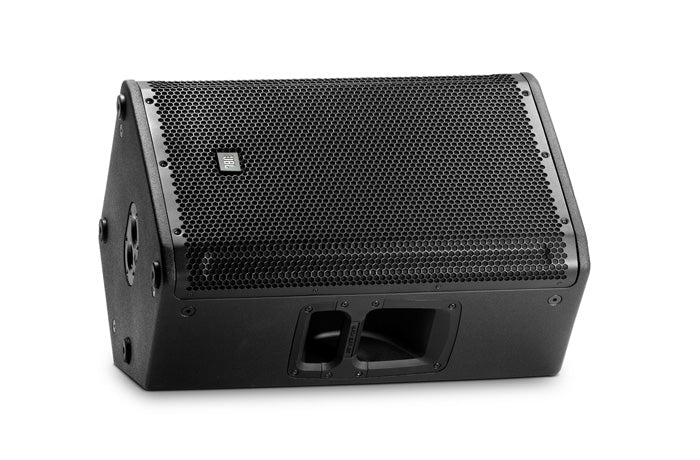

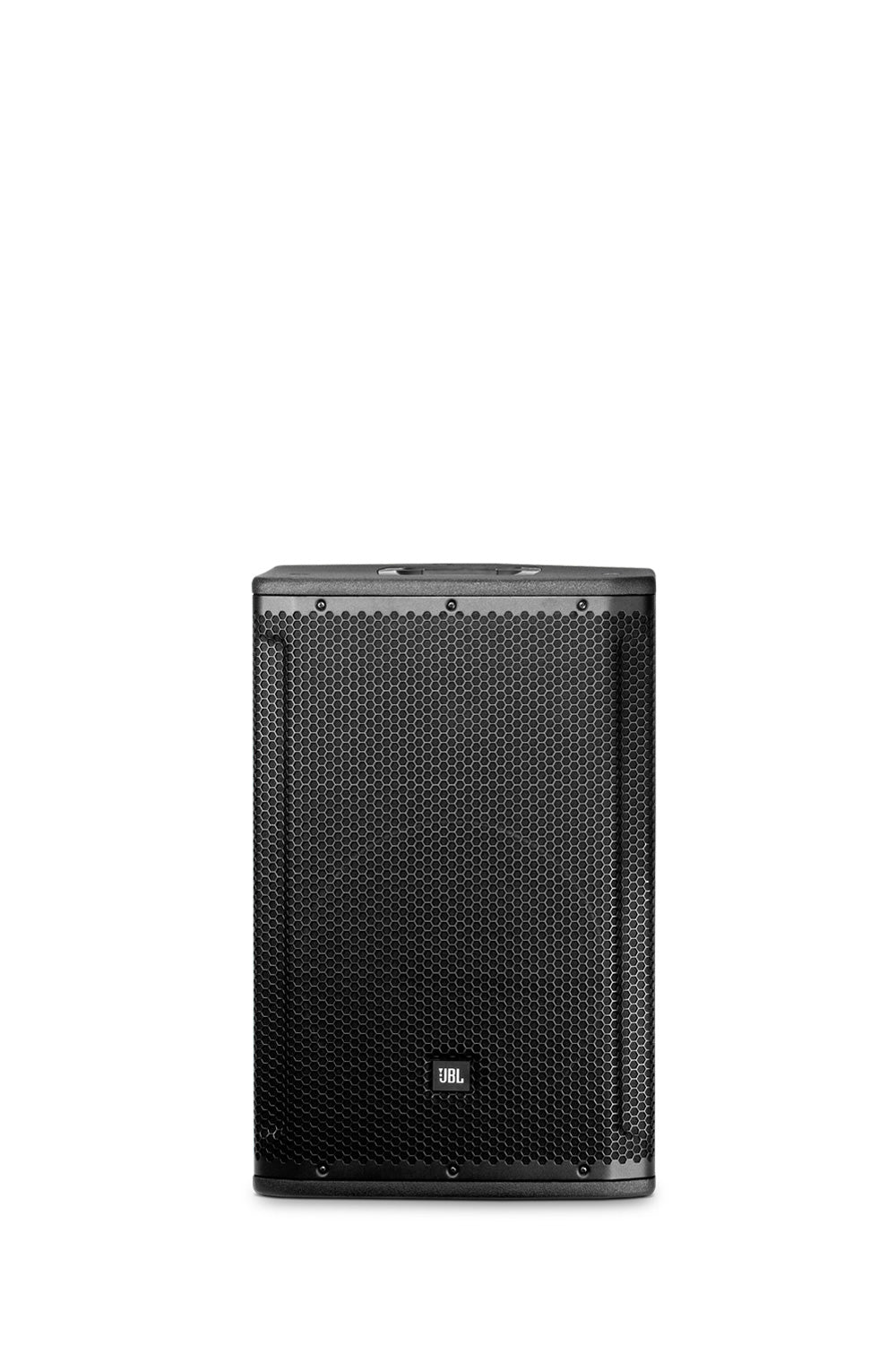

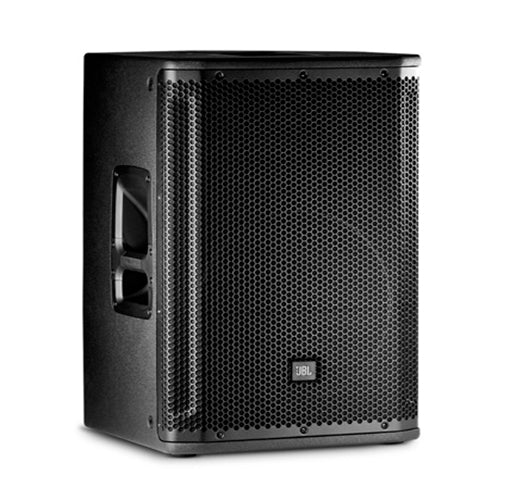

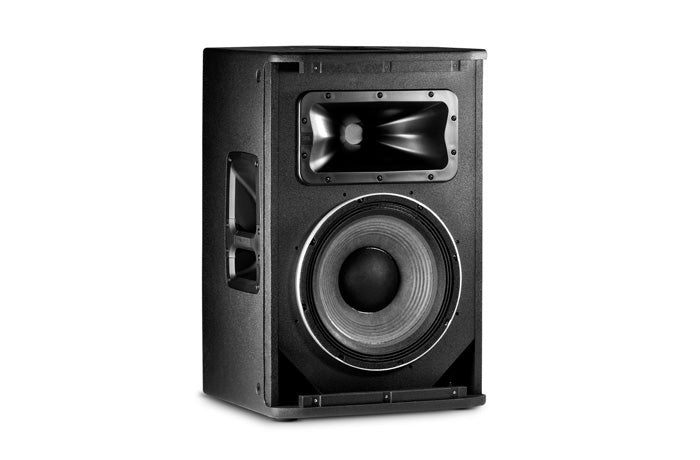

JBL SRX812P Active Speaker
JBL The SRX812P is a 12? 2-way bass reflex active speaker with 2000 W peak, Class D amplifier, 136 dB max. sound level and a frequency response of 48 Hz - 20 kHz.
400 MHz Sharc DSP
JBL The SRX812P features user-friendly technology with 400 MHz Sharc digital signal processing that includes 20 PEQs, signal generators, various inputs and 50 user presets. The speaker also features an LCD screen for quick and easy setup.
HiQnet Network Connection
Using a HiQnet network input, you can connect JBL SRX812P your internet and configure the speaker with tablet. Use applications such as Audio Architect and the HiQnet Motion Control iOS app.
Spécifications
Spécifications
-
Weight (kg)
More specifications
More specifications
Specifications |
Features |
|
|
|
|
|
|
|
|
|
|
Applications |
|
|
|
|
Specifications | |
System Type | Self powered 12", two-way, bass-reflex |
Max SPL Output | 136 dB |
Frequency Range (-10 dB) | 40 Hz - 21 kHz |
Frequency Response (-3 dB) | 48 Hz - 20 kHz |
Coverage Pattern | 90° x 50° |
Amplifier Design | Class D |
Power Rating | 2000 W Peak |
Dimensions | 638 x 415 x 429 (mm) |
Net Weight | 26.4 kg (58 lb) |
