LD Systems SAT 62 G2 Speaker Set 80W RMS 8 Ohm
€292,95
Unit price
/
Not available
Description
Description
- Compact passive speaker designed for fixed installation.
- Includes 6.5" bass unit and 1" tweeter with max. output of 80 Watt RMS 8 Ohm.
- Perfect for monitoring or main system in bar, disco, gym or office.
- Available in black or white and with or without built-in amplifier.
- Wide range of accessories.

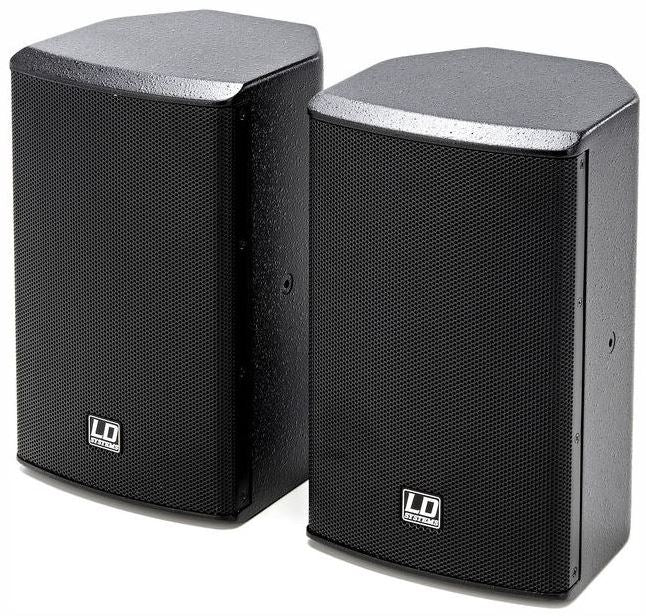

- Set of 2.
LD Systems SAT 62 G2 Speaker Set 80W RMS 8 Ohm

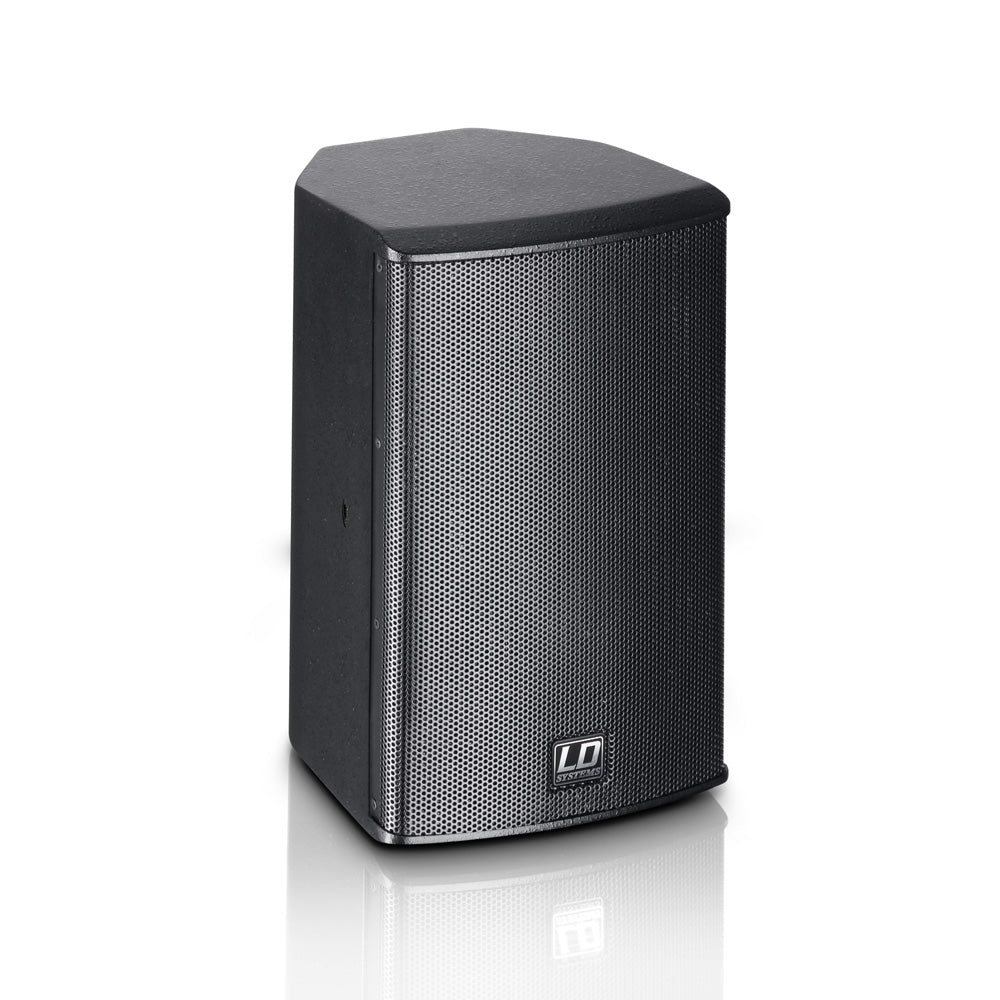

The LD Systems SAT62G2 is an extremely compact, reliable 2-way speaker for numerous installation applications. It blends unobtrusively into practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
The bass-reflex design with a 6.5" custom woofer and a 1? silk dome tweeter with wave guide provides for powerful and sonorous reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB. Thus the SAT62G2 is suitable for full-range operation and as a satellite in conjunction with a subwoofer from the LD installation series. It has a continuous power rating of 80 W. The impedance of 16 ohms permits parallel operation of eight SAT62G2 speakers on 2 ohms.

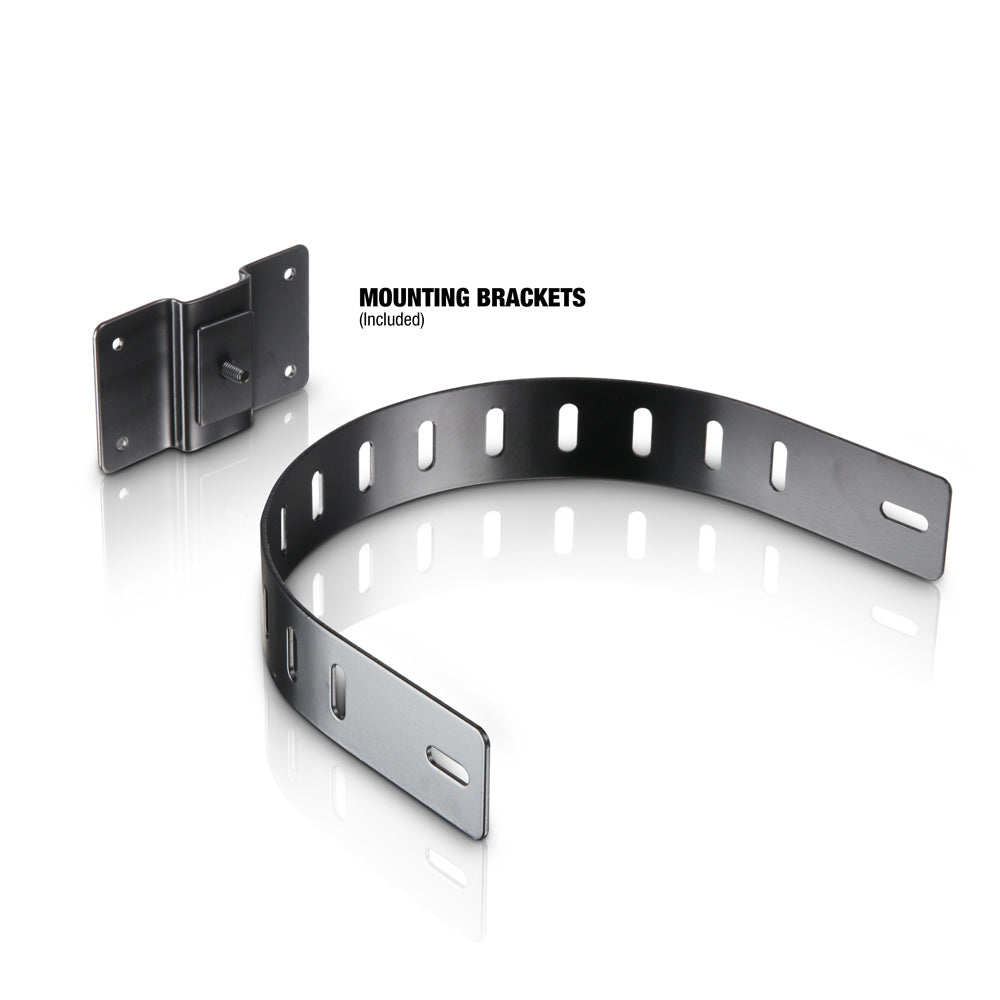

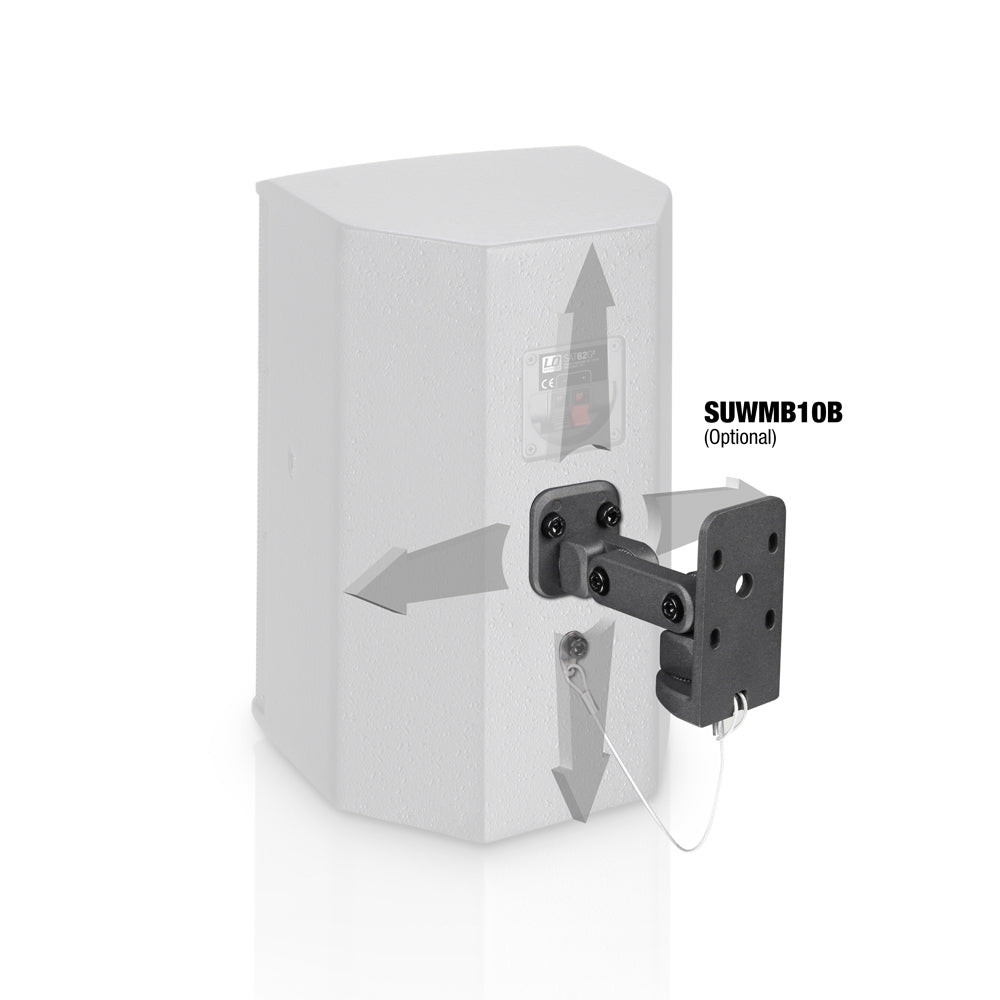

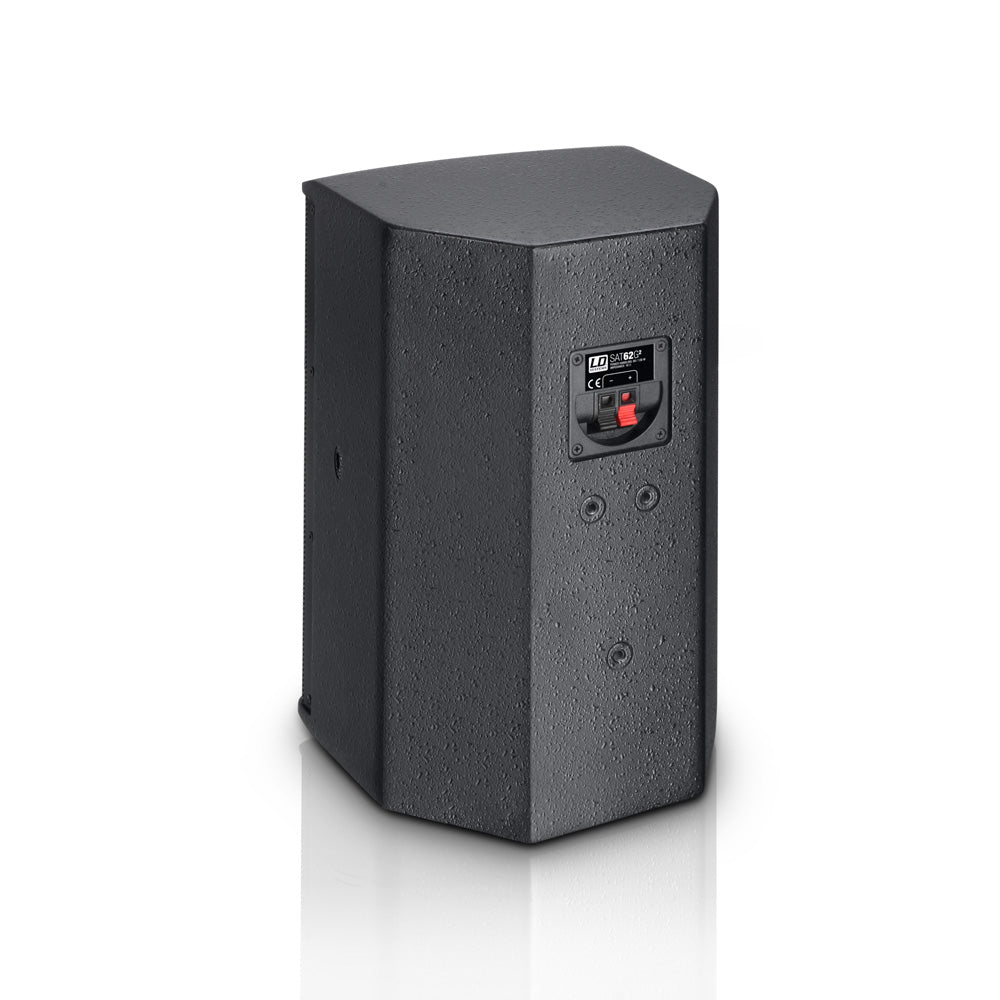

The 12 mm MDF cabinet with a rugged textured coating is available in black and white. The included mounting bracket and M6 rigging points offer extensive possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
Also known as: SAT62 G2, SAT-62 G2, SAT62G2, SAT-62G2
Technical specifications
Technical specifications
| Product number: | LDSAT62G2 |
|---|---|
| Product type: | Installation Monitor |
| Type: | passive |
| Low/mid driver dimensions: | 6,5" |
| Low/mid driver dimensions (mm): | 165mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1" |
| HF driver dimensions (mm): | 25mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| Dispersion (H x V): | 60 x 60 |
| RMS: | 80W |
| Peak power: | 130W |
| Frequency response: | 55 - 20000Hz |
| SPL (1W/1m): | 89dB |
| Max. SPL: | 108dB |
| Impedance: | 16Ohm(s) |
| Protection circuits: | HF Driver |
| Loudspeaker inputs: | 1 |
| Speaker input connections: | Clamp connector |
| Cabinet material: | 12 mm MDF |
| Cabinet / Housing surface: | texture paint |
| Cabinet colour: | black |
| Cabinet construction: | vented |
| Width: | 200mm |
| Height: | 320mm |
| Depth: | 200mm |
| Weight: | 8,2kg |
