LD Systems SAT 62 A G2 White Active Speaker
€256,95
Unit price
/
Not available
Description
Description
- Compact active speaker with built-in 50 Watt amplifier.
- Designed for fixed installation.
- Includes 6.5" bass unit and 1" tweeter with max. output of 50 Watt RMS 8 Ohm.
- Perfect for monitoring or main system in bar, disco, gym or office.
- Available in black or white and with or without built-in amplifier.
- Wide range of accessories.

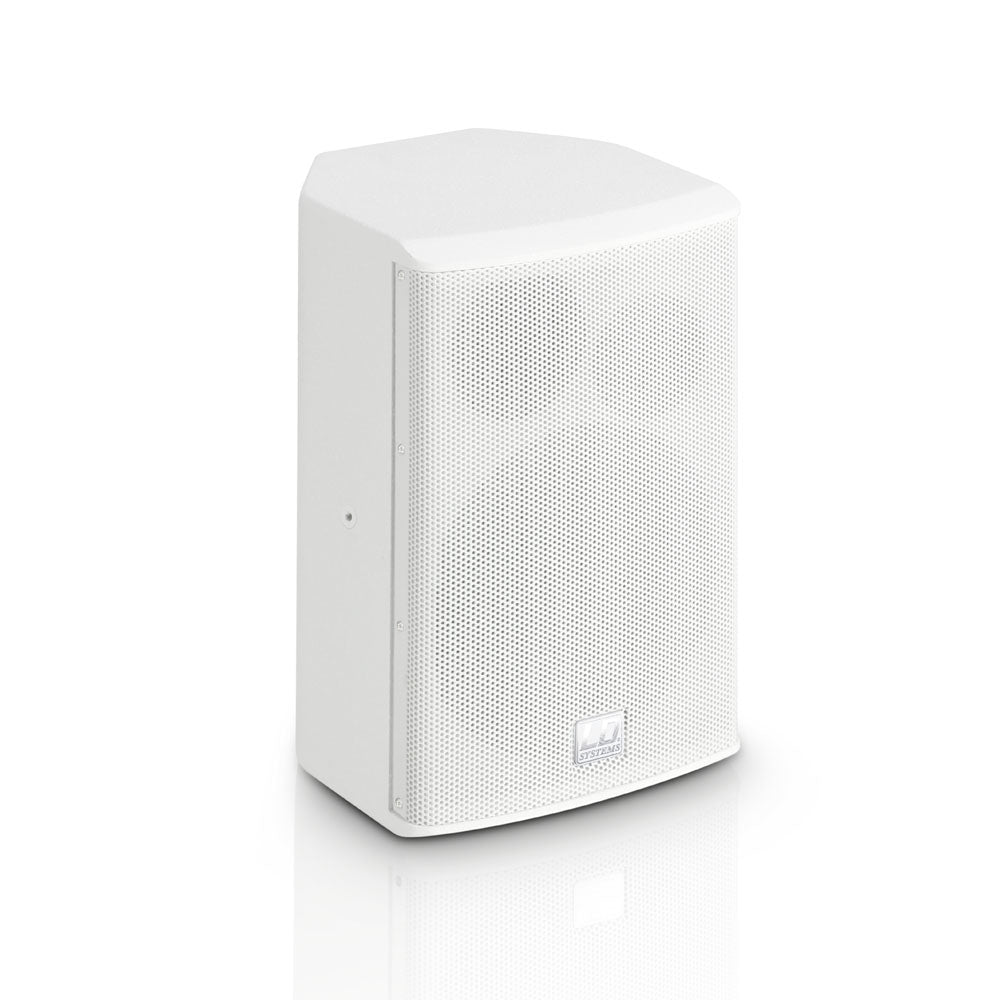

LD Systems SAT 62 A G2 White Active Speaker
The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.

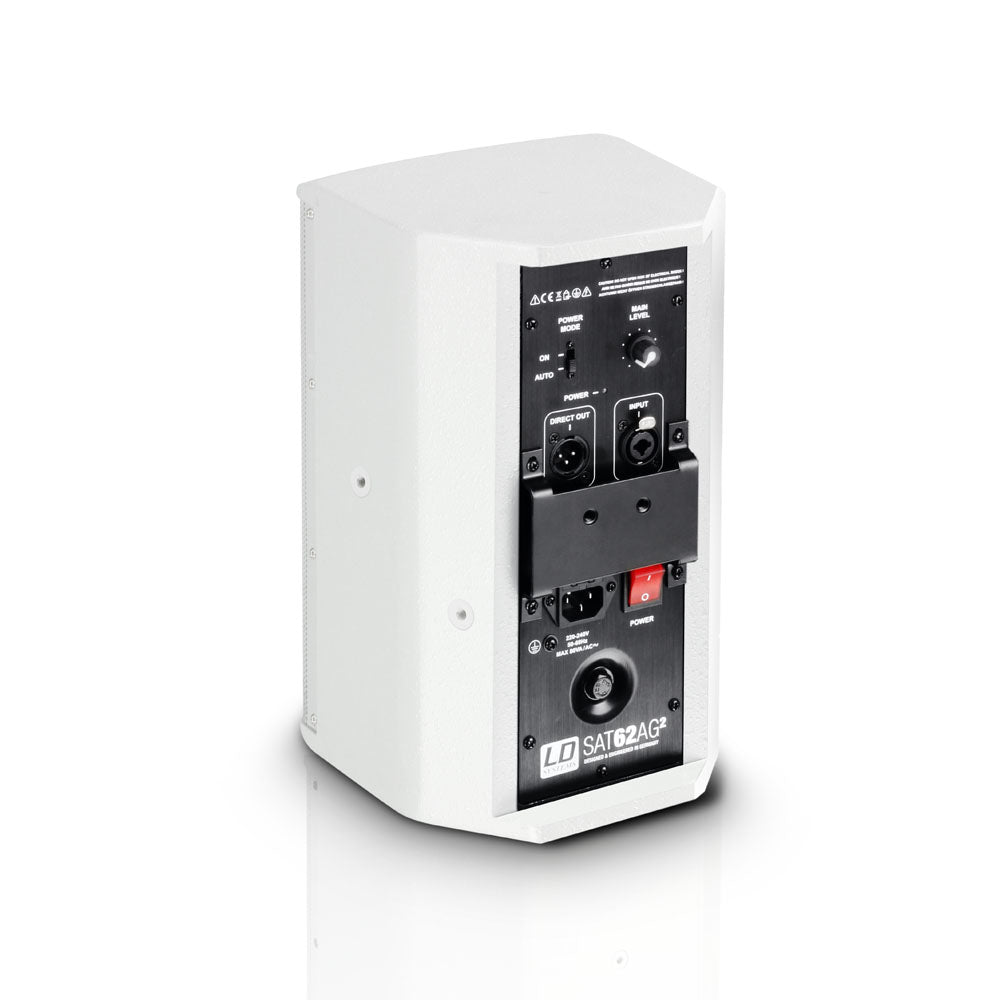

The bass-reflex design is loaded with a 6.5" custom woofer and a 1? silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W continuous power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

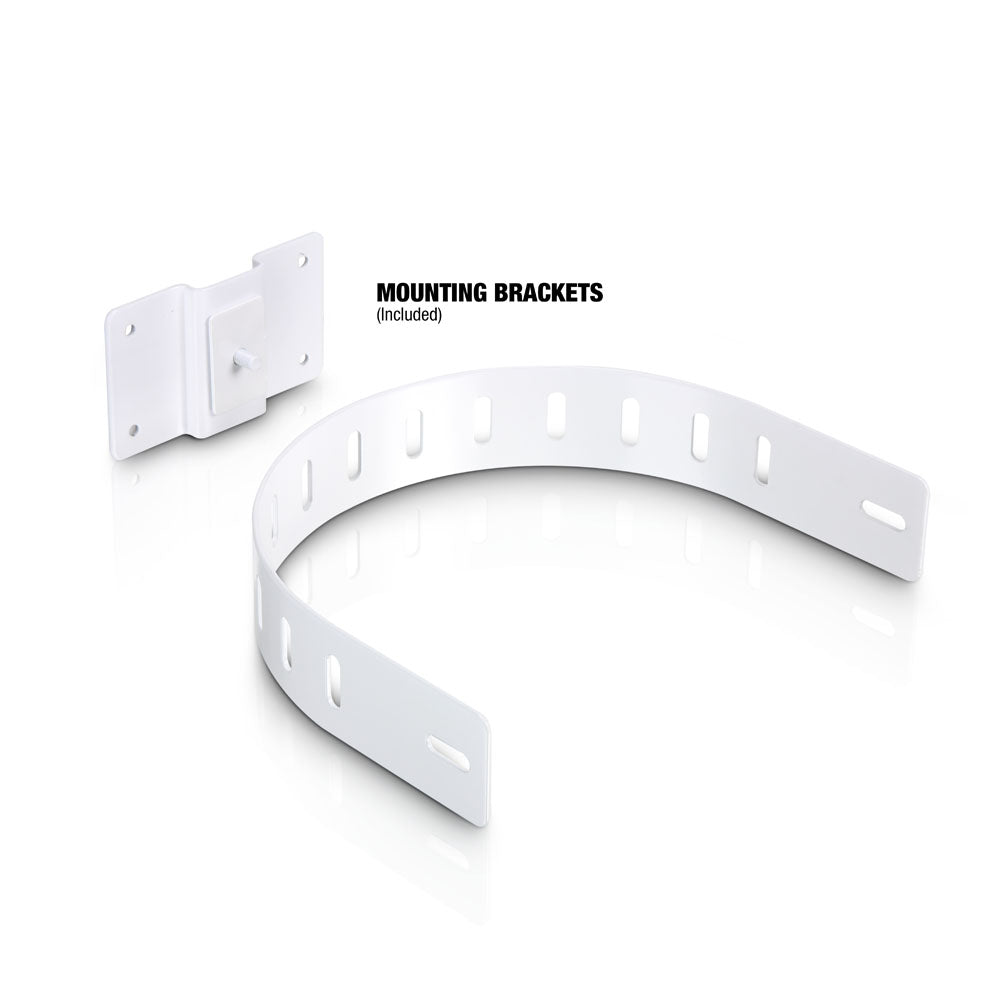

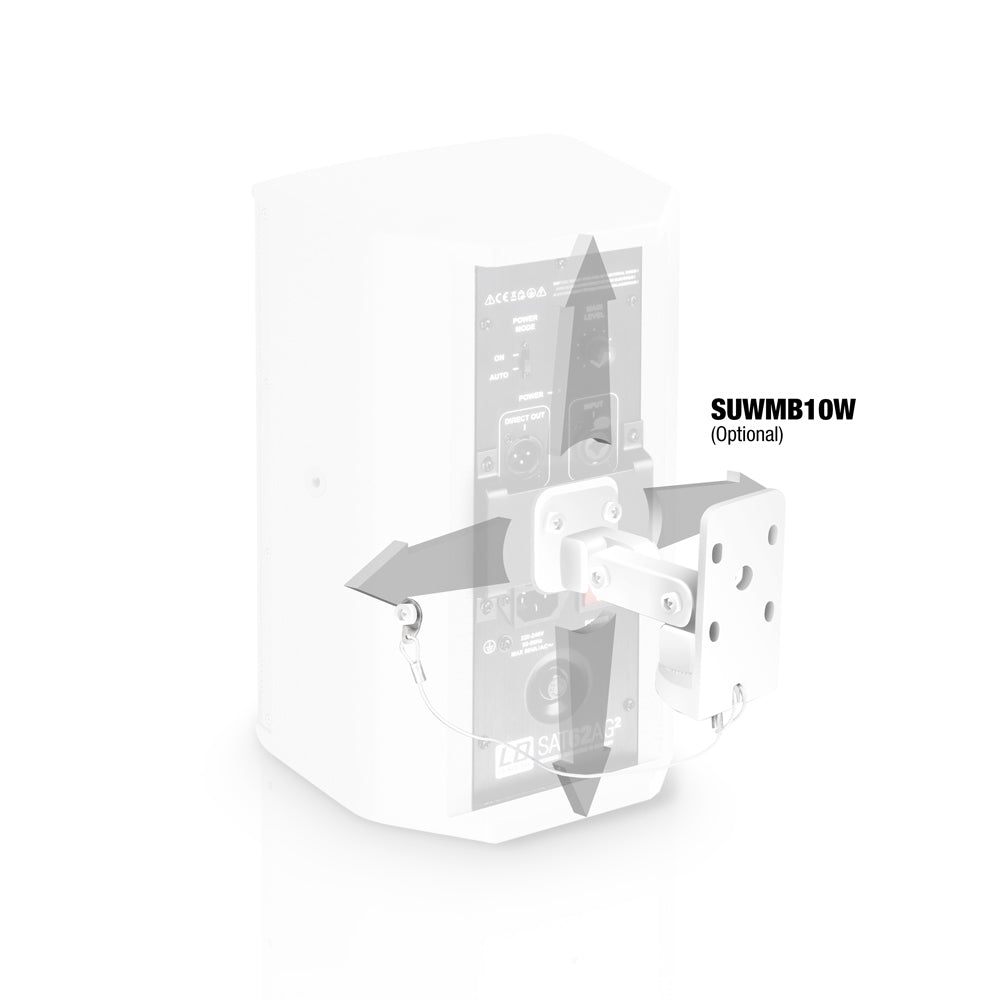

The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
Also known as: SAT62 A G2, SAT-62 A G2, SAT62AG2, SAT-62AG2
Technical specifications
Technical specifications
| Product number: | LDSAT62AG2W |
|---|---|
| Product type: | Installation Monitor |
| Type: | active |
| Low/mid driver dimensions: | 6,5" |
| Low/mid driver dimensions (mm): | 165,1mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1" |
| HF driver dimensions (mm): | 25mm |
| HF driver brand: | Custom-made |
| Power amplifier (Class A): | Class A/B |
| Dispersion (H x V): | 60 x 60 |
| RMS: | 50W |
| Frequency response: | 55 - 20000Hz |
| Max. SPL: | 108dB |
| Protection circuits: | over voltage |
| Controls: | volume control, mains switch (on/off), switchable auto power mode |
| Display: | Power |
| Line input connectors: | XLR, 6.3 mm Jack |
| Line output connectors: | XLR |
| Operating voltage: | transformer, 220 V AC - 240 V AC, 50-60 Hz |
| Cabinet material: | 12 mm MDF |
| Cabinet / Housing surface: | texture paint |
| Cabinet colour: | white |
| Cabinet construction: | vented |
| Width: | 200mm |
| Height: | 320mm |
| Depth: | 200mm |
| Weight: | 5,25kg |
| Features: | wall bracket |
Matching accessories:
