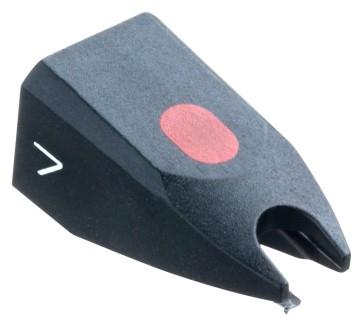

Ortofon 7 Stylus
€67,00
€70,00
Prix unitaire
/
Non disponible
Description
Description
This spare Stylus fits Ortofon TM 7 Cartridge
Elliptical Styli like this are more expensive than spherical ones. They have a larger contact surface, which creates less pressure on the plates, which are not worn in the same way as with spherical Styli.
Not suitable for scratching
Elliptical Styli like this are more expensive than spherical ones. They have a larger contact surface, which creates less pressure on the plates, which are not worn in the same way as with spherical Styli.
Not suitable for scratching
Ortofon 7 Stylus
For Ortofon TM 7 Cartridge
If your pickup Stylus is wearing out, you don't need to buy a whole new pickup.
You can simply replace the Stylus tip itself by purchasing this replacement Stylus.
It's quick and easy to replace and fit the replacement Stylus, giving your pickup a new lease of life and a boost to sound quality.
Spécifications
Spécifications
-
Weight (kg)
More specifications
More specifications
| Frequency range | 20-20.000 Hz |
| Frequency response | 20-18.000 Hz + 2dB |
| Tracking ability at 315Hz at recommended tracking force *) | 60 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.5 mg |
| Tracking force range | 1.0-1.5 g (10-15 mN) |
| Tracking force, recommended | 1.25 g (12.5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | TM 7U |
| OM Series Stylus protection guard | Stylus protection guard_pair |
Brand: Ortofon
SKU: ORT-0020731
