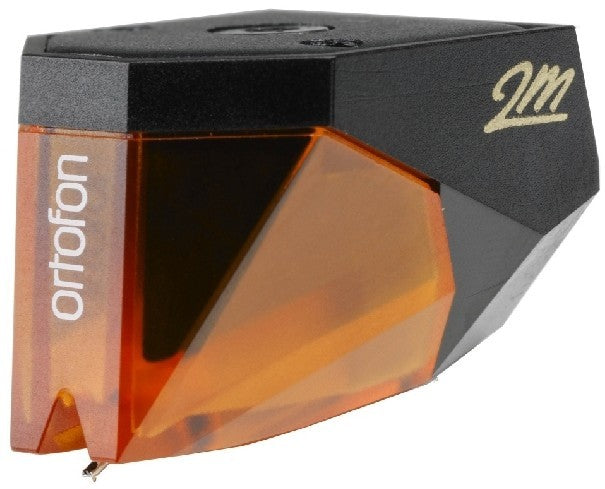

Ortofon 2M Bronze Pick-up

• 2M Bronze has a Nude Fine Line diamond Stylus, which is particularly suitable for demanding applications.

• The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners.

• 2M Bronze is made of a revolutionary material that ensures high rigidity while eliminating unwanted resonances.

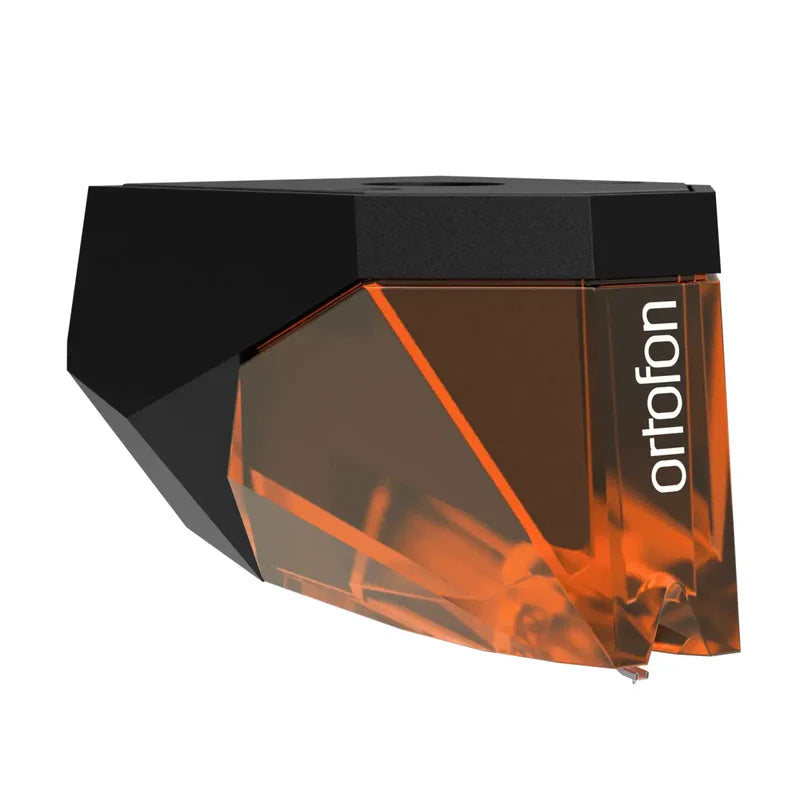

Ortofon 2M Bronze pick-up

2M are designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound. We have optimized the design for ease of mounting the cartridge, weight and size to fit the most common turntables at the market today.

The name 2M was selected among several ideas. We wanted a modern name that would be easy to pronounce and to remember, and therefore an alpha numerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.

The 2M Bronze features a nude Fine Line diamond stylus, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information, making it a must for discerning listeners. Additionally, its larger footprint ensures reduced distortion and record wear.

The cartridge body used for the 2M Bronze is manufactured from a newly-developed Lexan DMX Piano Black, a revolutionary material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

FEATURES:

? Nude Fine Line diamond
? Silver plated copper wire
? Reduced distortion and record wear
? Special upgraded engine
? Cartridge body manufactred from Noryl plastic/glass combination, ensures high rigidity while eliminating unwanted resonances
? For demanding applications

- Output voltage at 1000 Hz, 5cm/sec.: 5 mV
- Channel balance at 1 kHz: 1 dB
- Channel separation at 1 kHz: 26 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at - 3dB: 20-29.000 Hz
- Frequency response: 20-20.000 Hz + 2 / - 0 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 22 µm/mN
- Stylus type: Nude Fine Line
- Stylus tip radius: r/R 8/40 µm
- Tracking force range: 1.4-1.7g (14-17 mN)
- Tracking force, recommended: 1.5 g (15 mN)
- Tracking angle: 20º
- Internal impedance, DC resistance: 1.2 kOhm
- Internal inductance: 630 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF-

Cartridge color, body/stylus: Black/Bronze
- Cartridge weight: 7.2 g
- Replacement stylus unit: 2M Bronze (interchangeable with 2M Black)
