AKG C518M Miniature Instrument Microphone (XLR)

AKG C518 M Professional Miniature Clamp-On Condenser Microphone for drums and percussion on stage and in the studio

• The C518 professional miniature clamp-on microphone is the ultimate tool for recording of drums and percussion.
• Its cardioid polar pattern rejects overspill from nearby instruments.

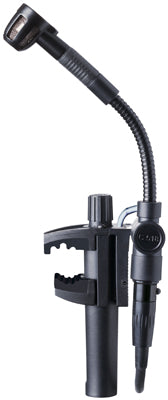

• A continuously adjustable vise-type clamp makes it easy to fix the microphone securely on the rim of drums or percussion instruments.
• A special snap-on stabilizer keeps the gooseneck in a defined position.
• The MPAV from C518 M features an integrated, switchable bass cut for adjusting the microphone?s frequency response.

• Cardioid polar pattern rejects overspill from nearby instruments
• Full-metal housing with shock mount protects the precious capsule from hard beats
• Integrated mounting clamp for safe fit on a wide variety of instruments
• Included gooseneck holder always keeps the microphone in optimum position
• Detachable microphone cable easy to install and service

GENERAL

Audio Frequency bandwidth	60 to 20000 Hz
Sensitivity	5 mV/Pa
Equivalent Noise Level	31 dB-A
Signal to Noise	63 dB-A
Electrical Impedance	200 Ohms
Recommended Load Impedance	2000 Ohms
Audio Frequency bandwidth	60 to 20000 Hz
Sensitivity	5 mV/Pa
Equivalent Noise Level	31 dB-A
Signal to Noise	63 dB-A
Electrical Impedance	200 Ohms
Recommended Load Impedance	2000 Ohms

POLAR PATTERNS

Polar Pattern	cardioid
Number	1
Polar Pattern	cardioid
Number	1

POWERING INTERFACE

Voltage	9 to 52 V
Current	2 mA
Voltage	9 to 52 V
Current	2 mA

AUDIO OUTPUT

Type	XLR
Gender	Female
Contacts	3-pin

DESIGN

Body	metal
Finish	matte black

DIMENSIONS / WEIGHT

Net Weight	220 g
Width	47 mm
Height	200 mm
